RUD PP-VIP Powerpoint Direct VIP Chain Connection, UNC Thread
Super easy to rotate and always in the right direction, RUD's PP-VIP Powerpoint Chain Connection (UNC Thread) is available in working load limits from 2.5t to 5t.
This universal and on-mix up clevis connection is suitable for chains, hooks, and eyes, with a double ball bearing being optimal for turning and flipping operations under full load (NOTE: not suitable for permanent turning under load).
This lifting pint pivots 360° and features a large distance between the bolt-on surface and load to avoid any damage.
Tested and certified by DGUV, the easy single bolt installation makes the PP-VIP a must.
Furthermore, for easy identification, each unit is clearly marked with the minimum WLL for all loading directions.
|

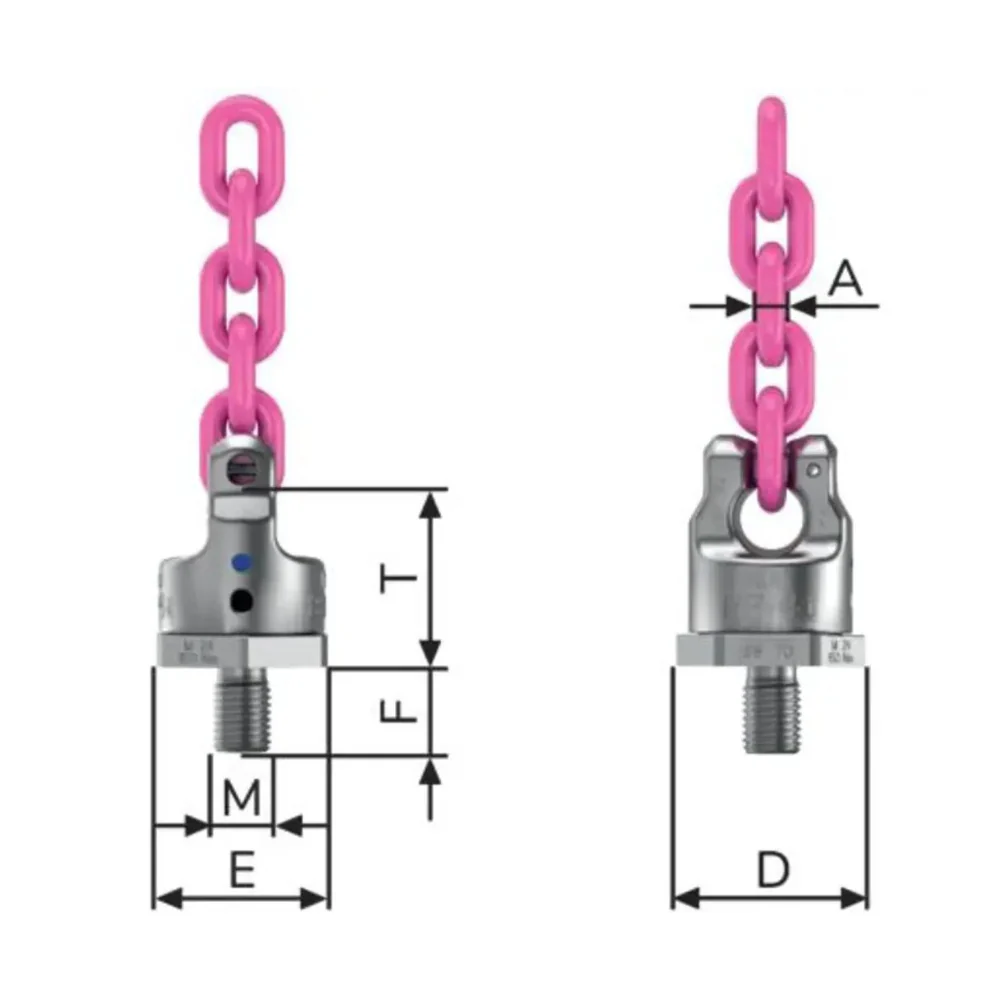

SKU |
WLL (tons) |
A (mm) |
D (mm) |
E (mm) |
F (mm) |
M |
Pitch T (mm) |
|
8600573 |
2.5 |
8 |
61 |
55 |
30 |
G 1/2" |
61 |
|
8600574 |
4 |
10 |
78 |
70 |
36 |
1"-8UNC |
77 |
|
8600575 |
5 |
13 |
95 |
85 |
45 |
1 1/4"-7UNC |
93 |
Original: $380.00
-65%$380.00
$133.00
Description
Super easy to rotate and always in the right direction, RUD's PP-VIP Powerpoint Chain Connection (UNC Thread) is available in working load limits from 2.5t to 5t.
This universal and on-mix up clevis connection is suitable for chains, hooks, and eyes, with a double ball bearing being optimal for turning and flipping operations under full load (NOTE: not suitable for permanent turning under load).
This lifting pint pivots 360° and features a large distance between the bolt-on surface and load to avoid any damage.
Tested and certified by DGUV, the easy single bolt installation makes the PP-VIP a must.
Furthermore, for easy identification, each unit is clearly marked with the minimum WLL for all loading directions.
|
