RUD SO-PP-VIP, Metric Thread with Variable Length
Easy to rotate and always facing the right direction, RUD's SO-PP-VIP Chain Connection, Metric Thread with Variable Length, comes in working load limits from 41320lbs - 7700lbs.
A universal design suitable for chains, hooks, and eyes, the double ball bearing offers smooth turning and rotating operations, rotating 360° and pivoting 230°.
A low kinking possibility is also achieved thanks to the cardan joint.
|

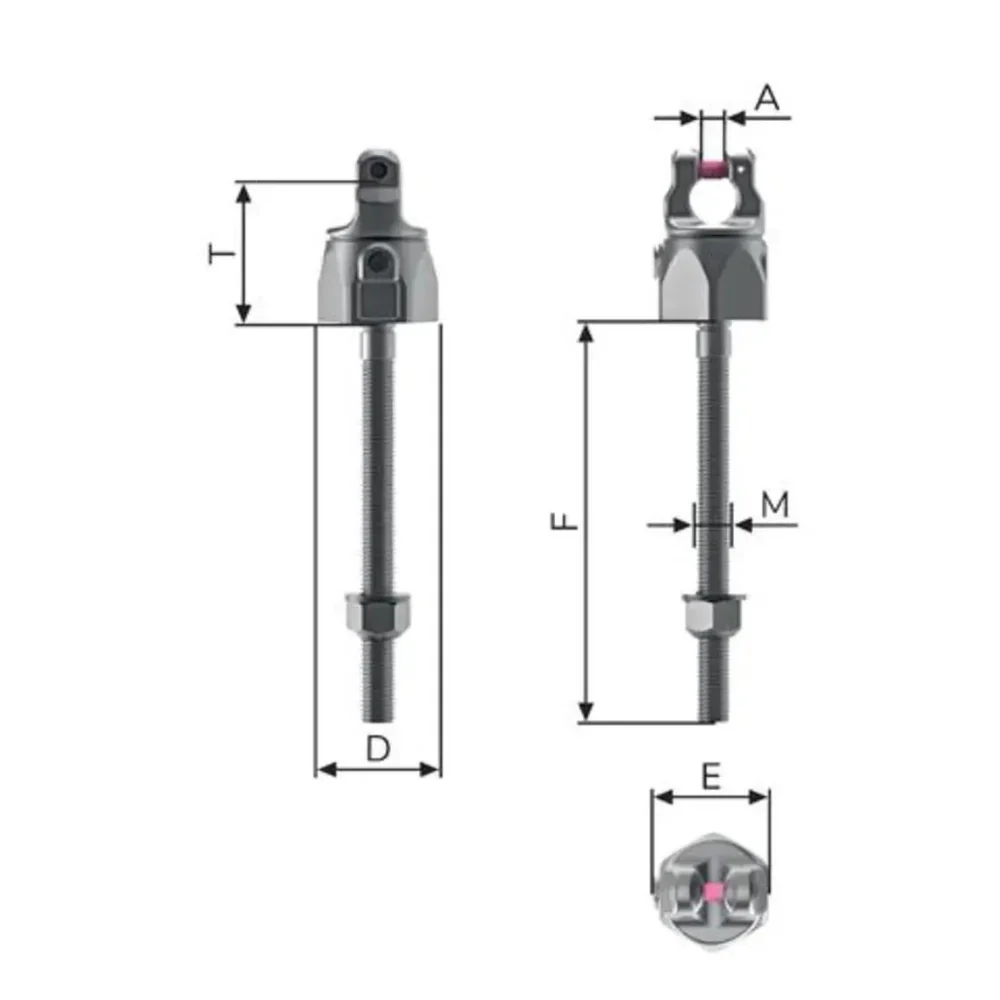

SKU |
WLL (lbs) |
A (mm) |
D (mm) |
E (mm) |
F (mm) |
F Max (mm) |
F Min (mm) |
M |
T (mm) |
|
8600320 |
1320 |
4 |
42 |
36 |
0 |
149 |
40 |
1/2"-13UNC |
47 |
|
8600326 |
2200 |
6 |
48 |
41 |
0 |
65 |
14 |
M14x1,5 |
58 |
|
8600321 |
2860 |
6 |
48 |
41 |
0 |
70 |
16 |
M16x1,5 |
58 |
|
8600322 |
4400 |
8 |
62 |
55 |
33 |
222 |
56 |
3/4"-10UNC |
73 |
|
8600323 |
7700 |
10 |
81 |
70 |
41 |
74 |
25 |
1"-8UNC |
94 |
Original: $337.00
-65%$337.00
$117.95
Description
Easy to rotate and always facing the right direction, RUD's SO-PP-VIP Chain Connection, Metric Thread with Variable Length, comes in working load limits from 41320lbs - 7700lbs.
A universal design suitable for chains, hooks, and eyes, the double ball bearing offers smooth turning and rotating operations, rotating 360° and pivoting 230°.
A low kinking possibility is also achieved thanks to the cardan joint.
|
SKU |
WLL (lbs) |
A (mm) |
D (mm) |
E (mm) |
F (mm) |
F Max (mm) |
F Min (mm) |
M |
T (mm) |
|
8600320 |
1320 |
4 |
42 |
36 |
0 |
149 |
40 |
1/2"-13UNC |
47 |
|
8600326 |
2200 |
6 |
48 |
41 |
0 |
65 |
14 |
M14x1,5 |
58 |
|
8600321 |
2860 |
6 |
48 |
41 |
0 |
70 |
16 |
M16x1,5 |
58 |
|
8600322 |
4400 |
8 |
62 |
55 |
33 |
222 |
56 |
3/4"-10UNC |
73 |
|
8600323 |
7700 |
10 |
81 |
70 |
41 |
74 |
25 |
1"-8UNC |
94 |
