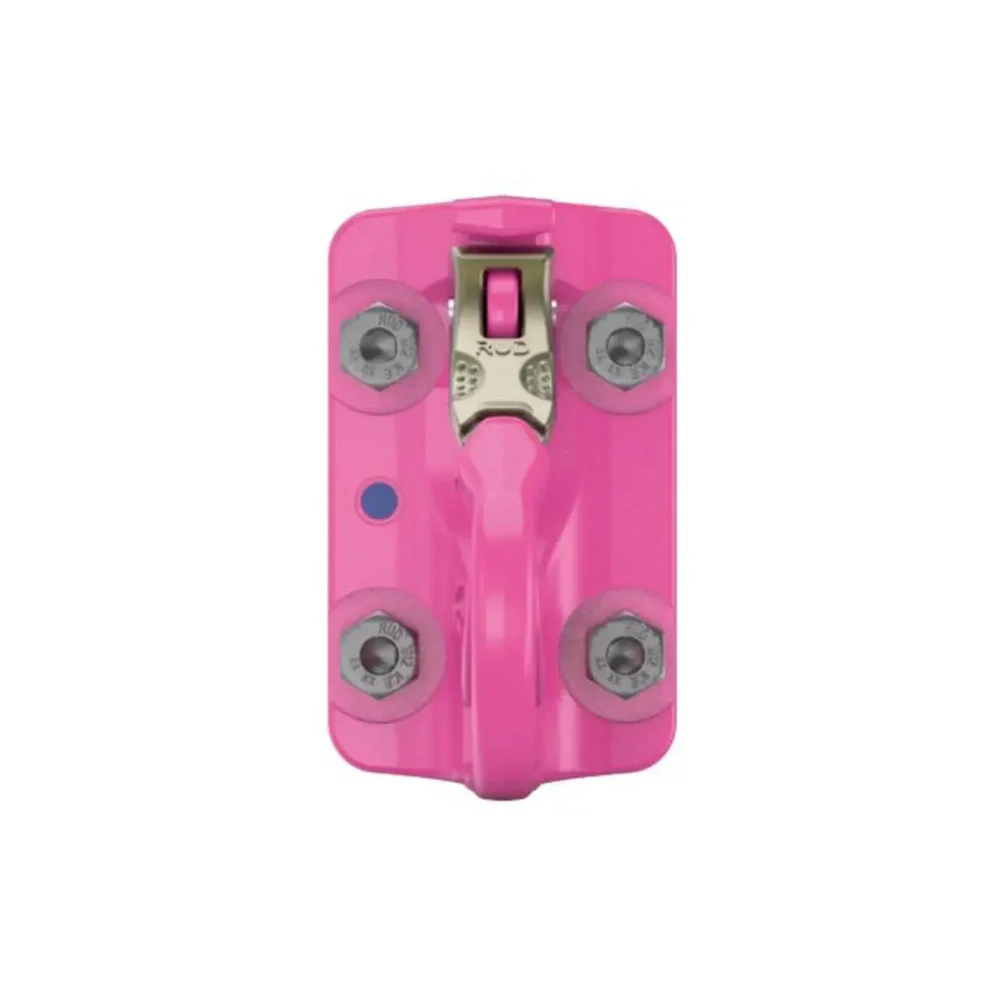

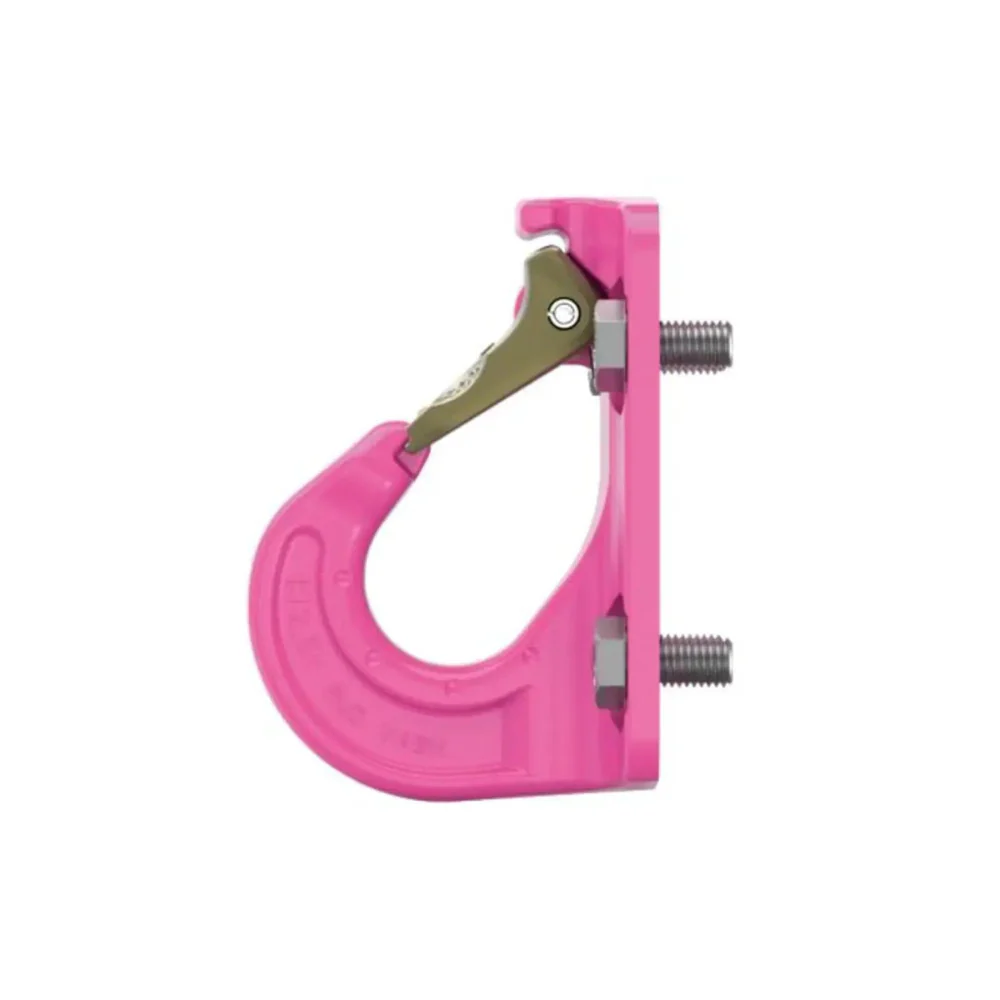

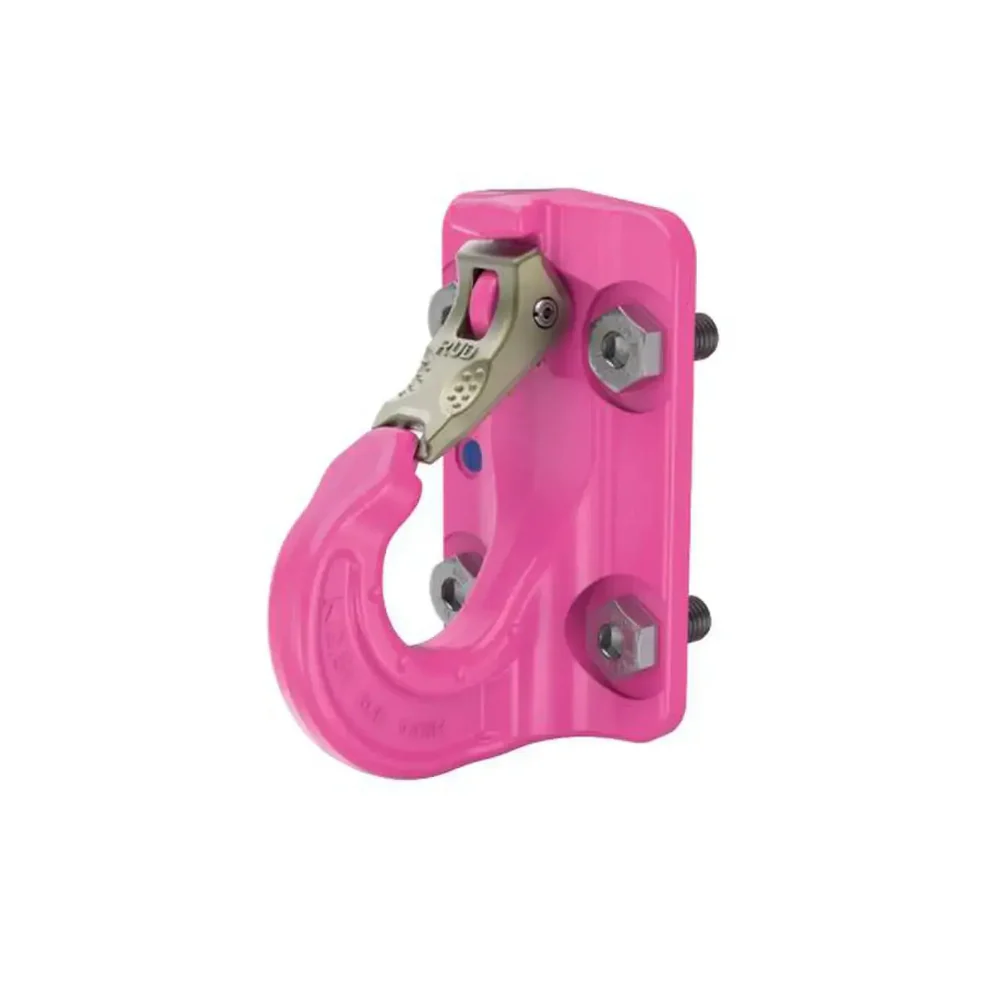

RUD VABH-B Excavator Hook

RUD's VABH-B Excavator Hook has been designed to cater for all lifting needs - from wire rope slings and round slings, to use as a lifting point on cross bars and beams.

Available in working load limits from 1.5t to 6.7t, the VABH-B Boltable Hook features a robust forged safety latch for optimal security. Additionally, the ICE-Bolts are manufactured from patented steel. The improved toughness of the VABH-B range provides higher bending strengths and lower wear occurrence.

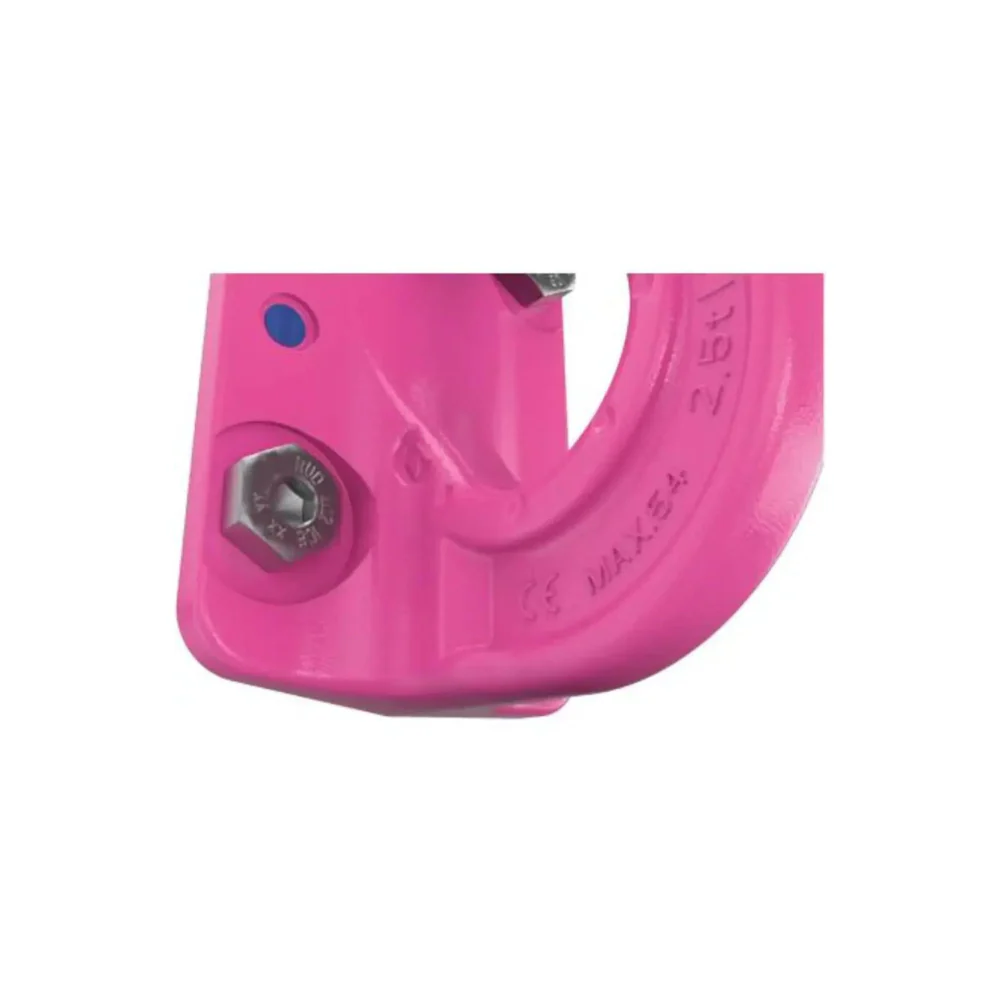

General wear and tear is made easily identifiable via the patented wear marking, further improving safety.

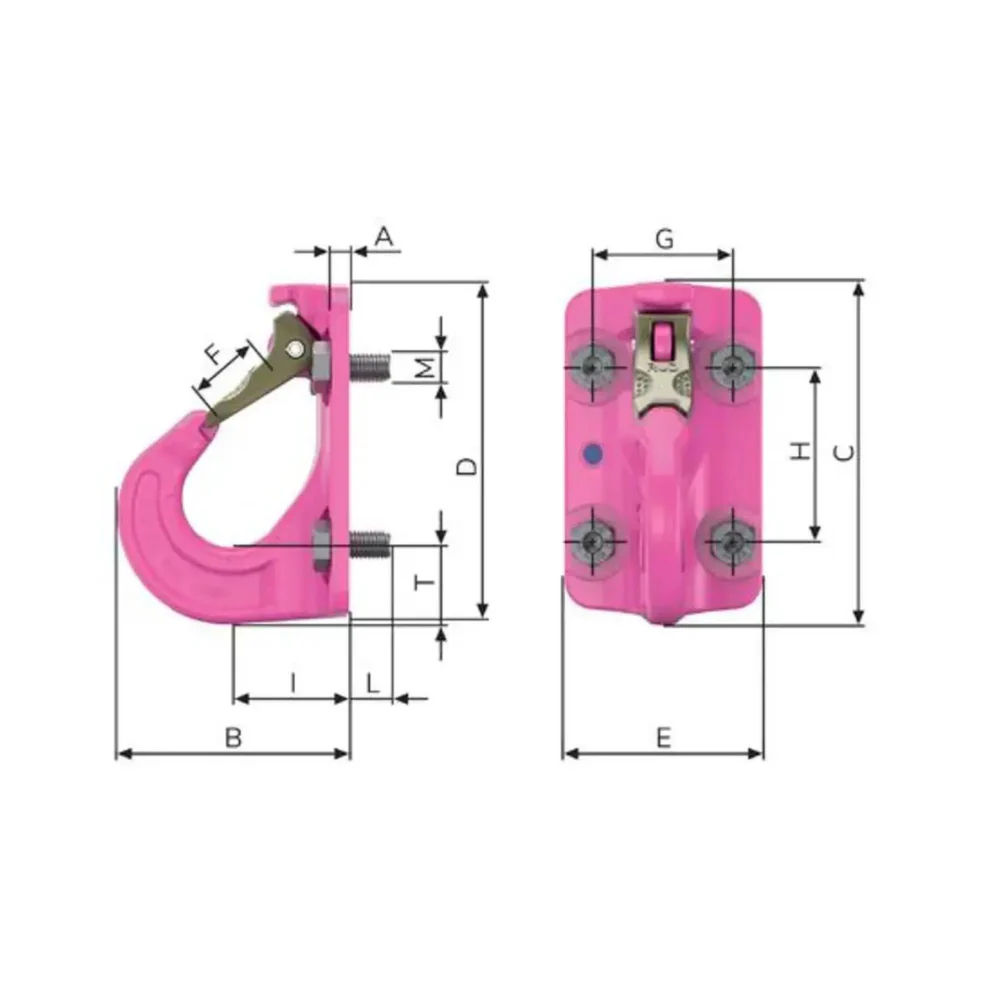

SKU	WLL (lbs)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	I (mm)	L (mm)	M	Pitch T (mm)
7991205	3300	7.5	76	115	111	70	26	48	60	38	13.5	M10	26
7991206	5500	8.5	98	148	143	85	31.5	60	75	49	17.5	M12	33
7991207	8820	11	119	168	164	104	35	70	90	59	24.5	M16	40
8502238	14770	13	147	205	200	120	40	85	110	70	28	M20	51
