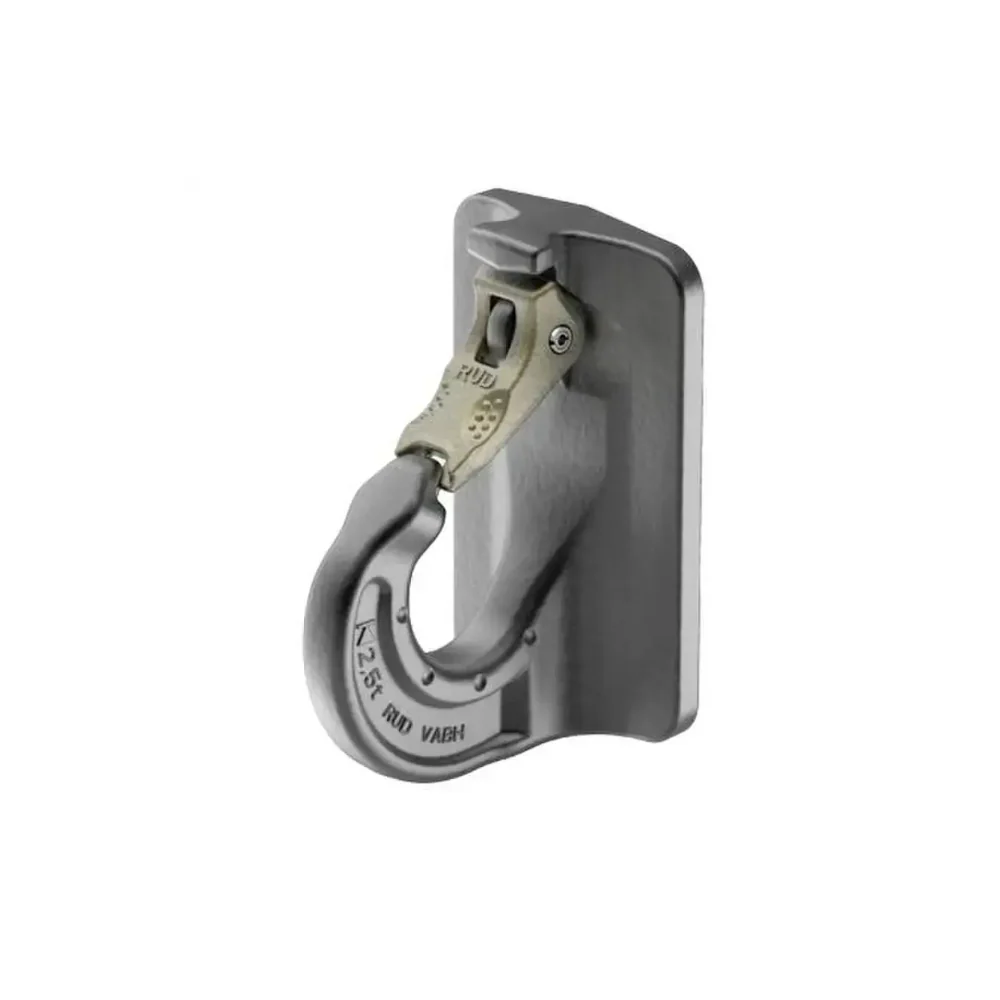

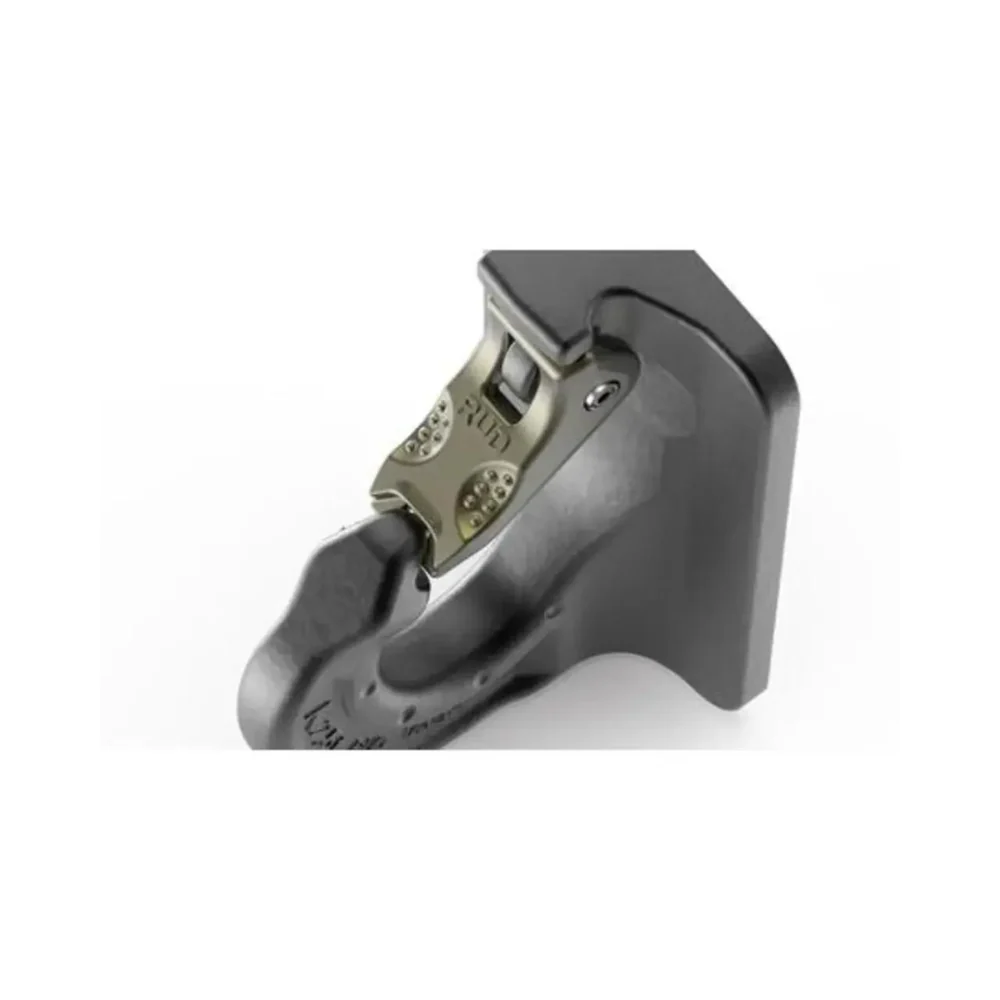

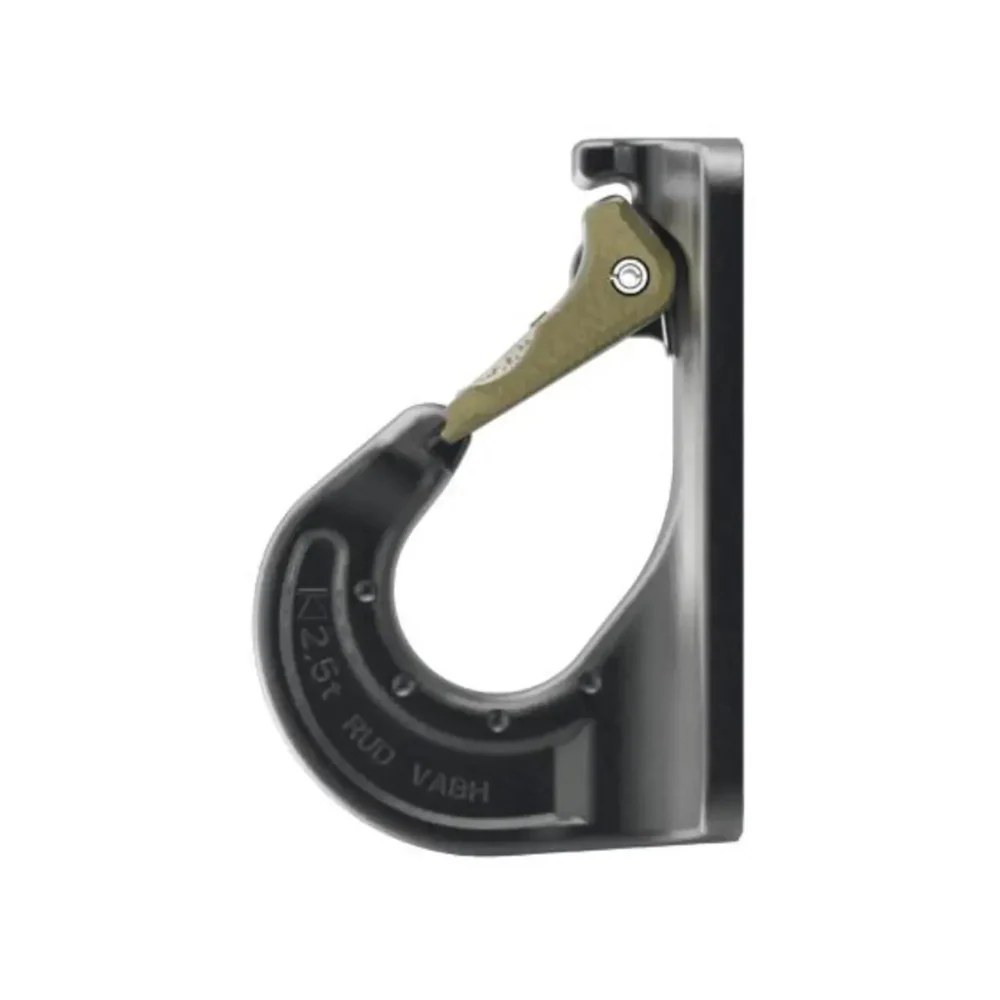

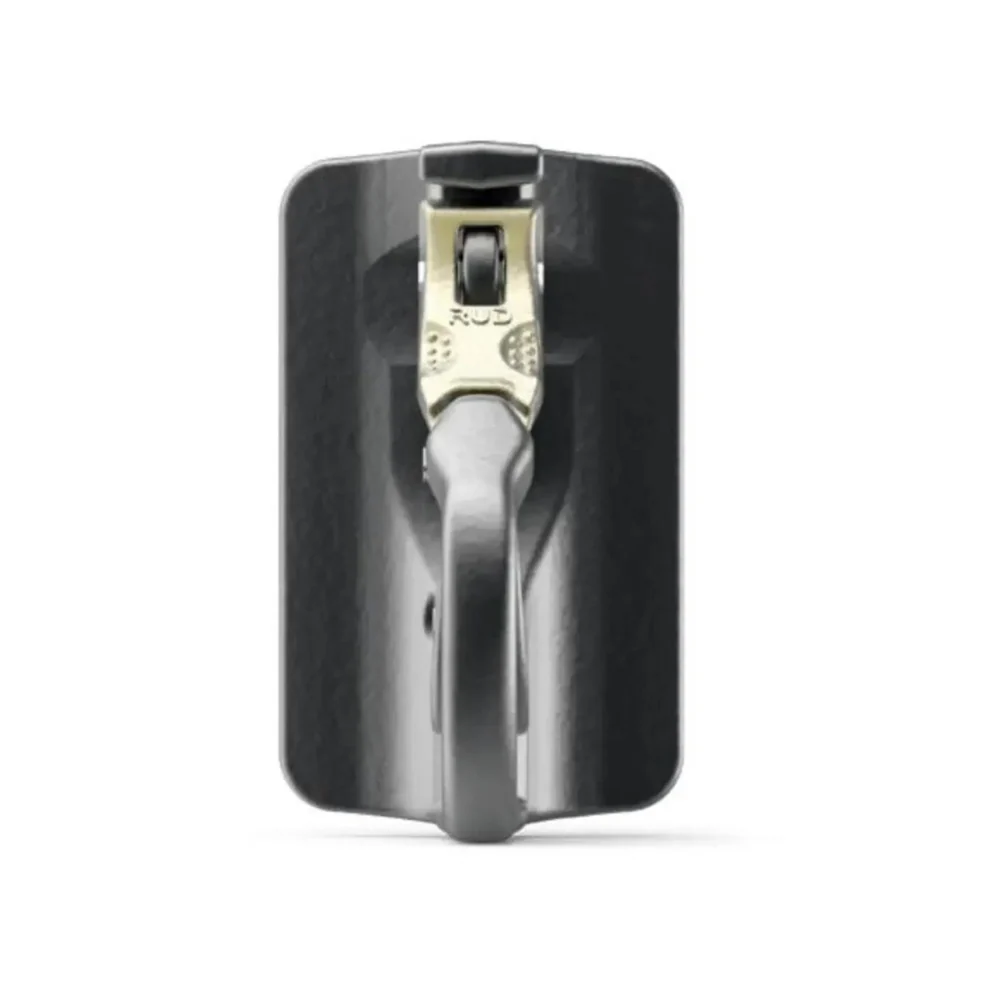

RUD VABH-W Excavator Hook, Ready for Welding
A true all-rounder of the lifting point world, RUD's VABH-W Excavator Hook for Welding is suitable for use of cross-bars and beams, with wire ropes and round slings, as well as for lifting means that require a loop of oval suspension ring.
Available in working load limits from 1.5t up to 6.7t, these simple and fast welding lifting points are phosphate surfaced for optimal wear resistance, fitted with a robust safety latch for complete reliability, and featured patented wear markings for easy identification of any damage.
|

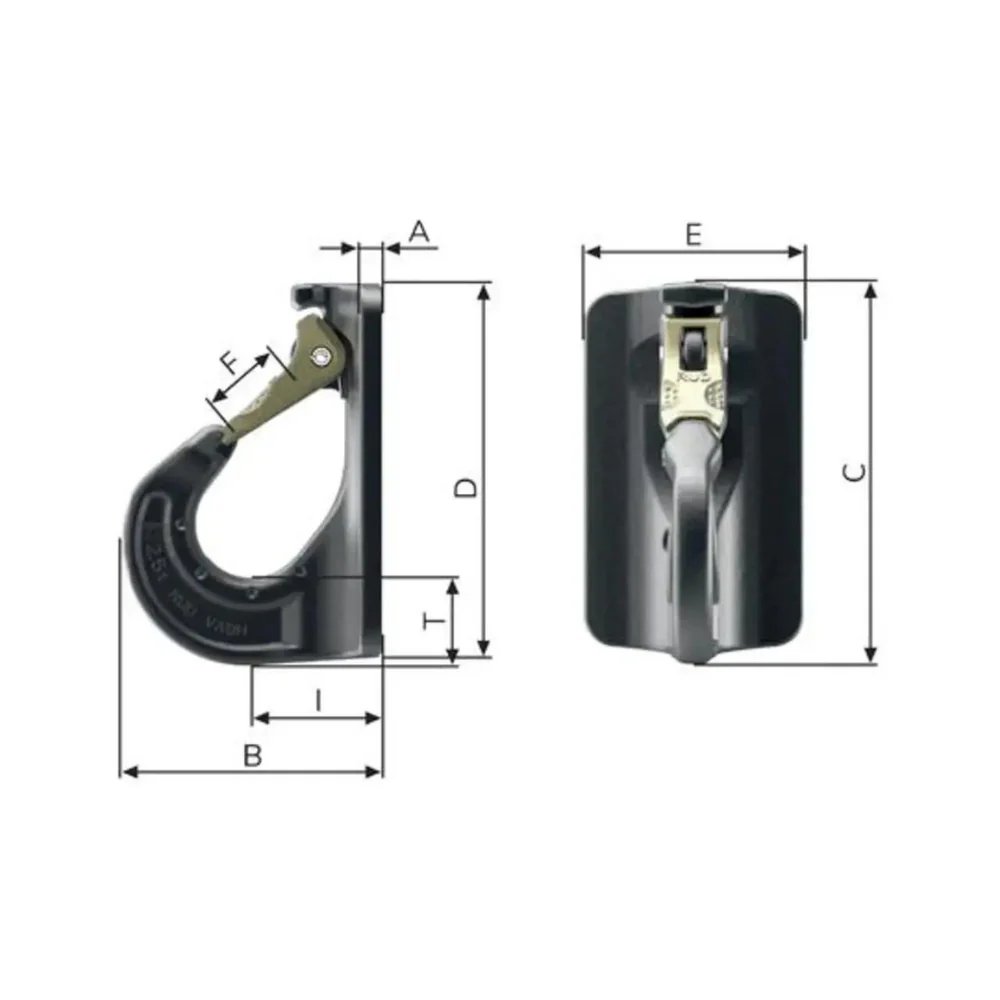

SKU |
WLL (tons) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
I (mm) |
Pitch T (mm) |
|
7991208 |
1.5 |
7.5 |
76 |
115 |
111 |
70 |
26 |
38 |
26 |
|
7991209 |
2.5 |
8.5 |
98 |
148 |
143 |
85 |
31.5 |
49 |
33 |
|
7991210 |
4 |
11 |
119 |
168 |
164 |
104 |
35 |
59 |
40 |
|
8502239 |
6.7 |
13 |
147 |
205 |
200 |
120 |
40 |
70 |
51 |
Original: $368.00
-65%$368.00
$128.80
Description
A true all-rounder of the lifting point world, RUD's VABH-W Excavator Hook for Welding is suitable for use of cross-bars and beams, with wire ropes and round slings, as well as for lifting means that require a loop of oval suspension ring.
Available in working load limits from 1.5t up to 6.7t, these simple and fast welding lifting points are phosphate surfaced for optimal wear resistance, fitted with a robust safety latch for complete reliability, and featured patented wear markings for easy identification of any damage.
|
SKU |
WLL (tons) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
I (mm) |
Pitch T (mm) |
|
7991208 |
1.5 |
7.5 |
76 |
115 |
111 |
70 |
26 |
38 |
26 |
|
7991209 |
2.5 |
8.5 |
98 |
148 |
143 |
85 |
31.5 |
49 |
33 |
|
7991210 |
4 |
11 |
119 |
168 |
164 |
104 |
35 |
59 |
40 |
|
8502239 |
6.7 |
13 |
147 |
205 |
200 |
120 |
40 |
70 |
51 |
