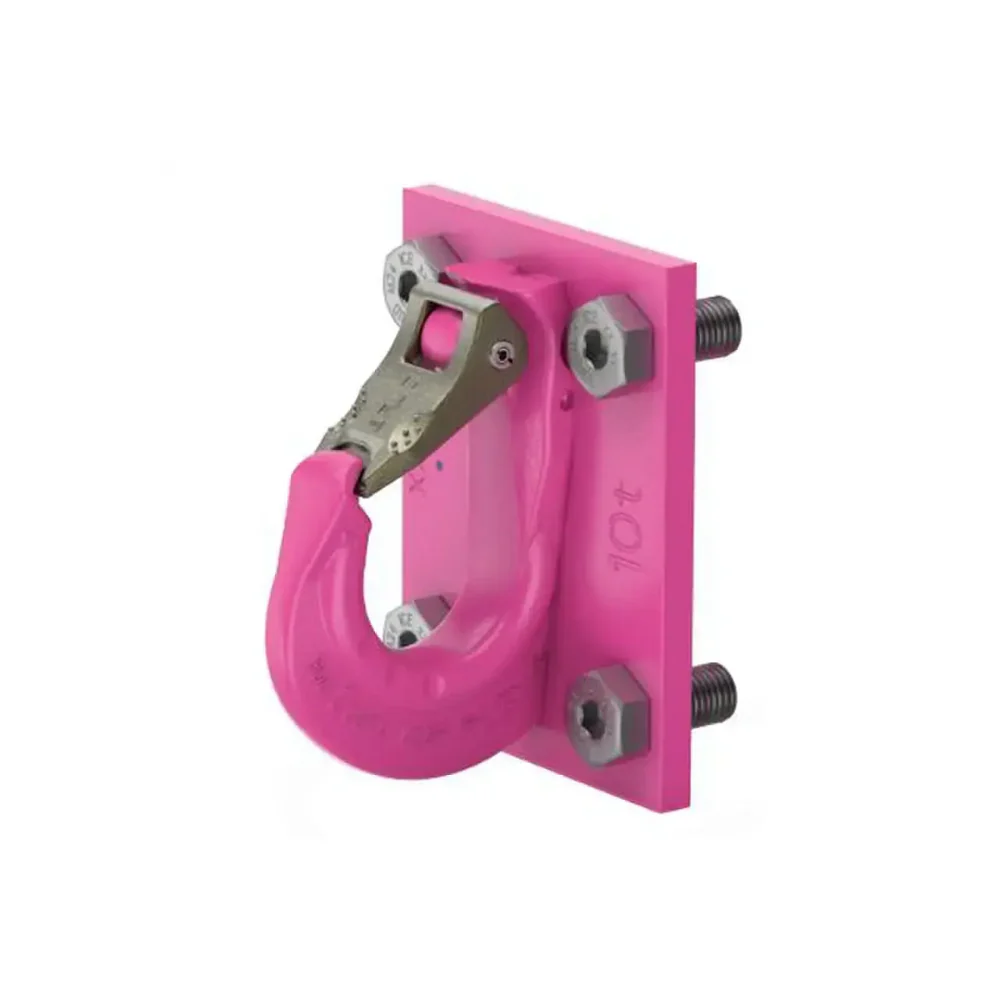

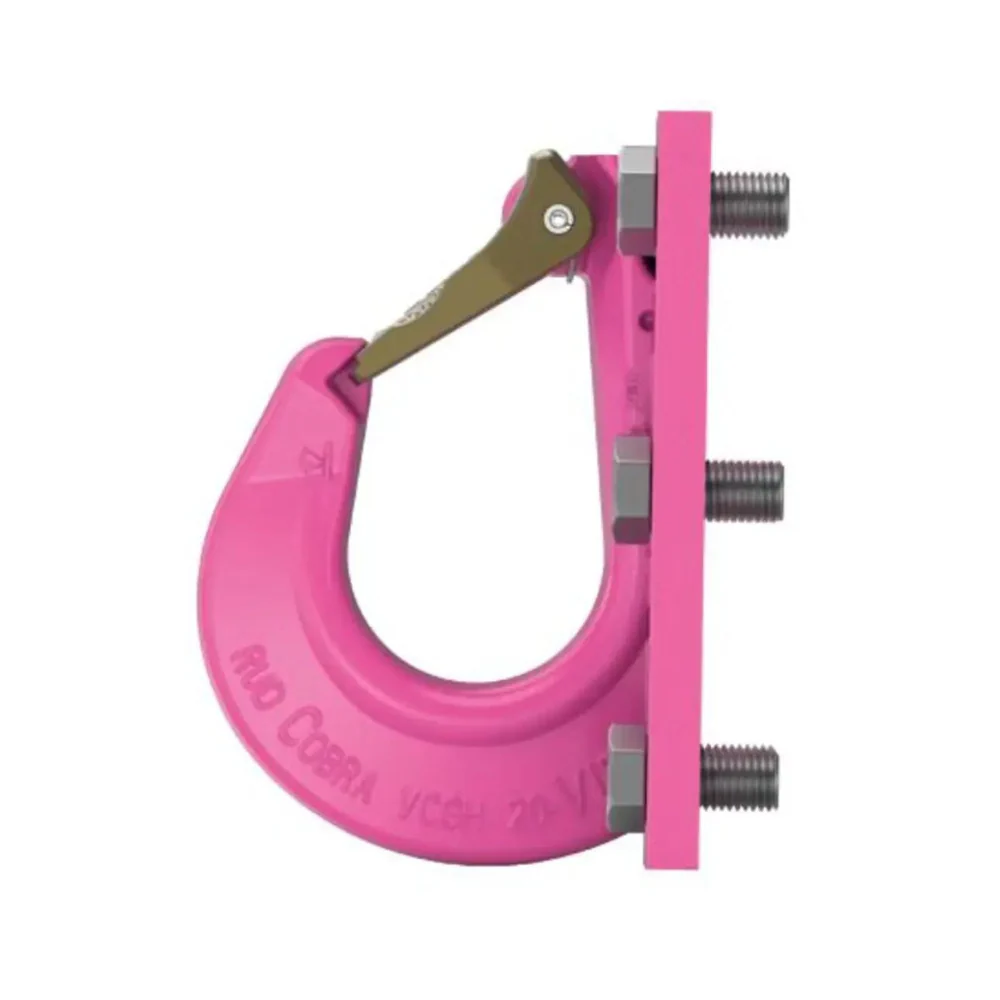

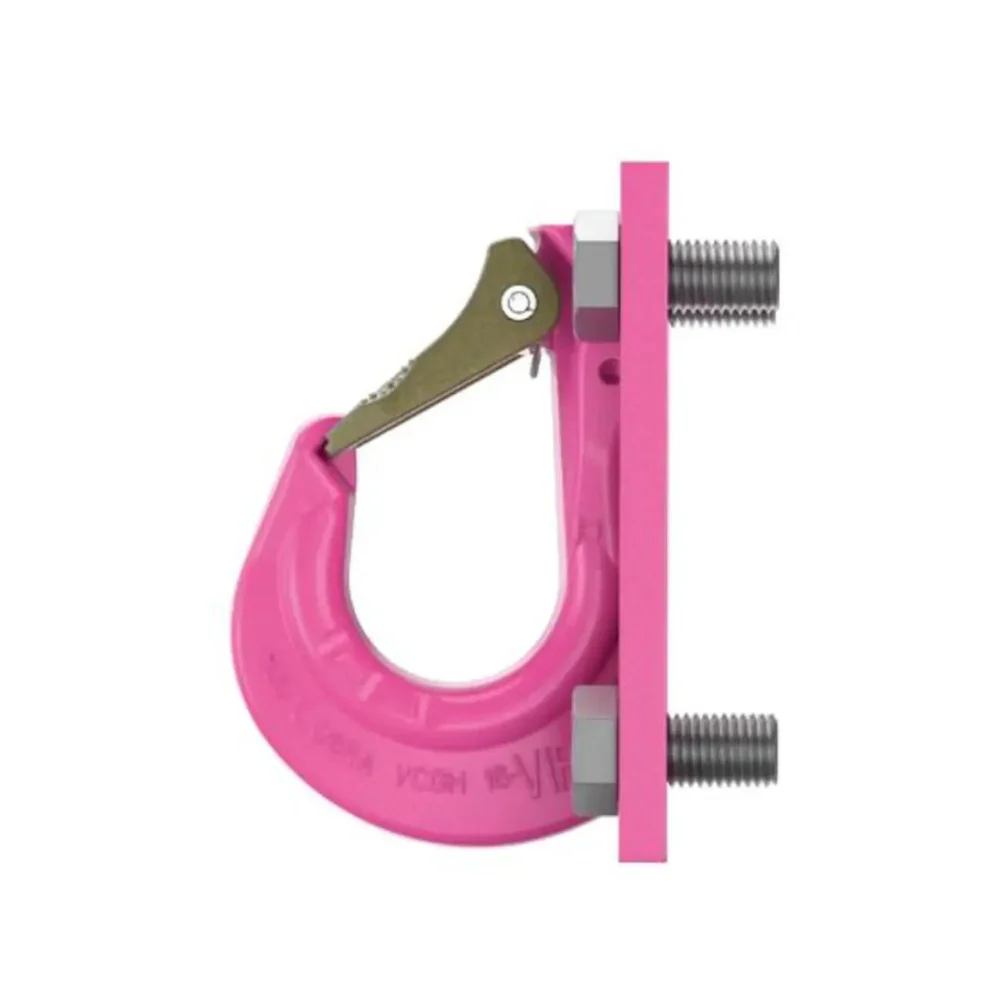

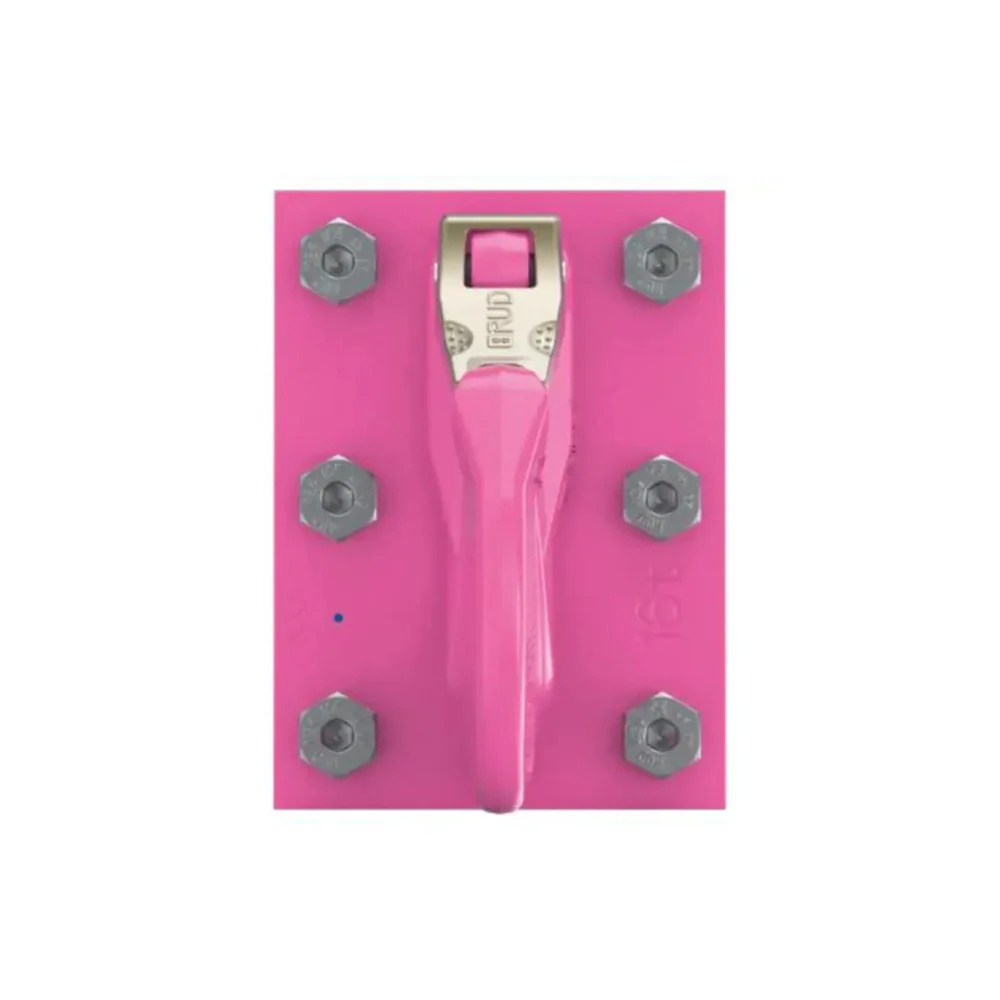

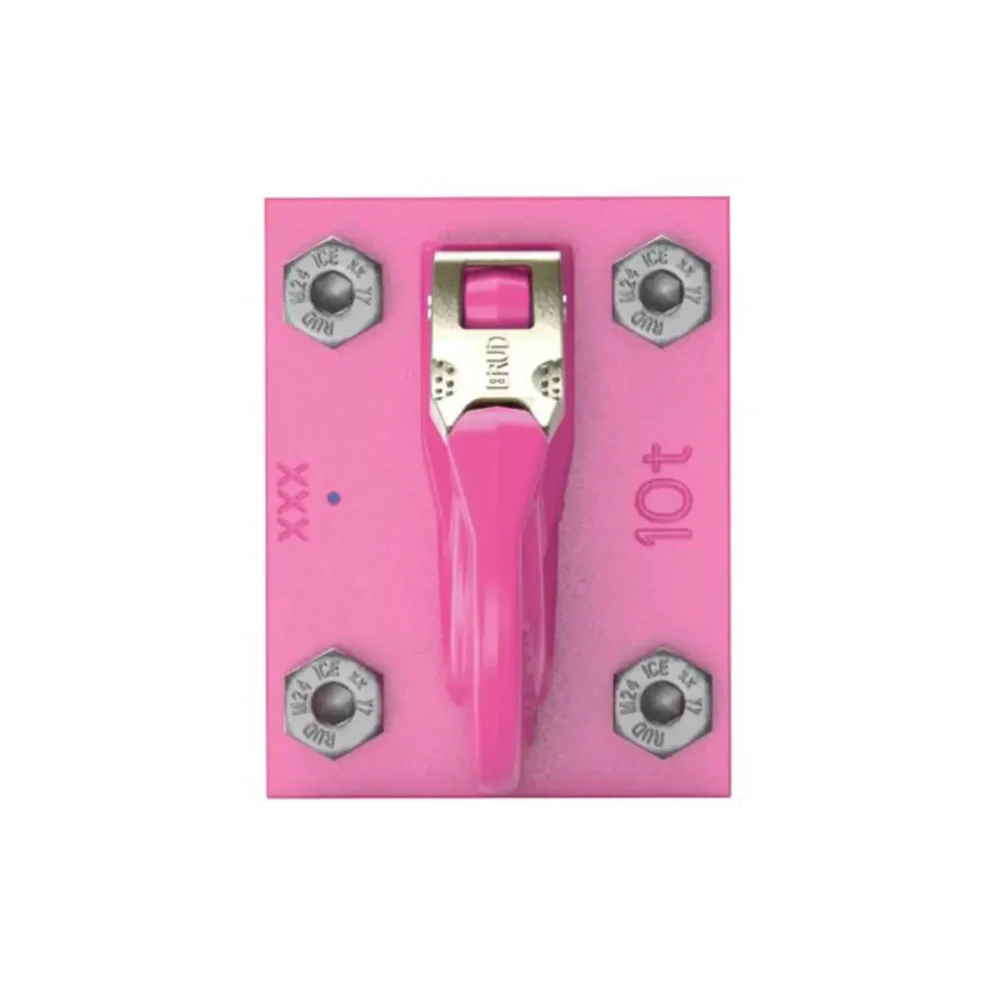

RUD VCGH-G Bolt On Hooks

Known in the industry as the 'threaded hook for all lifting means,' RUD's VCGH-G Bolt On Excavator Hooks are available in 10t and 20t variations, both with M24 thread.

Suitable for use with wire rope slings and round slings, as well as a lifting point on cross bars and beams, these bolt on hooks feature a robust forged safety latch for improved safety.

Additionally, for total reliability, the ICE-Bolts are made from patented steel that's suitable for deep temperature usage, while the improved design is tough enough to produce high bending strengths and lower wear occurrence.

Finally, the patented wear markings make wear and teat of the VCGH-G range easy to identify, further improving user safety,

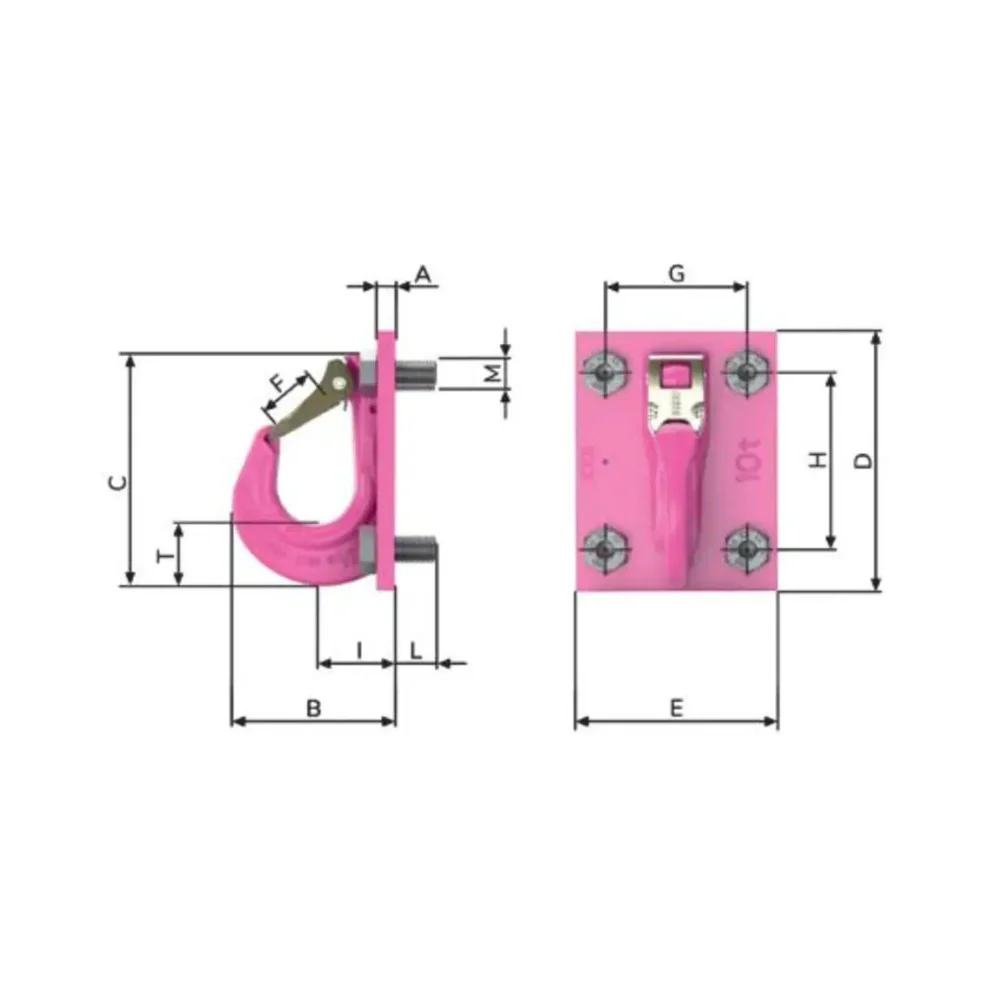

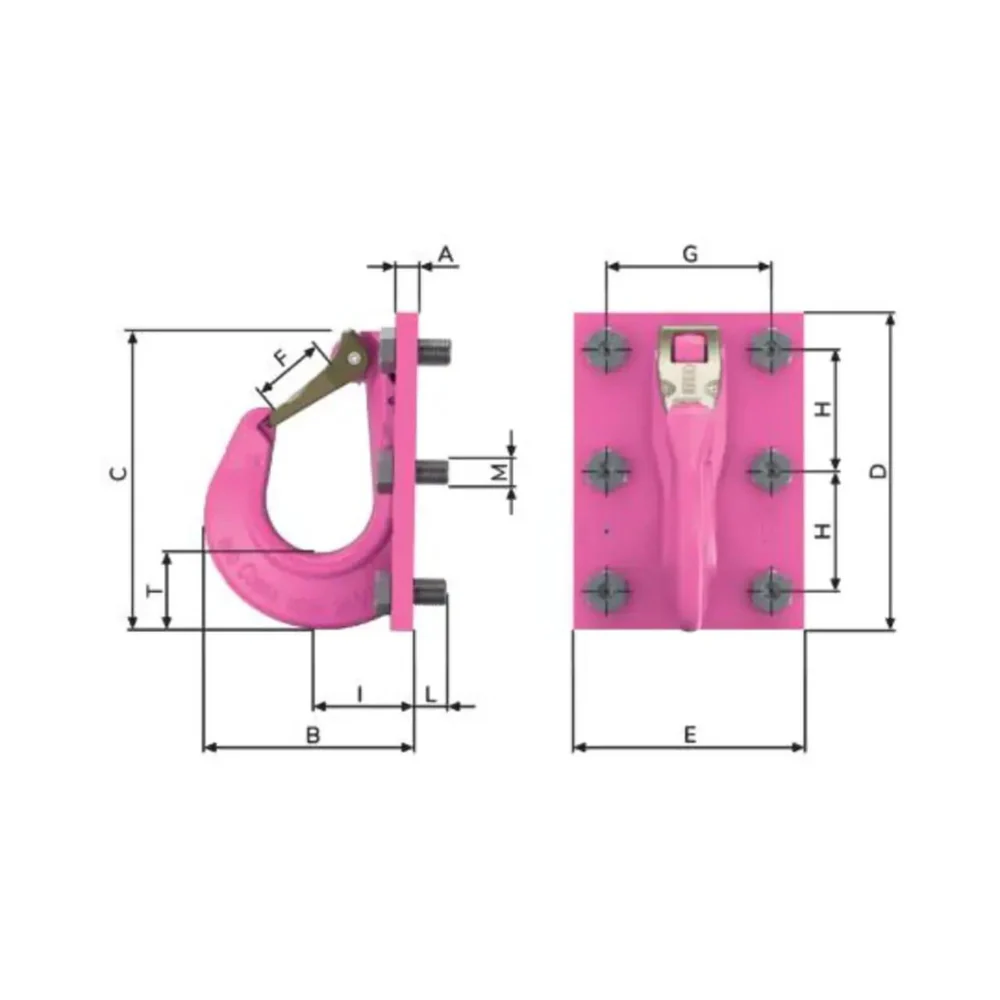

SKU	WLL (lbs)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	I (mm)	L (mm)	M	Pitch T (mm)
7984048	22040	15	141	200	220	170	48	120	150	70	35	M24	49
7984313	44090	20	196	276	292	240	63	150	110	92	30	M24	79
