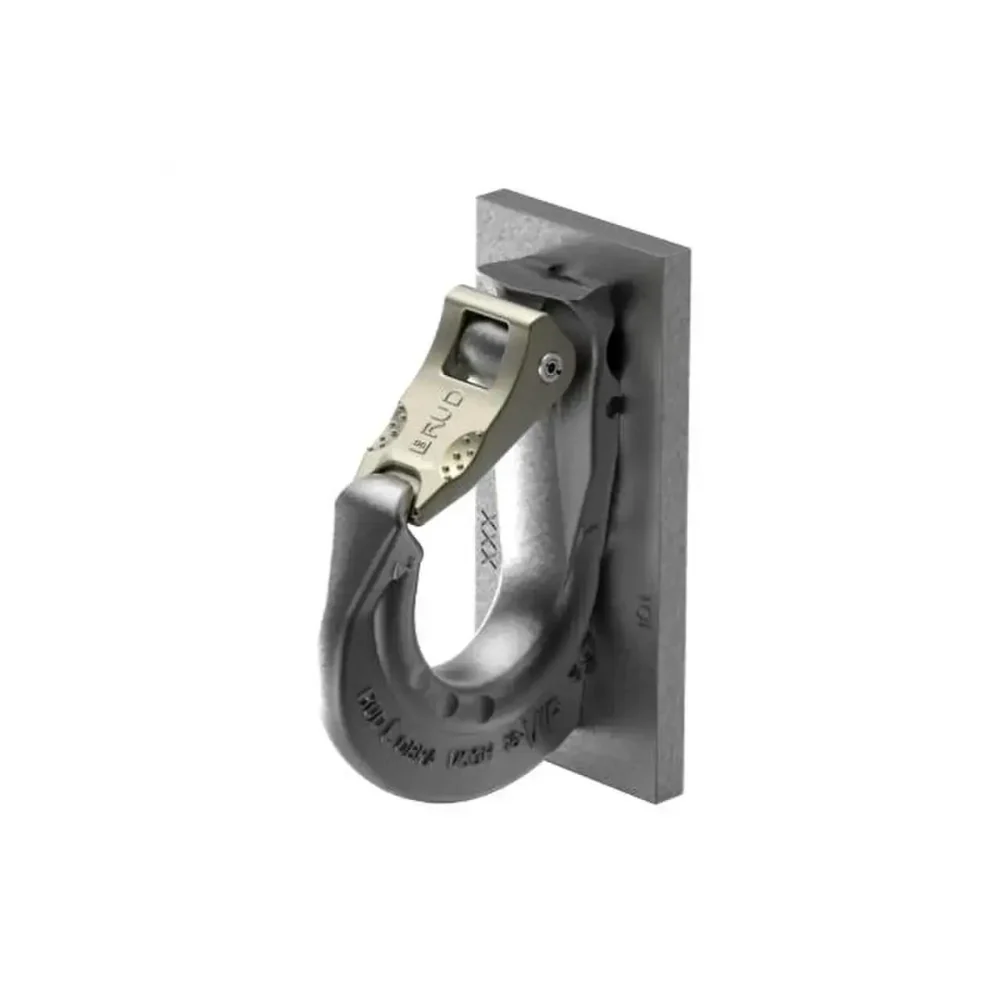

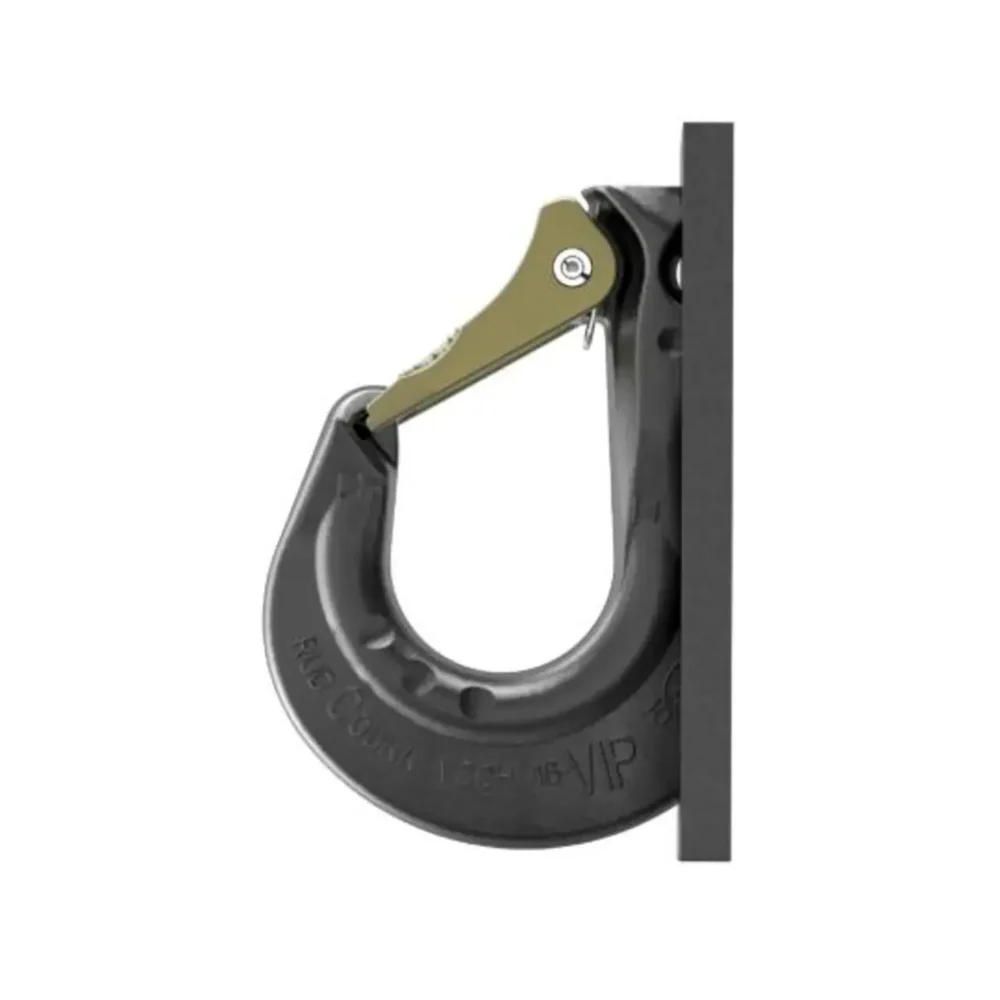

RUD VCGH-S Excavator Hooks, Ready for Welding
Taking pride in its ability as an all-round lifting point, the RUD VCGH-S Weldable Excavator Hook can be used on cross bars and beams, with wire rope slings and round slings, and for lifting means with loop or oval suspension rings.
Available in working load limits of 22040lbs to 44090lbs (10t-20t), the VCGH-S is super easy to install via a fast welding procedure, while the robust safety lock and phosphated surface improve safety and lifecycles, respectively.
Additionally, the patented wear markings allow for easy identification of damage and wear.
|

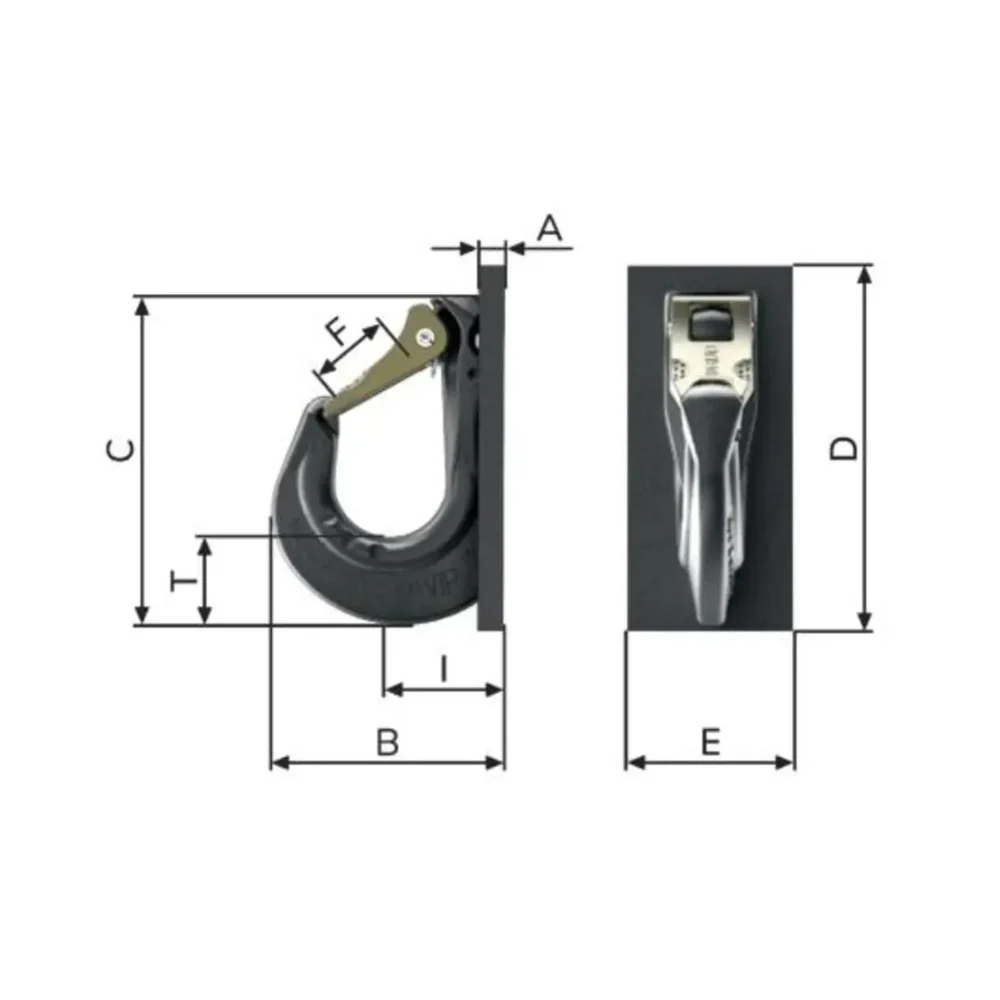

SKU |
WLL (lbs) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
I (mm) |
N (mm) |
Pitch T (mm) |
|
7984047 |
22040 |
15 |
141 |
200 |
220 |
100 |
48 |
70 |
16 |
49 |
|
7984310 |
35270 |
20 |
187 |
272 |
288 |
120 |
63 |
87 |
20 |
69 |
|
7984312 |
44090 |
20 |
196 |
276 |
292 |
120 |
63 |
92 |
22 |
74 |
