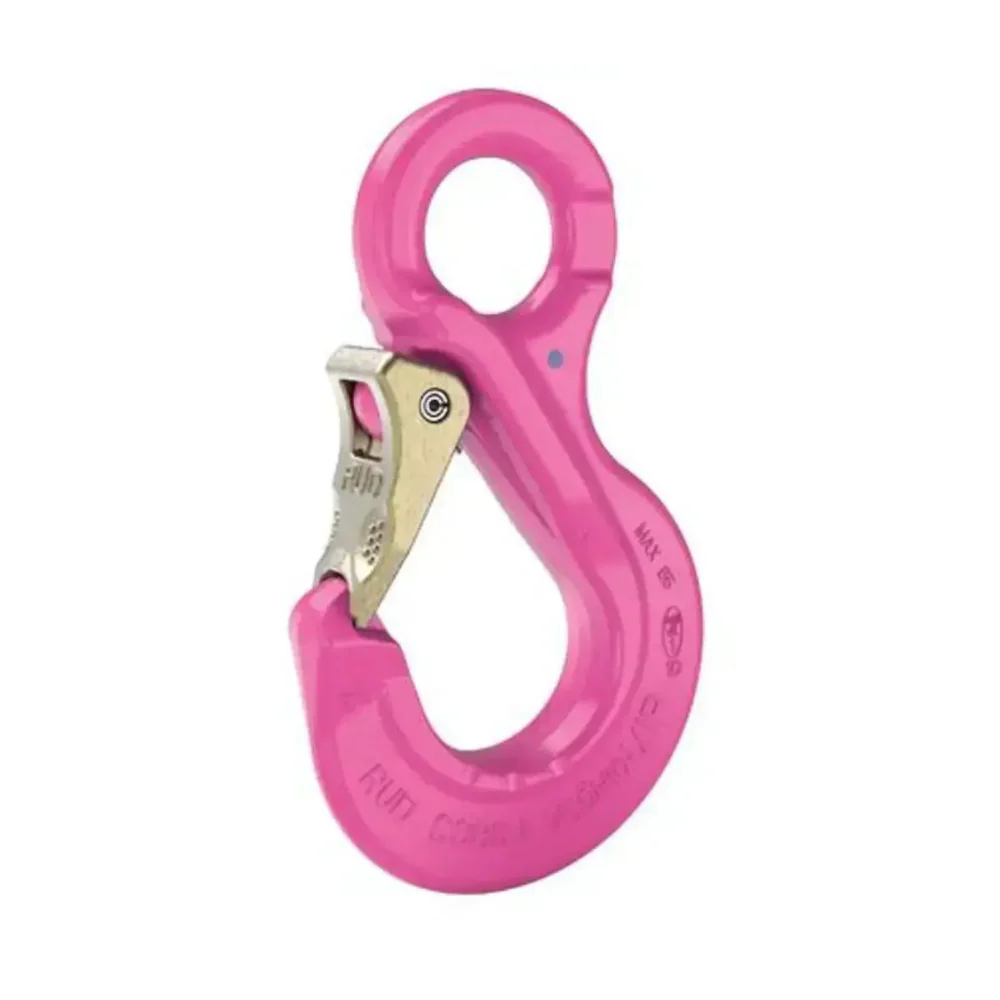

RUD VIP-Cobra Eye Sling Hook for Powerpoint
This Cobra Eye Sling Hook from RUD has been designed for use with special wire ropes, VIP-Chain suspensions, PowerPoint combinations and universal swivels.
Robust and compact, this pink powder-coated eye sling hook is available in working load limits from 0.63t up to 10t.
Designed with no protruding tip of the hook, protecting against lateral bending, these units also feature a thickened hook tip to prevent improper use. Furthermore, they are fitted with a triple coiled corrosion protected double leg spring, and gauge markings for measuring the width of the hook opening.
|

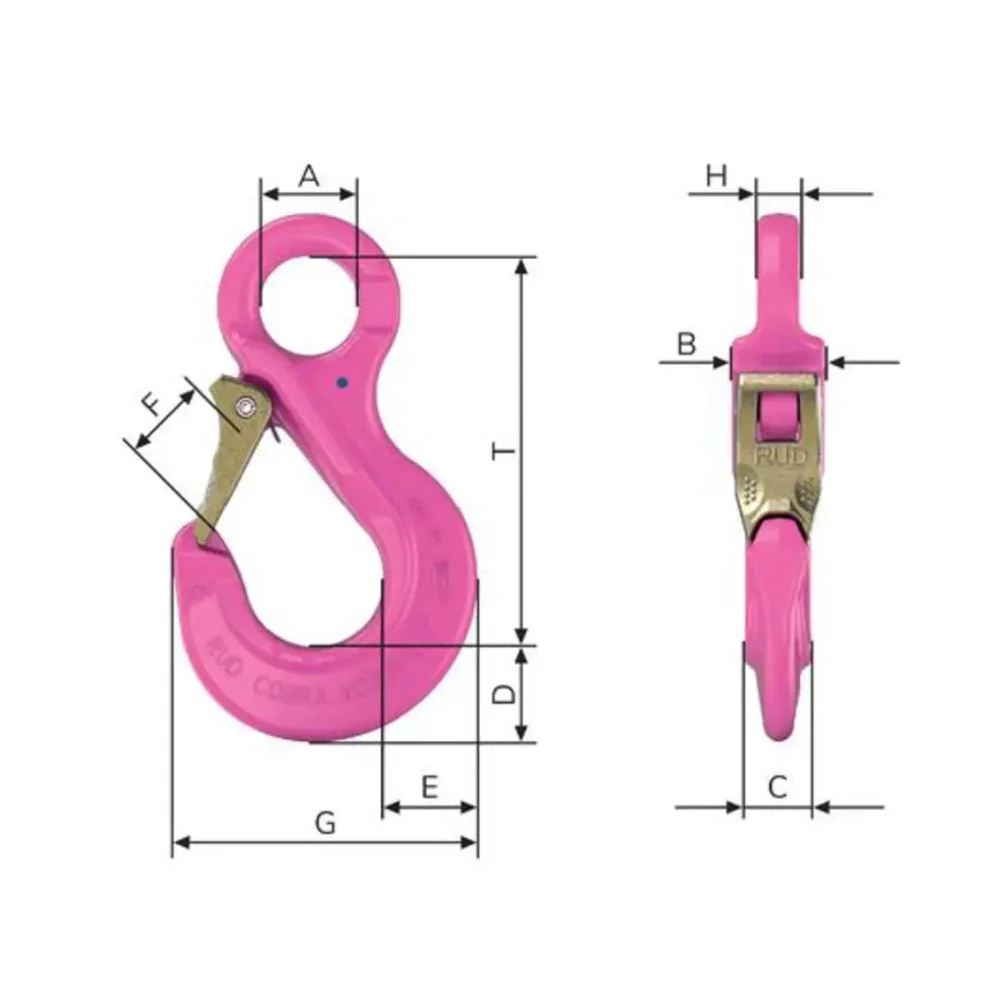

SKU |
WLL (tons) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
F Max (mm) |
G (mm) |
H (mm) |
Pitch T (mm) |
|
8502323 |
0.63 |
18 |
18 |
12 |
13 |
14 |
18 |
0 |
53 |
8 |
75 |
|
8502203 |
1.5 |
24 |
22 |
16 |
20 |
24 |
25 |
45 |
73 |
11 |
97 |
|
8502142 |
2.5 |
32 |
28 |
20 |
28 |
32 |
30 |
52 |
95 |
13 |
126 |
|
8502145 |
4 |
38 |
36 |
26 |
36 |
39 |
35 |
65 |
118 |
17 |
150 |
|
8502204 |
6.7 |
48 |
45 |
30 |
37 |
48 |
40 |
73 |
135 |
21 |
174 |
|
8502146 |
10 |
63 |
56 |
36 |
49 |
58 |
48 |
87 |
161 |
27 |
208 |
