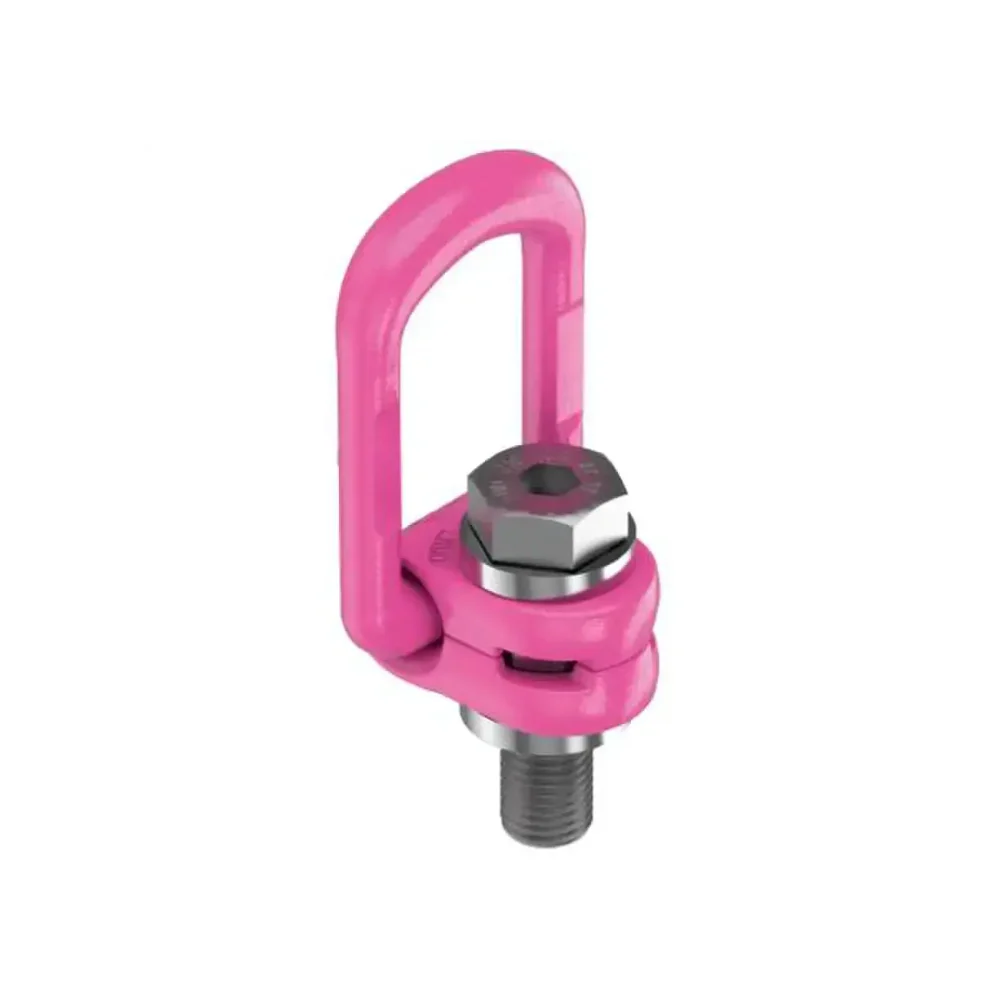

RUD VLBG Load Ring, Metric Thread
A tried and tested load ring, RUD's VLBG Metric Thread offers full working load limit in all directions.
Available in 1.2t, 2t and 4t variations, this lifting point can swivel 360-degrees and pivot 180-degrees.
Featuring a captive but exchangeable ICE-Bolt made from patented steel with specialist Corrud-DT corrosion protection, the clamping spring of the VLBG Load Ring operates as a noise reduction and holds the suspension ring in the requested position.
Quick and easy to install with just one bolt connection, hand tightening with an appropriate wrench is sufficient for a singular lift.
NOTE: Please observe torque instructions when lifting point is permanently installed.
Ā
|

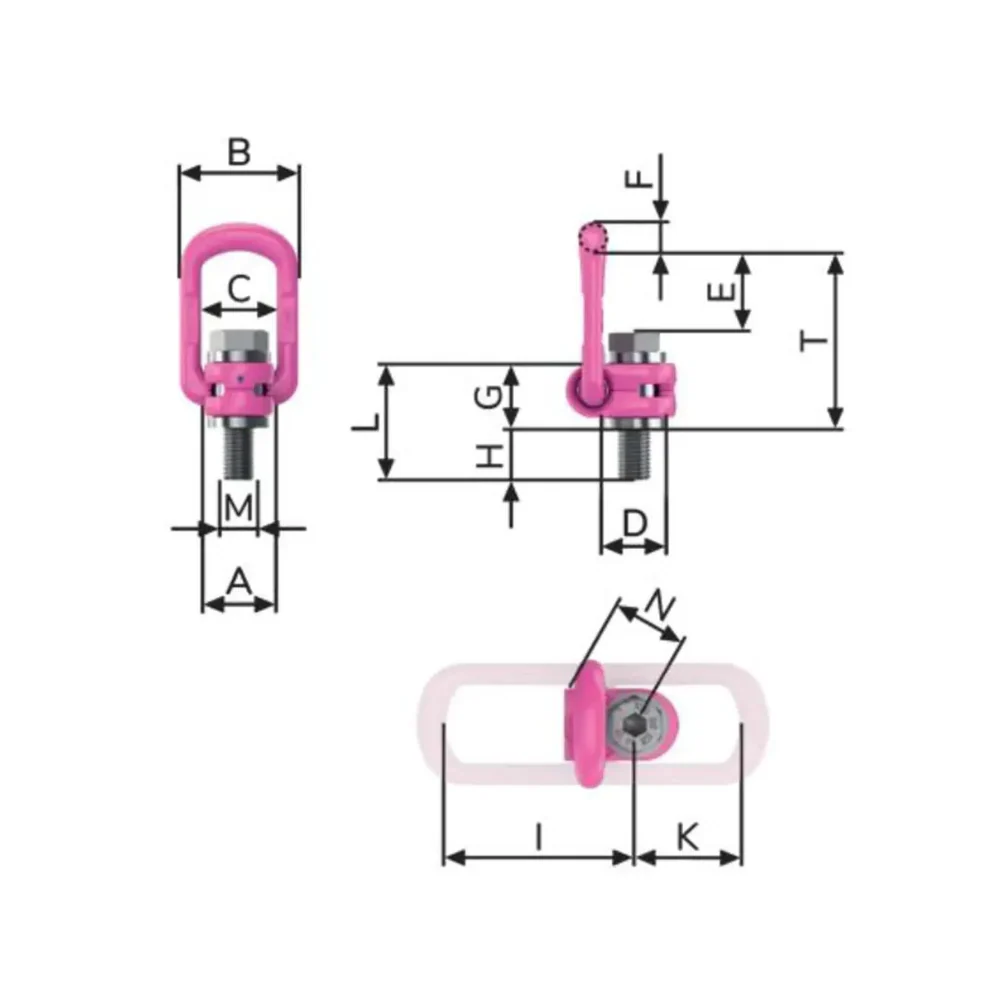

SKU |
WLL (tons) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
I (mm) |
K (mm) |
L (mm) |
M |
N (mm) |
T (mm) |
|
8600399 |
1.2 |
33 |
56 |
36 |
30 |
39 |
13.5 |
36 |
21 |
86 |
47 |
57 |
M14 |
38 |
85 |
|
8600384 |
2 |
50 |
82 |
54 |
45 |
55 |
16.5 |
43 |
27 |
113 |
64 |
70 |
M18 |
48 |
110 |
|
7983658 |
4 |
60 |
103 |
65 |
60 |
69 |
22.5 |
61 |
39 |
151 |
80 |
100 |
M27 |
67 |
147 |
Original: $600.00
-65%$600.00
$210.00
Description
A tried and tested load ring, RUD's VLBG Metric Thread offers full working load limit in all directions.
Available in 1.2t, 2t and 4t variations, this lifting point can swivel 360-degrees and pivot 180-degrees.
Featuring a captive but exchangeable ICE-Bolt made from patented steel with specialist Corrud-DT corrosion protection, the clamping spring of the VLBG Load Ring operates as a noise reduction and holds the suspension ring in the requested position.
Quick and easy to install with just one bolt connection, hand tightening with an appropriate wrench is sufficient for a singular lift.
NOTE: Please observe torque instructions when lifting point is permanently installed.
Ā
|
SKU |
WLL (tons) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
I (mm) |
K (mm) |
L (mm) |
M |
N (mm) |
T (mm) |
|
8600399 |
1.2 |
33 |
56 |
36 |
30 |
39 |
13.5 |
36 |
21 |
86 |
47 |
57 |
M14 |
38 |
85 |
|
8600384 |
2 |
50 |
82 |
54 |
45 |
55 |
16.5 |
43 |
27 |
113 |
64 |
70 |
M18 |
48 |
110 |
|
7983658 |
4 |
60 |
103 |
65 |
60 |
69 |
22.5 |
61 |
39 |
151 |
80 |
100 |
M27 |
67 |
147 |
