RUD VLBG, Metric Thread with Max. Length
A tried and tested load ring, RUD's VLBG Metric Thread with Max Length offers full working load limit in all directions.
Available in 1.2t and 4t variations, this lifting point can swivel 360-degrees and pivot 180-degrees.
Featuring a captive but exchangeable ICE-Bolt made from patented steel with specialist Corrud-DT corrosion protection, the clamping spring of the VLBG Load Ring operates as a noise reduction and holds the suspension ring in the requested position.
Quick and easy to install with just one bolt connection, hand tightening with an appropriate wrench is sufficient for a singular lift.
Comes with locknut and washer
NOTE: Please observe torque instructions when lifting point is permanently installed.
Ā
|

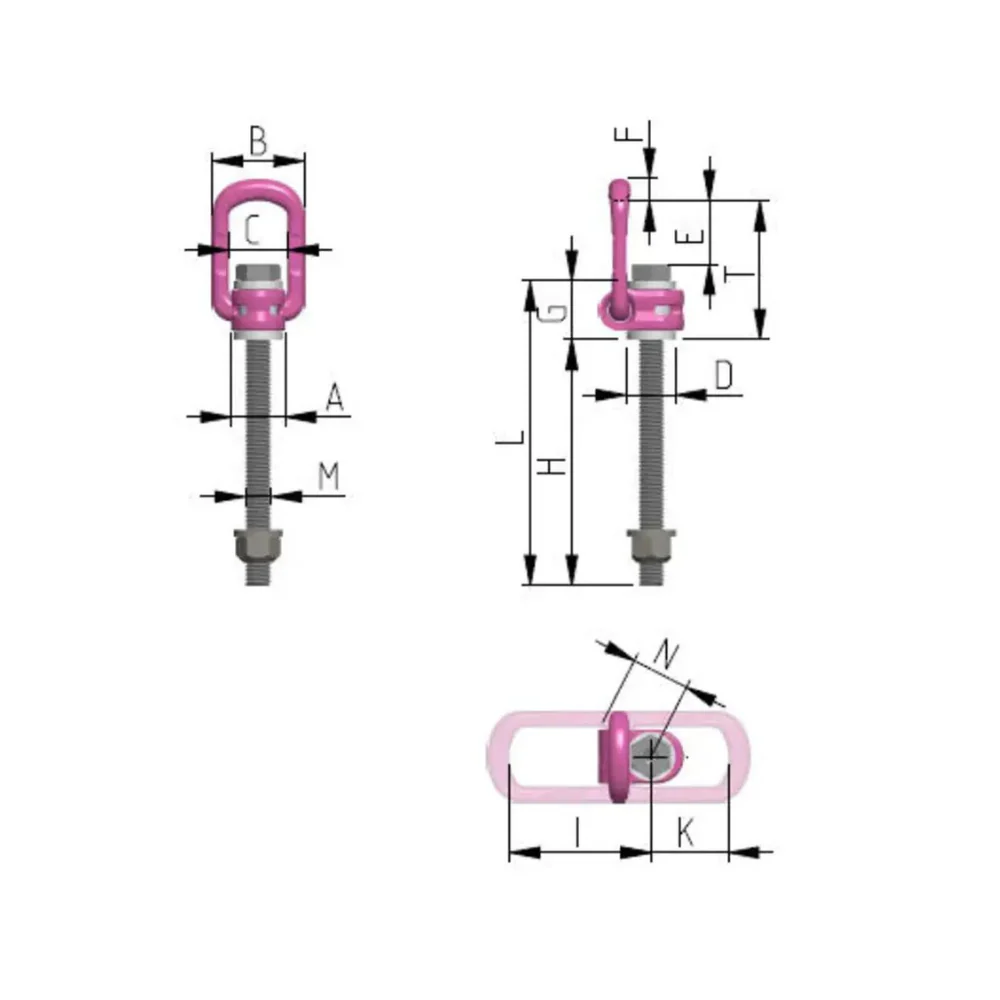

SKU |
WLL (t) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H Max (mm) |
I (mm) |
K (mm) |
L Max (mm) |
L Min (mm) |
M |
N (mm) |
T |
|
8600399 |
1.2 |
33 |
56 |
36 |
30 |
39 |
13.5 |
36 |
129 |
86 |
47 |
165 |
50 |
M14 |
38 |
85 |
|
8600387 |
4 |
60 |
103 |
65 |
60 |
69 |
22.5 |
61 |
239 |
151 |
80 |
300 |
88 |
M27 |
67 |
147 |
Ā
