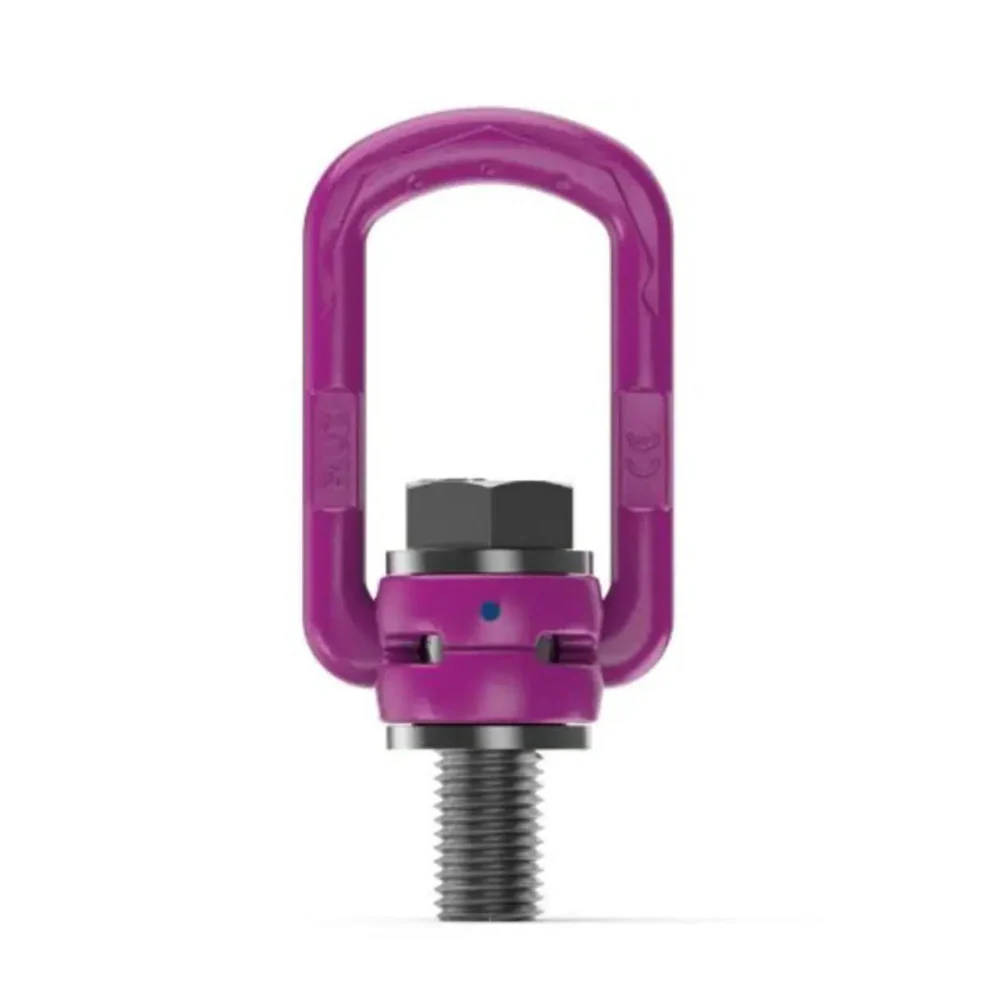

RUD VLBG-Plus Load Ring, Metric Thread

With a large working load limit range of 0.63t up to 20t (M8 - M48), RUD's VLBG-Plus Load Ring, Metric Thread, is one of the most tried and tested lifting rings on the market, capable of achieving full WLL in all directions.

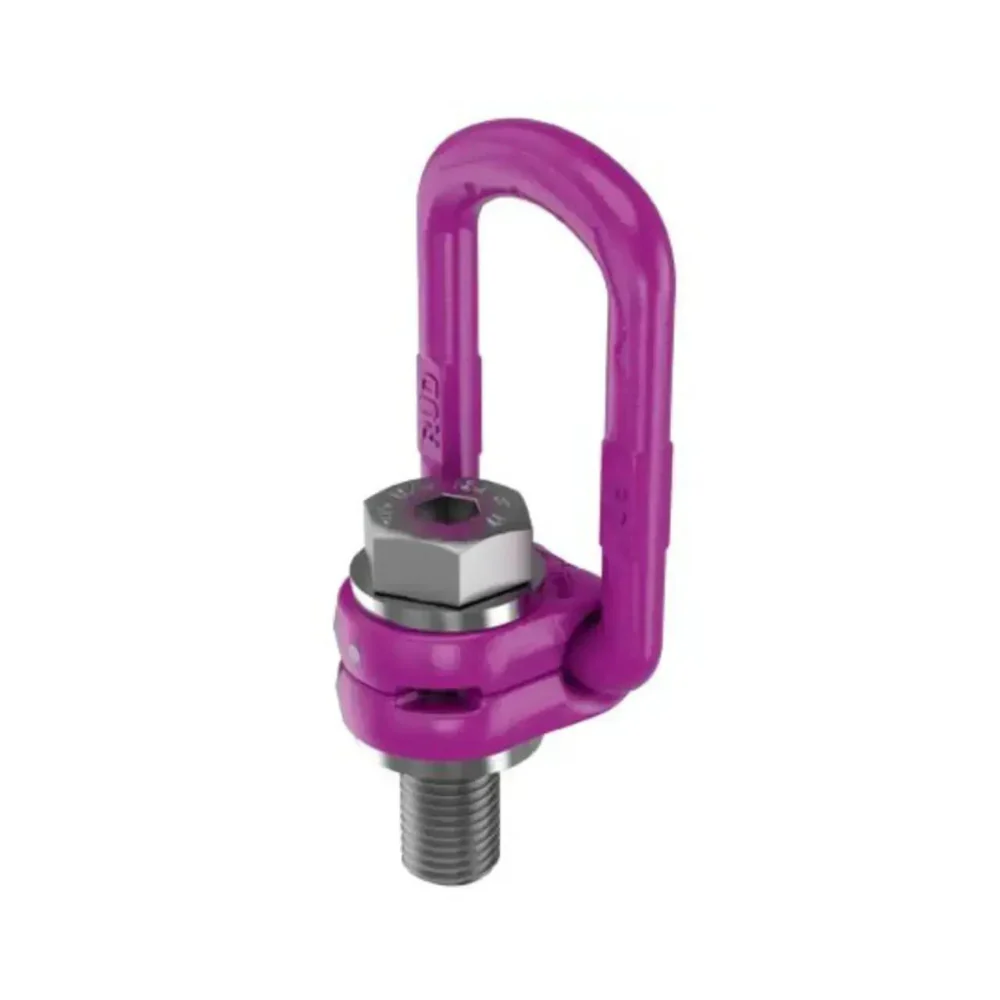

These lifting points swivel a complete 360-degrees, with the suspension ring pivoting 180-degrees, the VLBG-Plus Load Ring features a captive but exchangeable ICE-Bolt made from patented steel with specialist Corrud-DT corrosion protection. The clamping spring of the VLBG Load Ring operates as a noise reduction and holds the suspension ring in the requested position.

Quick and easy to install with just one bolt connection, hand tightening with an appropriate wrench is sufficient for a singular lift.

NOTE: Please observe torque instructions when lifting point is permanently installed.

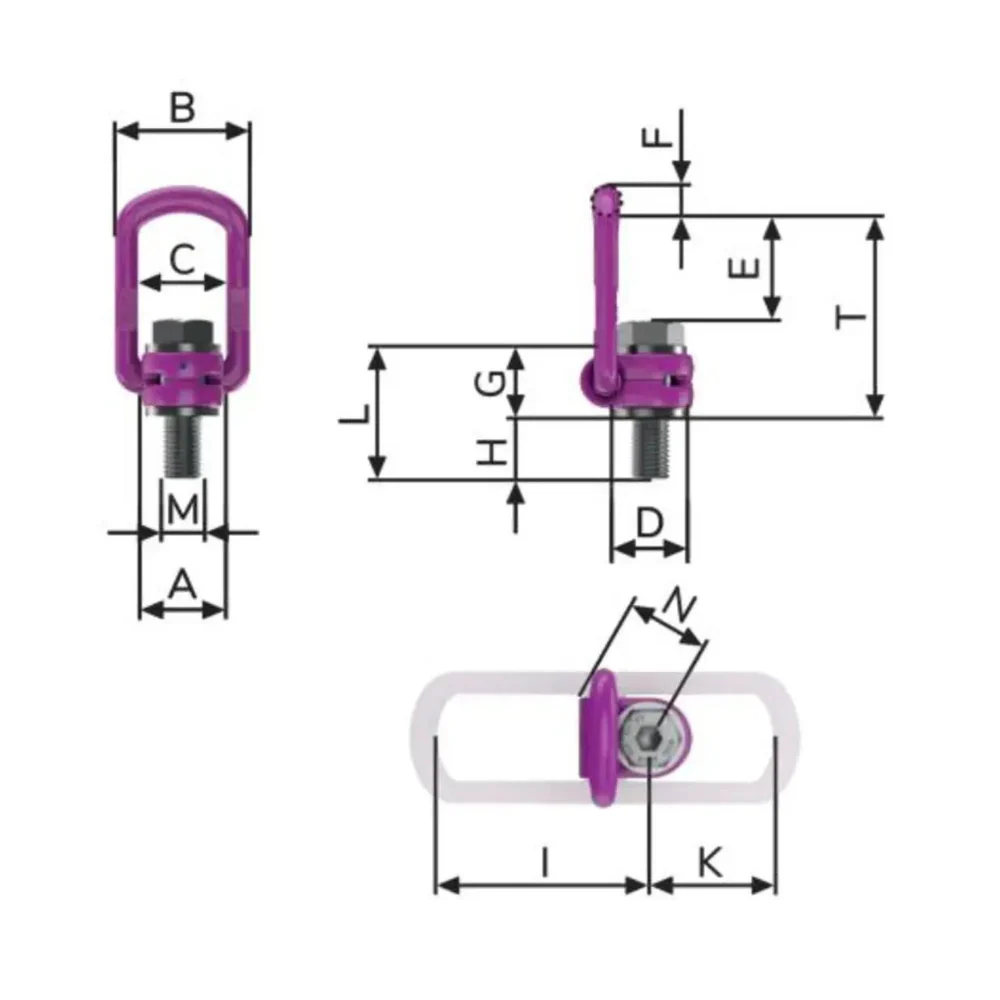

SKU	WLL (t)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	I (mm)	K (mm)	L (mm)	M	N (mm)	T (mm)
8504651	0.63	30	52	34	24	40	10	29	11	75	45	40	M8	32	75
8504652	0.9	30	52	34	24	39	10	29	15	75	45	44	M10	32	75
8504653	1.35	32	52	34	26	38	10	29	18	75	45	47	M12	32	75
8504655	2	34.5	56	38	30	39	13.5	36	22	86	47	58	M16	38	85
8504657	3.5	50	82	54	45	55	17	43	32	113	64	75	M20	48	110
8504659	4.5	50	82	54	45	67	17	43	37	130	78	80	M24	48	125
8504661	6.7	60	103	65	60	67	22.5	61	49	151	80	110	M30	67	147
8500829	7	60	103	65	60	74	22.5	55	52	151	80	107	M36	67	146
7983553	8	77	122	82	70	97	26.5	77	63	205	113	140	M36	79	196
7983554	10	77	122	82	70	94	26.5	77	73	205	113	150	M42	79	196
7982966	15	95	156	100	85	109	36	87	63	230	130	150	M42	100	222
7982967	20	95	156	100	95	105	36	87	73	230	130	160	M48	100	222
