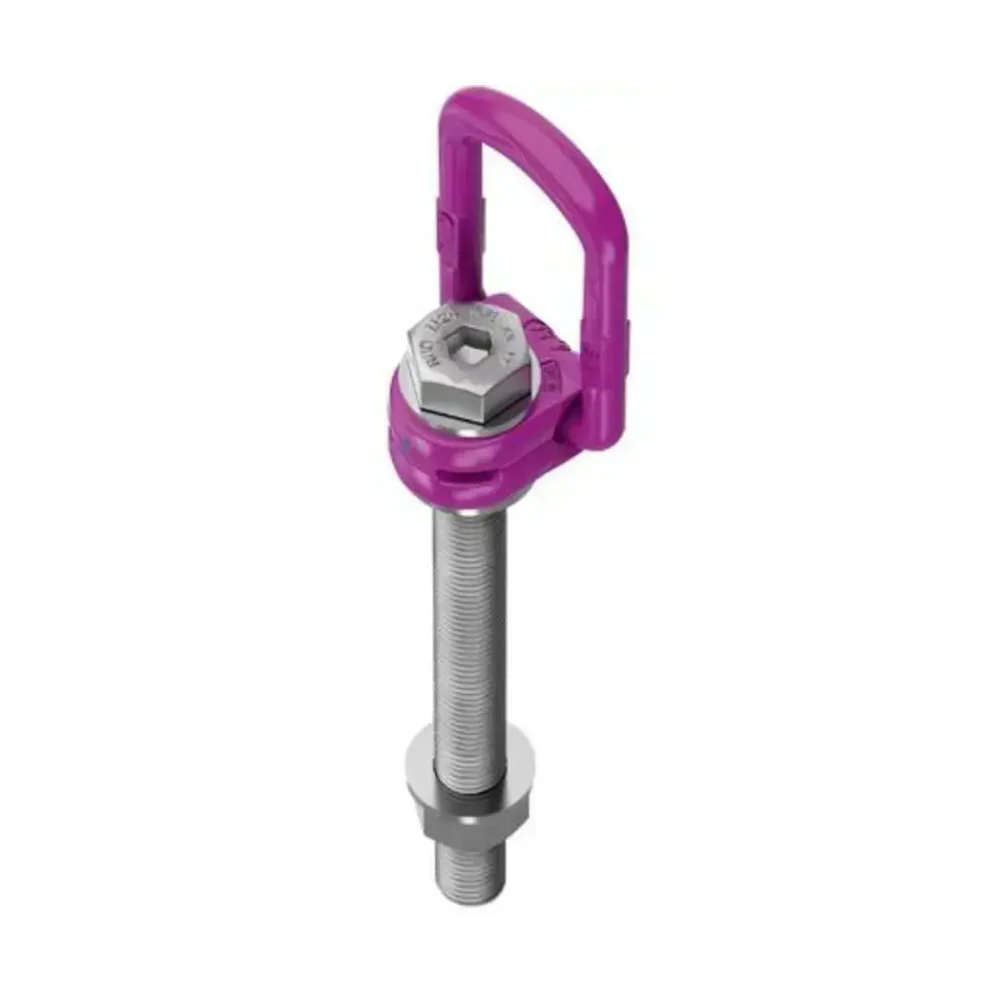

RUD VLBG-Plus Load Ring, Metric Thread with Variable Length

With a large working load limit range of 0.63t up to 8t (M8 - M36), RUD's VLBG-Plus Load Ring, Metric Thread, with Variable Length is one of the most tried and tested lifting rings on the market, capable of achieving full WLL in all directions.

These lifting points swivel a complete 360-degrees, with the suspension ring pivoting 180-degrees, the VLBG-Plus Load Ring features a captive but exchangeable ICE-Bolt made from patented steel with specialist Corrud-DT corrosion protection. The clamping spring of the VLBG Load Ring operates as a noise reduction and holds the suspension ring in the requested position.

Quick and easy to install with just one bolt connection, hand tightening with an appropriate wrench is sufficient for a singular lift.

NOTE: Please observe torque instructions when lifting point is permanently installed.

DISCLAIMER: Larger sizes make take longer for dispatch. Please contact sales for accurate lead times

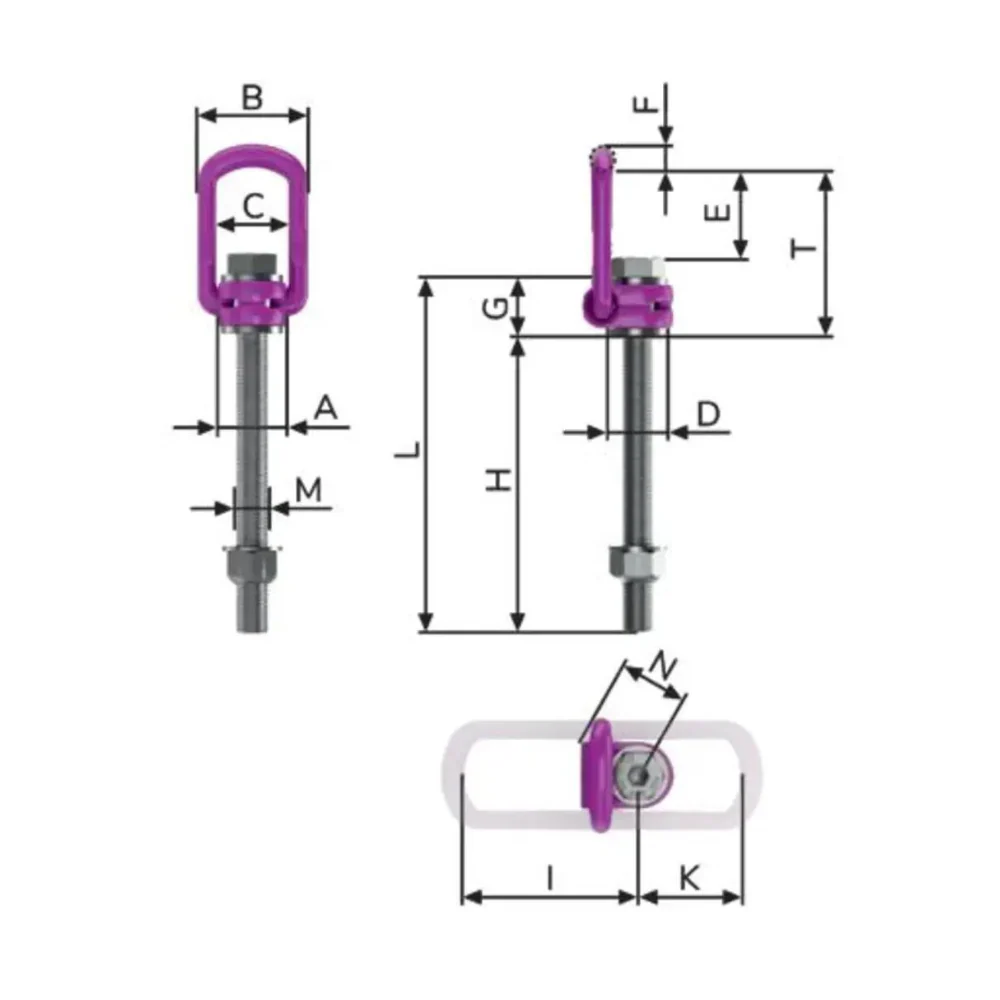

SKU	WLL (t)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H Max (mm)	H Min (mm)	I (mm)	K (mm)	L Max (mm)	L Min (mm)	M	N (mm)	T (mm)
8600470	0.63	30	54	34	24	40	10	29	76	8	75	45	105	37	M8	32	75
8600471	0.9	30	54	34	24	39	10	29	96	10	75	45	125	39	M10	32	75
8600472	1.35	32	54	34	26	38	10	29	116	12	75	45	145	41	M12	32	75
8600474	2	33	56	36	30	39	13.5	36	149	16	86	47	185	50	M16	38	85
8600476	3.5	50	82	54	45	55	16.5	43	187	20	113	64	230	65	M20	48	110
8600480	6.7	60	103	65	60	67	22.5	61	339	28	151	80	400	341	M30	67	147
8600289	8	77	122	82	70	97	26.5	77	223	36	205	110	300	113	M36	87	197
