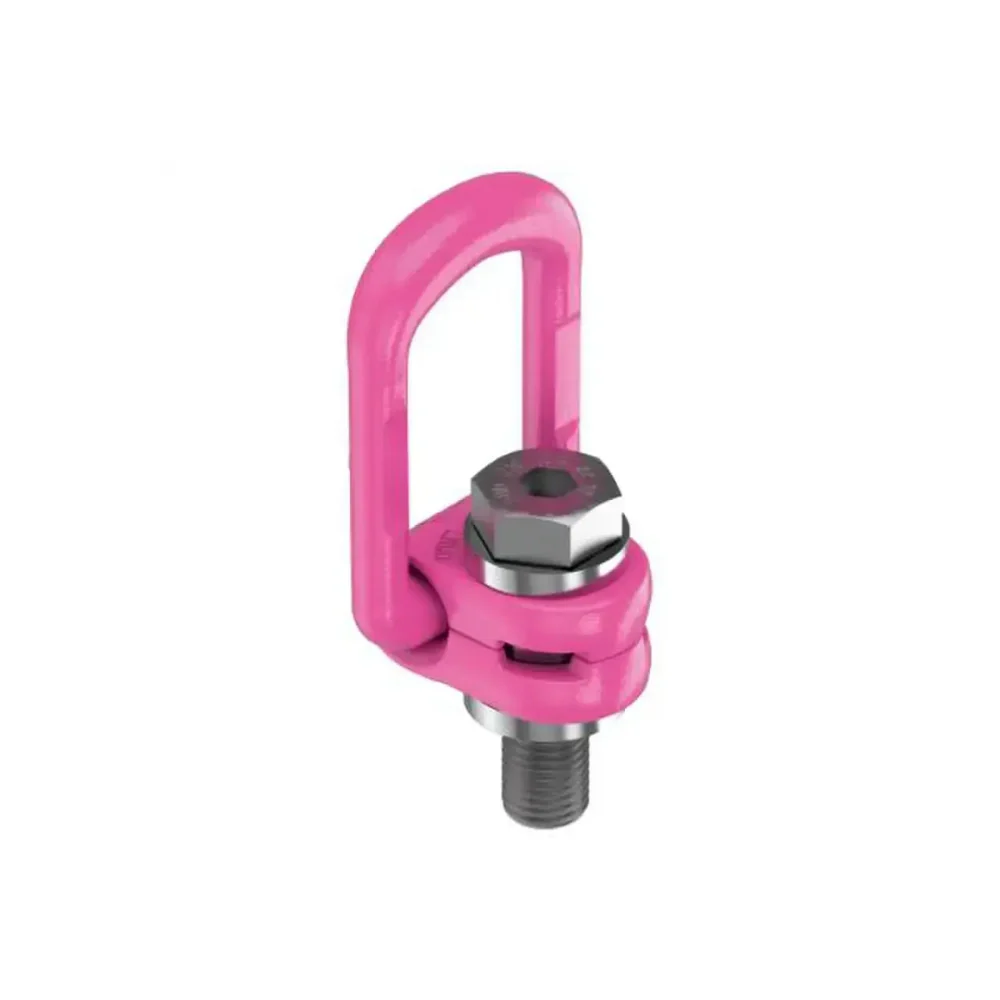

RUD VLBG Ring Bolt, Metric Fine-Thread with Variable Length
A time tried and tested lifting solution, RUD's VLBG Ring Bolt (Fine Metric Thread with Max Length) is available in working load limits of 2200lbs - 8820ls, with full WLL achievable in all directions.
Featuring a captive but exchangeable RUD-Bolt with special Corrud-DT corrosion protection, this lifting bolt swivels 360-degrees and pivots 180-degrees.
Additionally, the clamping spring achieves noise reduction and keeps the suspension ring in the desired direction; thereby simple hinging of the lifting means is possible or a flat design in the folded state.
|

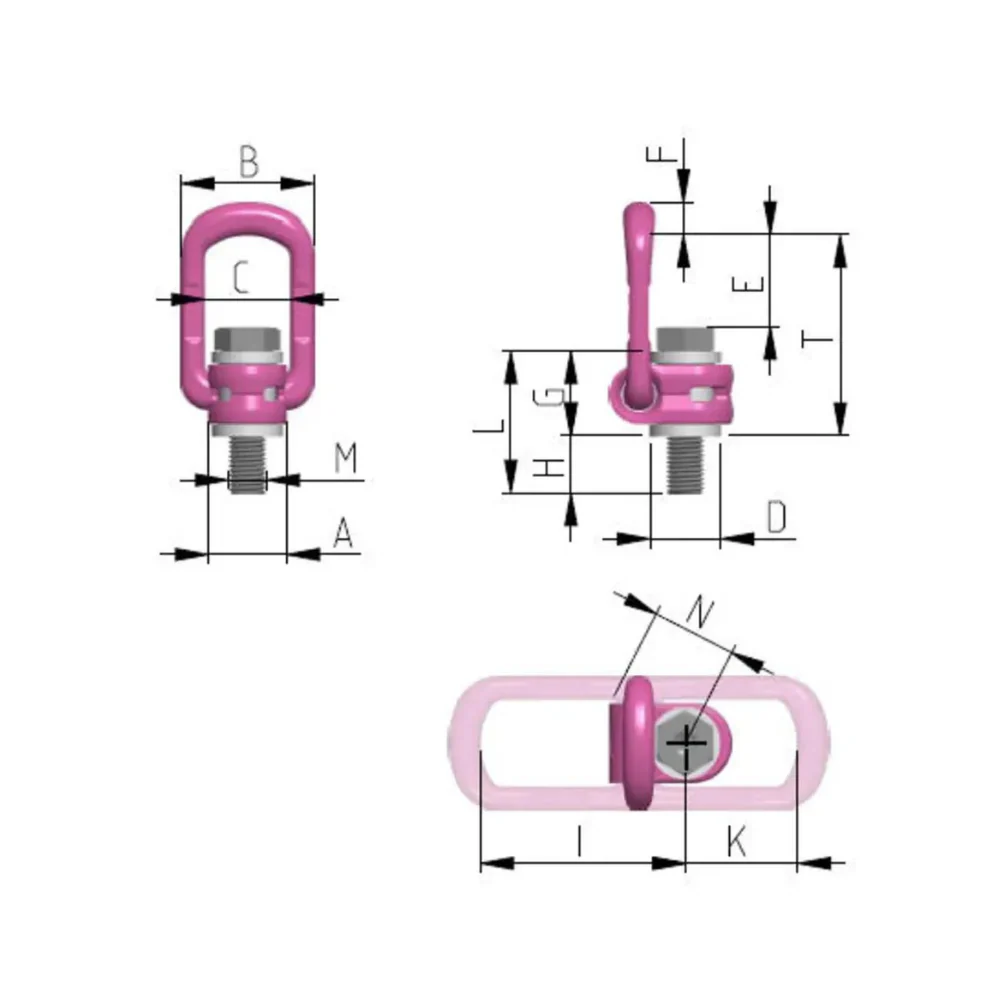

SKU |
WLL (tons) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H Max (mm) |
H Min (mm) |
I (mm) |
K (mm) |
L Max (mm) |
L Min (mm) |
M |
N (mm) |
T (mm) |
|
8600382 |
2200 |
32 |
54 |
34 |
26 |
38 |
10 |
29 |
31 |
12 |
75 |
45 |
60 |
41 |
M12x1,5 |
32 |
75 |
|
8600383 |
3300 |
33 |
56 |
36 |
30 |
39 |
13.5 |
36 |
39 |
16 |
86 |
47 |
75 |
52 |
M16x1,5 |
38 |
85 |
|
8600386 |
8820 |
50 |
82 |
54 |
45 |
67 |
18 |
43 |
62 |
24 |
130 |
78 |
105 |
67 |
M24x1,5 |
48 |
125 |
Original: $337.00
-65%$337.00
$117.95
