RUD VLBG-Z Load Ring, UNC Thread with Max. Length
With a large working load limit range of 0.63t up to 20t , RUD's VLBG-Plus Load Ring, UNC Thread with Max Length, is a true tried and tested lifting ring, capable of achieving full WLL in all directions and coming in a comprehensive range of thread sizes.
These lifting points swivel a complete 360-degrees, with the suspension ring pivoting 180-degrees, the VLBG-Plus Load Ring features a captive but exchangeable ICE-Bolt made from patented steel with specialist Corrud-DT corrosion protection. The clamping spring of the VLBG Load Ring operates as a noise reduction and holds the suspension ring in the requested position.
Quick and easy to install with just one bolt connection, hand tightening with an appropriate wrench is sufficient for a singular lift.
NOTE: Please observe torque instructions when lifting point is permanently installed.
NOTE: Some sizes may have longer lead times.
|

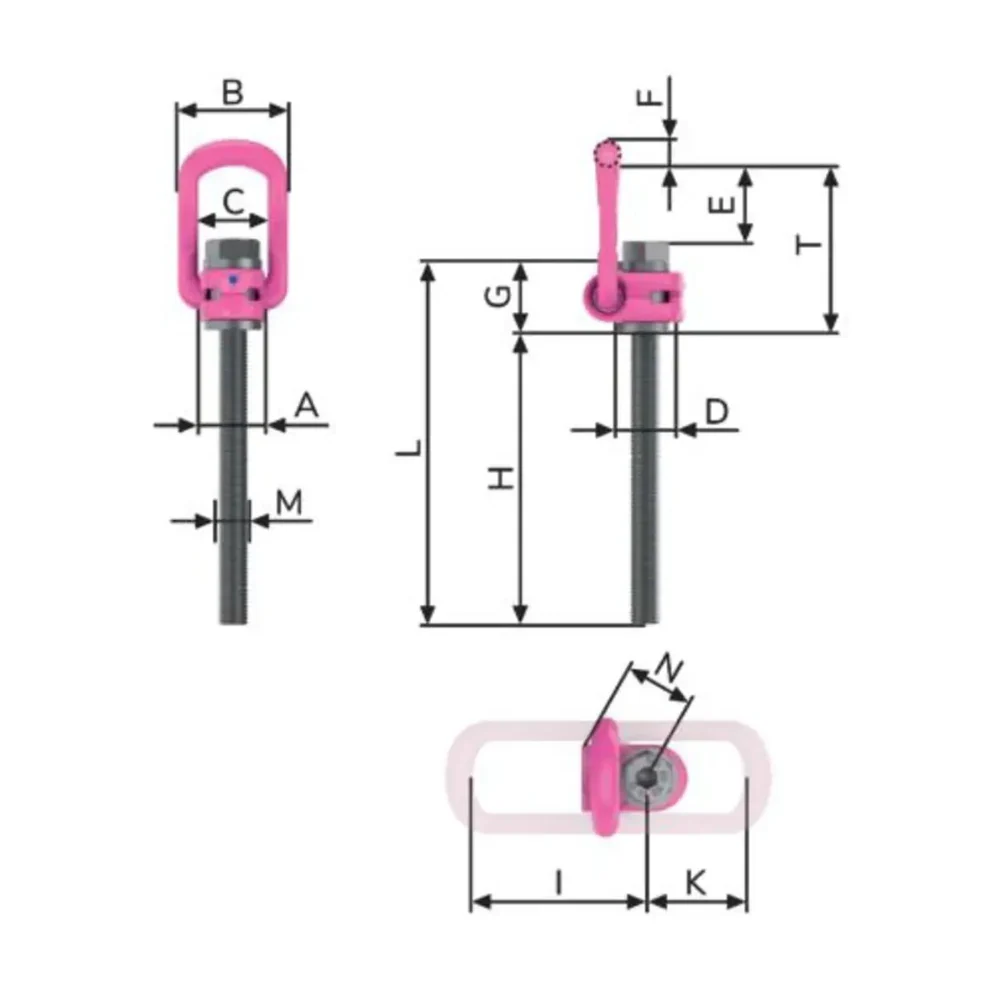

SKU |
WLL (lbs) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H Max (mm) |
H Min (mm) |
I (mm) |
K (mm) |
L Max (mm) |
L Min (mm) |
M |
N (mm) |
T (mm) |
|
8600440 |
1110 |
30 |
54 |
34 |
24 |
39 |
10 |
29 |
98 |
10 |
75 |
45 |
127 |
39 |
32 |
75 |
|
|
8600441 |
17630 |
32 |
54 |
34 |
26 |
38 |
10 |
29 |
123 |
13 |
75 |
45 |
152 |
42 |
1/2"-13UNC |
32 |
75 |
|
8600442 |
2640 |
33 |
56 |
36 |
630 |
39 |
13.5 |
36 |
148 |
16 |
86 |
47 |
184 |
52 |
5/8"-11UNC |
38 |
85 |
|
8600443 |
4400 |
50 |
82 |
54 |
45 |
55 |
16.5 |
43 |
185 |
19 |
113 |
64 |
228 |
62 |
3/4"-10UNC |
48 |
10 |
|
8600444 |
7040 |
50 |
82 |
54 |
45 |
55 |
16.5 |
43 |
211 |
22 |
113 |
64 |
254 |
65 |
7/8"-9UNC |
48 |
110 |
|
8600445 |
8810 |
50 |
82 |
54 |
45 |
67 |
18 |
43 |
211 |
25 |
130 |
78 |
254 |
68 |
1"-8UNC |
48 |
125 |
|
8600446 |
14080 |
60 |
103 |
65 |
60 |
64 |
22.5 |
61 |
278 |
32 |
151 |
80 |
337 |
93 |
1 1/4"-7UNC |
67 |
147 |
|
8600447 |
17630 |
77 |
122 |
82 |
70 |
97 |
26.5 |
77 |
270 |
38 |
205 |
110 |
347 |
115 |
1 1/2"-6UNC |
87 |
197 |
|
8600448 |
44090 |
95 |
156 |
100 |
95 |
105 |
36 |
87 |
302 |
51 |
230 |
130 |
389 |
138 |
2"-4 1/2 UNC |
100 |
222 |
Original: $392.00
-65%$392.00
$137.20
