RUD VLBG-Z Load Ring, UNC Thread with Variable Length

With a large working load limit range of 0.63t up to 20t , RUD's VLBG-Plus Load Ring, UNC Thread with Variable Length, is a true tried and tested lifting ring, capable of achieving full WLL in all directions and coming in a comprehensive range of thread sizes.

These lifting points swivel a complete 360-degrees, with the suspension ring pivoting 180-degrees, the VLBG-Plus Load Ring features a captive but exchangeable ICE-Bolt made from patented steel with specialist Corrud-DT corrosion protection. The clamping spring of the VLBG Load Ring operates as a noise reduction and holds the suspension ring in the requested position.

Quick and easy to install with just one bolt connection, hand tightening with an appropriate wrench is sufficient for a singular lift.

NOTE: Please observe torque instructions when lifting point is permanently installed.

 NOTE: Some sizes may have longer lead times.

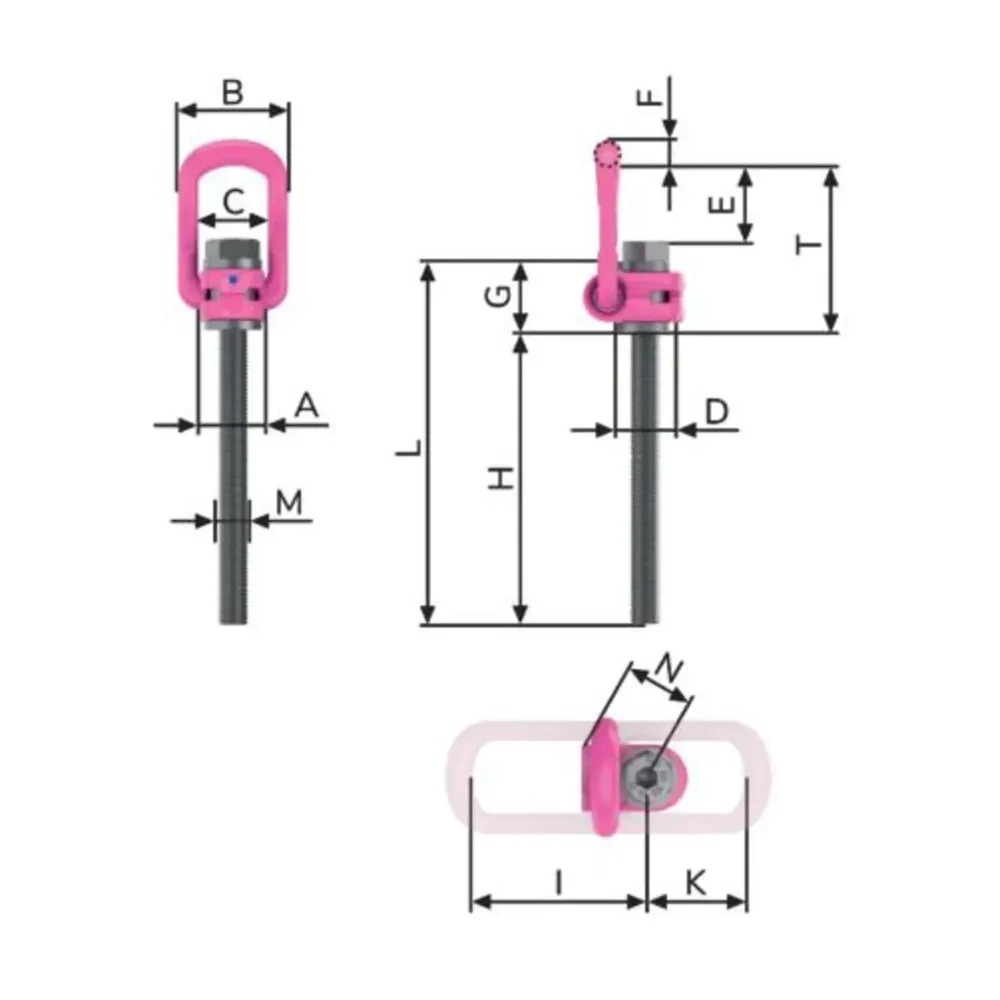

SKU	WLL (lbs)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H Max (mm)	H Min (mm)	I (mm)	K (mm)	L Max (mm)	L Min (mm)	M	N (mm)	T (mm)
8600446	14080	60	103	65	60	64	22.5	61	278	32	151	80	337	93	1 1/4"-7UNC	67	147
8600447	17630	77	122	82	70	97	26.5	77	270	38	205	110	347	115	1 1/2"-6UNC	87	197
8600448	44090	95	156	100	95	105	36	87	302	51	230	130	389	138	2"-4 1/2 UNC	100	222
