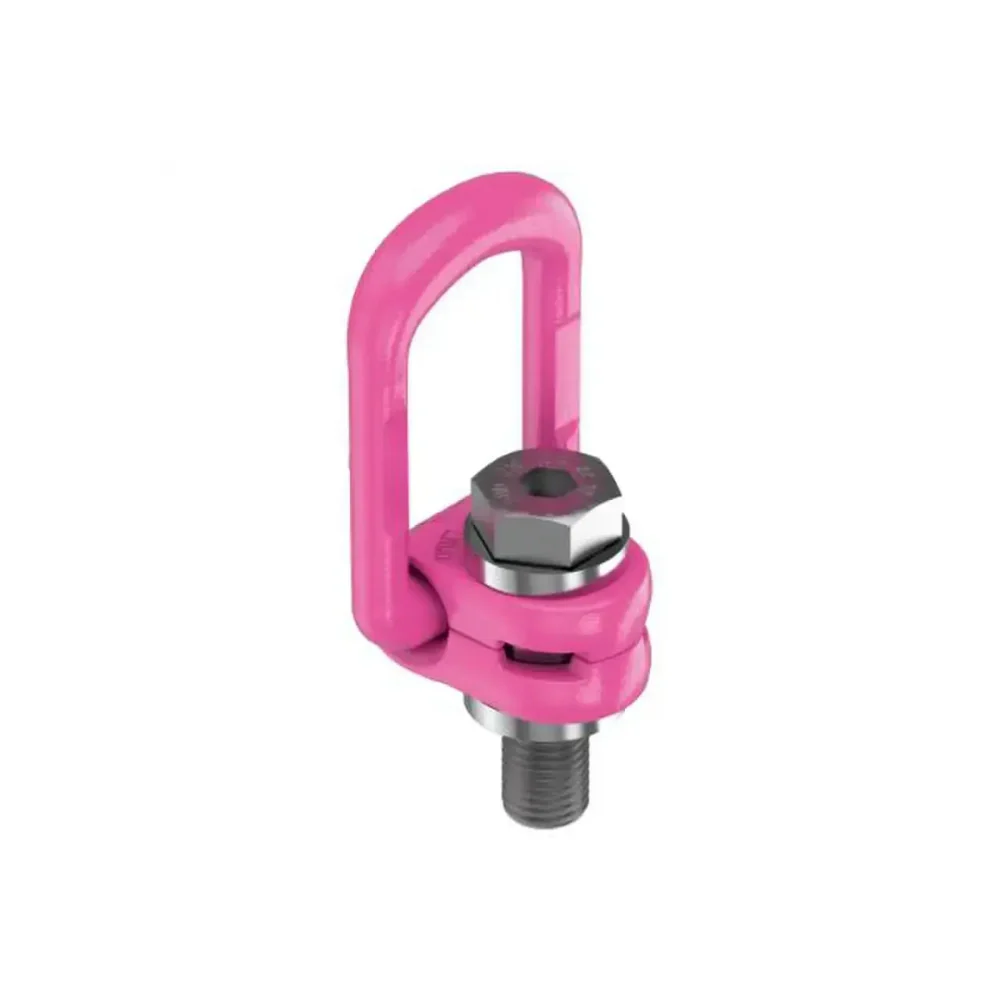

RUD VLBG-Z Load Ring, UNC/UN Thread

With a large working load limit range of 0.63t up to 20t , RUD's VLBG-Z Load Ring, UNC/UN Thread, is a true tried and tested lifting ring, capable of achieving full WLL in all directions and coming in a comprehensive range of thread sizes.

These lifting points swivel a complete 360-degrees, with the suspension ring pivoting 180-degrees, the VLBG-Plus Load Ring features a captive but exchangeable ICE-Bolt made from patented steel with specialist Corrud-DT corrosion protection. The clamping spring of the VLBG Load Ring operates as a noise reduction and holds the suspension ring in the requested position.

Quick and easy to install with just one bolt connection, hand tightening with an appropriate wrench is sufficient for a singular lift.

NOTE: Please observe torque instructions when lifting point is permanently installed.

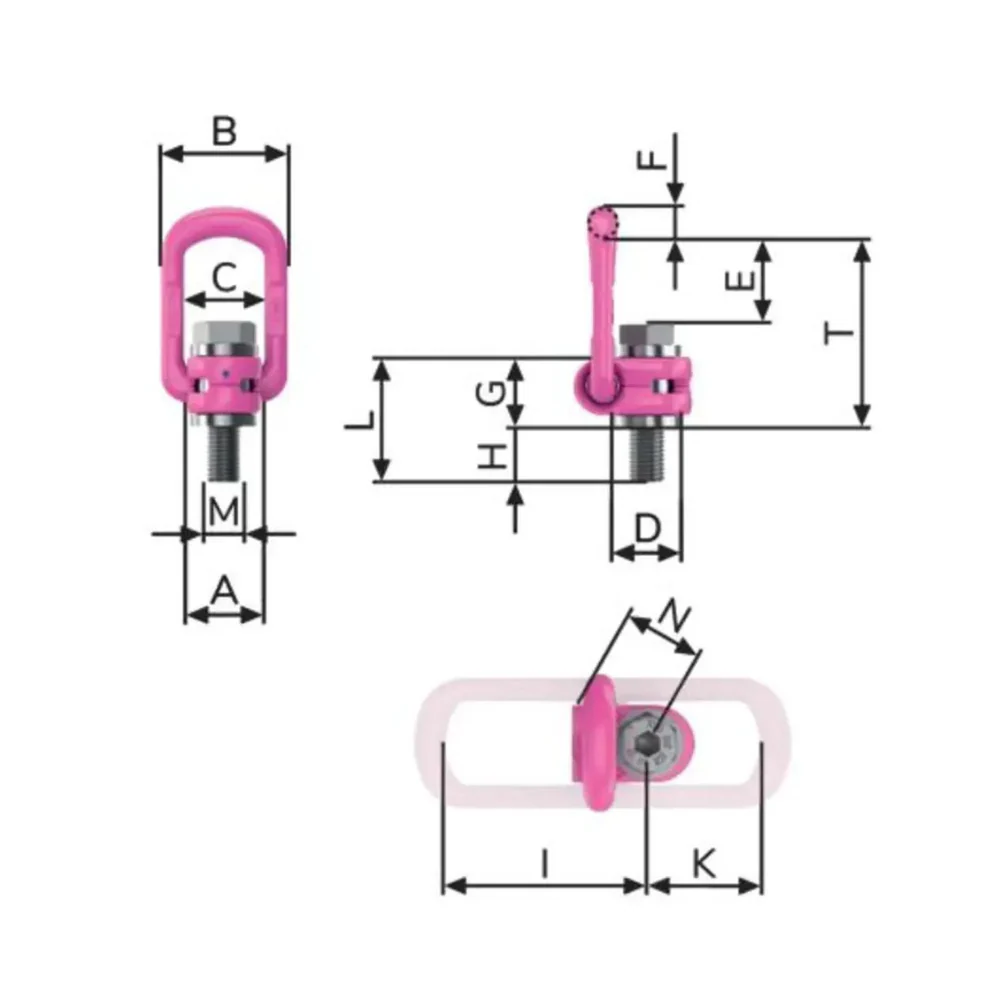

SKU	WLL (lbs)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	I (mm)	K (mm)	L (mm)	M	N (mm)	T (mm)
8504256	1110	30	54	34	24	39	10	29	16	75	45	45	3/8"-16UNC	32	75
8502349	1760	32	54	34	26	38	10	29	22	75	45	50	1/2"-13UNC	32	75
8502350	2640	33	56	36	30	39	13.5	36	24	86	47	60	5/8"-11UNC	38	85
8502351	4400	50	82	54	45	55	16.5	43	28	113	64	71	3/4"-10UNC	48	110
8502352	7040	50	82	54	45	55	16.5	43	27	113	64	70	7/8"-9UNC	48	110
8502353	8810	50	82	54	45	67	18	43	41	130	78	84	1"-8UNC	48	125
8502354	11000	60	103	65	60	64	22.5	61	41	151	80	102	1 1/4"-8UN	67	147
8503187	14080	60	103	65	60	64	22.5	61	41	151	80	102	1 1/4"-7UNC	67	147
8504257	17630	77	122	82	70	97	26.5	77	62	205	110	140	1 1/2"-6UNC	87	197
8504258	44090	95	156	100	95	105	36	87	69	230	130	156	2"-4 1/2 UNC	100	222
