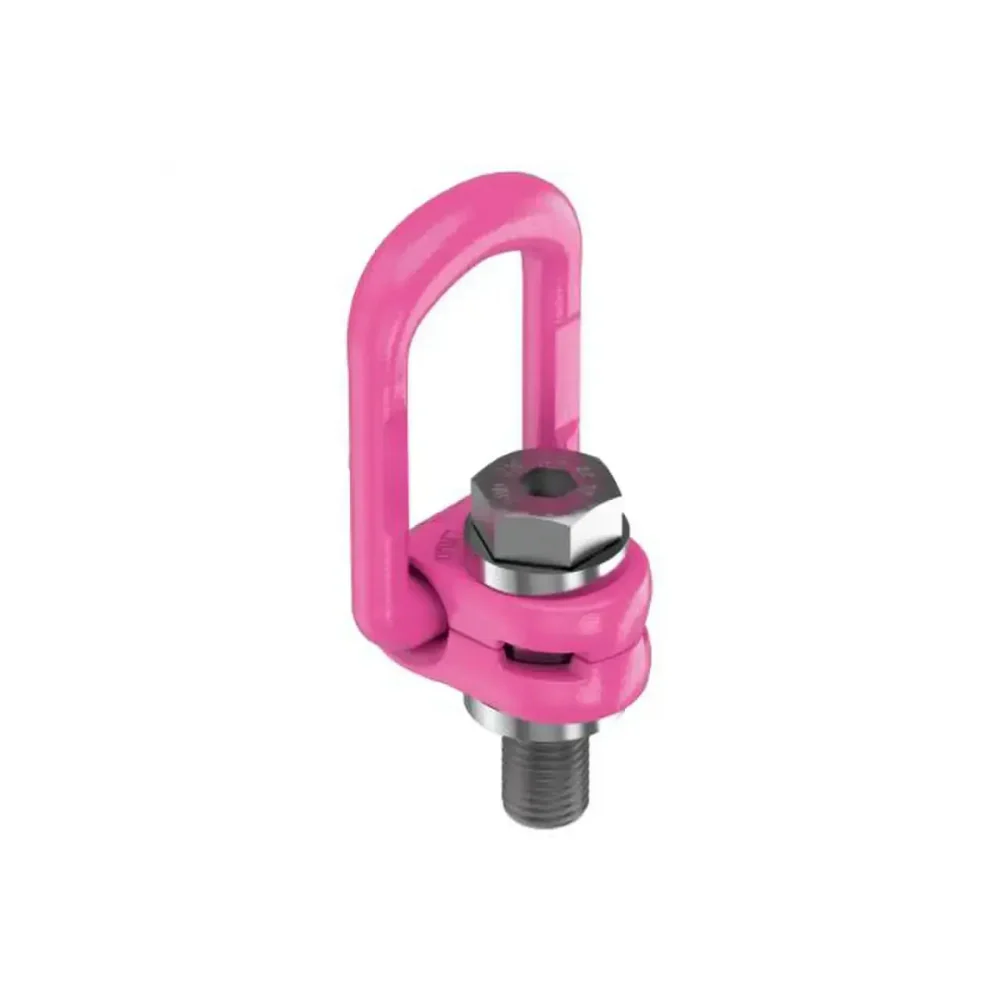

RUD VLBG-Z Load Ring, UNF Thread
Coming with a working load limit of 3300lbs, RUD's VLBG-Z Load Ring, UNF Thread is a true tried and tested lifting ring, capable of achieving full WLL in all directions and coming in a comprehensive range of thread sizes.
These lifting points swivel a complete 360-degrees, with the suspension ring pivoting 180-degrees, the VLBG-Plus Load Ring features a captive but exchangeable ICE-Bolt made from patented steel with specialist Corrud-DT corrosion protection. The clamping spring of the VLBG Load Ring operates as a noise reduction and holds the suspension ring in the requested position.
Quick and easy to install with just one bolt connection, hand tightening with an appropriate wrench is sufficient for a singular lift.
NOTE: Please observe torque instructions when lifting point is permanently installed.
|

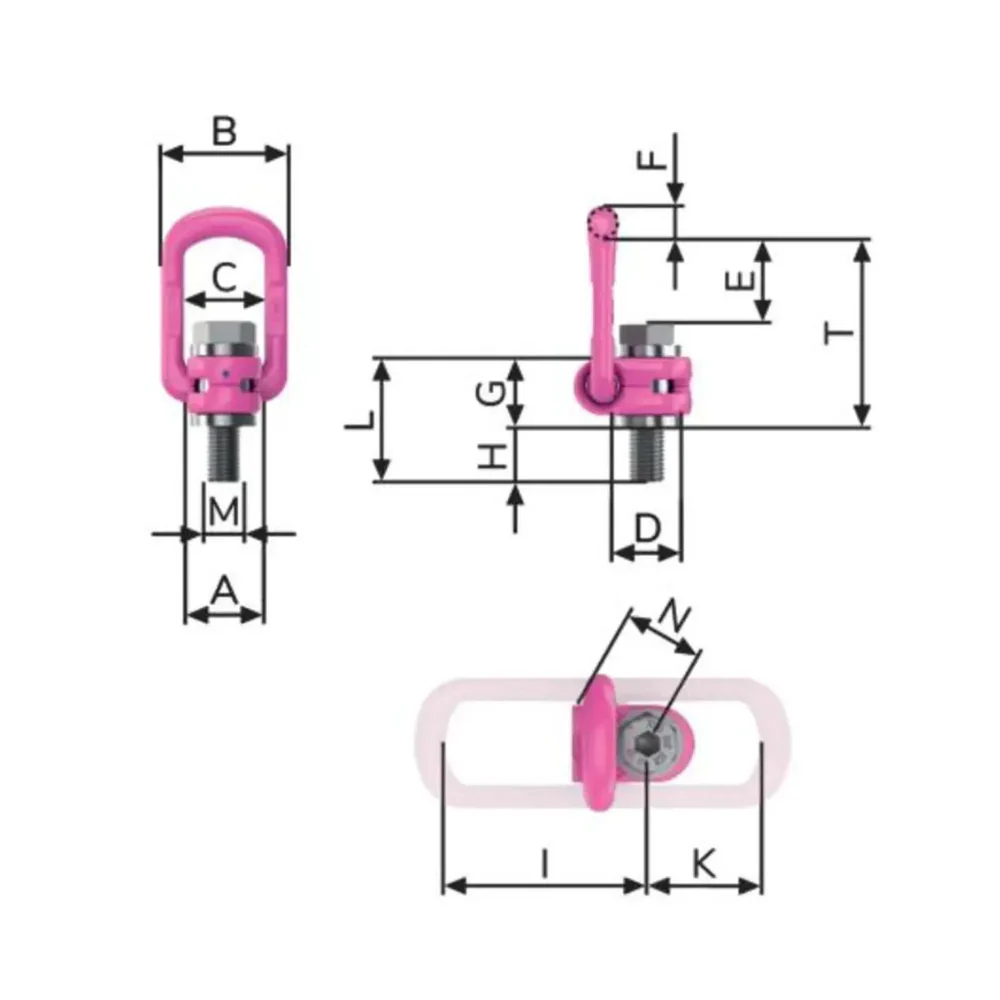

SKU |
WLL (lbs) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
I (mm) |
K (mm) |
L (mm) |
M |
N (mm) |
T (mm) |
|
7903942 |
3300 |
33 |
56 |
36 |
45 |
38 |
13.5 |
36 |
30 |
87 |
47 |
60 |
5/8"-18UNF |
38 |
85 |
Ā
Original: $652.00
-65%$652.00
$228.20
Description
Coming with a working load limit of 3300lbs, RUD's VLBG-Z Load Ring, UNF Thread is a true tried and tested lifting ring, capable of achieving full WLL in all directions and coming in a comprehensive range of thread sizes.
These lifting points swivel a complete 360-degrees, with the suspension ring pivoting 180-degrees, the VLBG-Plus Load Ring features a captive but exchangeable ICE-Bolt made from patented steel with specialist Corrud-DT corrosion protection. The clamping spring of the VLBG Load Ring operates as a noise reduction and holds the suspension ring in the requested position.
Quick and easy to install with just one bolt connection, hand tightening with an appropriate wrench is sufficient for a singular lift.
NOTE: Please observe torque instructions when lifting point is permanently installed.
|
