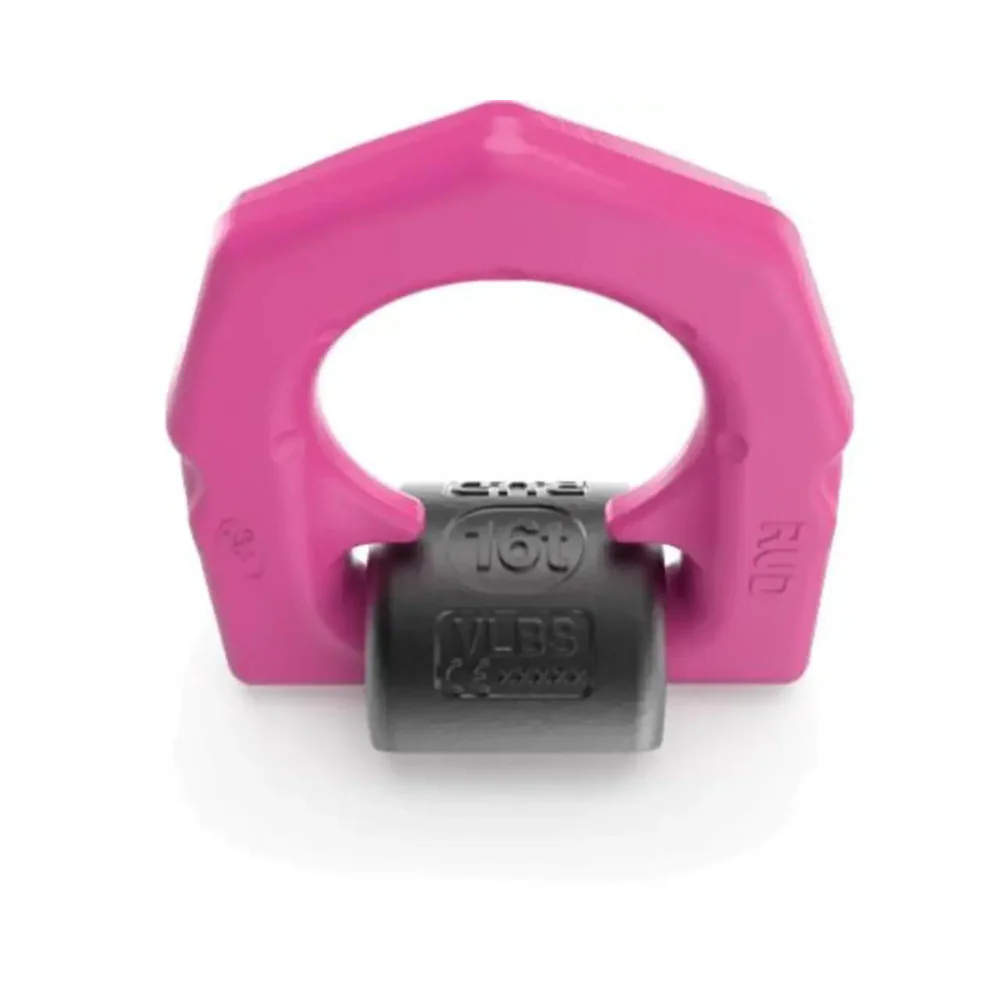

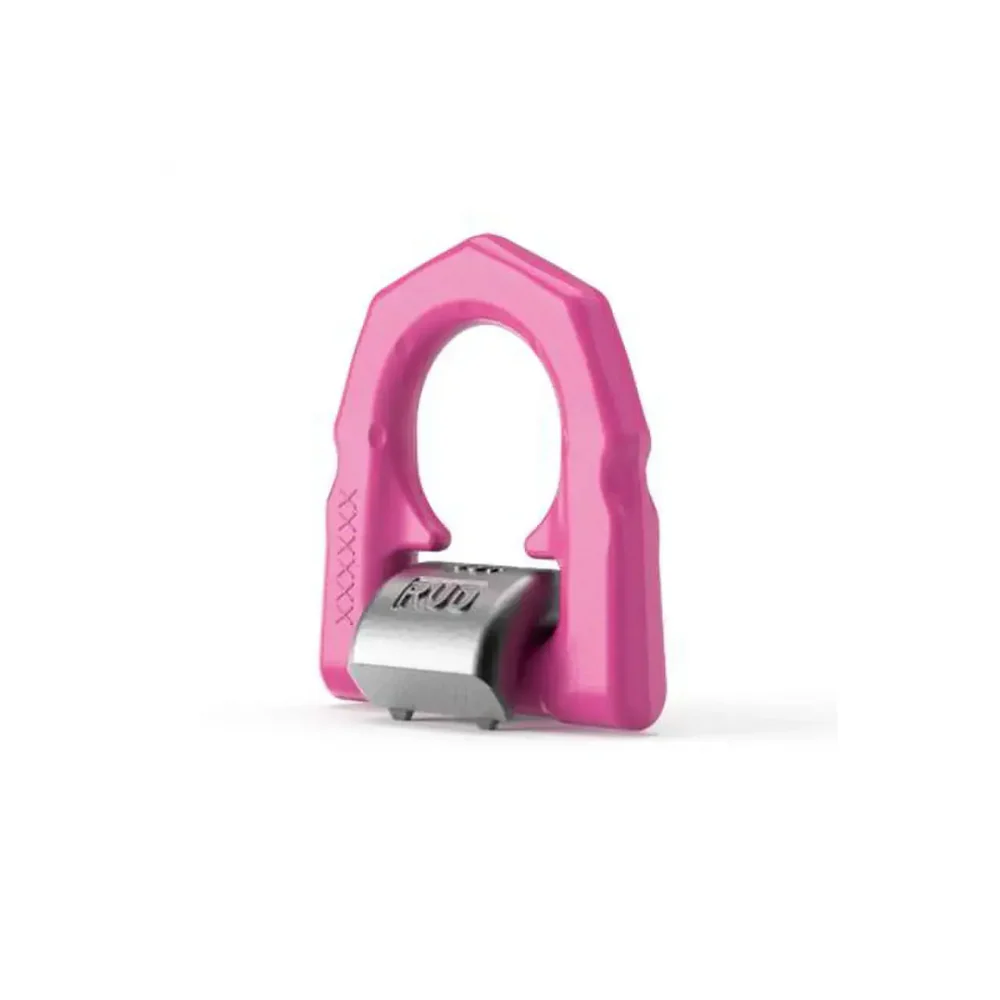

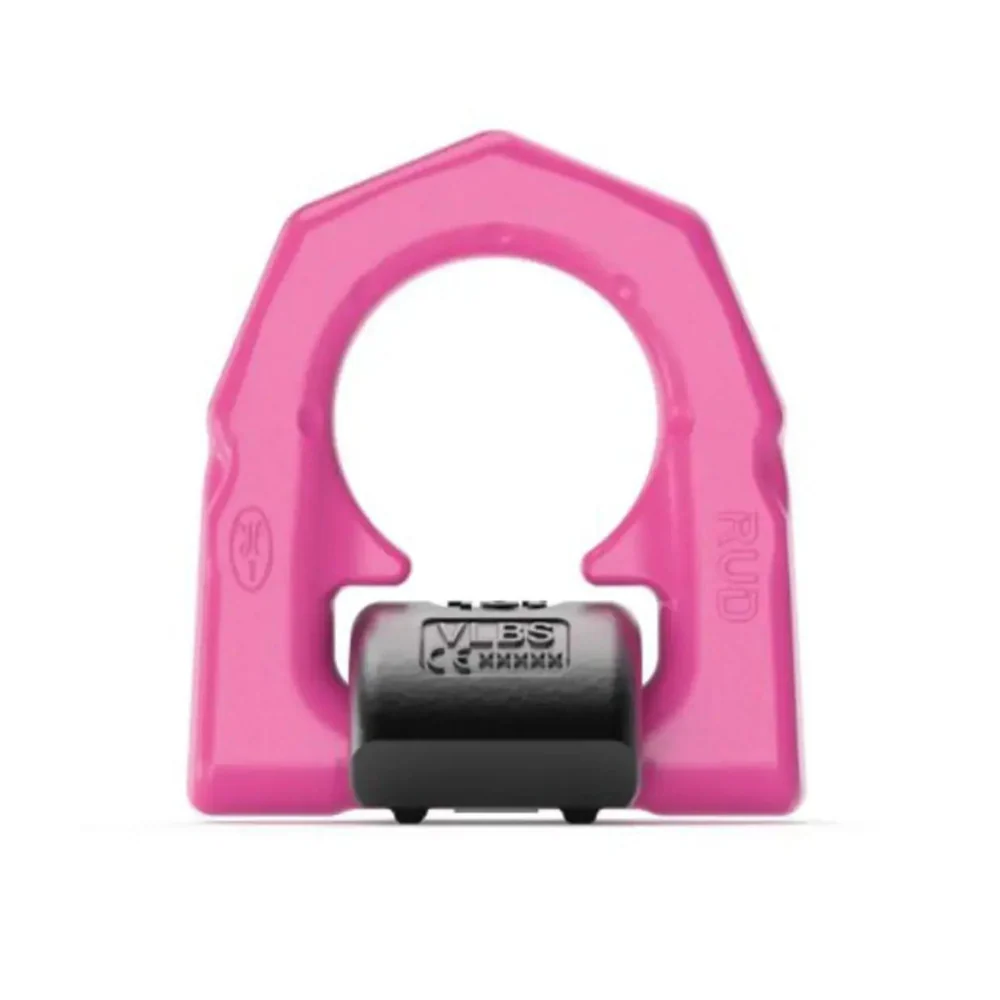

RUD VLBS Load Ring for Welding

If you're looking for a compact lifting solution that's easy to weld and install, then RUD's VLBS Load Ring is the answer.

Available in working load limits from 1.5t to 16t, and models both with or without spring, the VLBS Load Ring fir Welding features a functionally optimised suspension ring profile to side support side loaded weight.

Designed so that the suspension ring can be pivoted through 180-degrees, working load limit is possible up to 90-degrees in load ring plane. The distance knobs on the weld-on block is designed specifically for the necessary distance for root welding.

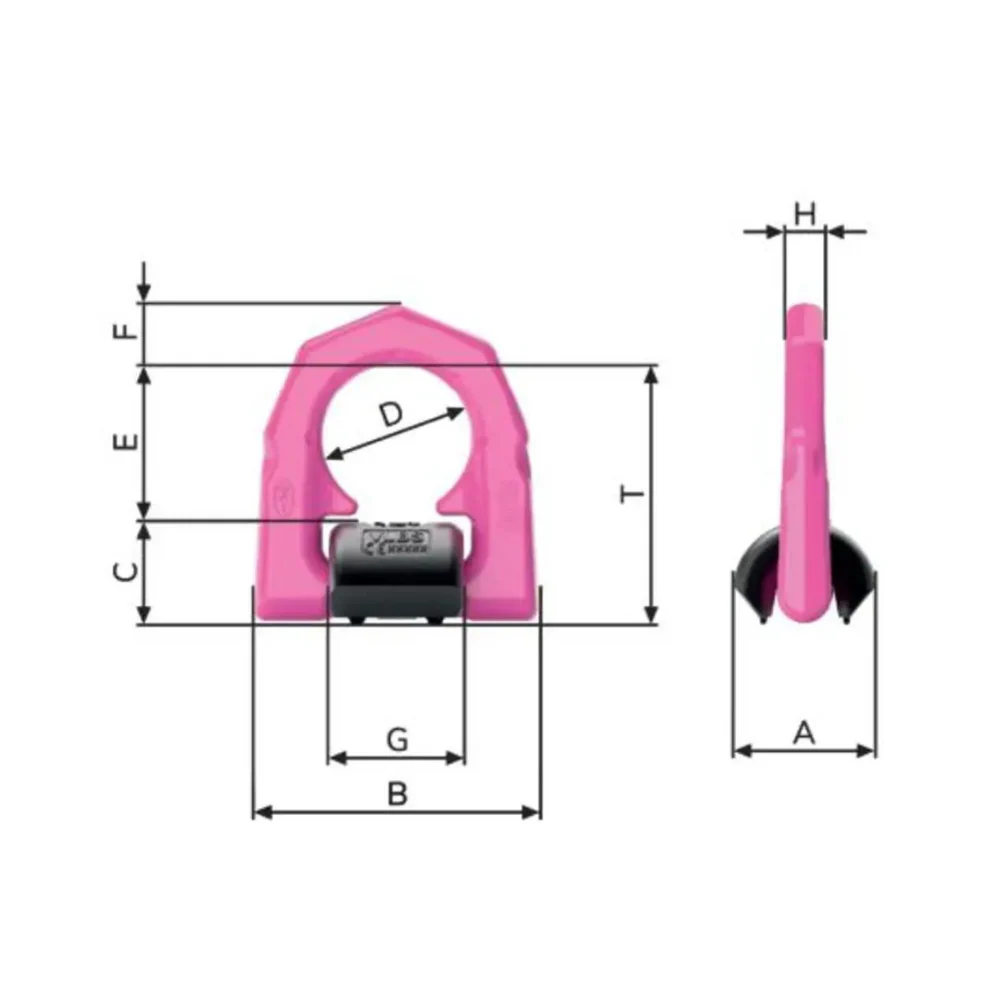

SKU	WLL (tons)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	Pitch T (mm)
7993115	1.5	33	66	25	38	40	14	33	14	65
7993118	10	75	129	55	67	71	26.5	60	26.5	126
7993041	16	96	192	70	100	106	40	90	26	176
7995346	2.5	38	77	28	45	47	16	40	16	75
7993116	4	42	87	31	51	52	18	46	16	83
7993117	6.7	61	115	44	67	73	24	60	22.5	117
7993035	1.5	33	66	25	38	40	14	33	14	65
7993040	10	75	129	55	67	71	26.5	60	26.5	126
7906640	16	96	192	70	100	106	40	90	26	176
7994830	2.5	38	77	28	45	47	16	40	16	75
7993036	4	42	87	31	51	52	18	46	16	83
7993037	6.7	61	115	44	67	73	24	60	22.5	117
