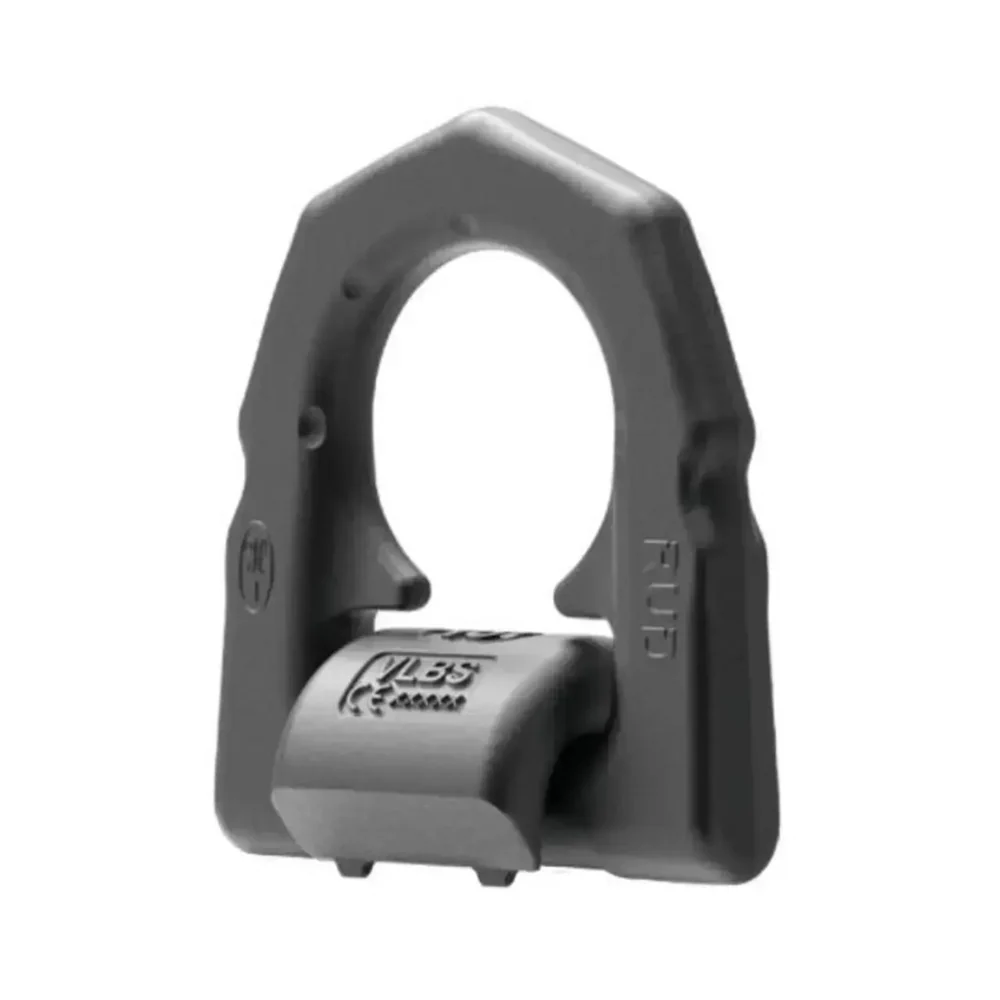

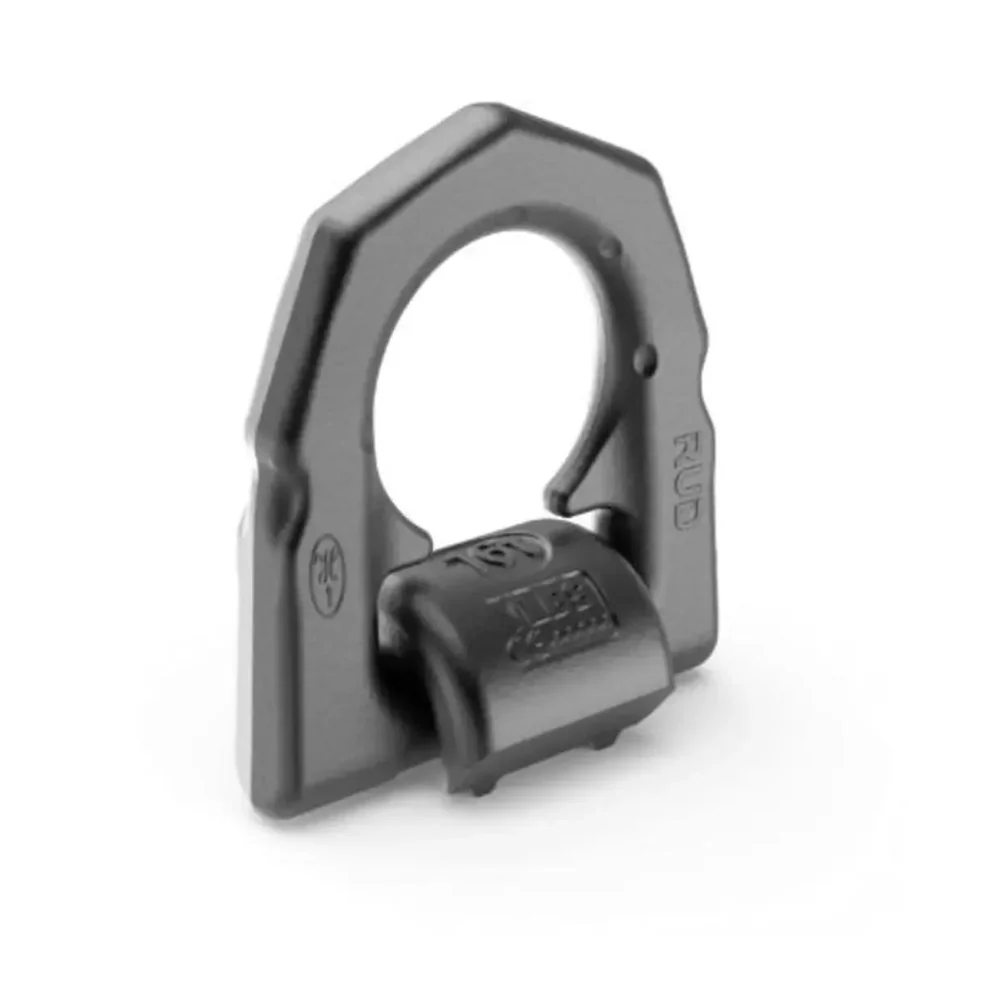

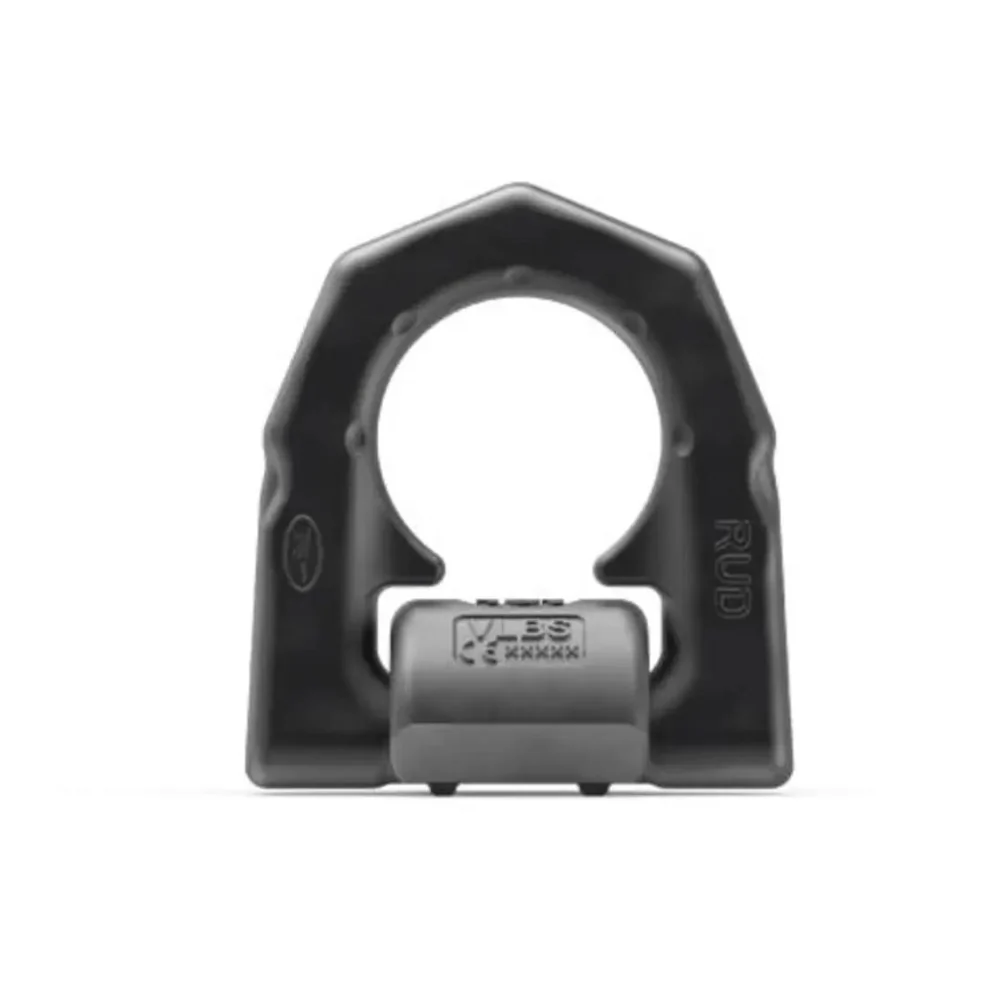

RUD VLBS-U-LT Load Ring for Welding in Low Temperatures
Designed for use with low temperatures down to -45° C, RUD's VLBS-U-LT Weldable Load Ring is available in working load limits from 2.5t - 10t.
The suspension ring is adjustable in the required position, and can be pivoted through 180°. Additionally, the suspension ring and weld-on block are captive due to a retaining spring.
Proof of deep temperature ability down to -45°C is showcased via notch bar impact testing.
|

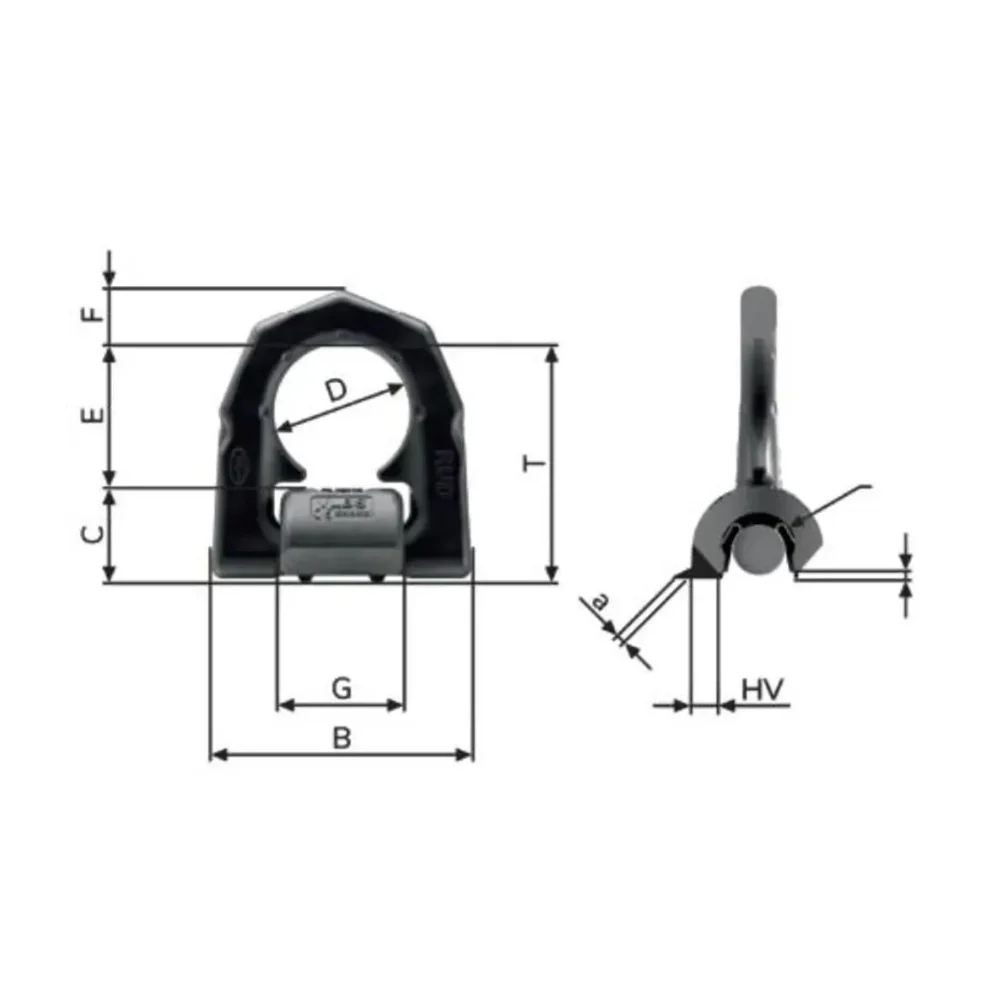

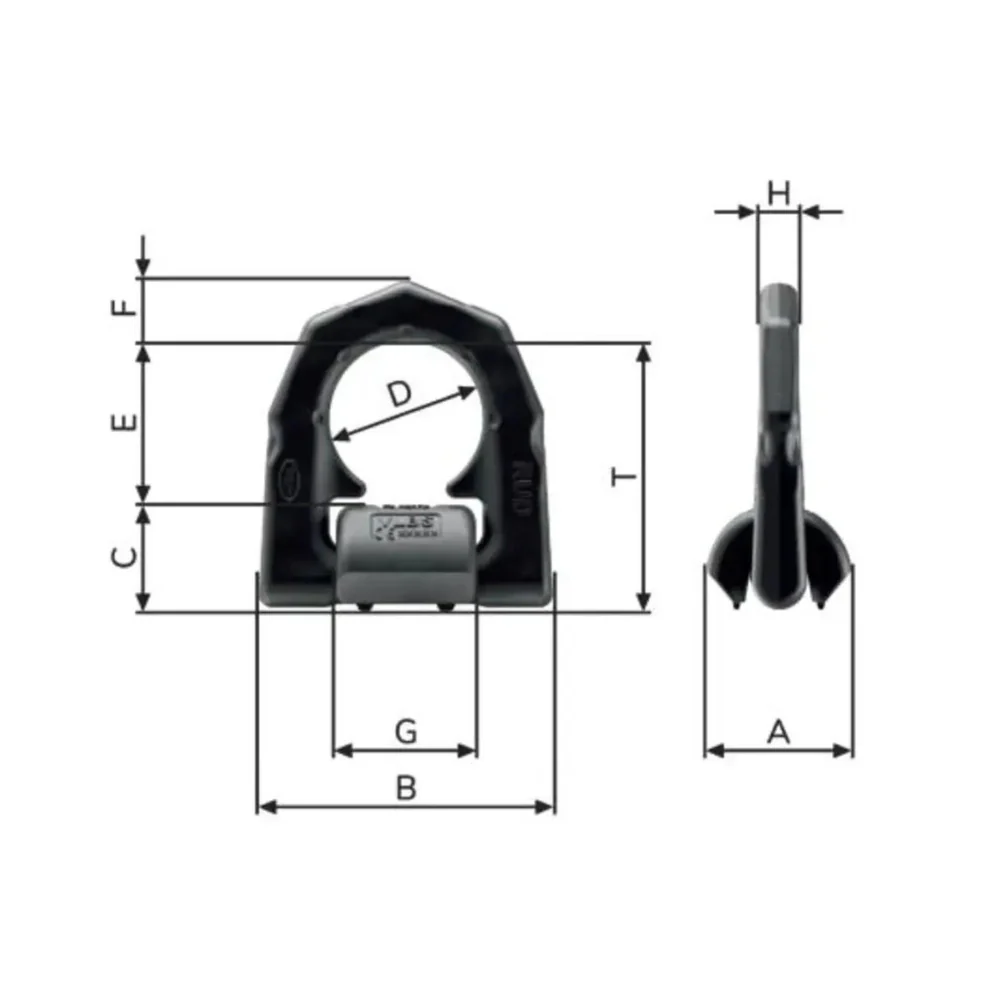

SKU |
WLL (tons) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
T (mm) |
|
7903522 |
2.5 |
38 |
77 |
28 |
45 |
47 |
16 |
40 |
16 |
75 |
|
7903400 |
4 |
42 |
87 |
31 |
51 |
52 |
18 |
46 |
16 |
83 |
|
7903684 |
6.7 |
61 |
115 |
44 |
67 |
73 |
24 |
60 |
22.5 |
117 |
|
7903135 |
10 |
75 |
129 |
55 |
67 |
71 |
26.5 |
60 |
26.5 |
126 |
