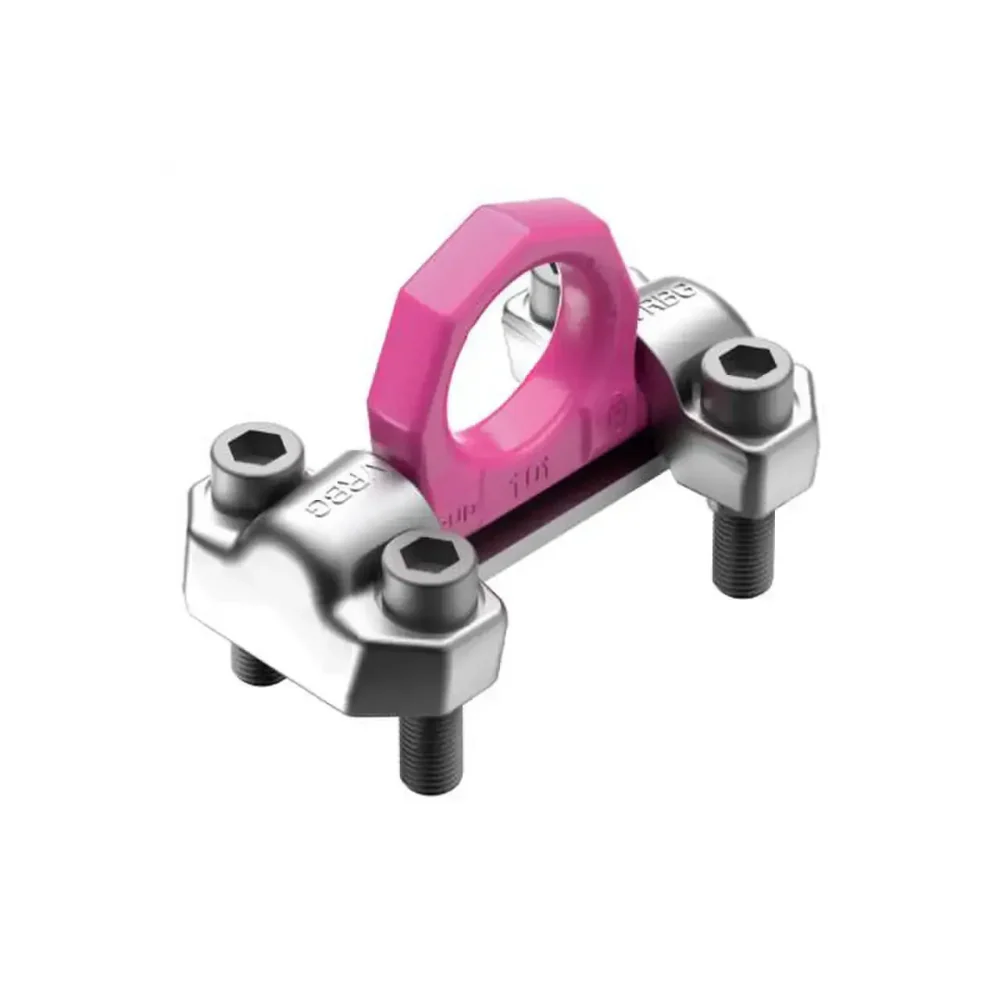

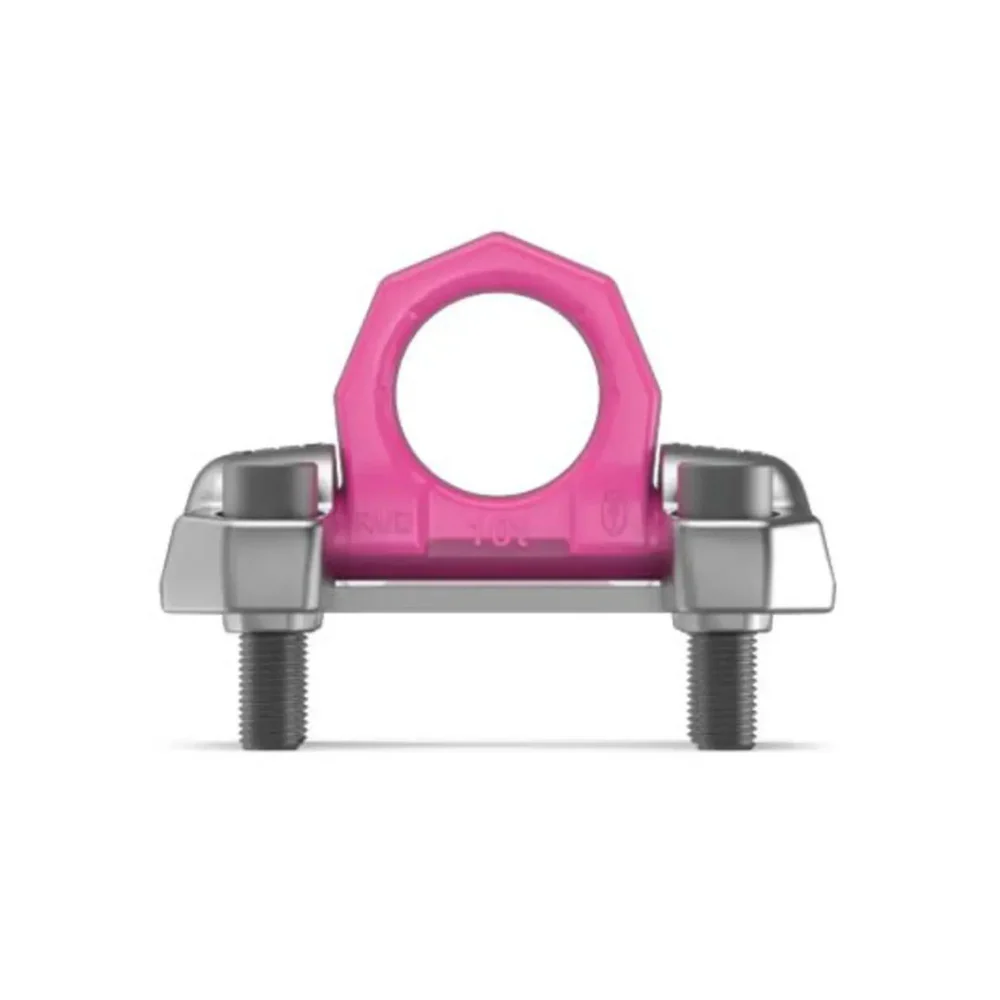

RUD VRBG 10 and 16 Load Ring for Bolting
RUD VRBG Load Ring for Bolting can handle loads of between 10t and 16t, depending on the variation selected.
Split force has been introduced courtesy of the multiple point fixing, with working load limits possible up to 90-degrees in load ring plane. Additionally, the bracket can be pivoted through 180-degrees.
Each unit features clear indications of minimum working load limit for all loading directions for easy reference.
Ā
|

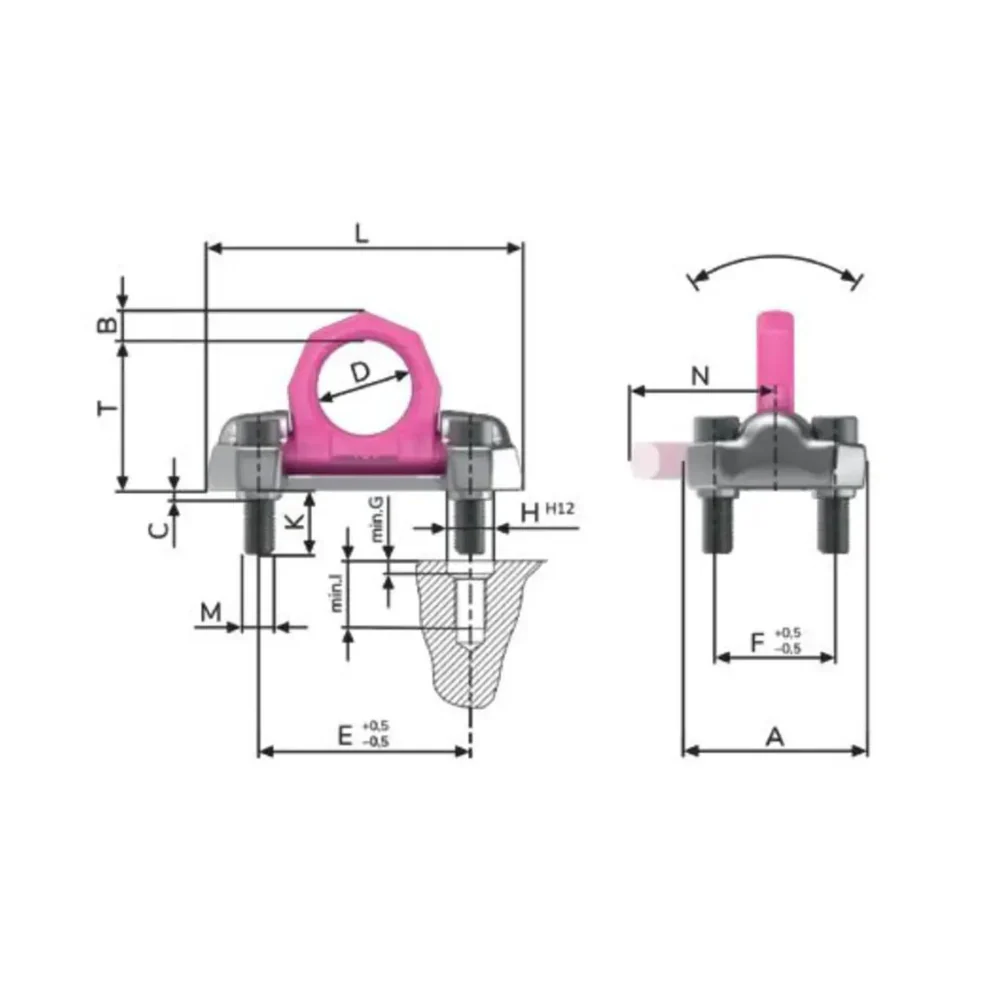

SKU |
WLL (lbs) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
I (mm) |
K (mm) |
L (mm) |
M |
N (mm) |
Pitch T (mm) |
|
7994537 |
22040 |
125 |
22 |
6 |
65 |
143 |
78 |
8 |
30 |
50 |
43 |
213 |
M20 |
100 |
103 |
|
7993255 |
35270 |
170 |
30 |
8 |
90 |
198 |
104 |
10 |
46 |
70 |
63 |
270 |
M30 |
134 |
131 |
Ā
Original: $832.00
-65%$832.00
$291.20
Description
RUD VRBG Load Ring for Bolting can handle loads of between 10t and 16t, depending on the variation selected.
Split force has been introduced courtesy of the multiple point fixing, with working load limits possible up to 90-degrees in load ring plane. Additionally, the bracket can be pivoted through 180-degrees.
Each unit features clear indications of minimum working load limit for all loading directions for easy reference.
Ā
|
SKU |
WLL (lbs) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
I (mm) |
K (mm) |
L (mm) |
M |
N (mm) |
Pitch T (mm) |
|
7994537 |
22040 |
125 |
22 |
6 |
65 |
143 |
78 |
8 |
30 |
50 |
43 |
213 |
M20 |
100 |
103 |
|
7993255 |
35270 |
170 |
30 |
8 |
90 |
198 |
104 |
10 |
46 |
70 |
63 |
270 |
M30 |
134 |
131 |
