RUD VRBG 31.5 and 50 Load Ring on Plate for Bolting
RUD VRBG Load Ring for Bolting can handle loads of between 31.5t and 50t, depending on the variation selected.
Split force has been introduced courtesy of the multiple point fixing, with working load limits possible up to 90-degrees in load ring plane. Additionally, the bracket can be pivoted through 180-degrees.
Each unit features clear indications of minimum working load limit for all loading directions for easy reference.
|

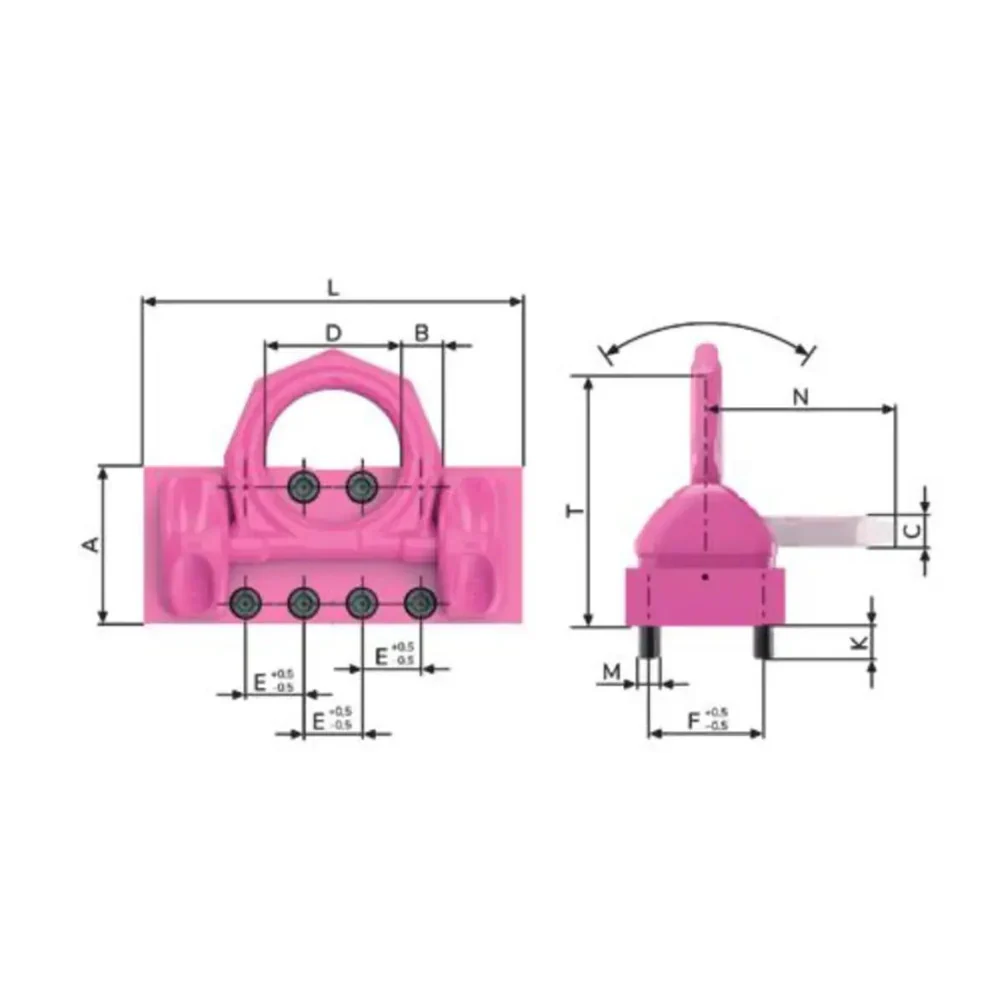

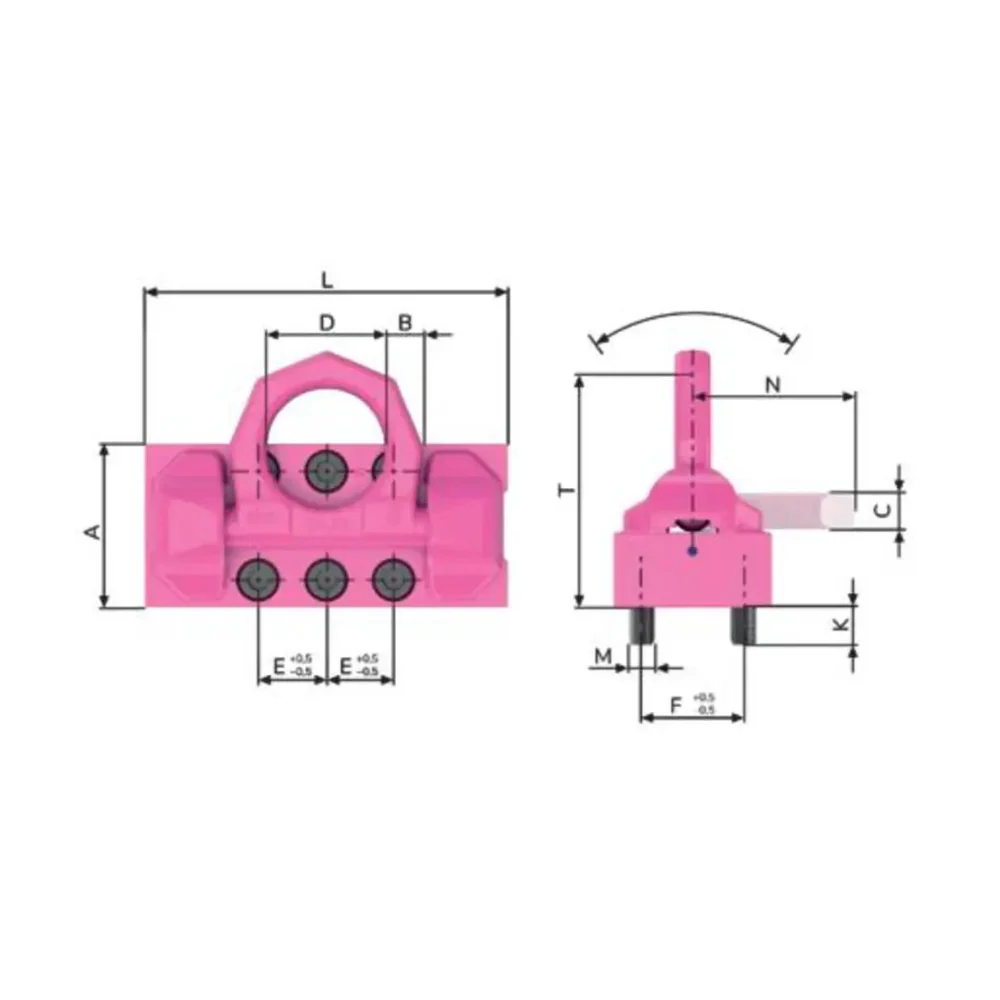

SKU |
WLL (lbs) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
K (mm) |
L (mm) |
M |
N (mm) |
T (mm) |
|
7910387 |
69440 |
180 |
42 |
42 |
130 |
75 |
120 |
46 |
400 |
M30 |
195 |
265 |
|
7910591 |
69440 |
180 |
42 |
42 |
130 |
75 |
120 |
46 |
400 |
M30 |
195 |
288 |
|
7909951 |
110230 |
270 |
70 |
55 |
230 |
100 |
200 |
60 |
650 |
M36 |
335 |
430 |
Ā
Original: $8,186.00
-65%$8,186.00
$2,865.10
Description
RUD VRBG Load Ring for Bolting can handle loads of between 31.5t and 50t, depending on the variation selected.
Split force has been introduced courtesy of the multiple point fixing, with working load limits possible up to 90-degrees in load ring plane. Additionally, the bracket can be pivoted through 180-degrees.
Each unit features clear indications of minimum working load limit for all loading directions for easy reference.
|
SKU |
WLL (lbs) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
K (mm) |
L (mm) |
M |
N (mm) |
T (mm) |
|
7910387 |
69440 |
180 |
42 |
42 |
130 |
75 |
120 |
46 |
400 |
M30 |
195 |
265 |
|
7910591 |
69440 |
180 |
42 |
42 |
130 |
75 |
120 |
46 |
400 |
M30 |
195 |
288 |
|
7909951 |
110230 |
270 |
70 |
55 |
230 |
100 |
200 |
60 |
650 |
M36 |
335 |
430 |
