RUD VRBK-FIX/VRBK Load Ring for Welding 90° Corners

Labelled as the perfect shared-force welding solution, RUD's VRBK Load Ring for Welding 90-degree corners is available in working load limits from 4t up to 50t.

The unique multiple fixing point design splits the force, with all parts held together by a reliable clamping spring, which also achieves noise reduction. Additionally, no complex levelling of the components is required.

Thanks for the circular fillet weld arrangement, the VRBK eliminates any risk of crevice corrosion.

The suspension ring pivots 270-degrees, while stated WLL is possible up to 90-degrees in load ring plane.

Finally, for added safety, each unit features patented wear markings for easy identification of damage and general wearing.

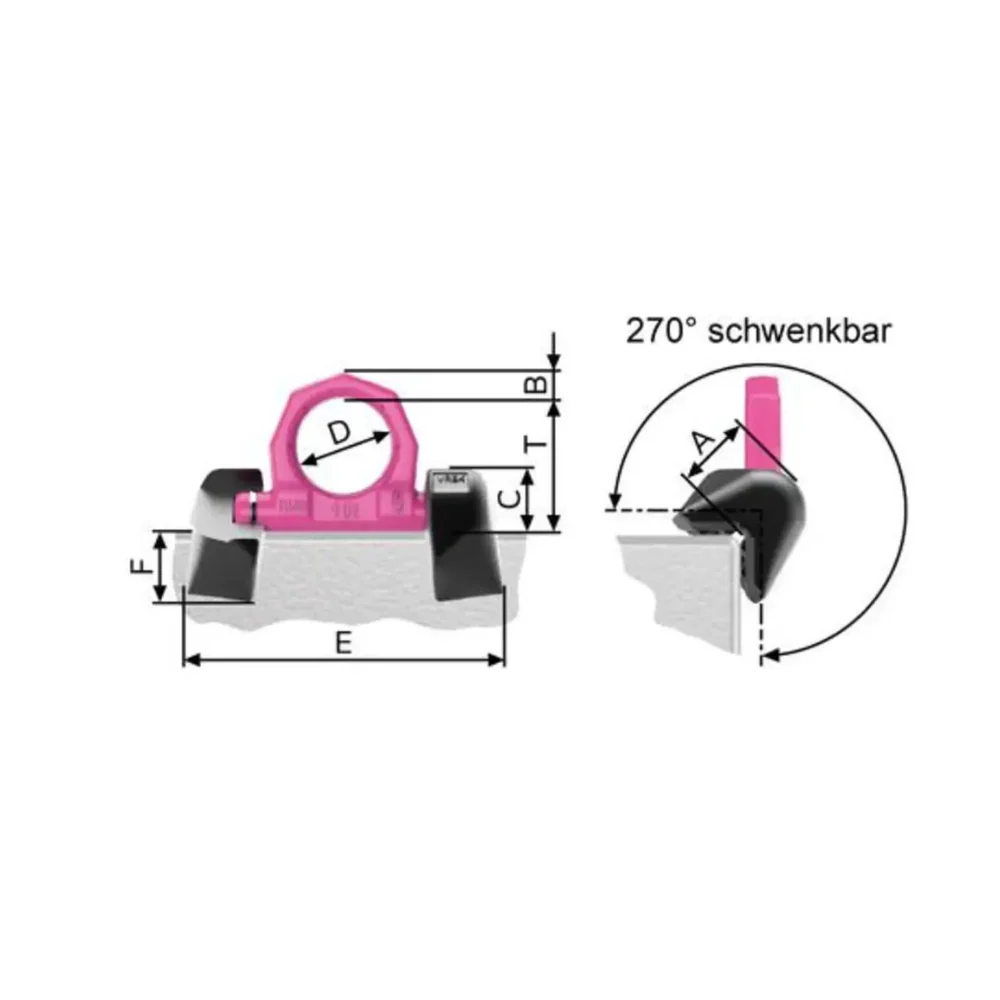

SKU	WLL (tons)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	Pitch T (mm)
7904653	50	134	70	118	230	626	96	54	303
7902256	10	52	22	46	65	212	46	0	94
7902149	4	32	14	28	48	141	30	0	65
7902150	6.7	40	20	35	60	181	34	0	84
