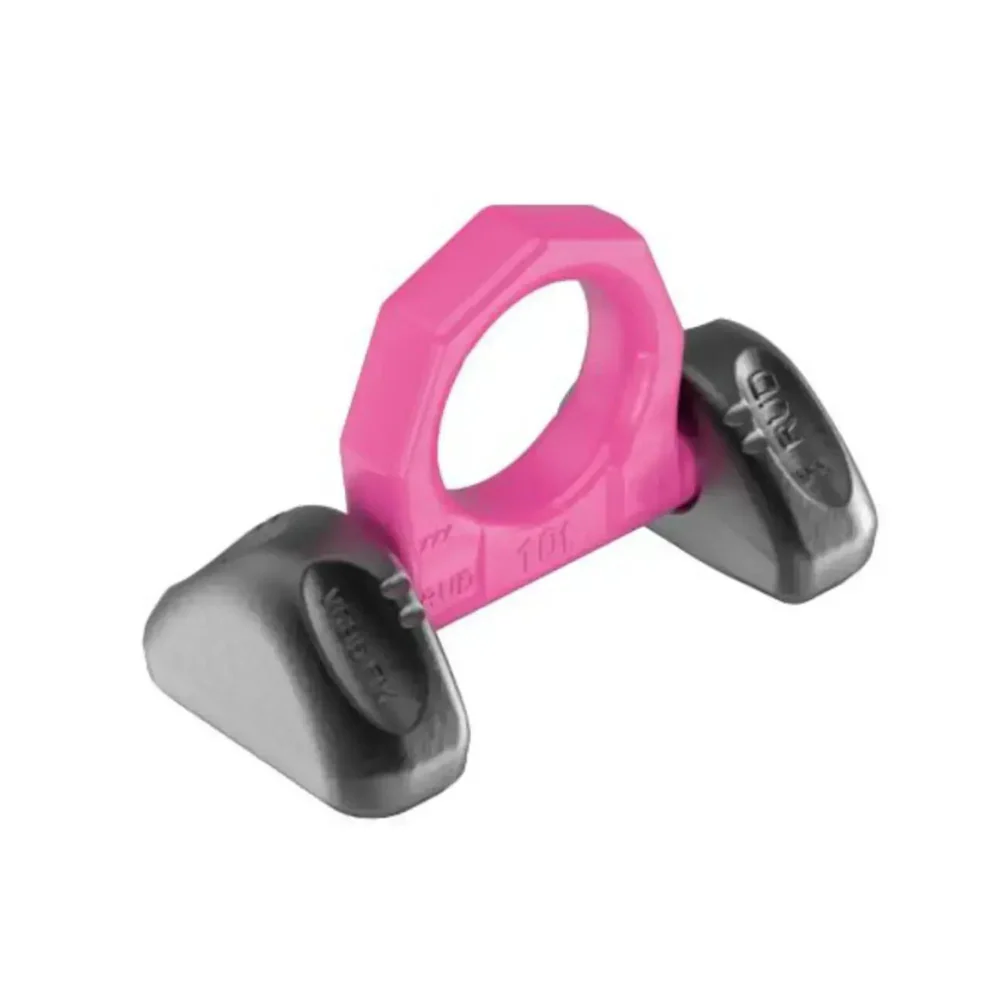

RUD VRBS-FIX Load Ring for Welding Circumferential Seams

RUD's VRBS-FIX Load Ring for welding circumferential weld seams is the perfect shared-forced welding solution, with non complex leveling of components to each other.

Available in working load limits from 6.7t right up to 50t, split force is introduced thanks to the multiple fixing points, while the innovative circular fillet weld arrangement eliminates the risk of contact/crevice corrosion.

The suspension ring can be pivoted through 180°, with working load limit possible up to  90° in load ring plane.

Featuring forged marking for easy determination of load angle, as well as signature wear marking for easy identification of general wear and tear.

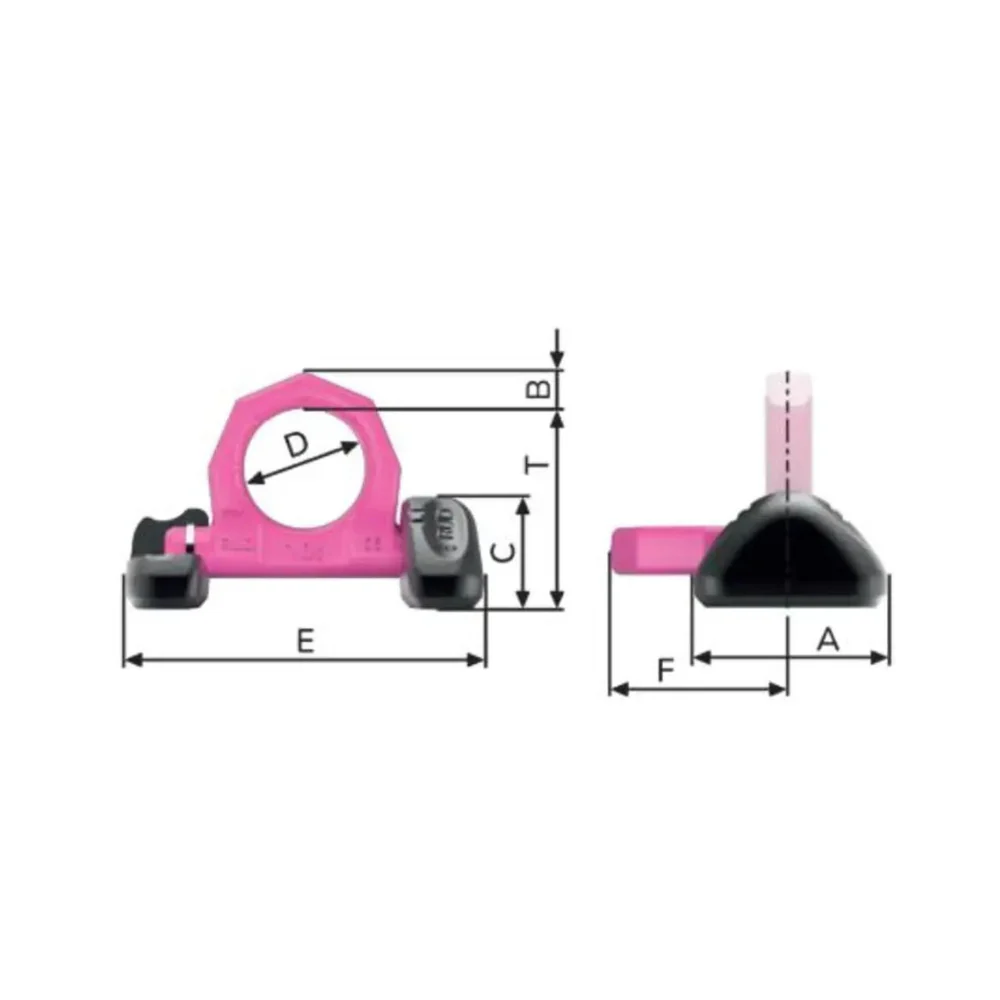

SKU	WLL (t)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	T (mm)
7999020	6.7	88	20	50	60	167	91	97
7999021	10	100	22	60	65	191	100	108
7999301	16	130	30	72	90	267	134	140
7999302	31.5	160	42	99	130	366	195	202
7906272	50	246	70	148	230	596	335	330
