RUD VRBS-FIX Ring

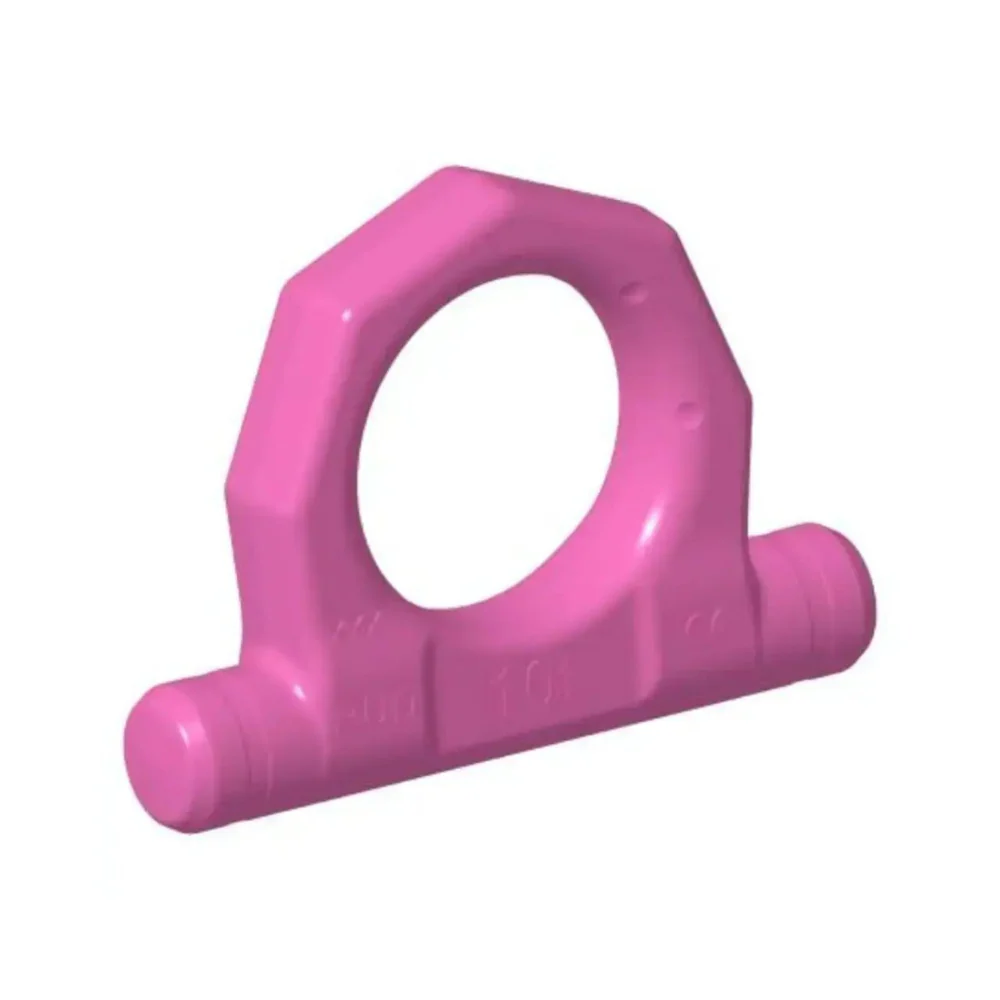

RUD's Octagon shaped VRBS-Fix Load Ring is suitable for heavy loads of up to 16t and 31.5t - model dependant.
Forged in accordance with EN 1677-1, this exceptional load ring is 100% electromagnetic crack detected and meets the requirements of the respective employer's liability insurance association.
Classically pink powder-coated, the RUD symbol, these units have a 4:1 safety rating and can operate in temperatures from -40-degree C up to 200-degrees C.
Other sizes available on special request.
Ā
|

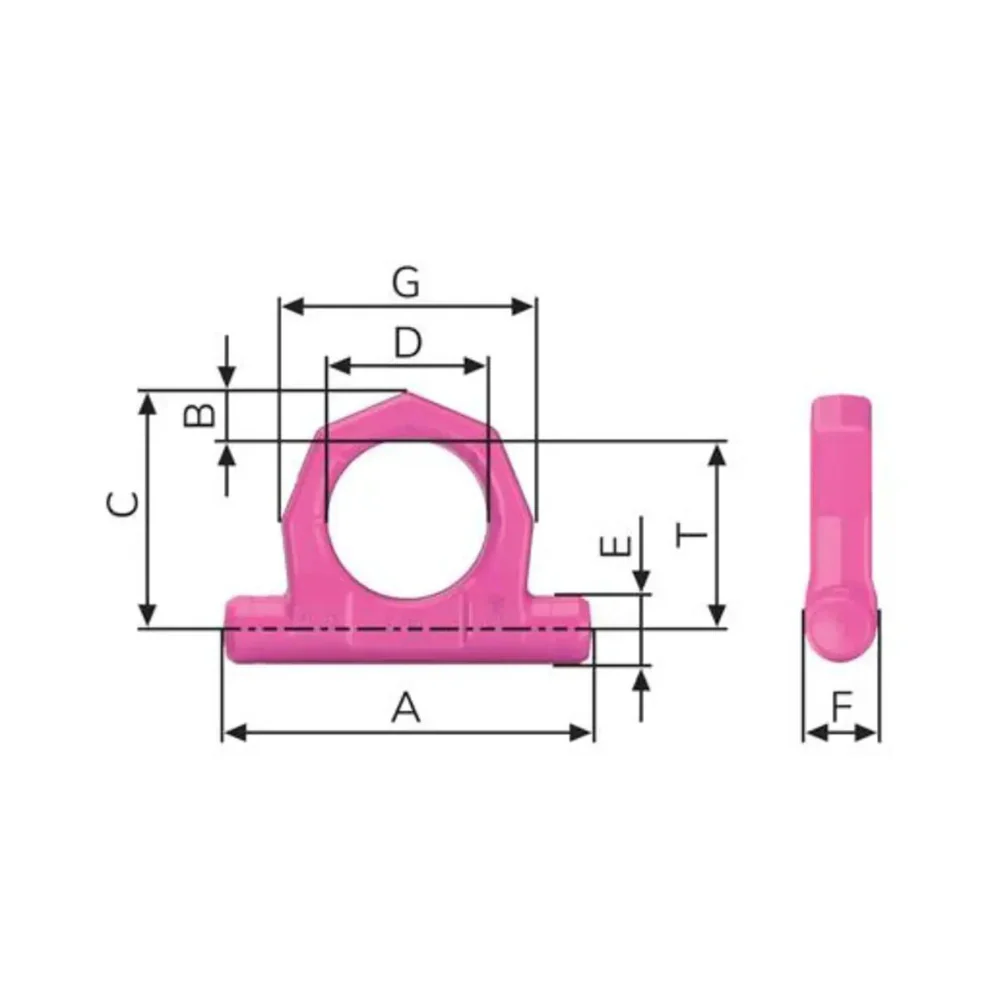

SKU |
WLL (tons) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
Pitch T (mm) |
|
7906893 |
16 |
204 |
27.5 |
131 |
90 |
35 |
37 |
146 |
104 |
|
7906894 |
31.5 |
292 |
41 |
193 |
130 |
46 |
47 |
214 |
152 |
Ā
