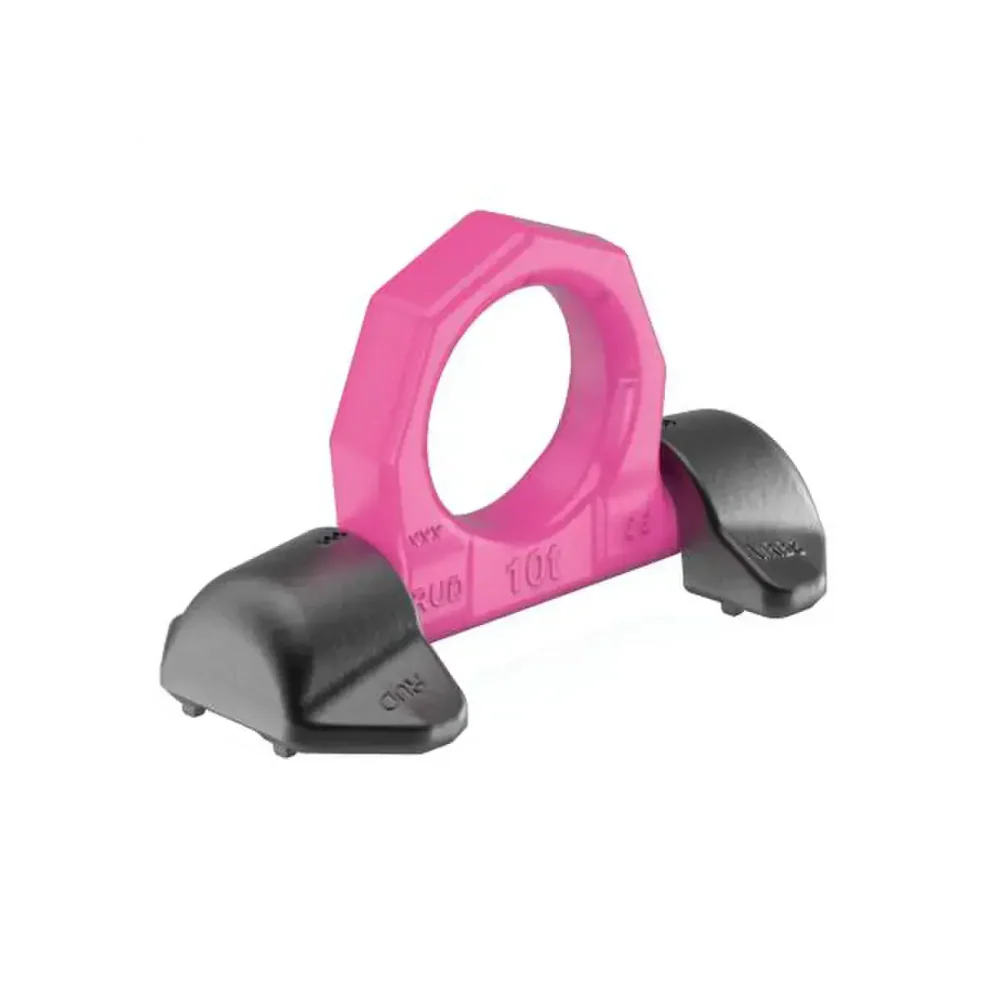

RUD VRBS Load Ring for Welding
Available in working load limits from 4t up to 31.5t, RUD's VRBS Load Ring is suitable for welding applications.
Strong and super durable, these welding blocks are forged from materials that are easy to weld, with the distance knobs engineered for the necessary distance suitable for root welding.
Stamped with clear indications of minimum working load limit for all directions, these eye plate weldable lifting points also features wear markings for easy identification of general wear and usage - improving safety.
NOTE: Welding should always be performed by a fully trained employee.
Ā
|

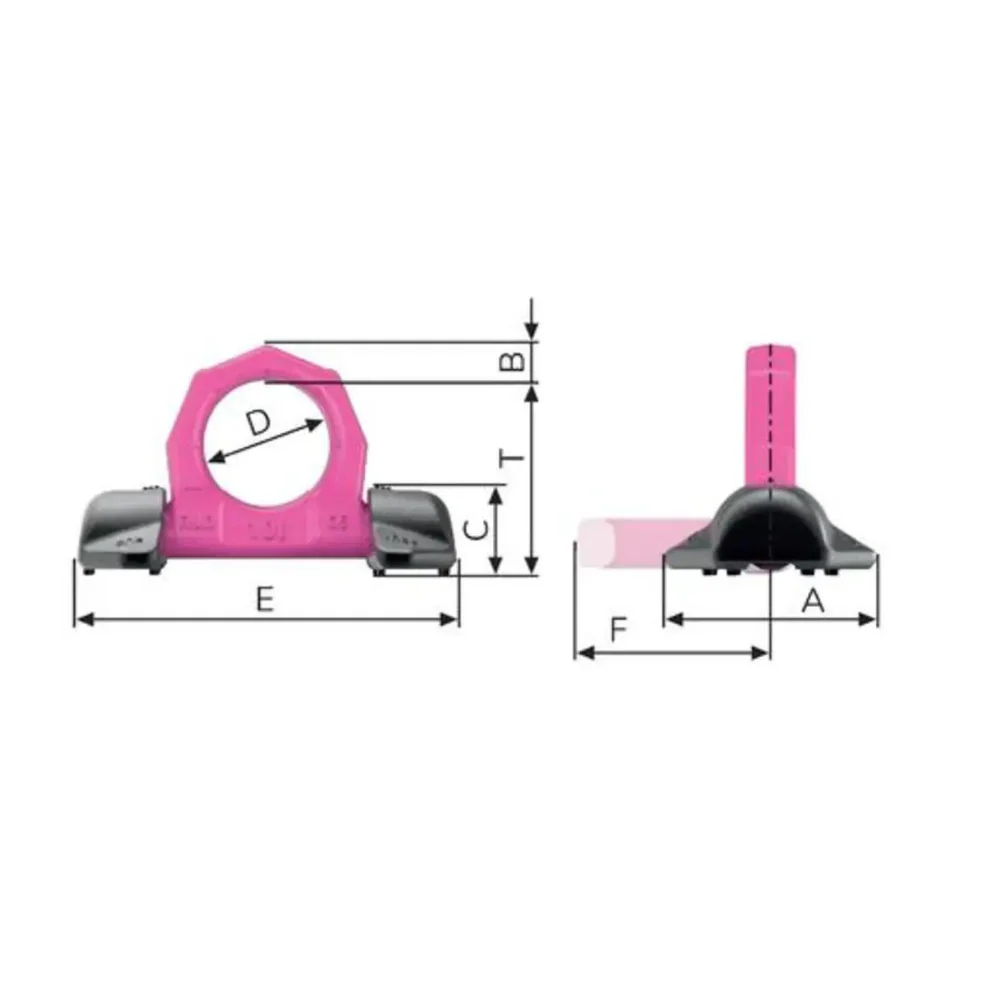

SKU |
WLL (tons) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
Pitch T (mm) |
|
7992488 |
4 |
62 |
14 |
28 |
48 |
135 |
71 |
65 |
|
7992489 |
6.7 |
88 |
20 |
39 |
60 |
170 |
92 |
84 |
|
7992490 |
10 |
100 |
22 |
46 |
65 |
195 |
100 |
95 |
|
7992491 |
16 |
130 |
30 |
57 |
90 |
263 |
134 |
127 |
|
60267 |
31.5 |
160 |
42 |
78 |
130 |
373 |
195 |
178 |
