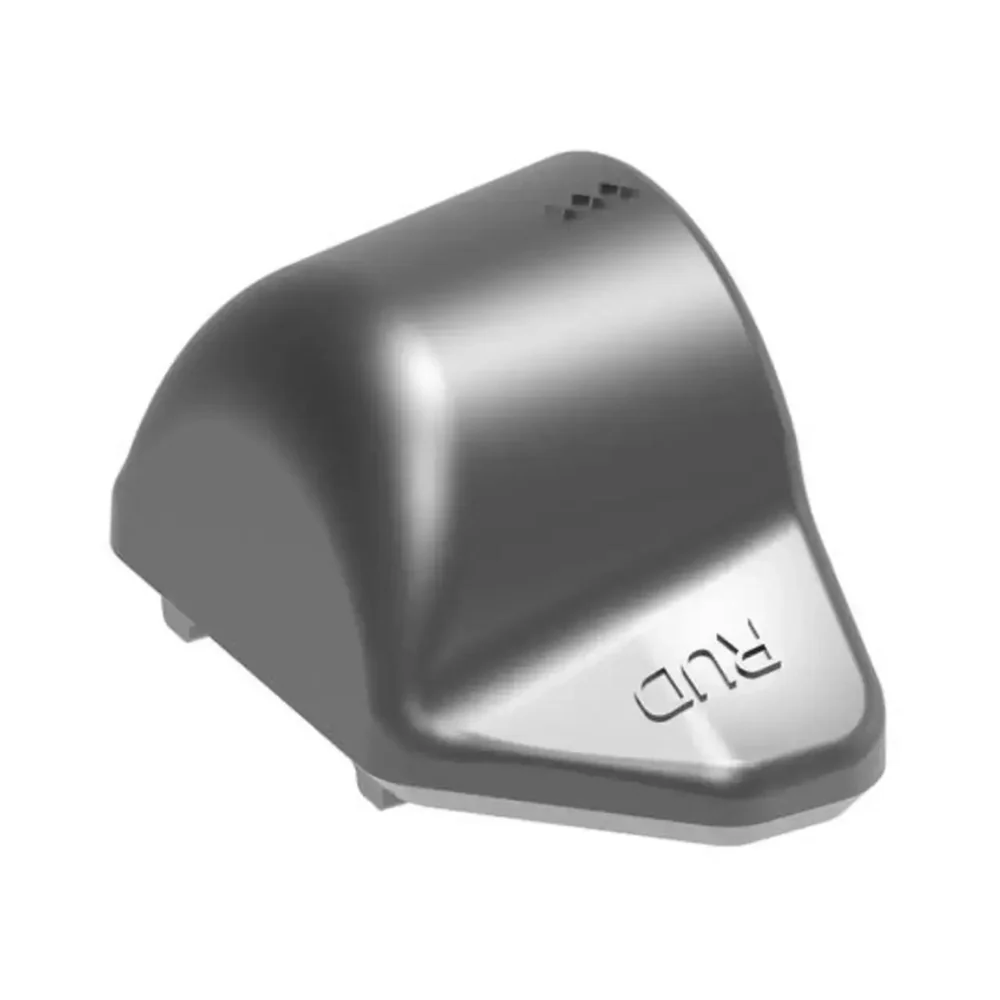

RUD VRBS Weld-On Block
RUD's VRBS Welding Blocks are specially forged from material 1.0577+N (St 52-3) and come marked with the identification number of the permissible nominal working load limit.
Available in working load limits from 4t up to 31.5t, the distance lugs have a distance measurement function for the required spacing to root weld, which is approximate 3mm.
These weld-on blocks are suitable for use in temperature environments ranging from -20-degrees C up to +200-degrees C.
NOTE: The chosen welding point must be suitable for the corresponding force introduction, and welding should only be carried out by a qualified person according to ISO 9606-1.
|
SKU |
WLL (t) |
A (mm) |
C (mm) |
F (mm) |
Pitch T (mm) |
|
7992004 |
4 |
62 |
28 |
30 |
19 |
|
7992005 |
6.7 |
88 |
39 |
36 |
24 |
|
7992007 |
10 |
100 |
46 |
46 |
31 |
|
7992008 |
16 |
130 |
57 |
57 |
39 |
|
7987160 |
31.5 |
160 |
78 |
82 |
49 |
Original: $28.00
-65%$28.00
$9.80
Description
RUD's VRBS Welding Blocks are specially forged from material 1.0577+N (St 52-3) and come marked with the identification number of the permissible nominal working load limit.
Available in working load limits from 4t up to 31.5t, the distance lugs have a distance measurement function for the required spacing to root weld, which is approximate 3mm.
These weld-on blocks are suitable for use in temperature environments ranging from -20-degrees C up to +200-degrees C.
NOTE: The chosen welding point must be suitable for the corresponding force introduction, and welding should only be carried out by a qualified person according to ISO 9606-1.
|
