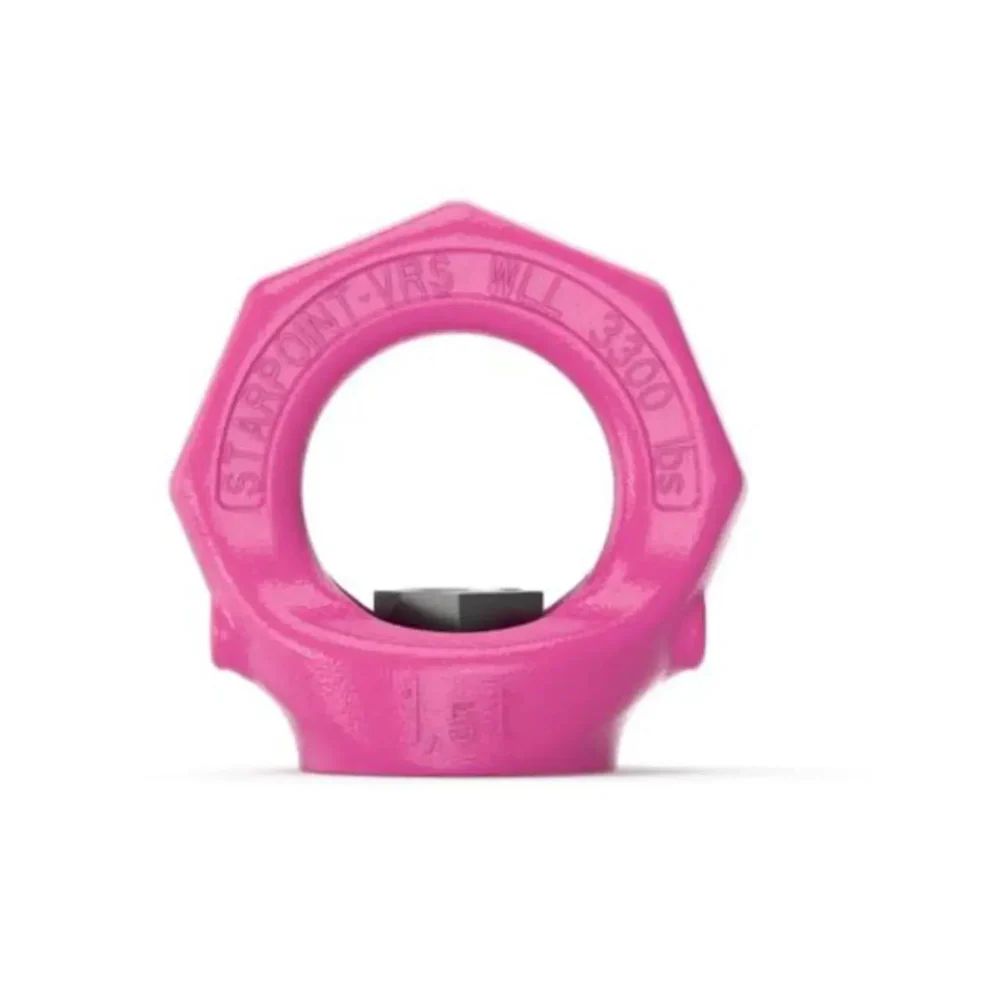

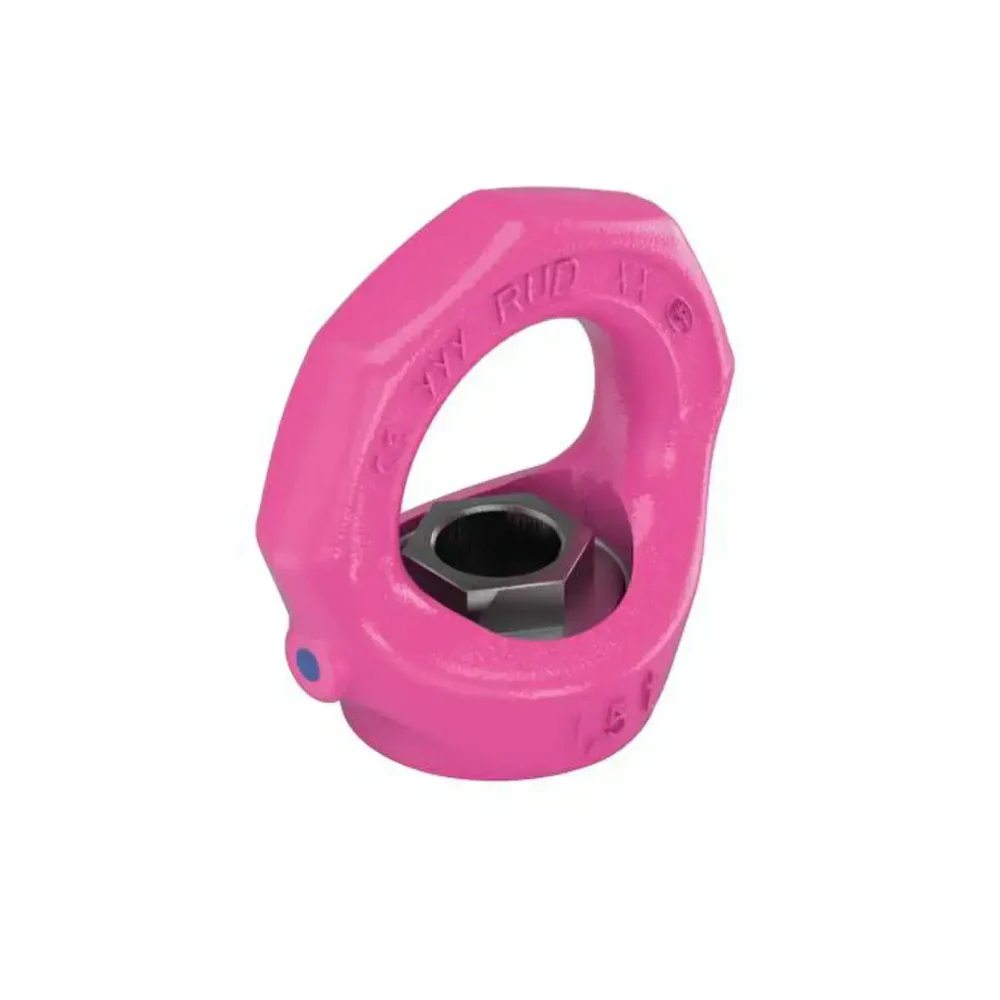

RUD VRM Starpoint Eye Nut, Metric Thread
Available in working load limits from 0.1t up to 4.5t, RUD's VRM Starpoint Eye Nut come as standard in metric threads from M6 - M30 (DIN EN 13).
Rotatable through a full 360-degrees, these Eye Nut Lifting Points are super quick and easy to install, and feature a clear marking of the working load limit for total peace of mind.
|

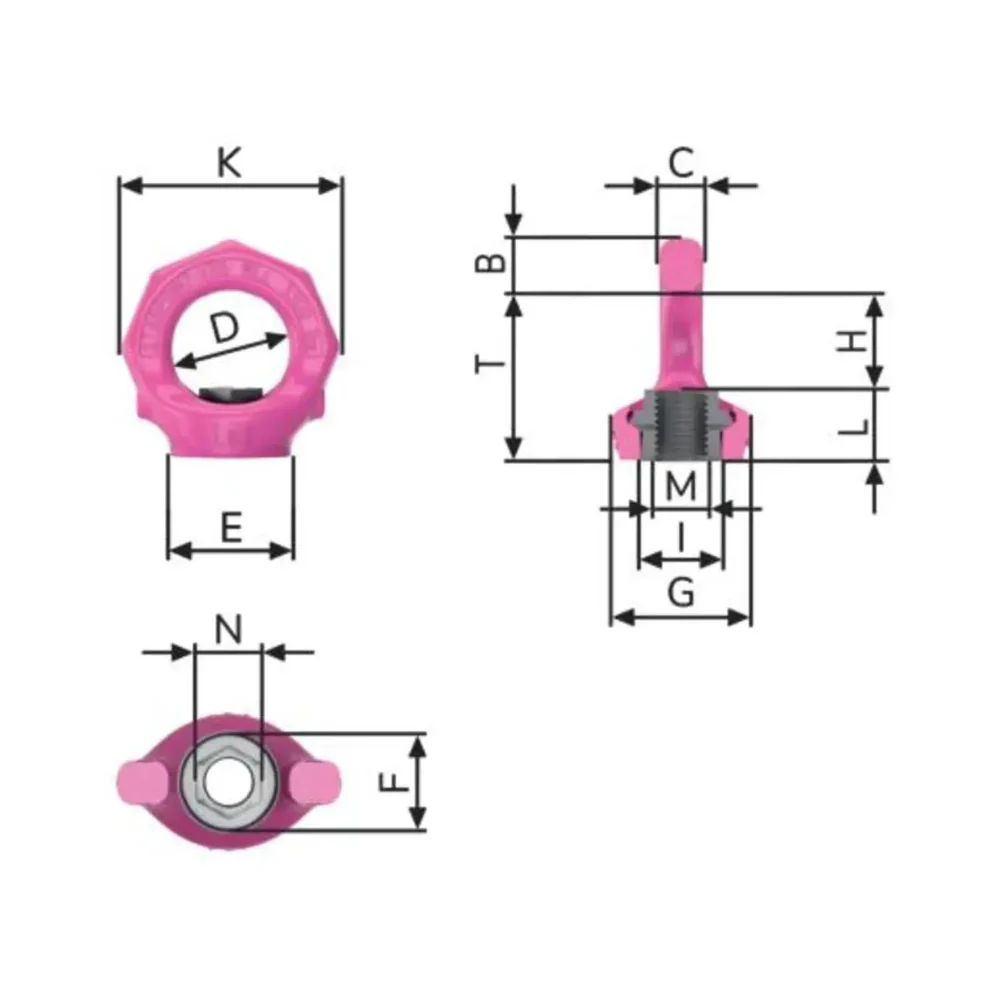

SKU |
WLL (tons) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
I (mm) |
K (mm) |
L (mm) |
M |
N (mm) |
Pitch T (mm) |
|
7990311 |
0.4 |
11 |
9 |
25 |
25 |
21 |
30 |
21 |
16.3 |
47 |
14 |
M10 |
12 |
35 |
|
7990312 |
0.75 |
13 |
10 |
30 |
30 |
24 |
34 |
25 |
19.8 |
56 |
17 |
M12 |
14 |
42 |
|
7990314 |
1.5 |
15 |
13 |
35 |
36 |
30 |
40 |
229 |
23.6 |
65 |
21 |
M16 |
19 |
49 |
|
7990315 |
2.3 |
17 |
16 |
40 |
41 |
37 |
50 |
35 |
29.3 |
76 |
23 |
M20 |
24 |
58 |
|
7990316 |
3.2 |
20 |
19 |
49 |
51 |
45 |
60 |
41 |
35.2 |
92 |
29 |
M24 |
30 |
70 |
|
7993008 |
1.5 |
26 |
24 |
60 |
66 |
56 |
75 |
51 |
44 |
114 |
36 |
M30 |
36 |
87 |
|
7900786 |
0.1 |
9 |
7 |
20 |
23 |
16 |
28 |
17 |
13 |
37 |
11 |
M6 |
9 |
28 |
|
7992989 |
0.3 |
11 |
9 |
25 |
25 |
21 |
30 |
21 |
16.3 |
47 |
14 |
M8 |
12 |
35 |
Original: $144.00
-65%$144.00
$50.40
