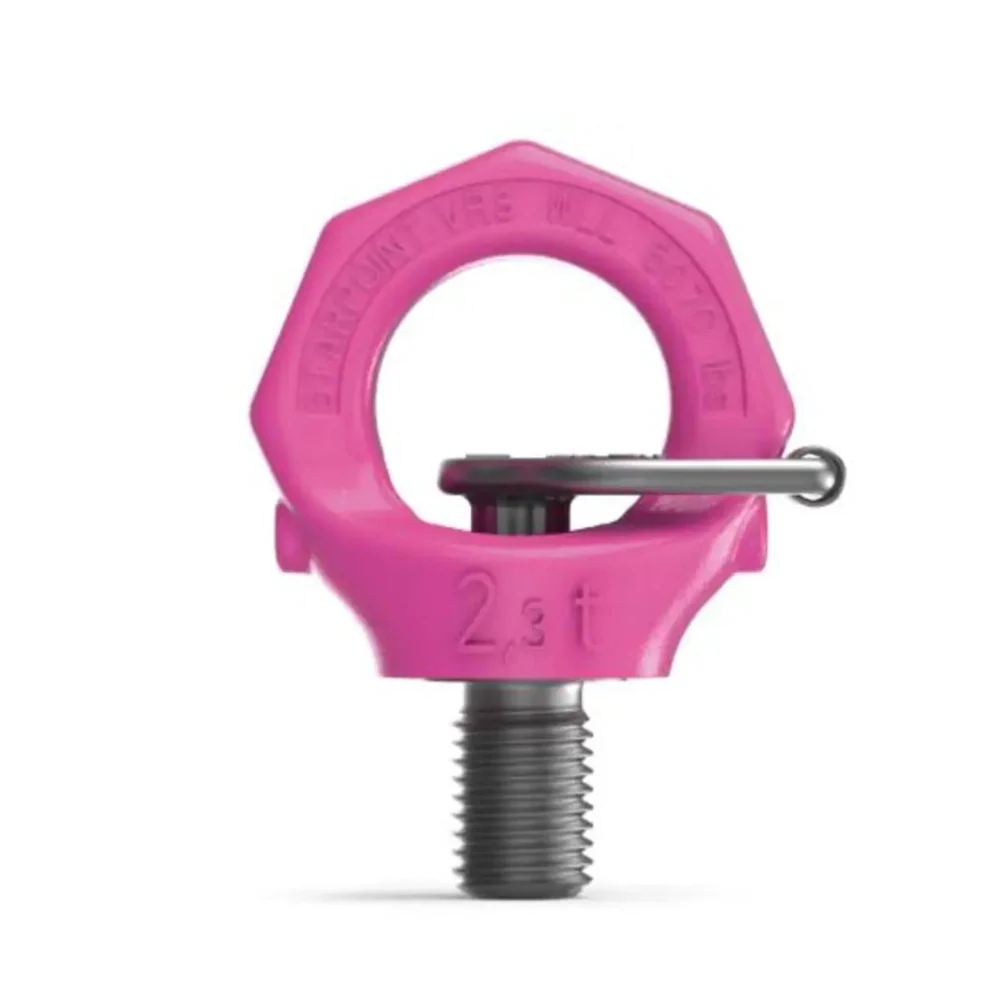

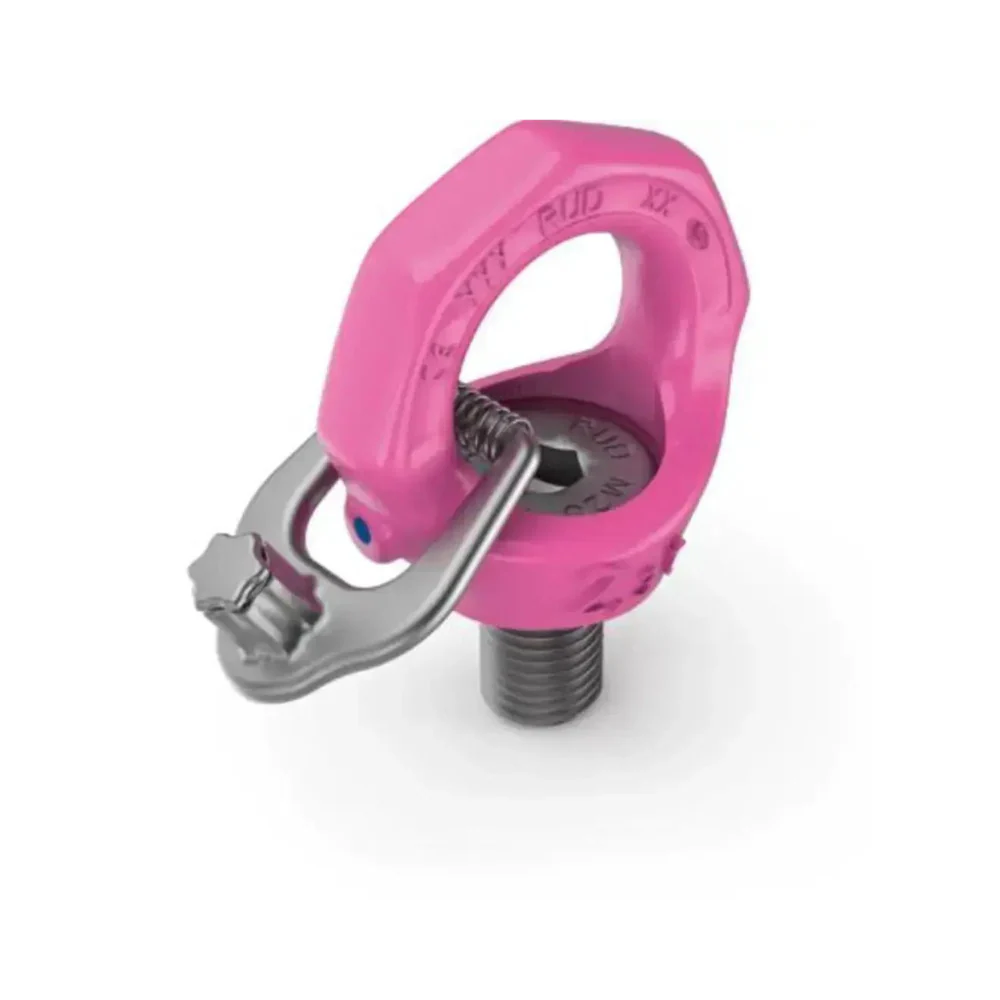

RUD VRS-F Starpoint, Metric Thread
Available in working load limits from 0.1 to 20t, RUD's VRS-F Starpoint Metric Thread Eyebolt is the solution to many lifting problems.
With ingenious installation, and super simple alignment, the VRS-F is comes in thread sizes from M6 up to M64.
Featuring a non-detachable ICE-bolt - made from patent steel (M6-M24), reducing the risks of using unsuitable standard bolts, this special bolt is safe for deep temperature usage, due to its higher toughness and bending strength, as well as being less prone to general wear.
Minimum working load limits for all directions are marked on each unit for easy identification, giving total peace of mind that you are using the correct lifting point for the job.
|

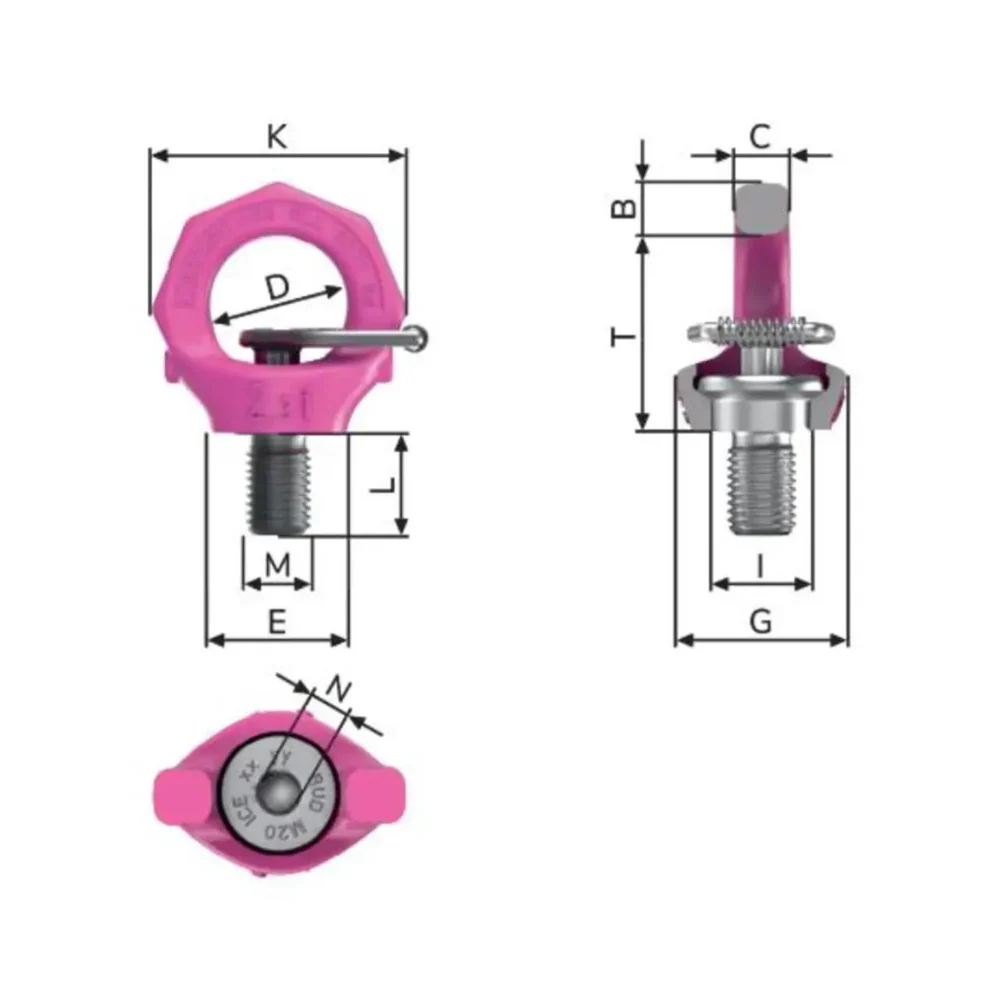

SKU |
WLL (t) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
G (mm) |
I (mm) |
K (mm) |
L (mm) |
M |
N (mm) |
T (mm) |
|
7900906 |
0.1 |
9 |
7 |
20 |
23 |
28 |
13 |
37 |
9 |
M6 |
6 |
28 |
|
8500911 |
0.3 |
11 |
9 |
25 |
25 |
30 |
16.3 |
47 |
12 |
M8 |
6 |
35 |
|
7104029 |
0.4 |
11 |
9 |
25 |
25 |
30 |
16.9 |
47 |
15 |
M10 |
6 |
35 |
|
7101313 |
0.75 |
13 |
10 |
30 |
30 |
34 |
19.8 |
56 |
18 |
M12 |
8 |
42 |
|
7999330 |
0.75 |
13 |
10 |
30 |
30 |
34 |
19.8 |
56 |
18 |
M14 |
8 |
42 |
|
7101314 |
1.5 |
15 |
13 |
35 |
36 |
40 |
23.5 |
65 |
24 |
M16 |
10 |
49 |
|
7903387 |
1.5 |
15 |
13 |
35 |
36 |
40 |
23.5 |
65 |
24 |
M18 |
10 |
49 |
|
7101315 |
2.3 |
17 |
16 |
40 |
41 |
50 |
29.3 |
76 |
30 |
M20 |
12 |
58 |
|
7992197 |
2.3 |
17 |
16 |
40 |
41 |
50 |
29.3 |
76 |
30 |
M22 |
12 |
58 |
|
7101316 |
3.2 |
20 |
19 |
49 |
51 |
60 |
35 |
92 |
36 |
M24 |
14 |
70 |
|
7994138 |
3.2 |
20 |
19 |
49 |
51 |
60 |
35 |
92 |
36 |
M27 |
14 |
70 |
|
7101317 |
4.5 |
26 |
24 |
60 |
66 |
75 |
44 |
114 |
45 |
M30 |
17 |
87 |
|
7993439 |
4.5 |
26 |
24 |
60 |
66 |
75 |
44 |
114 |
45 |
M33 |
17 |
87 |
|
7984201 |
7 |
32 |
29 |
73 |
76 |
98 |
53 |
135 |
65 |
M36 |
22 |
104 |
|
7984202 |
9 |
36 |
34 |
85 |
86 |
109 |
62 |
157 |
63 |
M42 |
24 |
122 |
|
7984203 |
12 |
42 |
38 |
96 |
101 |
128 |
70 |
179 |
72 |
M48 |
27 |
138 |
|
7910836 |
16 |
50 |
44 |
110 |
112 |
145 |
82 |
210 |
84 |
M56 |
32 |
161 |
|
7910837 |
20 |
55 |
49 |
120 |
121 |
158 |
90 |
229 |
96 |
M64 |
36 |
177 |

Original: $136.00
-65%$136.00
$47.60
