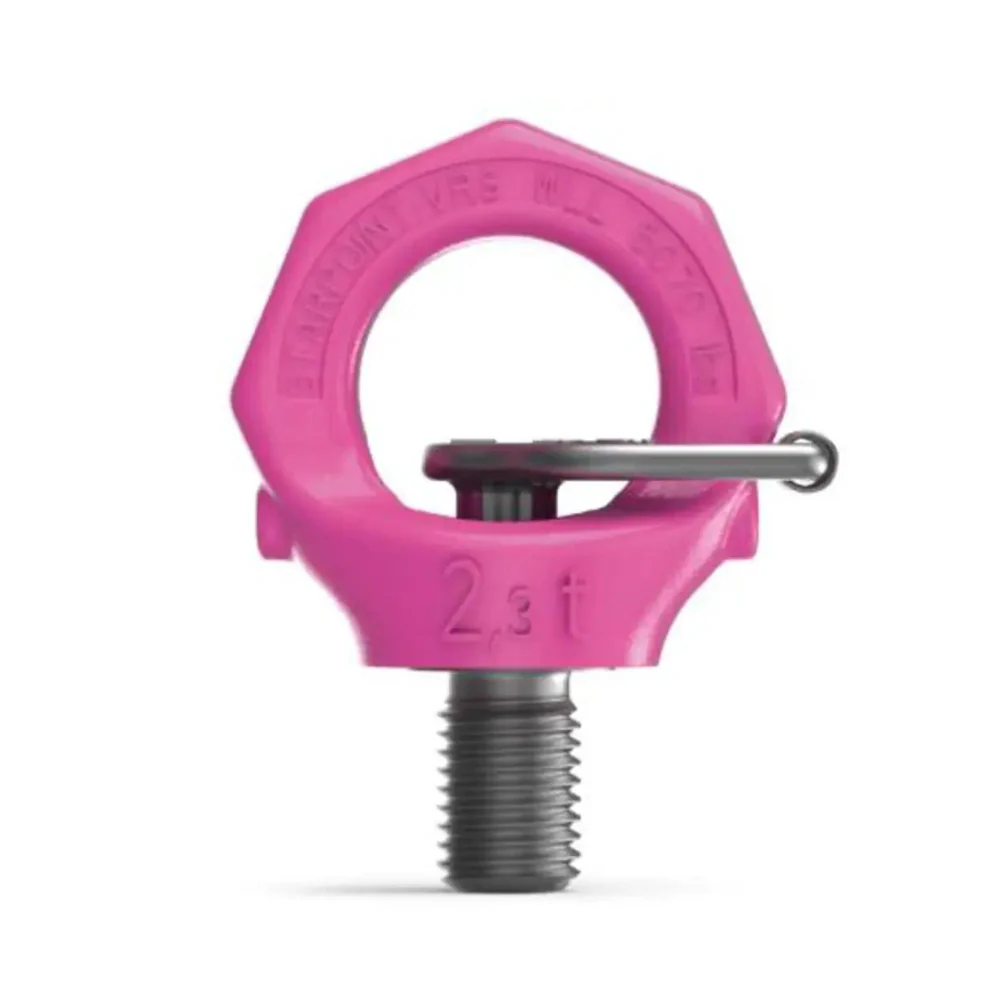

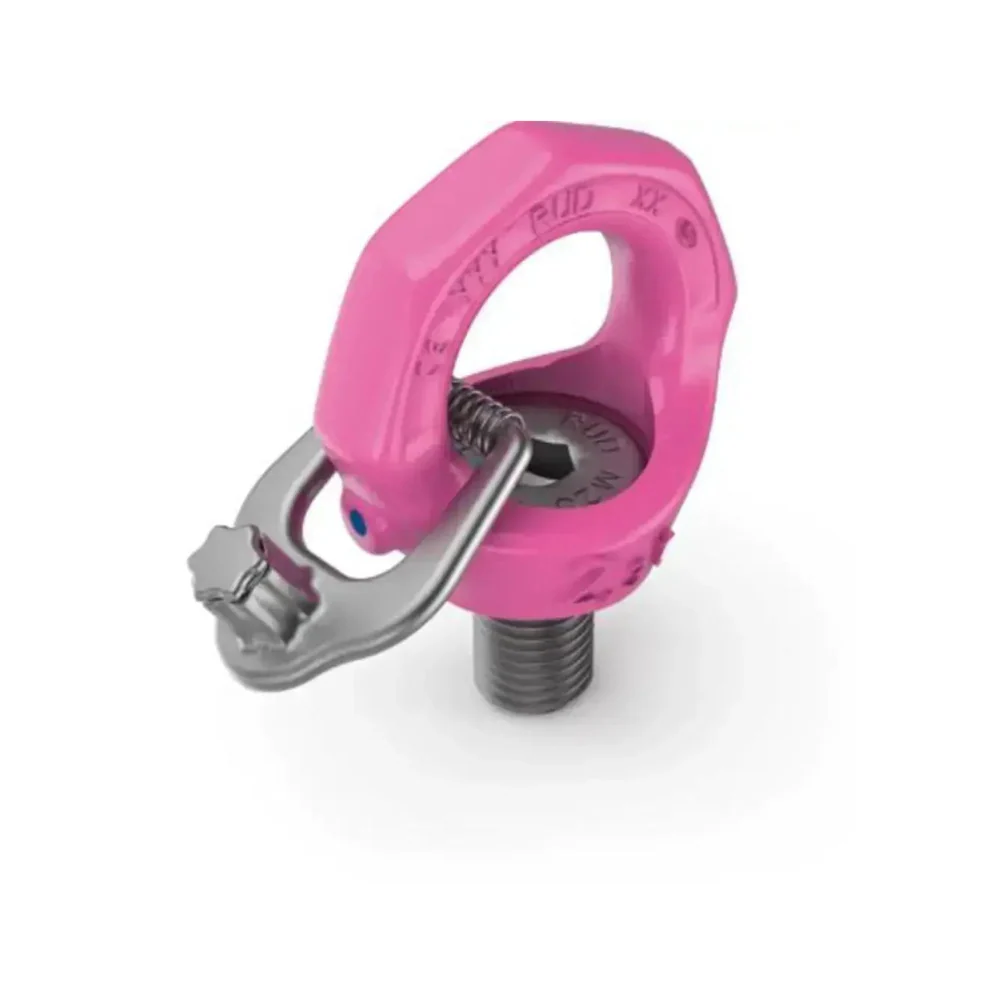

RUD VRS-F/VRS Starpoint, Metric Fine-Thread

Available in working load limits from 0.3 to 12t, RUD's VRS-F Starpoint Metric Fine Thread Eyebolt is the solution to many lifting problems.

With ingenious installation, and super simple alignment, the VRS-F is comes in a wide range of thread sizes, and features a non-exchangeable RUD-bolt, eliminating the risks of improper standard bolt usage.

Minimum working load limits for all directions are marked on each unit for easy identification, giving total peace of mind that you are using the correct lifting point for the job.

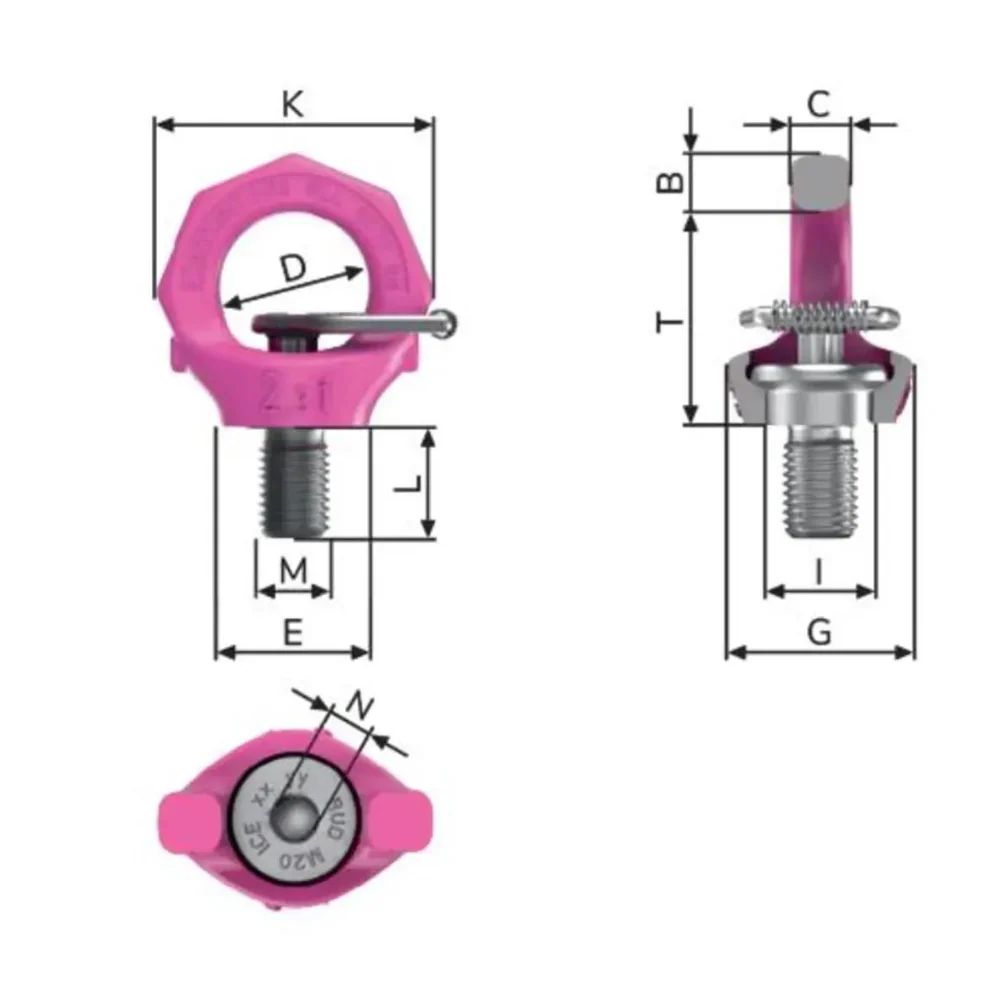

SKU	WLL (lbs)	B (mm)	C (mm)	D (mm)	E (mm)	G (mm)	I (mm)	K (mm)	L (mm)	M	N (mm)	T (mm)
7902676	3300	15	13	35	36	40	23.5	65	24	M16x1,5	10	49
7992634	5070	17	16	40	41	50	29.3	76	30	M20x2	12	58
7992566	7050	20	19	49	51	60	35	92	36	M24x2	14	70
7991856	9920	26	24	60	66	75	44	115	45	M30x2	17	87
7992728	15430	32	29	73	76	98	53	135	54	M36x3	22	104
