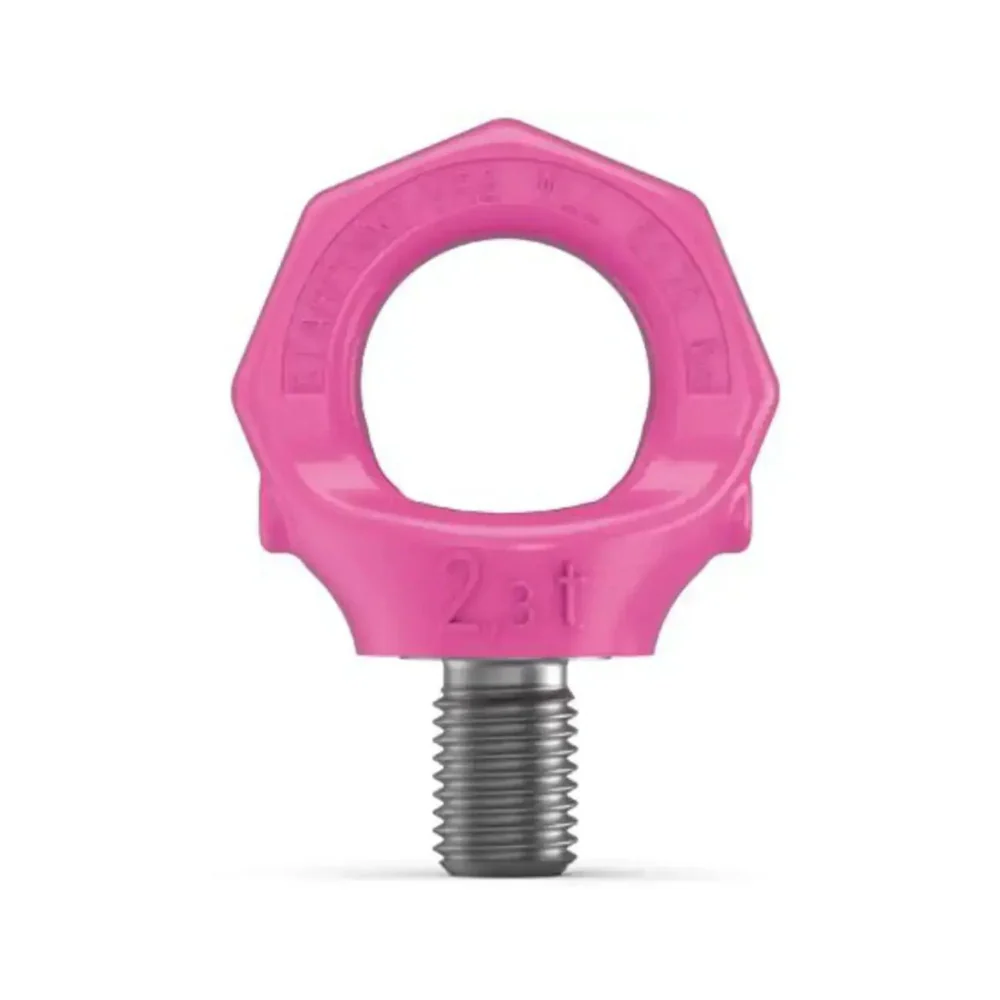

RUD VRS Starpoint, Metric Thread
RUD's VRS Starpoint, Metric Thread, boltable lifting point comes in a comprehensive range of thread sizes and working load limits - from 0.1t - 20t (M6 - M64).
***THIS ITEM IS NOT STOCKED IN THE USA AND HAS A 2-3 WEEK LEAD TIME, HOWEVER WE DO STOCK THIS MODEL THAT INCLUDES THE KEY IN THE USA FOR QUICK SHIPPING***
Featuring a non-detachable ICE-Bolt made from patent steel (M6-M24_ to reduce the risk of using unsuitable standard bolts, the special bolt allows for safe deep temperature use with higher toughness and higher bending strength.
|

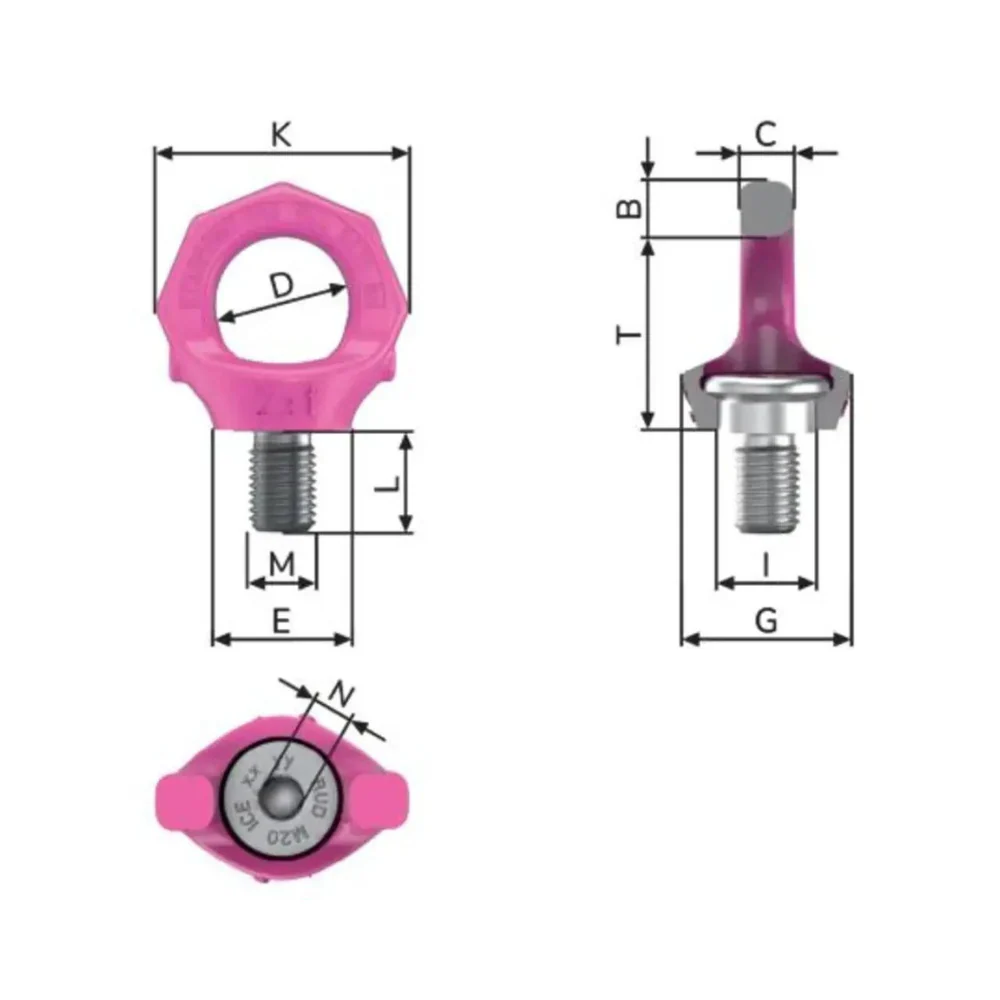

SKU |
WLL (t) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
G (mm) |
I (mm) |
K (mm) |
L (mm) |
M |
N (mm) |
T (mm) |
|
7900909 |
0.1 |
9 |
7 |
20 |
23 |
28 |
13 |
37 |
9 |
M6 |
6 |
28 |
|
7100554 |
0.3 |
11 |
9 |
25 |
25 |
30 |
16.3 |
47 |
12 |
M8 |
6 |
35 |
|
7100555 |
0.4 |
11 |
9 |
25 |
25 |
30 |
16.3 |
47 |
15 |
M10 |
6 |
35 |
|
7100556 |
0.75 |
13 |
10 |
30 |
30 |
34 |
19.8 |
56 |
18 |
M12 |
8 |
42 |
|
7100558 |
1.5 |
15 |
13 |
35 |
36 |
40 |
23.5 |
65 |
24 |
M16 |
10 |
49 |
|
7100559 |
2.3 |
17 |
16 |
40 |
41 |
50 |
29.3 |
76 |
30 |
M20 |
12 |
58 |
|
7100560 |
3.2 |
20 |
19 |
49 |
51 |
60 |
35 |
92 |
36 |
M24 |
14 |
70 |
|
7100561 |
4.5 |
26 |
24 |
60 |
66 |
75 |
44 |
114 |
45 |
M30 |
1 |
87 |
|
7984198 |
7 |
32 |
29 |
73 |
76 |
98 |
53 |
135 |
54 |
M36 |
22 |
104 |
|
7984199 |
9 |
36 |
34 |
85 |
86 |
109 |
62 |
157 |
63 |
M42 |
24 |
122 |
|
7907508 |
16 |
50 |
44 |
110 |
112 |
145 |
82 |
210 |
84 |
M56 |
32 |
161 |
|
7907509 |
20 |
55 |
49 |
120 |
121 |
158 |
90 |
229 |
96 |
M64 |
36 |
177 |
Original: $58.00
-65%$58.00
$20.30
