RUD VRS Starpoint, Metric Thread with Max. Length
RUD's VRS Starpoint, Metric Thread, with Max Length boltable lifting point comes in a comprehensive range of thread sizes -from M10 - M30.
Featuring a non-detachable ICE-Bolt made from patent steel (M6-M24_ to reduce the risk of using unsuitable standard bolts, the special bolt allows for safe deep temperature use with higher toughness and higher bending strength.
Comes with locknut and washer
|

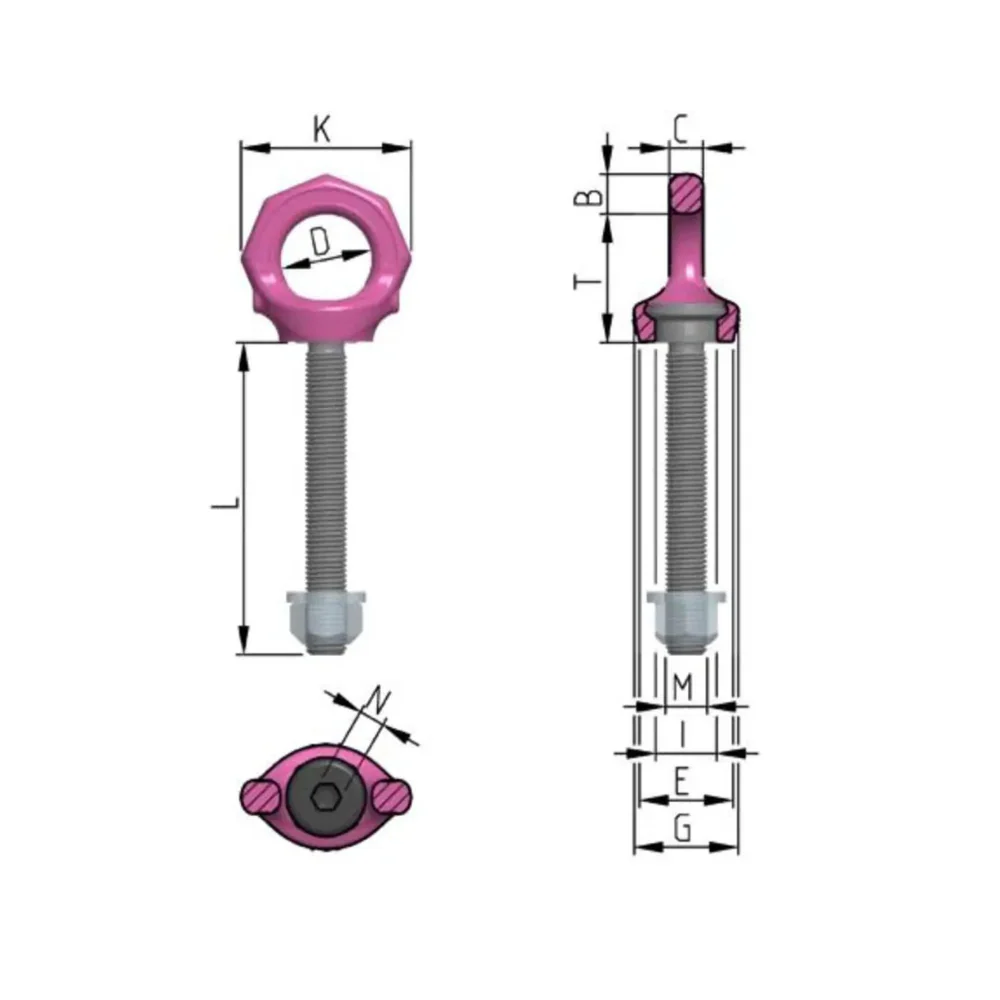

SKU |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
G (mm) |
I (mm) |
K (mm) |
L Max (mm) |
L Min (mm) |
M |
N (mm) |
T (mm) |
|
8600270 |
11 |
9 |
25 |
25 |
30 |
16.3 |
47 |
70 |
16 |
M10 |
6 |
35 |
|
8600271 |
13 |
10 |
30 |
30 |
34 |
19.8 |
56 |
150 |
19 |
M12 |
8 |
42 |
|
8600272 |
15 |
13 |
35 |
36 |
40 |
23.5 |
65 |
120 |
25 |
M16 |
10 |
49 |
|
8600273 |
17 |
16 |
40 |
41 |
50 |
29.3 |
76 |
160 |
31 |
M20 |
12 |
58 |
|
8600274 |
20 |
19 |
49 |
51 |
60 |
35 |
92 |
140 |
37 |
M24 |
14 |
70 |
|
8600275 |
26 |
24 |
60 |
66 |
75 |
44 |
114 |
190 |
46 |
M30 |
17 |
87 |
Original: $219.00
-65%$219.00
$76.65
