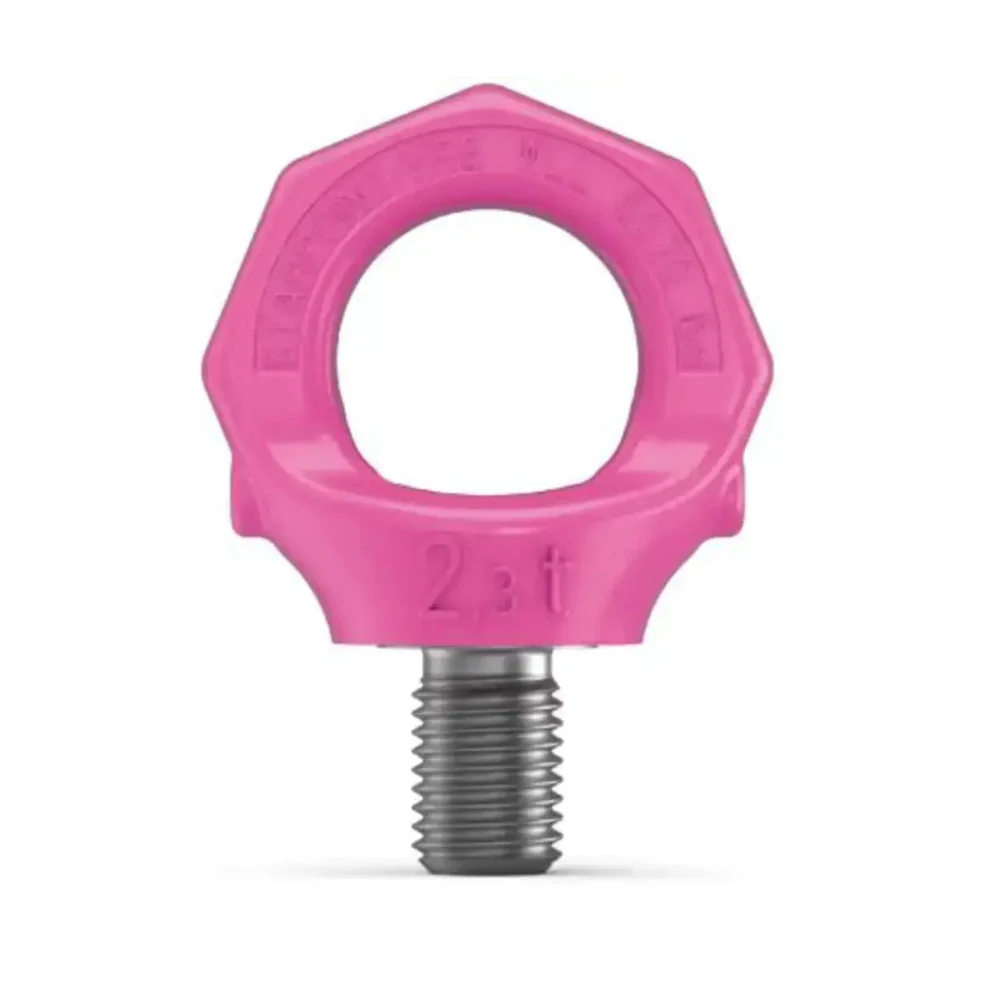

RUD VRS Starpoint, UNF Thread
RUD's VRS Starpoint, UNF Thread, boltable lifting point comes with a 3300lbs working load limit and thread 3/4"-16UNF.
Featuring a non-exchangeable RUD-Bolt to reduce the risk of using unsuitable standard bolt, a clear marking on minimum WLL for all loading directions is shown, as well as clear markings at the bolt head - RUD, thread size, and batch no. for complete traceability.
Ā
|

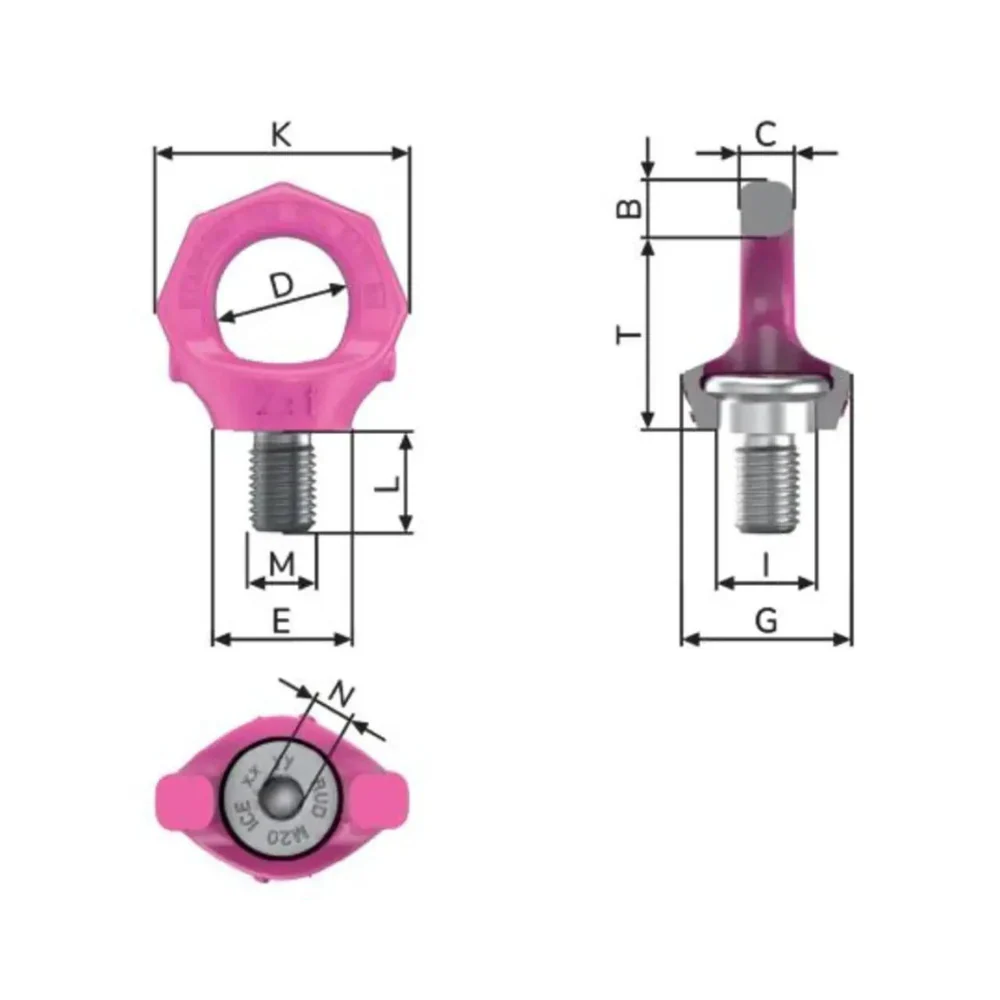

SKU |
WLL (lbs) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
G (mm) |
I (mm) |
K (mm) |
L (mm) |
M |
N (in.) |
T (mm) |
|
7997676 |
3300 |
15 |
14 |
35 |
35 |
41 |
23.5 |
65 |
30 |
3/4"-16UNF |
0.38 |
49 |
Original: $240.00
-65%$240.00
$84.00
Description
RUD's VRS Starpoint, UNF Thread, boltable lifting point comes with a 3300lbs working load limit and thread 3/4"-16UNF.
Featuring a non-exchangeable RUD-Bolt to reduce the risk of using unsuitable standard bolt, a clear marking on minimum WLL for all loading directions is shown, as well as clear markings at the bolt head - RUD, thread size, and batch no. for complete traceability.
