RUD VWBG Load Ring, Metric Thread

A truly diverse lifting point, suitable for a wide range of lifting scenarios, RUD's VWBG Load Ring (Metric Thread) is available in a comprehensive range of working load limits from 6t up to 40t (M33 - M90).

Capable of rotating 360° and pivoting 230°, these units are rotatable 90° to the bolt-on direction under rated WLL.

Designed with a large clearance between the bolt-on surface and load to prevent damage, each unit is stamped with optical markings for easy determination for withdraw from service, improving safety.

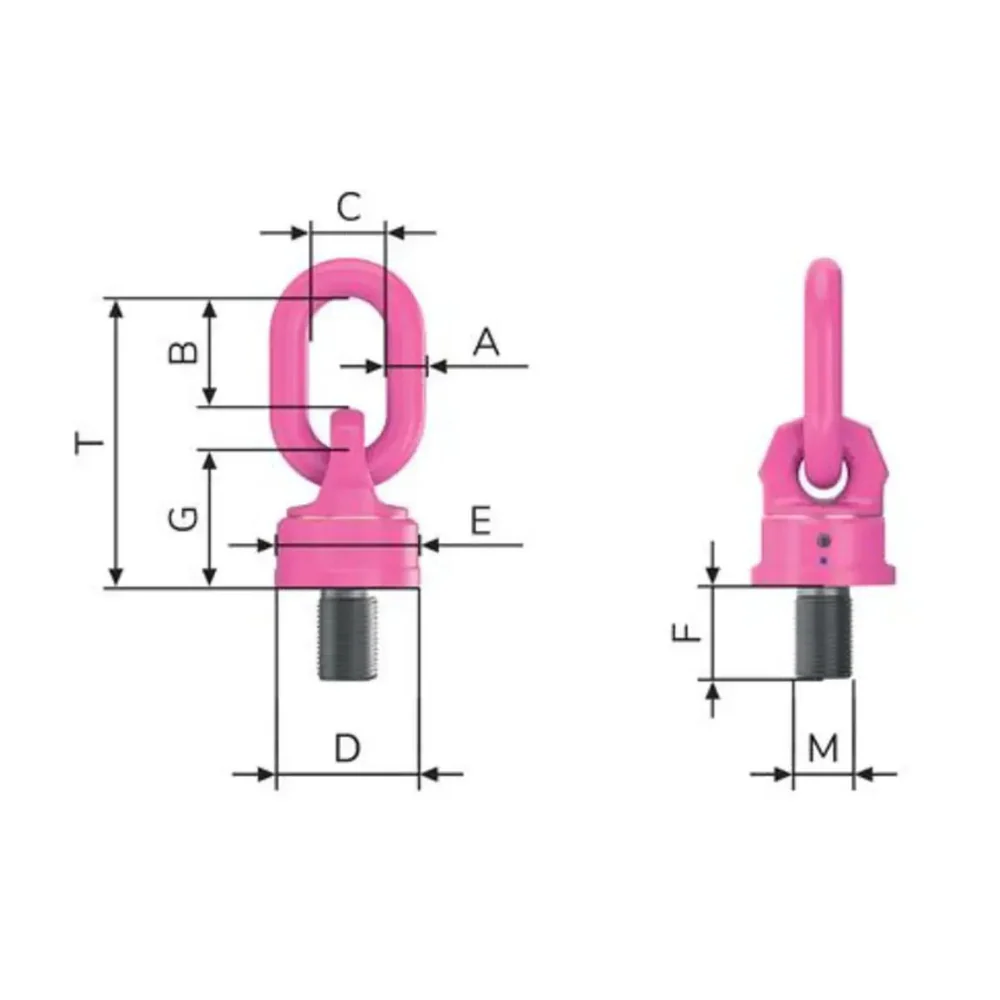

SKU	WLL-X (t)	WLL-Y (t)	WLL-Z (t)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	M	T (mm)
8600150	6	7.5	15	23	86	50	90	80	50	94	M33	208
7999059	8	10	15	22	86	50	90	80	54	94	M36	208
7999044	12	13	17	26	111	65	98	85	63	95	M42	234
7900455	12	15	18	26	111	65	98	85	67	95	M45	234
7999045	13	16	18	26	111	65	98	85	68	95	M4	234
7901081	14	20	25	32	119	70	120	95	78	120	M52	271
7999004	16	22	28	32	119	70	120	95	84	120	M56	271
8600454	16	22	28	32	119	70	120	95	90	120	M60	271
7999043	16	25	28	32	119	70	120	95	94	120	M64	271
7900097	31.5	40	50	46	130	90	170	145	108	159	M72	338
7900100	35	48	50	46	130	90	170	145	120	159	M80	338
7903408	40	50	50	46	168	110	170	145	135	159	M90	378
