RUD VWBG load Ring, UNC Thread
A truly diverse lifting point, suitable for a wide range of lifting scenarios, RUD's VWBG Load Ring (UNC Thread) is available in of working load limits from 12t up to 50t.
Capable of rotating 360° and pivoting 230°, these units are rotatable 90° to the bolt-on direction under rated WLL.
Designed with a large clearance between the bolt-on surface and load to prevent damage, each unit is stamped with optical markings for easy determination for withdraw from service, improving safety.
|

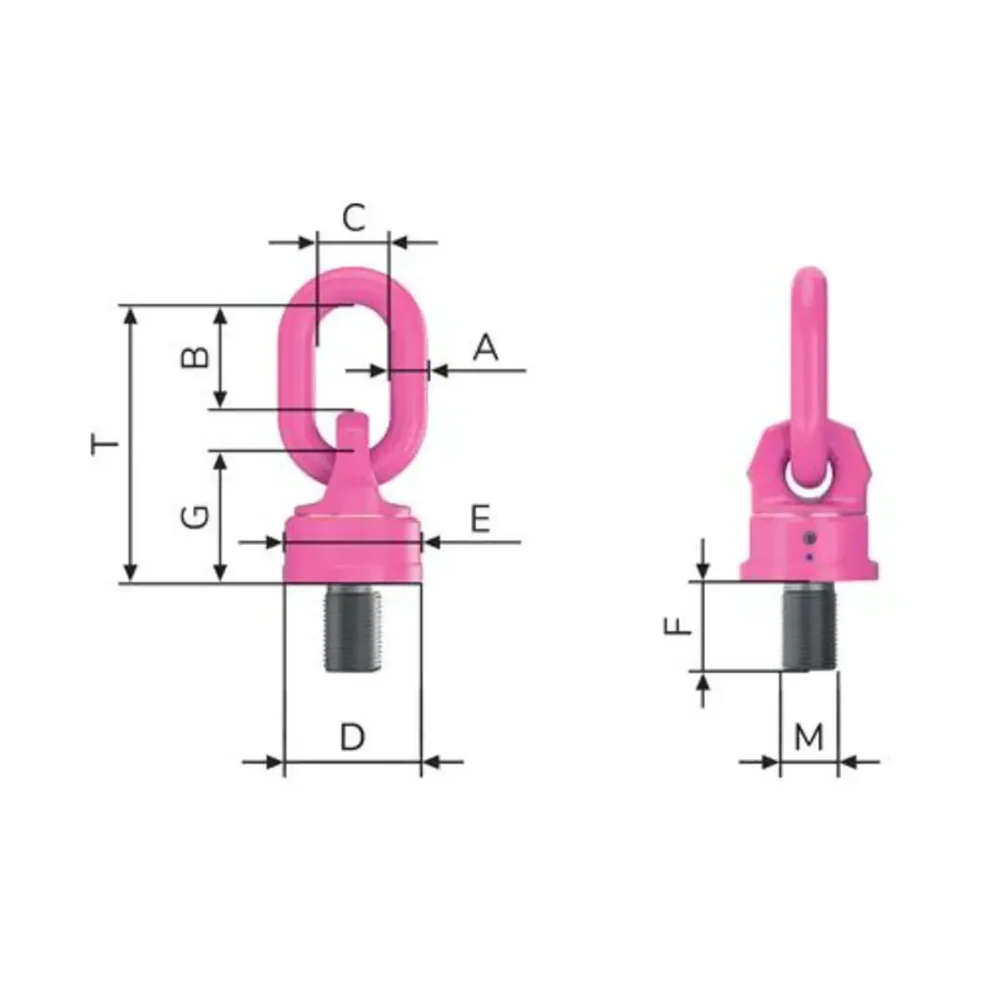

SKU |
WLL-X (t) |
WLL-Y (t) |
WLL-Z (t) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F |
G (mm) |
M |
T (mm) |
|
8600452 1 3/4-5UNC |
12 |
13 |
17 |
26 |
111 |
65 |
98 |
85 |
66 |
95 |
1 3/4"-5UNC |
235 |
|
8600454 2INCH |
16 |
22 |
28 |
26 |
111 |
65 |
98 |
85 |
76 |
95 |
2"-4,5UNC |
235 |
|
8600455 2-3/4-4UNC |
16 |
25 |
28 |
32 |
119 |
70 |
120 |
95 |
104 |
120 |
274 |
|
|
8600456 3-4UNC |
31.5 |
40 |
50 |
46 |
130 |
90 |
170 |
145 |
114 |
159 |
3"-4UNC |
338 |
|
8600457 3 1/2-4 UNC |
35 |
48 |
50 |
46 |
130 |
90 |
170 |
145 |
133 |
159 |
3 1/2"-4UNC |
338 |
Original: $2,234.00
-65%$2,234.00
$781.90
