RUD VWBG-V Load Ring, Metric Fine Thread with Variable Length
If you're in the market for a load ring that offers diversity at every lifting angle, then RUD's VWBG-V Metric Fine Thread with Variable Length is right up your street.
Available in working load limits from 1t up to 3.55t, the VWBG-V Load Ring is rotatable to the bolt-on direction under rated WLL, and features a clear indication of the minimum WLL for all load directions.

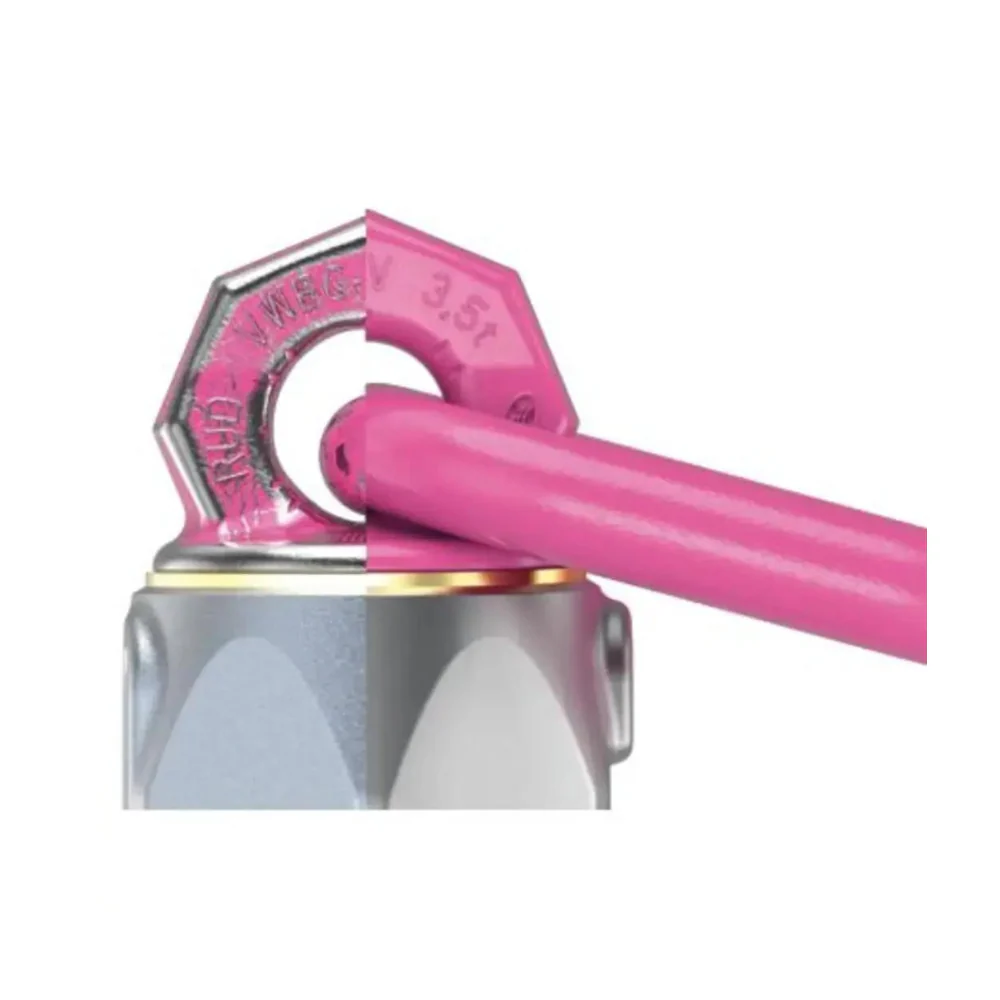

Coming in variable bolt lengths, this exceptional load ring is designed with a large clearance between the bolt-on surface and load to prevent unwanted damage, and features non removable RUD bolts that are protected with a special corrosion protection (Corrud-DT) improving lifecyles in harsh conditions, as well a eliminating the risk of using unsuitable standard bolts.
|

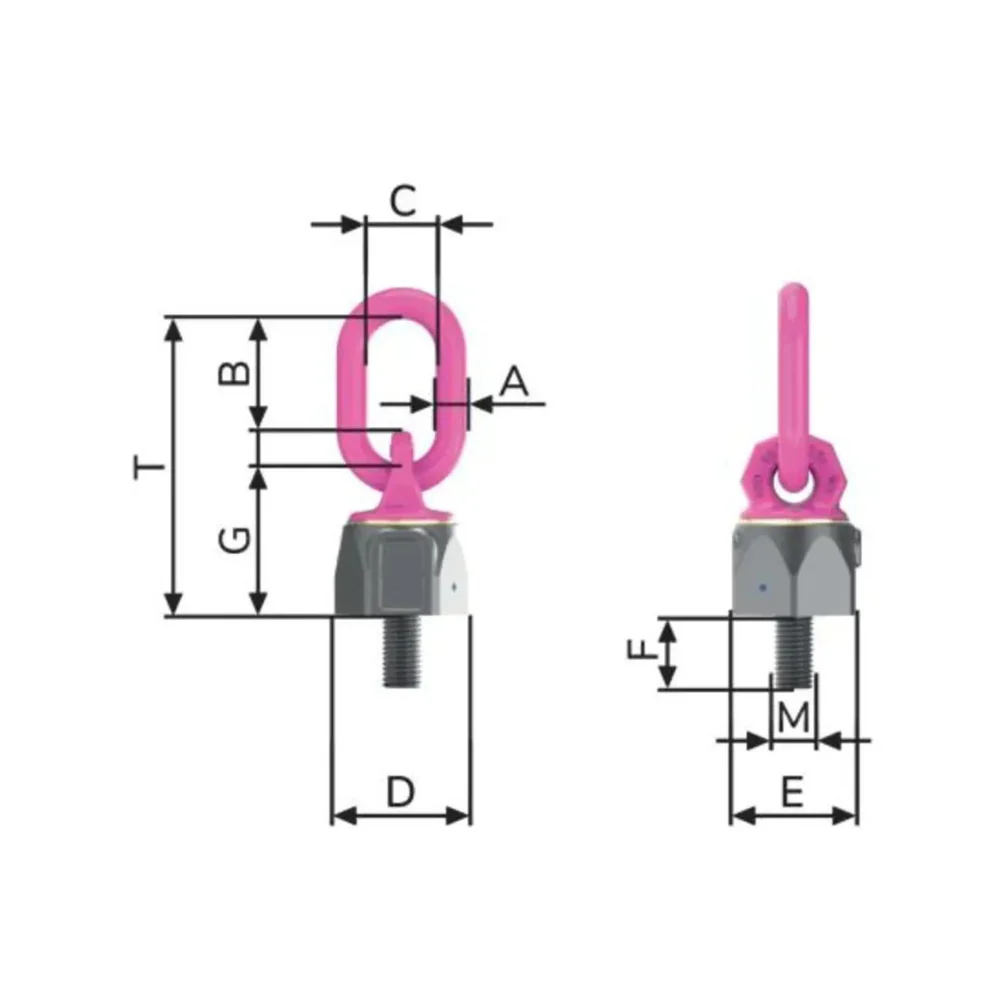

SKU |
WLL-X (t) |
WLL-Y (t) |
WLL-Z (t) |
A (mm) |
B (mm) |
C |
D (mm) |
E (mm) |
F Max (mm) |
F Min (mm) |
G (mm) |
M |
T (mm) |
|
8600337 M14 F65 |
1 |
1.25 |
2 |
13 |
46 |
38 |
48 |
41 |
65 |
14 |
56 |
M14x1,5 |
114 |
|
8600333 M16 X 1.5 FINE |
1.3 |
1.5 |
2.6 |
13 |
46 |
38 |
48 |
41 |
70 |
16 |
56 |
M16x1,5 |
114 |
|
8600338 M18 X 1.5 FINE |
1.8 |
2 |
3.6 |
13 |
54 |
35 |
62 |
55 |
83 |
18 |
67 |
M18x1,5 |
137 |
|
8600335 M24 THREAD 1.5 |
3.5 |
4 |
7 |
18 |
66 |
40 |
81 |
70 |
97 |
24 |
88 |
M24x1,5 |
173 |
Original: $524.00
-65%$524.00
$183.40
