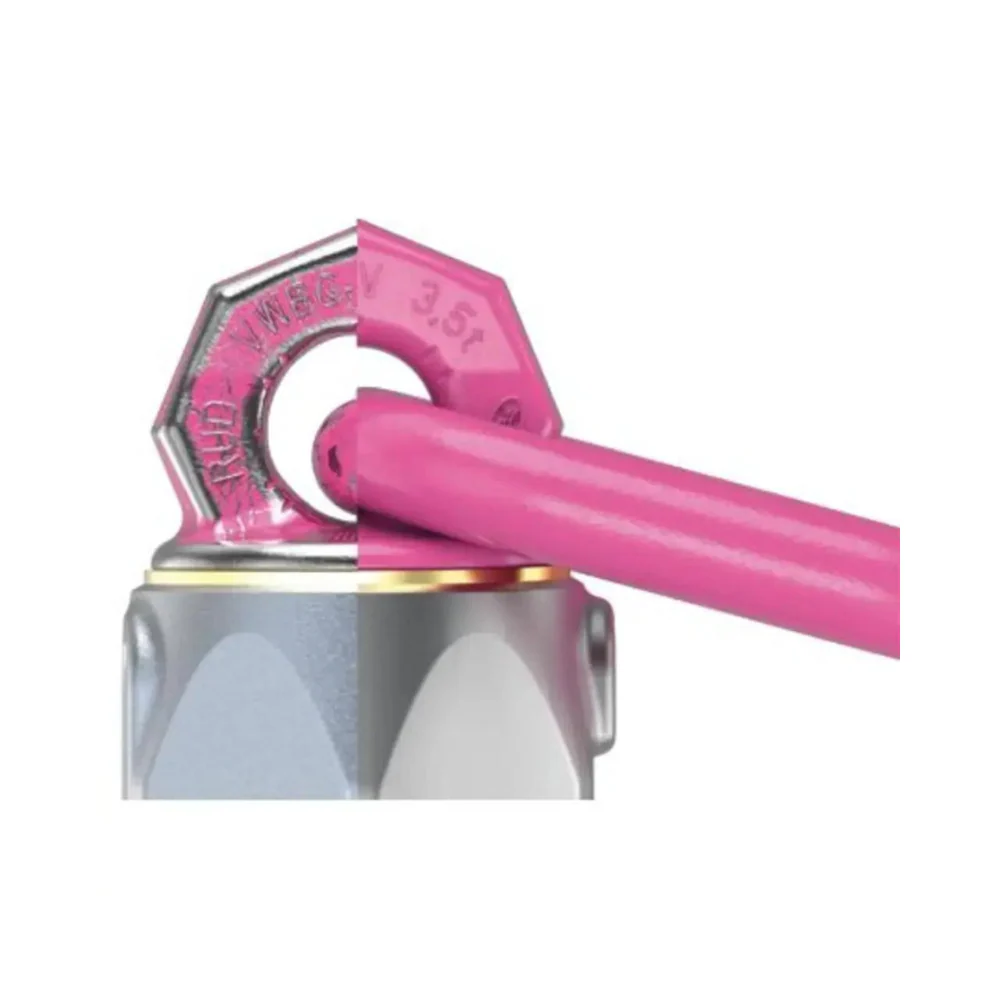

RUD VWBG-V Load Ring, Metric Thread

If you're in the market for a load ring that offers diversity at every lifting angle, then RUD's VWBG-V Metric Thread is right up your street.

Available in working load limits from 0.3t up to 5t, the VWBG-V Load Ring is rotatable to the bolt-on direction under rated WLL, and features a clear indication of the minimum WLL for all load directions.

Coming in variable bolt lengths, this exceptional load ring is designed with a large clearance between the bolt-on surface and load to prevent unwanted damage, and features RUD bolts that are protected with a special corrosion protection (Corrud-DT) improving lifecyles in harsh conditions.

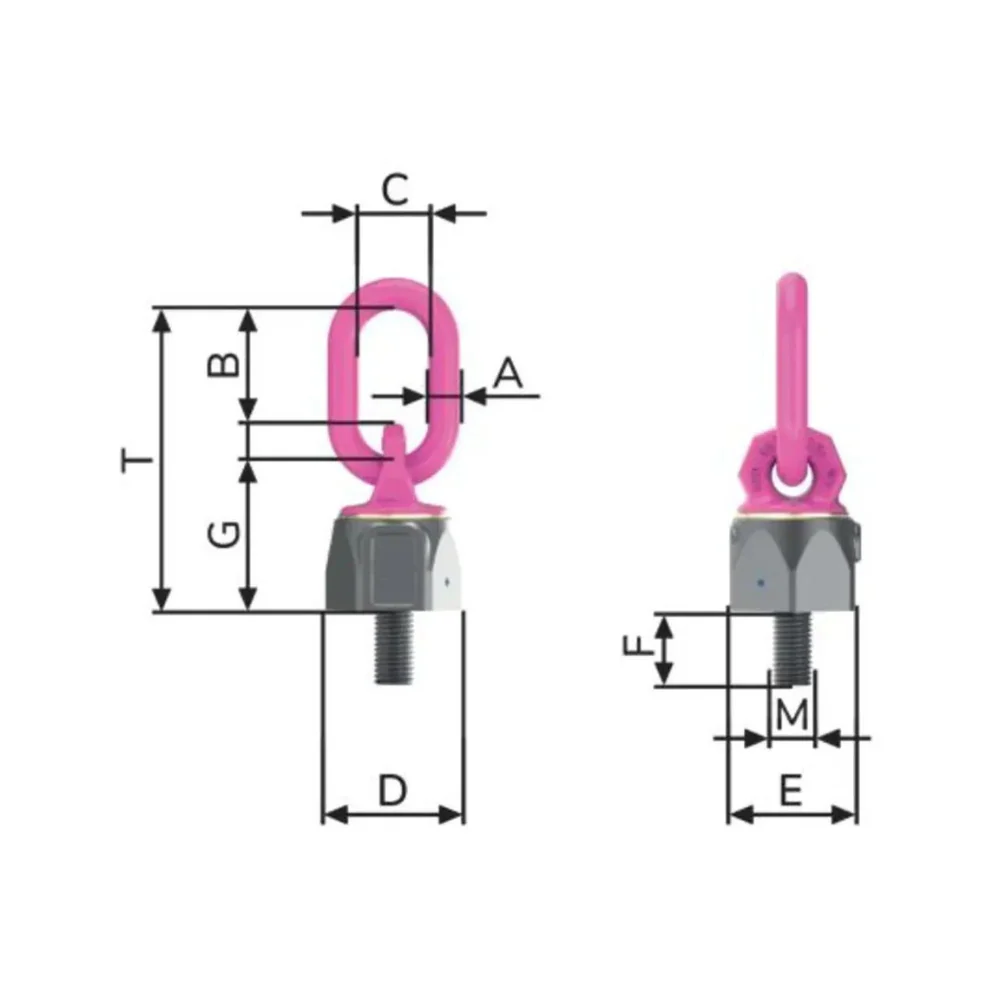

SKU	WLL-X (tons)	WLL-Y (tons)	WLL-Z (tons)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	M	Pitch T (mm)
7103720	0.3	0.4	0.6	8	31	29	30	27	13	36	M8	76
7103715	0.45	0.6	0.9	8	31	29	33.5	30	17	38	M10	78
7100180	0.6	0.75	1.2	10	49	35	42	36	21	47	M12	107
7100430	1.3	1.5	2.6	13	46	38	48	41	25	56	M16	114
8600338 M18 F32 MM	1.8	2	3.6	13	54	35	62	55	27	67	M18	137
7100800	2	2.5	4	13	54	35	62	55	33	67	M20	137
8600334 M22 F94MM	2	2.5	4	13	54	35	62	55	33	67	M22	137
7100640	3.5	4	7	18	66	40	81	70	40	88	M24	173
8600335 M27 F41MM	3.5	4	7	18	66	40	81	70	41	88	M27	173
7100650	5	6	10	22	90	50	99	85	50	106	M30	221
