RUD VWBG-V Load Ring, Metric Thread with Max. Length
If you're in the market for a load ring that offers diversity at every lifting angle, then RUD's VWBG-V Metric Thread with Max. Length is right up your street.
Available in working load limits from 0.3t up to 5t, the VWBG-V Load Ring is rotatable to the bolt-on direction under rated WLL, and features a clear indication of the minimum WLL for all load directions.

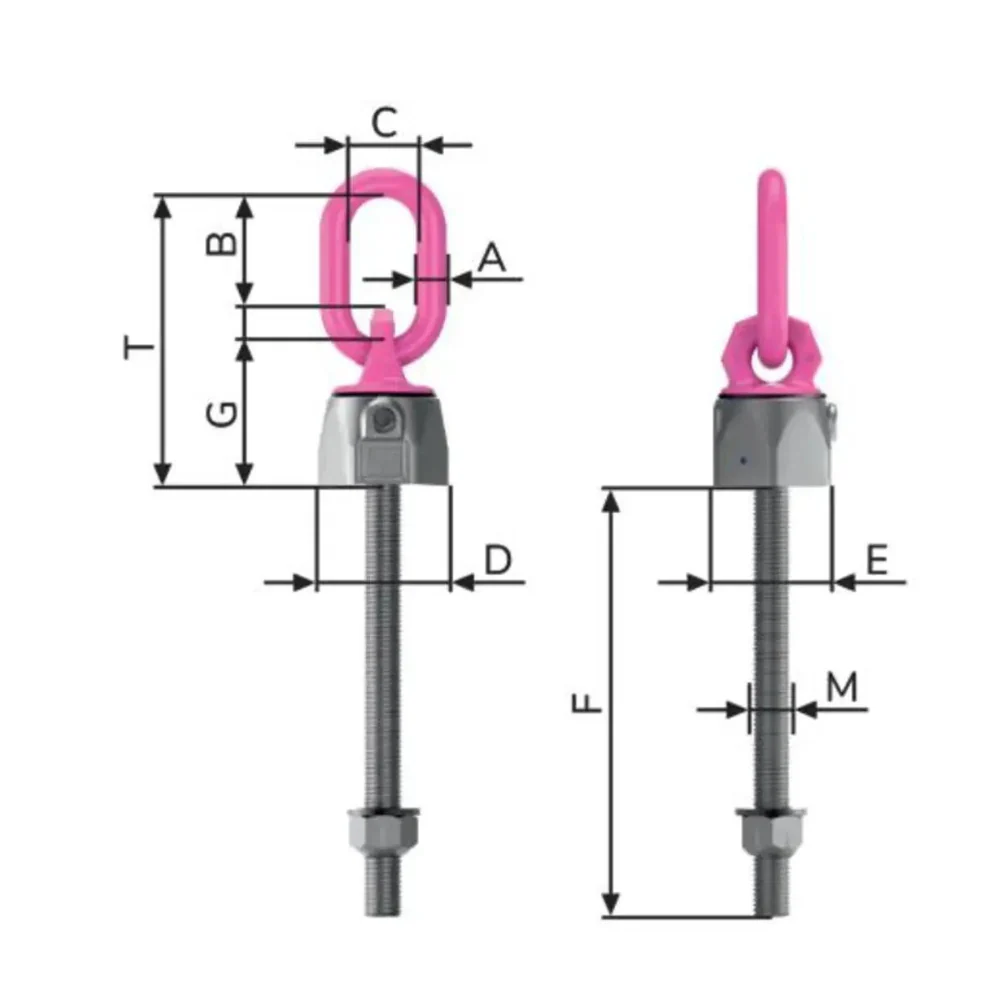

Coming in variable bolt lengths, this exceptional load ring is designed with a large clearance between the bolt-on surface and load to prevent unwanted damage, and features RUD bolts that are protected with a special corrosion protection (Corrud-DT) improving lifecyles in harsh conditions. SKU WLL-X (t) WLL-Y (t) WLL-Z (t) A (mm) B (mm) C D (mm) E (mm) F Max (mm) F Min (mm) G (mm) M T (mm) 8600330 0.3 0.4 0.6 8 31 29 30 27 102 8 36 M8 76 8600331 0.45 0.6 0.9 8 31 29 36 30 122 0 38 M10 78 8600332 M12 F140 0.6 0.75 1.2 10 49 35 42 36 140 0 47 M12 107 8600337 M14 F160 1 1.25 2 13 46 38 48 41 160 0 56 M14 114 8600333 M16 F180 1.3 1.5 2.6 13 46 38 48 41 180 0 56 M16 114 8600333 M16 F80MM 1.3 1.5 2.6 13 46 38 48 41 80 0 56 M16 114 8600338 M18 F83 MM 1.8 2 3.6 13 54 35 62 55 83 18 67 M18 137 8600334 M20 F223MM 2 2.5 4 13 54 35 62 55 223 0 67 M20 137 8600334 M22 F94MM 2 2.5 4 13 54 35 62 55 94 0 67 M22 137 8600335 M24 F257MM 3.5 4 7 18 66 40 81 70 257 0 88 M24 173 8600336 M30 F330 5 6 10 22 90 50 99 85 330 0 106 M30 221
src="https://cdn.shopify.com/s/files/1/0765/0875/8299/files/RUDVWBG-VLoadRingMetricThreadwithMaxLengthdiagram.png?v=1723532504">
(mm)
Ā
Original: $184.00
-65%$184.00
$64.40
Description
If you're in the market for a load ring that offers diversity at every lifting angle, then RUD's VWBG-V Metric Thread with Max. Length is right up your street.
Available in working load limits from 0.3t up to 5t, the VWBG-V Load Ring is rotatable to the bolt-on direction under rated WLL, and features a clear indication of the minimum WLL for all load directions.
Coming in variable bolt lengths, this exceptional load ring is designed with a large clearance between the bolt-on surface and load to prevent unwanted damage, and features RUD bolts that are protected with a special corrosion protection (Corrud-DT) improving lifecyles in harsh conditions. SKU WLL-X (t) WLL-Y (t) WLL-Z (t) A (mm) B (mm) C D (mm) E (mm) F Max (mm) F Min (mm) G (mm) M T (mm) 8600330 0.3 0.4 0.6 8 31 29 30 27 102 8 36 M8 76 8600331 0.45 0.6 0.9 8 31 29 36 30 122 0 38 M10 78 8600332 M12 F140 0.6 0.75 1.2 10 49 35 42 36 140 0 47 M12 107 8600337 M14 F160 1 1.25 2 13 46 38 48 41 160 0 56 M14 114 8600333 M16 F180 1.3 1.5 2.6 13 46 38 48 41 180 0 56 M16 114 8600333 M16 F80MM 1.3 1.5 2.6 13 46 38 48 41 80 0 56 M16 114 8600338 M18 F83 MM 1.8 2 3.6 13 54 35 62 55 83 18 67 M18 137 8600334 M20 F223MM 2 2.5 4 13 54 35 62 55 223 0 67 M20 137 8600334 M22 F94MM 2 2.5 4 13 54 35 62 55 94 0 67 M22 137 8600335 M24 F257MM 3.5 4 7 18 66 40 81 70 257 0 88 M24 173 8600336 M30 F330 5 6 10 22 90 50 99 85 330 0 106 M30 221
src="https://cdn.shopify.com/s/files/1/0765/0875/8299/files/RUDVWBG-VLoadRingMetricThreadwithMaxLengthdiagram.png?v=1723532504">
(mm)
Ā
