RUD VWBG-V Load Ring, Metric Thread with Variable Length
If you're in the market for a load ring that offers diversity at every lifting angle, then RUD's VWBG-V Metric Thread with Variable Length is right up your street.
Available in working load limits from 0.3t up to 3.5t, the VWBG-V Load Ring is rotatable to the bolt-on direction under rated WLL, and features a clear indication of the minimum WLL for all load directions.
Coming in variable bolt lengths, this exceptional load ring is designed with a large clearance between the bolt-on surface and load to prevent unwanted damage, and features RUD bolts that are protected with a special corrosion protection (Corrud-DT) improving lifecyles in harsh conditions.
|
SKU |
WLL-X (t) |
WLL-Y (t) |
WLL-Z (t) |
A (mm) |
B (mm) |
C |
D (mm) |
E (mm) |
F Max (mm) |
F Min (mm) |
G (mm) |
M |
T (mm) |
|
8600330 |
0.3 |
0.4 |
0.6 |
8 |
31 |
29 |
30 |
27 |
102 |
8 |
36 |
M8 |
76 |
|
8600331 M10 |
0.45 |
0.6 |
0.9 |
8 |
31 |
29 |
33.5 |
30 |
122 |
10 |
38 |
M10 |
78 |
|
8600332 M12 F25 |
0.6 |
0.75 |
1.2 |
10 |
49 |
35 |
42 |
36 |
140 |
12 |
47 |
M12 |
107 |
|
8600333 M16 F140MM |
1.3 |
1.5 |
2.6 |
13 |
46 |
38 |
48 |
41 |
180 |
16 |
56 |
M16 |
114 |
|
8600338 M18 F83 MM |
1.8 |
2 |
3.6 |
13 |
54 |
35 |
62 |
55 |
83 |
18 |
67 |
M18 |
137 |
|
8600335 M24 255MM |
3.5 |
4 |
7 |
18 |
66 |
40 |
81 |
70 |
255 |
24 |
88 |
M24 |
173 |
|
8600335 M27 F92MM |
3.5 |
4 |
7 |
18 |
66 |
40 |
81 |
70 |
92 |
27 |
88 |
M27 |
173 |

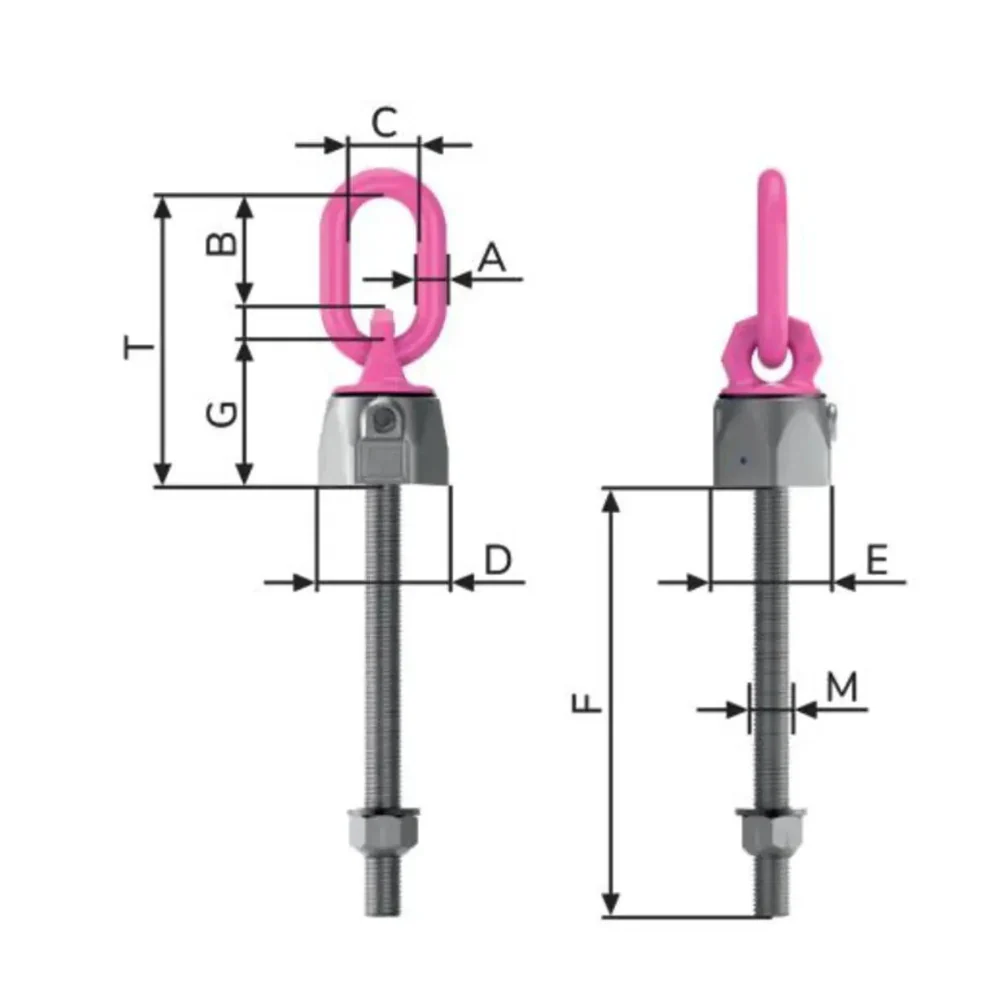

src="https://cdn.shopify.com/s/files/1/0765/0875/8299/files/RUDVWBG-VLoadRingMetricThreadwithVariableLengthdiagram.png?v=1723533113">
Original: $360.00
-65%$360.00
$126.00
Description
If you're in the market for a load ring that offers diversity at every lifting angle, then RUD's VWBG-V Metric Thread with Variable Length is right up your street.
Available in working load limits from 0.3t up to 3.5t, the VWBG-V Load Ring is rotatable to the bolt-on direction under rated WLL, and features a clear indication of the minimum WLL for all load directions.
Coming in variable bolt lengths, this exceptional load ring is designed with a large clearance between the bolt-on surface and load to prevent unwanted damage, and features RUD bolts that are protected with a special corrosion protection (Corrud-DT) improving lifecyles in harsh conditions.
|
