RUD VWBG-V Load Ring, UNC Thread

If you're in the market for a load ring that offers diversity at every lifting angle, then RUD's VWBG-V UNC Thread is right up your street.

Available in working load limits from 0.3t up to 5t, the VWBG-V Load Ring is rotatable to the bolt-on direction under rated WLL, and features a clear indication of the minimum WLL for all load directions.

Coming in variable bolt lengths, this exceptional load ring is designed with a large clearance between the bolt-on surface and load to prevent unwanted damage, and features RUD bolts that are protected with a special corrosion protection (Corrud-DT) improving lifecyles in harsh conditions.

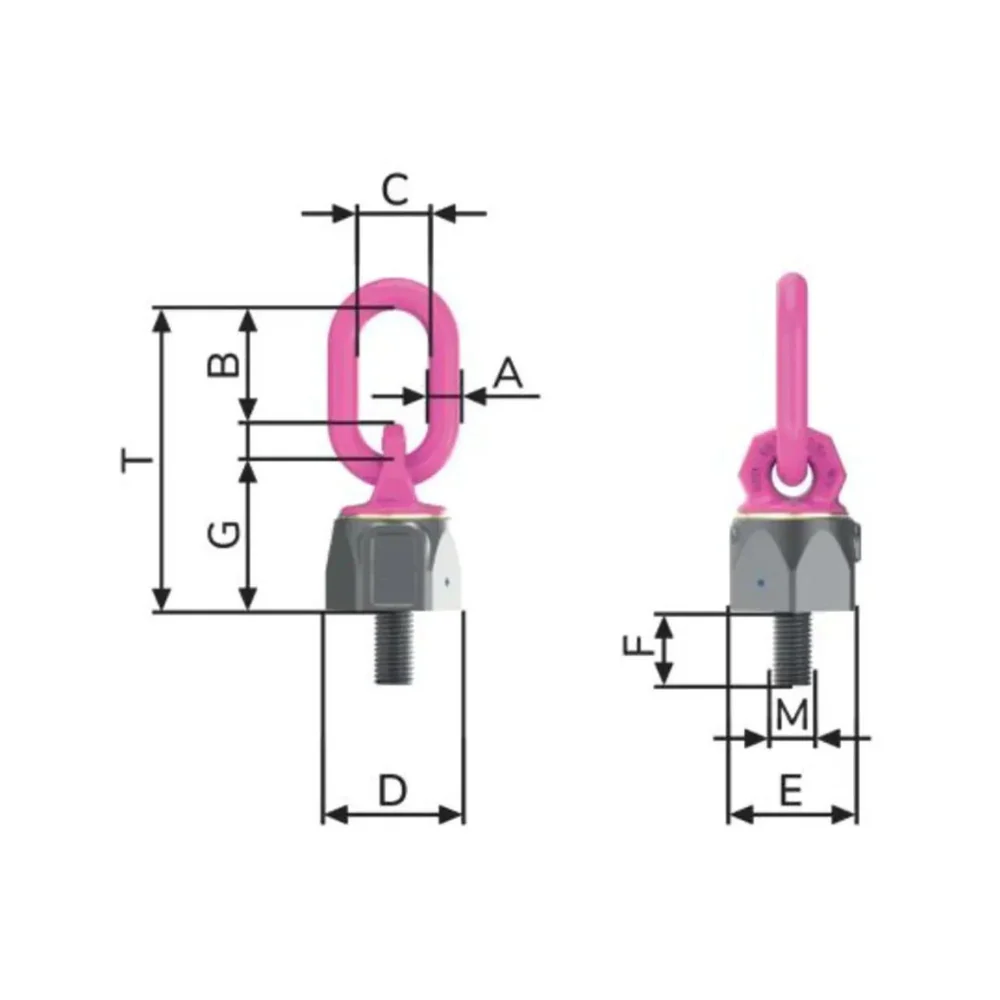

SKU	WLL-X (lbs)	WLL-Y (lbs)	WLL-Z (lbs)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	M	Pitch T (mm)
7991090	520	700	1050	8	31	29	30	27	13	36	5/16"-18UNC	76
7991091	790	1050	1580	8	31	29	33.5	30	17	38	3/8"-16UNC	78
7991092	1050	1320	2110	10	49	35	42	36	21	47	1/2"-13UNC	107
7991093	2280	2640	4580	13	46	38	48	41	29	56	5/8"-11UNC	114
7991094	3520	440	7040	13	54	35	62	55	28	67	3/4"-10UNC	137
7991095	6170	7040	12340	18	66	40	81	70	40	88	1"-8UNC	173
7991096	8810	10580	17630	22	90	50	99	85	47	106	1 1/4"-7UNC	221
