RUD VWBG-V Load Ring, UNC Thread with Variable Length

If you're in the market for a load ring that offers diversity at every lifting angle, then RUD's VWBG-V UNC Thread with Variable is right up your street.

Available in working load limits from 790lbs up to 8810lbs, the VWBG-V Load Ring is rotatable to the bolt-on direction under rated WLL, and features a clear indication of the minimum WLL for all load directions.

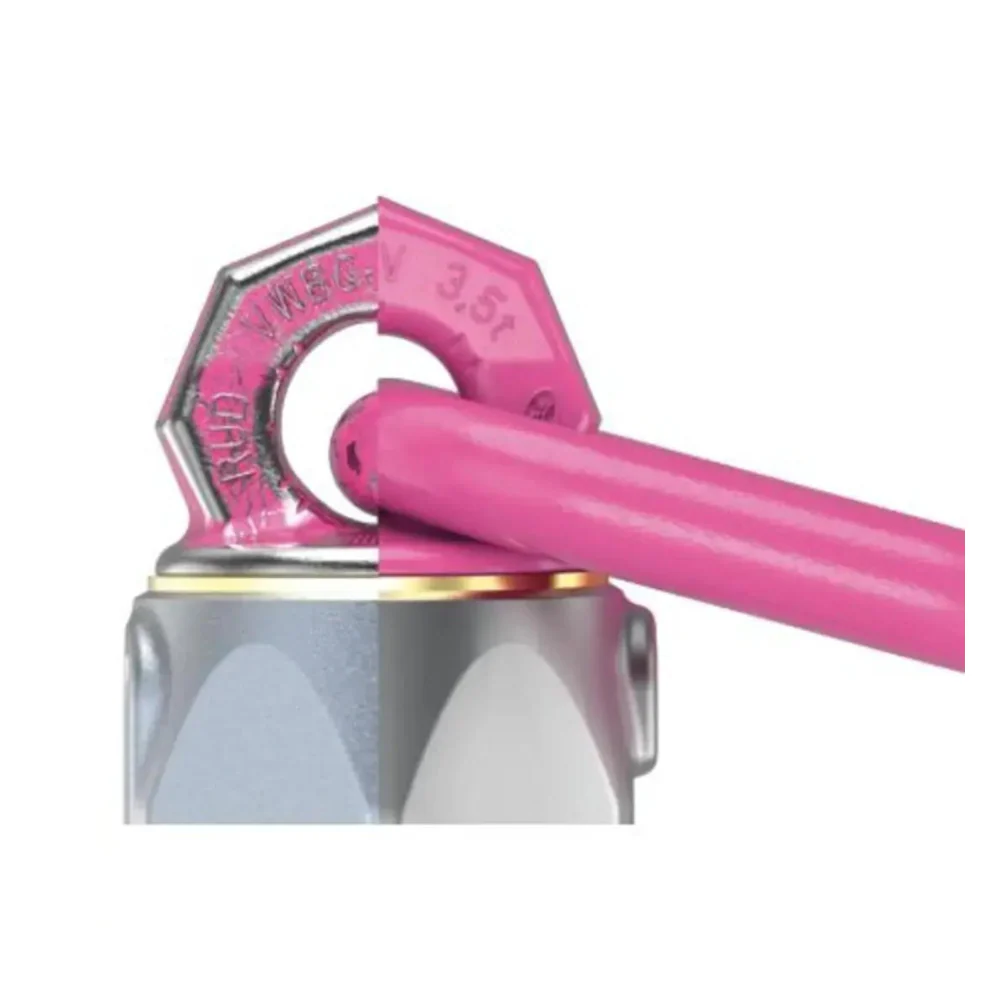

Coming in variable bolt lengths, this exceptional load ring is designed with a large clearance between the bolt-on surface and load to prevent unwanted damage, and features RUD bolts that are protected with a special corrosion protectio

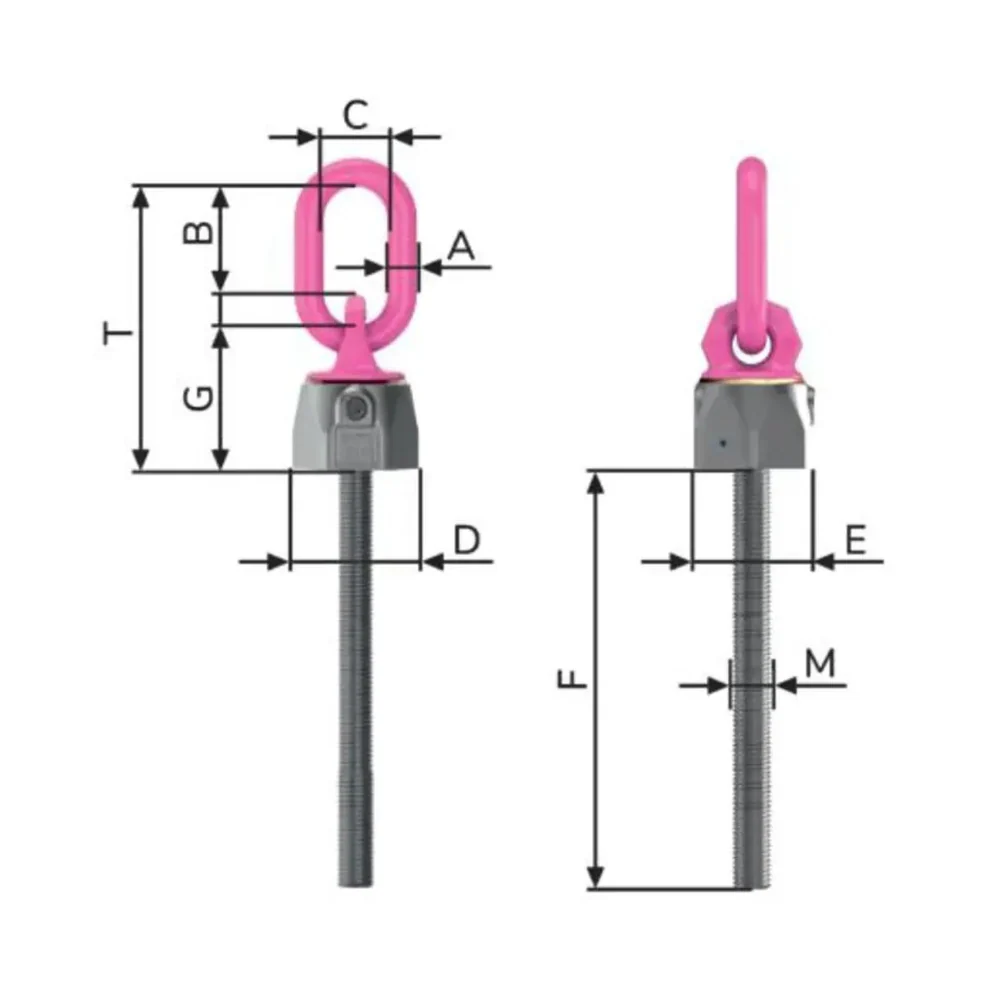

SKU	WLL-X (lbs)	WLL-Y (lbs)	WLL-Z (lbs)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F Max (mm)	F Min (mm)	G (mm)	M	T (mm)
8600331	790	1050	1580	8	31	29	33.5	30	124	31	38	3/8"-16UNC	78
8600332	1050	1320	2110	10	49	35	42	36	149	40	47	1/2"-13UNC	107
8600333	2280	2640	4580	13	46	38	48	41	180	51	56	5/8"-11UNC	114
8600334	3520	4400	7040	13	54	35	62	55	222	56	67	3/4"-10UNC	137
8600335	6170	7040	12340	18	66	40	81	70	246	64	88	1"-8UNC	173
8600336	8810	10580	17630	22	90	50	99	85	91	47	106	1 1/4"-8UN	221

n (Corrud-DT) improving lifecyles in harsh conditions.
