RUD VWBM Load Ring with Internal Thread
Fast and easy to install, RUD's VWBM Load Ring with Internal Thread is a rotatable lifting point capable of holding loads of up to 2200lbs - model dependant (M12/M16).
Designed with large clearance between the bolt-on surface and load to prevent damage, the ball bearing provides shock-free usage and less friction when rotating and turning.
Features optical markings for angle and wear adjustment.
|

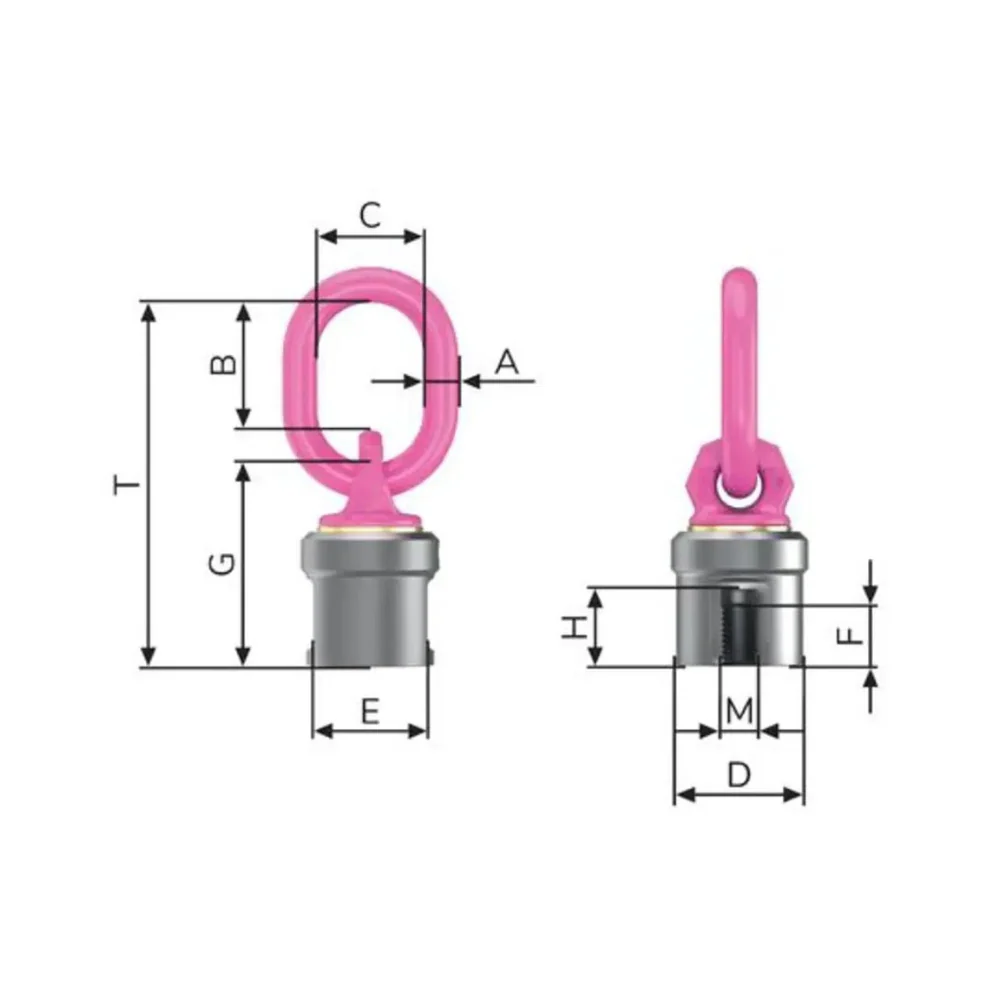

SKU |
WLL (lbs) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
M |
Pitch T (mm) |
|
7909682 |
1320 |
10 |
49 |
35 |
41 |
36 |
15 |
62 |
21 |
M12 |
122 |
|
7909683 |
2200 |
13 |
46 |
38 |
46 |
41 |
20 |
73 |
27 |
M16 |
131 |
Ā
Original: $666.00
-65%$666.00
$233.10
Description
Fast and easy to install, RUD's VWBM Load Ring with Internal Thread is a rotatable lifting point capable of holding loads of up to 2200lbs - model dependant (M12/M16).
Designed with large clearance between the bolt-on surface and load to prevent damage, the ball bearing provides shock-free usage and less friction when rotating and turning.
Features optical markings for angle and wear adjustment.
|
