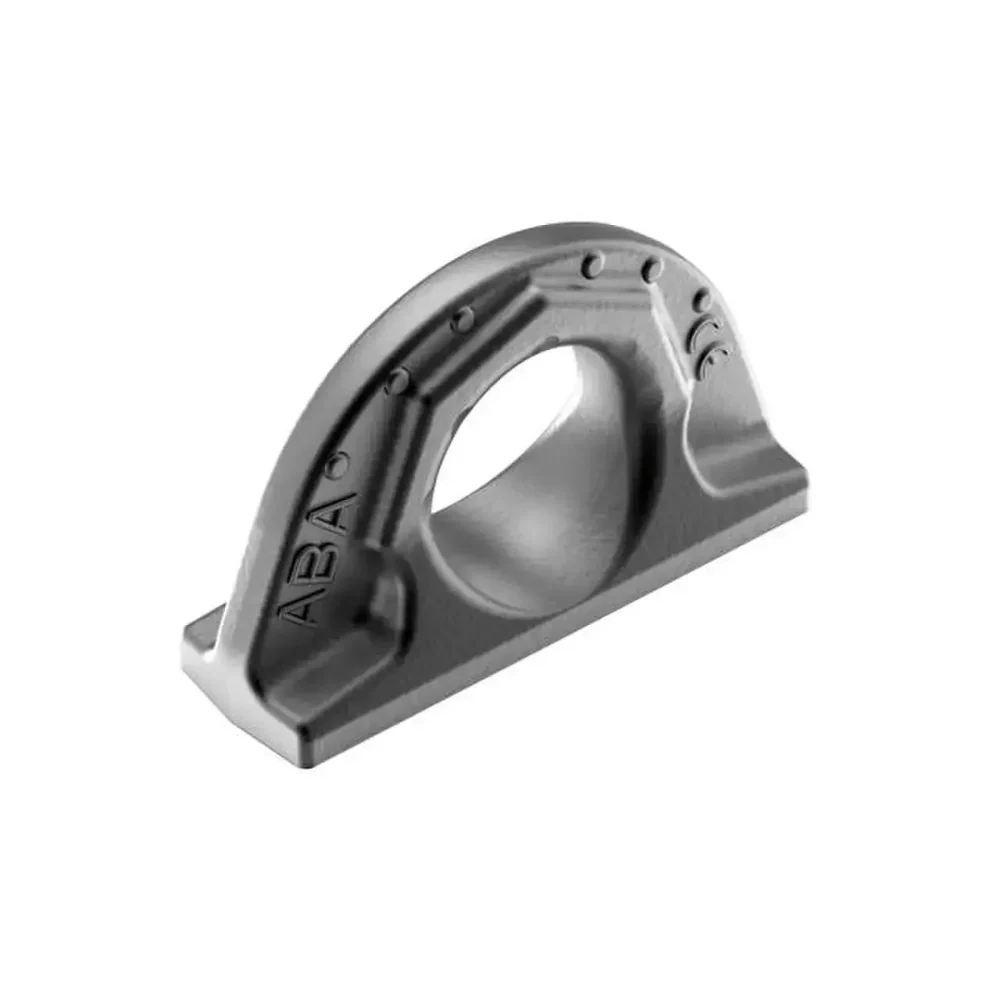

RUD W-ABA Lifting Point

Forged from a single piece, RUD's W-ABA Lifting Point for Welding is pretty much indestructible and ready to out the packet - from all directions.

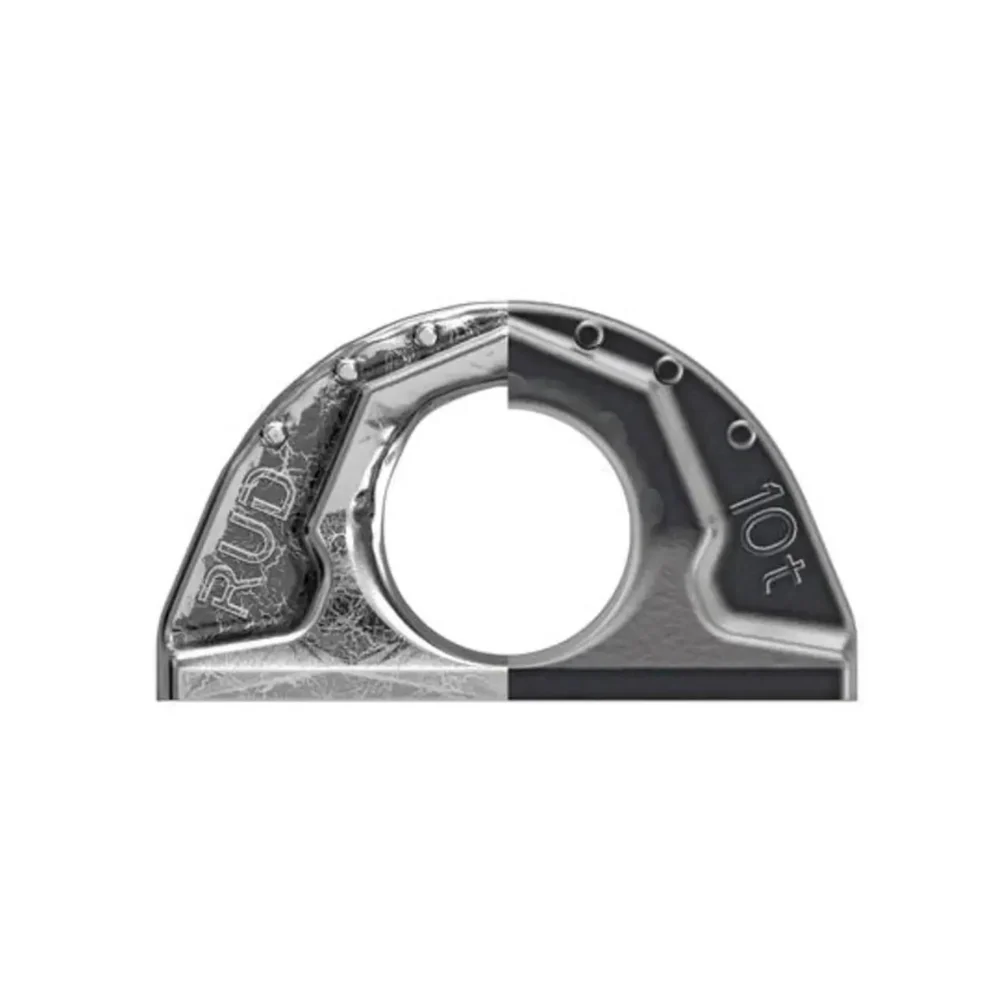

Boasting a 4:1 safety ratio against breaking, the circular fillet weld arrangement fulfils the requirements of DIN EN 1090, with the endless single seam preventing the formation of contact corrosion, making the ABA Lifting Point ideal for outdoor applications.

Additionally, the single piece design eliminates rattling noises and strong even under strong vibrations and shock loads.

Available in safe working load limits from 0.8t right up to 31.5t, each unit features patented wear markings for easy identification of wear, significantly improving safety.

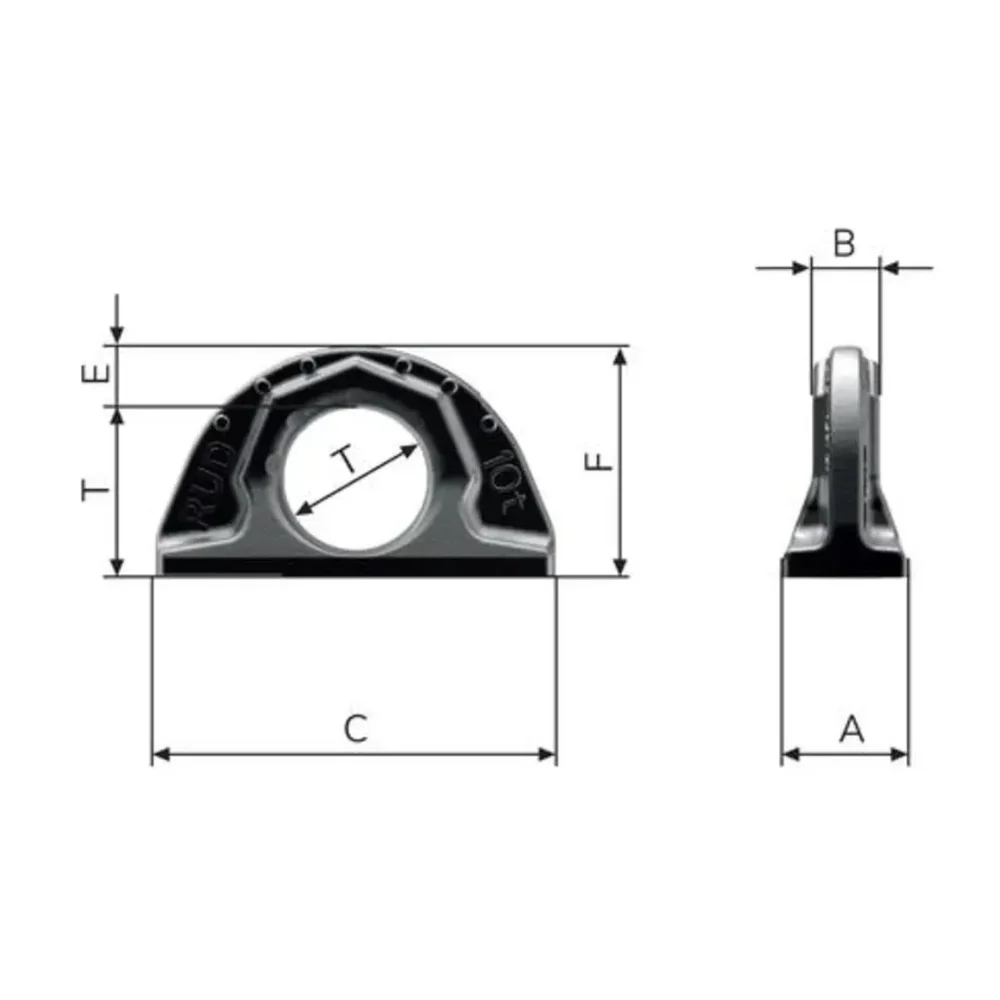

SKU	WLL (tons)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	Pitch T (mm)
7907698	0.8	22	12	70	32	12	50	38
7900352	1.6	30	16	100	35	16	57	42
7900355	10	70	38	228	80	35	130	95
7902174	20	90	52	272	115	40	175	135
7900353	3.2	41	23	137	50	21	80	59
7902175	31.5	108	64	320	130	50	204	154
7900354	5	51	27	172	60	28	99	72
