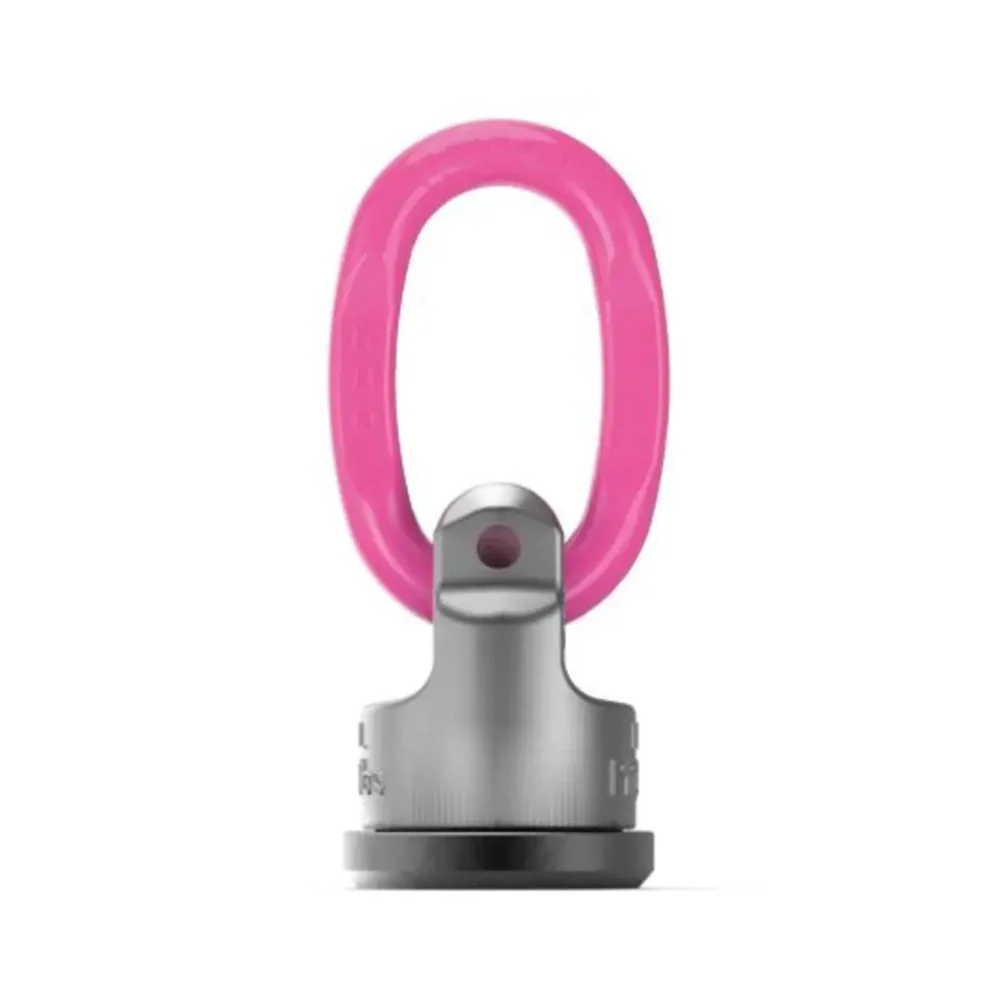

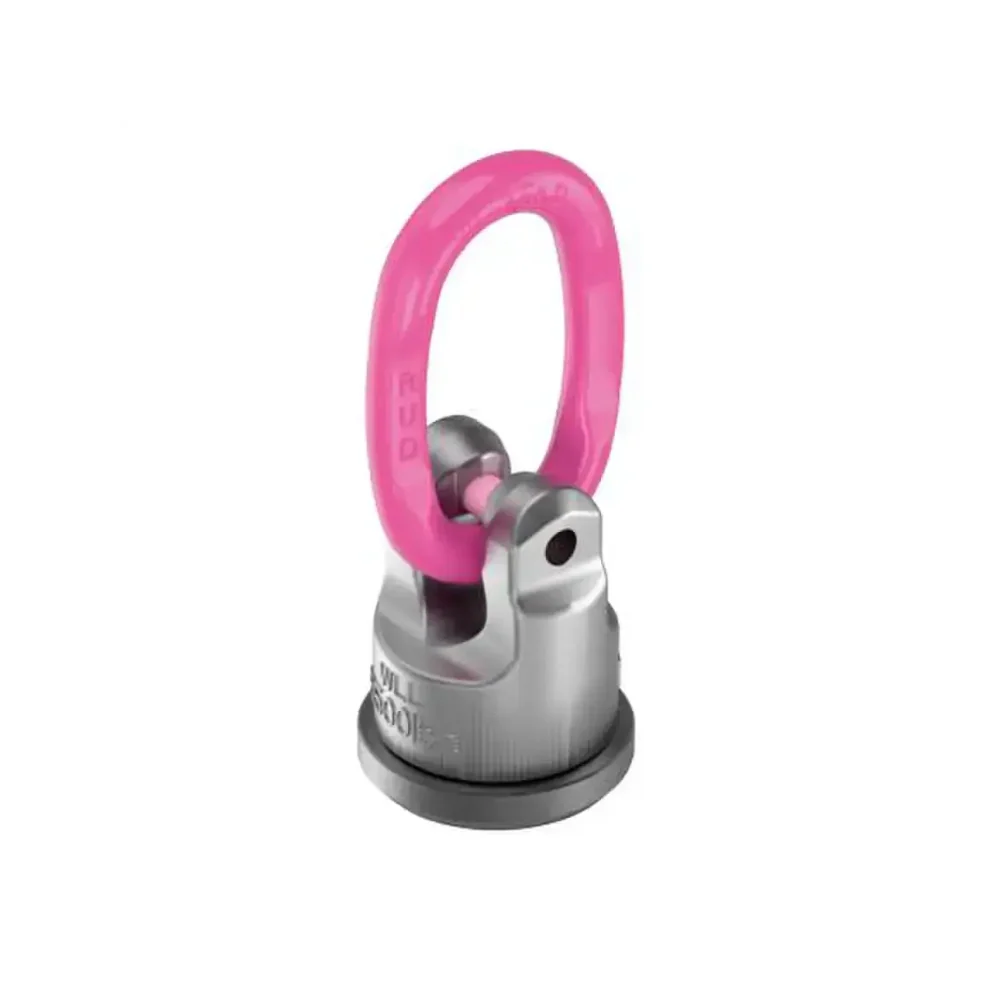

RUD WPP-B Powerpoint Ring Connection

RUD's WPP-B Powerpoint Ring Connection is a solid choice if you're looking for a weldable eye connection for hook suspension.

Available in working load limits from 1390lbs (0.63t) up to 17630lbs (8t), this ring connection achieves the lowest possible kinking due to the introduction of a cardan joint.

Capable of rotating a full 360° and pivoting 230° courtesy of a smooth double ball bearing, these units features a clear marking of minimum working load limit for all loading directions.

Quick and easy to install, the large distance between bolt-on surface and load avoids unnecessary damage.

NOTE: Welding should only be carried out by a qualified person in accordance to ISO 9606-1.

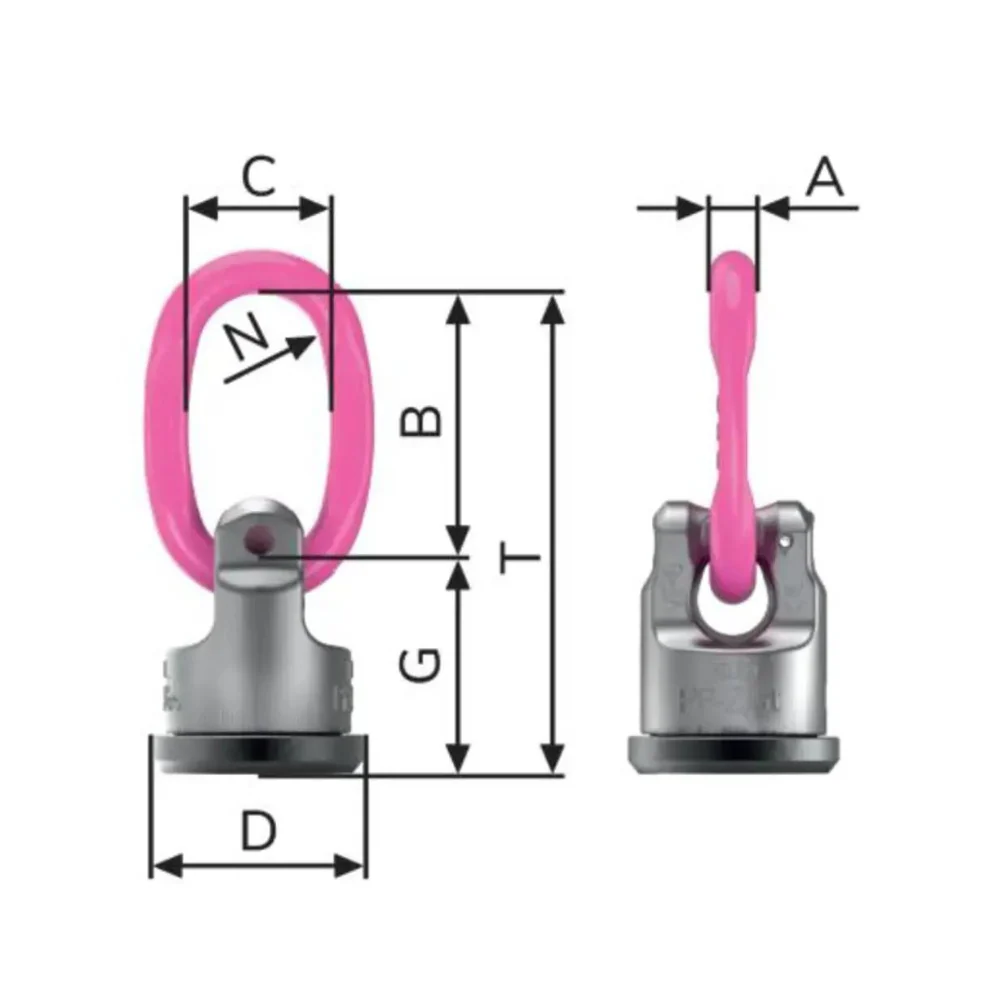

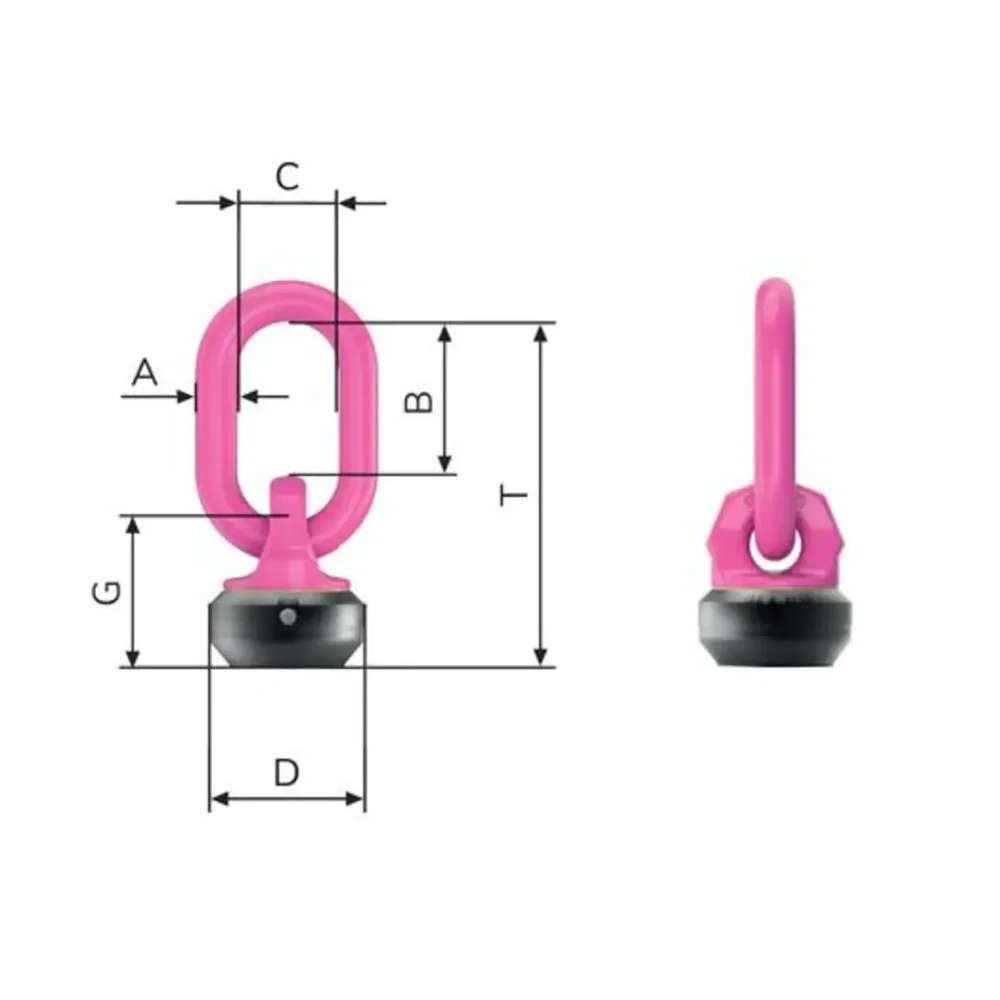

SKU	WLL (lbs)	A (mm)	B (mm)	C (mm)	D (mm)	G (mm)	N (mm)	Pitch T (mm)
7989954	1390	9	65	35	40	40	15	105
7989956	5500	13	74	40	61	61	18	135
7989957	8820	16	95	45	78	77	20	172
7989958	11000	19	130	60	95	93	25	223
7989959	17630	24	140	65	100	102	28	242
