SENTRY Confined Space Access Tripod
The Globestock Sentry Confined Space Tripod is a purpose-built anchorage solution designed for safe, efficient confined space access and rescue operations. Engineered for strength, stability, and ease of use, it provides dependable performance in demanding industrial environments.

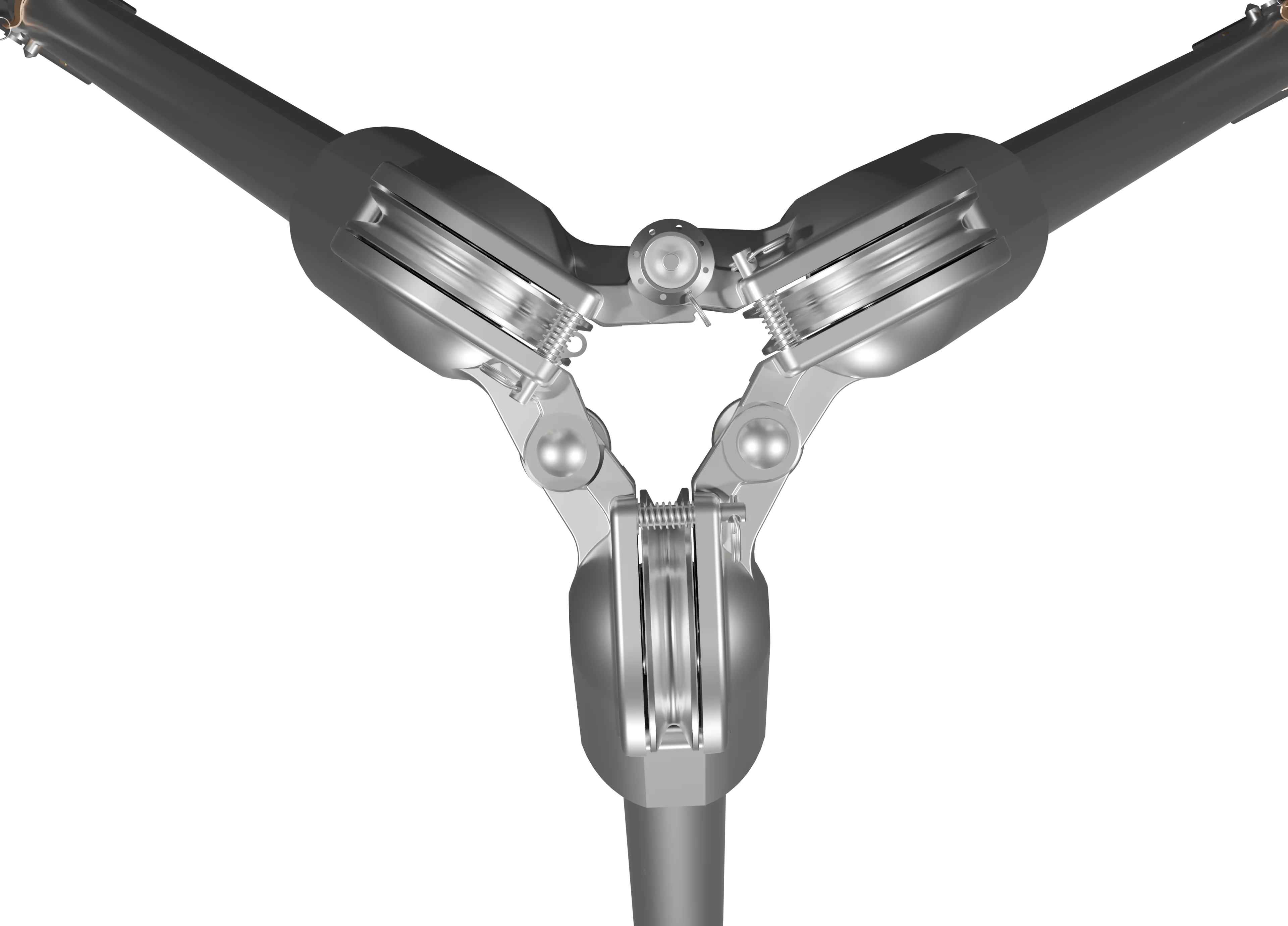

Constructed from durable yet lightweight materials, the Sentry tripod is easy to transport, position, and deploy. Its straightforward folding design allows for quick setup and compact storage, making it ideal for teams that need reliable equipment without unnecessary bulk. The integrated three-pulley head design enables flexible configuration, allowing fall arrest or rescue devices to be mounted to any leg or directly beneath the head for maximum operational versatility.
With a personnel capacity of up to 200 kg and a load capacity of up to 250 kg, the tripod supports safe lifting and rescue operations, including scenarios involving up to two workers within approved working limits. Both compact and standard models are available, allowing you to select the most suitable height and footprint for your specific site requirements.
Certified to key international safety standards, the Sentry Confined Space Tripod is a trusted solution for confined space entry, work-at-height applications, and emergency rescue situations where secure anchorage is essential.
| Item Code | MWL | Weight (Approx.) | Conformities |
|---|---|---|---|
| GSE230C | 200 kg (personnel) / 440 lbs250 kg (loads) / 551 lbs | 18.3 kg / 40 lbs | EN 795:2012 Type BCEN/TS 16415:2013Directive 2006/42/ECISO 12100:2010ANSI/ASSP Z359.18-2017 Type ACSA Z259.15-22 Class AAS/NZS 5532:2013OSHA 1910.140OSHA 1926.502 |
| GSE230S | 200 kg (personnel) / 440 lbs250 kg (loads) / 551 lbs | 20.8 kg / 45.8 lbs | Same as above |
Ā
FOLDED DIMENSIONS
| Size | A | B | C |
|---|---|---|---|
| COMPACT (GSE230C) | 270 mm / 10.63ā³ | 1,217 mm / 47.91ā³ | 180 mm / 7.09ā³ |
| STANDARD (GSE230S) | 270 mm / 10.63ā³ | 1,527 mm / 60.12ā³ | 180 mm / 7.09ā³ |
Ā
Ā
ASSEMBLED DIMENSIONS
| Size | A | B | C | D |
|---|---|---|---|---|
| COMPACT (GSE230C)* | 1,131 mm / 44.53ā³ | 963 mm / 37.91ā³ | 841 mm / 33.11ā³ | 1,112 mm / 43.78ā³ |
| COMPACT (GSE230C)** | 1,747 mm / 68.82ā³ | 1,579 mm / 62.24ā³ | 1,315 mm / 51.77ā³ | 1,585 mm / 62.44ā³ |
| STANDARD (GSE230S)* | 1,421 mm / 55.94ā³ | 1,253 mm / 49.33ā³ | 1,064 mm / 41.89ā³ | 1,334 mm / 52.48ā³ |
| STANDARD (GSE230S)** | 2,307 mm / 90.83ā³ | 2,172 mm / 85.43ā³ | 1,755 mm / 69.09ā³ | 2,015 mm / 79.33ā³ |
Ā
Description
The Globestock Sentry Confined Space Tripod is a purpose-built anchorage solution designed for safe, efficient confined space access and rescue operations. Engineered for strength, stability, and ease of use, it provides dependable performance in demanding industrial environments.
Constructed from durable yet lightweight materials, the Sentry tripod is easy to transport, position, and deploy. Its straightforward folding design allows for quick setup and compact storage, making it ideal for teams that need reliable equipment without unnecessary bulk. The integrated three-pulley head design enables flexible configuration, allowing fall arrest or rescue devices to be mounted to any leg or directly beneath the head for maximum operational versatility.
With a personnel capacity of up to 200 kg and a load capacity of up to 250 kg, the tripod supports safe lifting and rescue operations, including scenarios involving up to two workers within approved working limits. Both compact and standard models are available, allowing you to select the most suitable height and footprint for your specific site requirements.
Certified to key international safety standards, the Sentry Confined Space Tripod is a trusted solution for confined space entry, work-at-height applications, and emergency rescue situations where secure anchorage is essential.
| Item Code | MWL | Weight (Approx.) | Conformities |
|---|---|---|---|
| GSE230C | 200 kg (personnel) / 440 lbs250 kg (loads) / 551 lbs | 18.3 kg / 40 lbs | EN 795:2012 Type BCEN/TS 16415:2013Directive 2006/42/ECISO 12100:2010ANSI/ASSP Z359.18-2017 Type ACSA Z259.15-22 Class AAS/NZS 5532:2013OSHA 1910.140OSHA 1926.502 |
| GSE230S | 200 kg (personnel) / 440 lbs250 kg (loads) / 551 lbs | 20.8 kg / 45.8 lbs | Same as above |
Ā
FOLDED DIMENSIONS
| Size | A | B | C |
|---|---|---|---|
| COMPACT (GSE230C) | 270 mm / 10.63ā³ | 1,217 mm / 47.91ā³ | 180 mm / 7.09ā³ |
| STANDARD (GSE230S) | 270 mm / 10.63ā³ | 1,527 mm / 60.12ā³ | 180 mm / 7.09ā³ |
Ā
Ā
ASSEMBLED DIMENSIONS
| Size | A | B | C | D |
|---|---|---|---|---|
| COMPACT (GSE230C)* | 1,131 mm / 44.53ā³ | 963 mm / 37.91ā³ | 841 mm / 33.11ā³ | 1,112 mm / 43.78ā³ |
| COMPACT (GSE230C)** | 1,747 mm / 68.82ā³ | 1,579 mm / 62.24ā³ | 1,315 mm / 51.77ā³ | 1,585 mm / 62.44ā³ |
| STANDARD (GSE230S)* | 1,421 mm / 55.94ā³ | 1,253 mm / 49.33ā³ | 1,064 mm / 41.89ā³ | 1,334 mm / 52.48ā³ |
| STANDARD (GSE230S)** | 2,307 mm / 90.83ā³ | 2,172 mm / 85.43ā³ | 1,755 mm / 69.09ā³ | 2,015 mm / 79.33ā³ |
