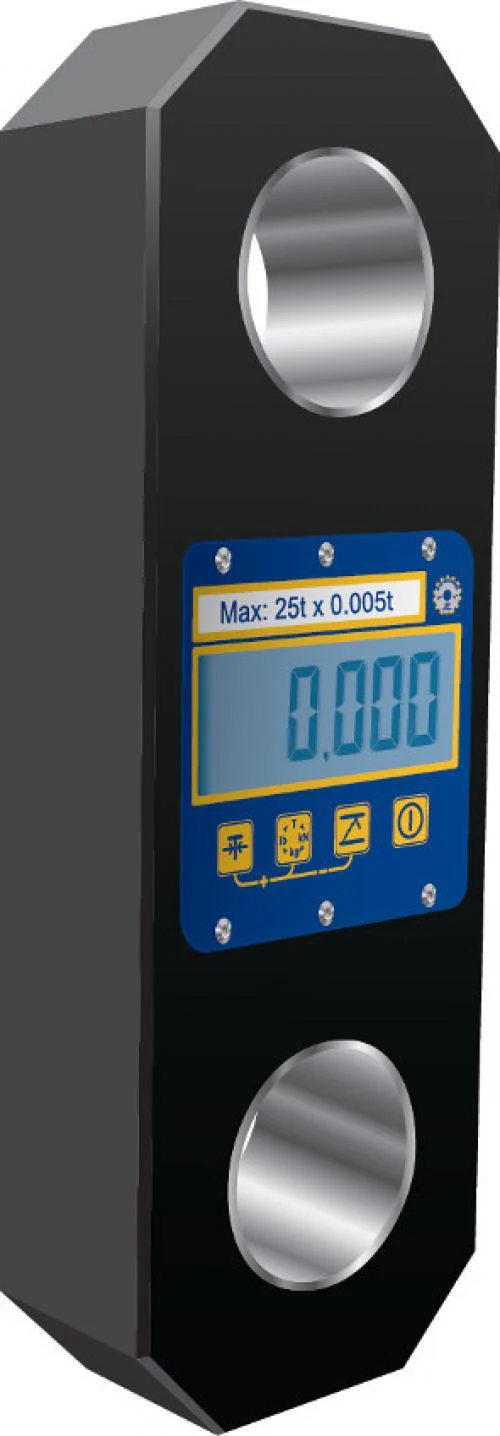

Straightpoint LoadLink Plus Load Cell

Always at the forefront of load measuring technology, Straightpoint's LoadLink Plus is renowned for being the first and original electronic force measurement device that features an integrated integral digital display.

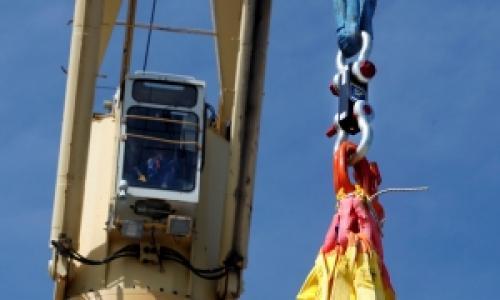

Used on a frequency for heavy lifts and monitoring of tension and loads ranging from 1 tonne right up to 300 tones, the LoadLink Plus Load Cell is regularly used by a variety of commercial and industrial industries such as transportation, manufacturing, agriculture, oil & gas, utilities, aerospace, and clean energy.

High-speed read rates of 500/seconds are achieve courtesy of a high-precision advanced microprocessor electronic system that can be found in the majority of Straightpoint's portfolio. Combining extreme resistance to industrial-level noise with remarkable stability, the LoadLink Plus rightly stands out from the crowd and you can see why it's the first choice for many of our customers.

Manufactured from high-grade aircraft quality aluminum, the premium quality LoadLink Plus has an unmatched weight-to-strength ratio, as a result of Straightpoint's unrivalled innovation and internal design structure.

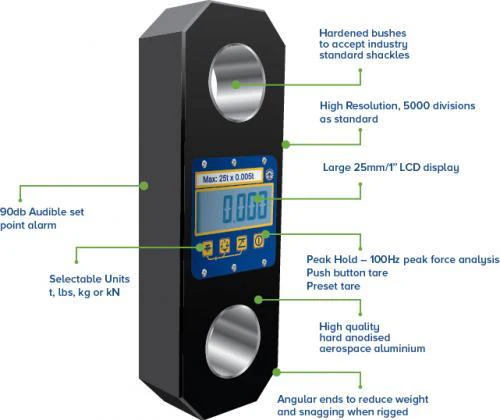

• Large LCD display
• High accuracy
• Selectable units
• High resolution
• Peak hold
• Tare
• Lightweight
• Preset tare
• Overload counter
• Audible set pint alarm
• Choice of units lbs, kg, kN and tonnes
• RS-485 serial output
• Design validated by F.E.A
• Due to this high stability gives the loadlink plus over 5000 divisions and the highest standard resolution of any digital dynamometer on the market today.

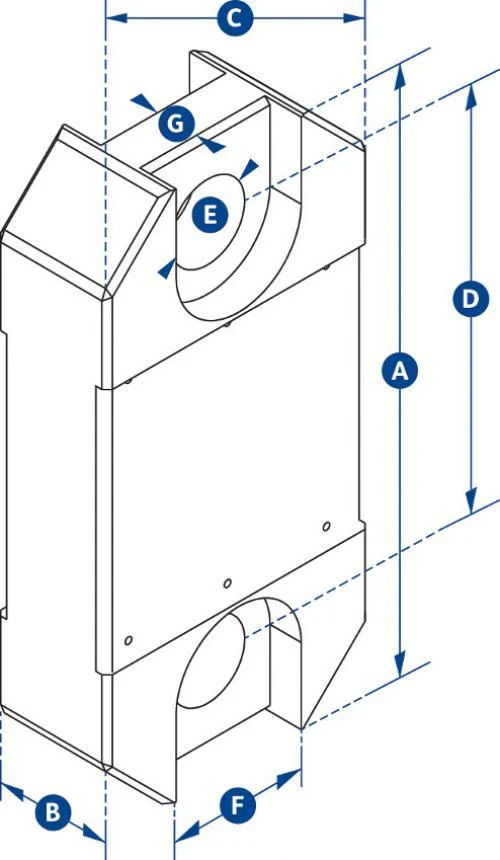

Model	Capacity (kg)	Weight (kg)	Safety factor	Battery Type	Battery life	Display Type	Operating Temperature	Protection	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	Crosby Shackle Size	Loading Pin Diameter (mm)
LLP1T	1000	1.4	12:1	9v PP3	80 Hours Continuous	6 Digit 25mm LCD	-10˚C Up to 50˚C	IP65	204	43	101	146	24.5	48	19	G2130	19
LLP2T5	2500	1.4	5:1	9v PP3	80 Hours Continuous	6 Digit 25mm LCD	-10˚C Up to 50˚C	IP65	204	43	101	146	24.5	48	19	G2130	19
LLP5T	5000	2	5:1	9v PP3​	80 Hours Continuous	6 Digit 25mm LCD	-10˚C Up to 50˚C	IP65	249	43	101	165	38	66	32	G2130	25
LLP12T	12,000	3.2	5:1	9v PP3	80 Hours Continuous	6 Digit 25mm LCD	-10˚C Up to 50˚C	IP65	305	47	101	193	47.5			G2130	35
LLP25T	25,000	5	5:1	9v PP3	80 Hours Continuous	6 Digit 25mm LCD	-10˚C Up to 50˚C	IP65	340	60	115	215	55			G2130	51
LLP35T	35,000	8.6	5:1	9v PP3	80 Hours Continuous	6 Digit 25mm LCD	-10˚C Up to 50˚C	IP65	393	60	115	215	55			G2130	57
LLP50T	50,000	11.5	5:1	9v PP3	80 Hours Continuous	6 Digit 25mm LCD	-10˚C Up to 50˚C	IP65	424	75	163	230	76			G2140	57
LLP75T	75,000	16	5:1	9v PP3	80 Hours Continuous	6 Digit 25mm LCD	-10˚C Up to 50˚C	IP65	470	75	202	260	76			G2140	70
LLP100T	100,000	34	5:1	9v PP3	80 Hours Continuous	6 Digit 25mm LCD	-10˚C Up to 50˚C	IP65	608	99	303	360	109			G2140	83
LLP150T	150,000	46	4:1	9v PP3	80 Hours Continuous	6 Digit 25mm LCD	-10˚C Up to 50˚C	IP65	670	99	303	360	109			G2140	95
LLP200T	200,000	72	5:1	9v PP3	80 Hours Continuous	6 Digit 25mm LCD	-10˚C Up to 50˚C	IP65	700	144	320	350	132			G2140	121
LLP250T	250,000	72	4:1	9v PP3	80 Hours Continuous	6 Digit 25mm LCD	-10˚C Up to 50˚C	IP65	700	144	320	350	132			G2140	127
LLP300T	300,000	118	5:1	9v PP3	80 Hours Continuous	6 Digit 25mm LCD	-10˚C Up to 50˚C	IP65	806	150	426	350	160			G2140	152
