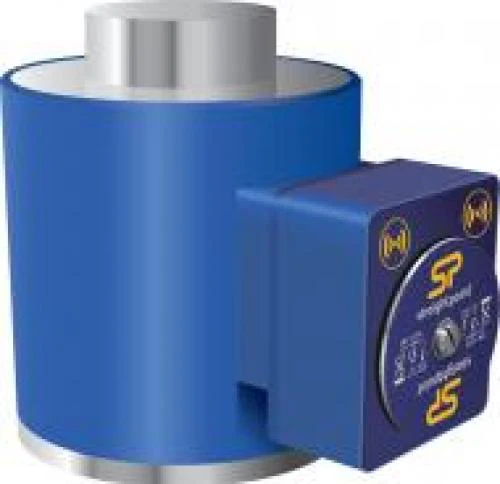

Straightpoint LoadSafe Wireless Compression Loadcells

Straightpoint's LoadSafe Wireless Compression Load Cell has taken the global lifting industry by storm as a cost-effective alternative to standard load compression cells.

SP's LoadSafe is manufactured from high-grade stainless steel, providing excellent strength and corrosion resistance. This heavy-duty, yet compact, Load Cell incorporated SP's advanced microprocessor-aligned electronics and benefits further with higher resolution and accuracy. Data transmission is handled by the SP wireless system, which is unmatched in performance and capable of license-free transmission range of up to 700m.

By investing, no longer will cables stop you in your tracks, enabling large-scale projects to be completed in a fraction of the time. Maintenance costs are all but eliminated through the removal of cables and connectors, so there is zero risk of breaking. The flexibility of this modern incarnation opens the door to an extensive range of industries including mining, defence, heavy rigging, shipping and general transportation - all that were previously not considered.

The systems' creative software solutions allow for the calculation of the centre of gravity, the ability to data log and print detailed reports, and also allow the simultaneous display and monitoring of up to 100 wireless load cells on a single PC screen.

• Proprietary 2.4 GHz wireless
• Industry leading wireless range
• Error-free data transmission
• Internal antennae
• No cable assemblies
• Unrivaled resolution
• Audible overload alarm
• Unmatched battery life
• Reduced maintenance costs
• Compact size
• Remote On/Off
• Design validated by F.E.A

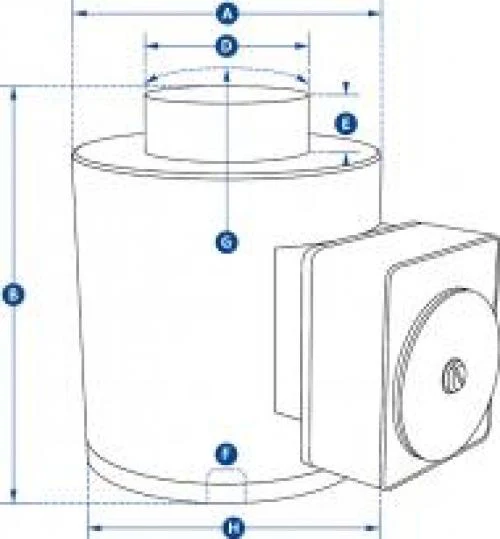

Model	Capacity (kg)	Weight (kg)	Saftey Factor	Batery Type	Operating Temperature	Frequency	System Range	Protection	A (mm)	B (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)
WNI5TC	5000kg	6.2	3:1	Load Cell 4xAA Alkaline	-10˚C upto 50˚C	2.4 GHz	700 Meters	IP67	102	127	59	13	M20x2.5	152	158
WNI10TC	10,000kg	6.2	3:1	Load Cell 4xAA Alkaline	-10˚C upto 50˚C	2.4 GHz	700 Meters	IP67	102	127	59	13	M20x2.5	152	158
WNI25TC	25,000kg	6.2	3:1	Load Cell 4xAA Alkaline	-10˚C upto 50˚C	2.4 GHz	700 Meters	IP67	102	127	59	13	M20x2.5	152	158
WNI50TC	50,000kg	6.2	3:1	Load Cell 4xAA Alkaline	-10˚C upto 50˚C	2.4 GHz	700 Meters	IP67	102	127	59	13	M20x2.5	152	158
WNI100TC	100,000kg	15.5	3:1	Load Cell 4xAA Alkaline	-10˚C upto 50˚C	2.4 GHz	700 Meters	IP67	152	184	80	26	M20x2.5	432	208
WNI150TC	150,000kg	15.5	3:1	Load Cell 4xAA Alkaline	-10˚C upto 50˚C	2.4 GHz	700 Meters	IP67	152	184	80	26	M20x2.5	432	208
WNI300TC	300,000kg	65	3:1	Load Cell 4xAA Alkaline	-10˚C upto 50˚C	2.4 GHz	700 Meters	IP67	185	300	155	27.5	M20x2.5	432	241
WNI500TC	500,000kg	65	3:1	Load Cell 4xAA Alkaline	-10˚C upto 50˚C	2.4 GHz	700 Meters	IP67	185	300	155	27.5	M20x2.5	432	241
