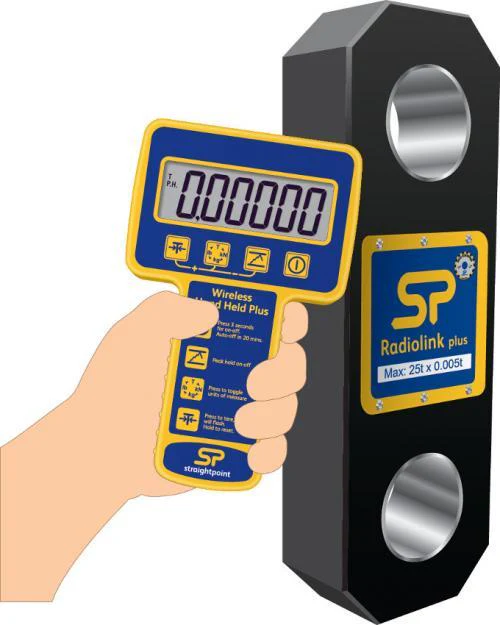

StraightPoint Radiolink Plus Handheld Wireless Load Cell

Straightpoint's Radiolink Plus Handheld wireless load cell has the capability to both weight and dynamically load monitor exceptionally heavy capacities of up to 500 tonnes .

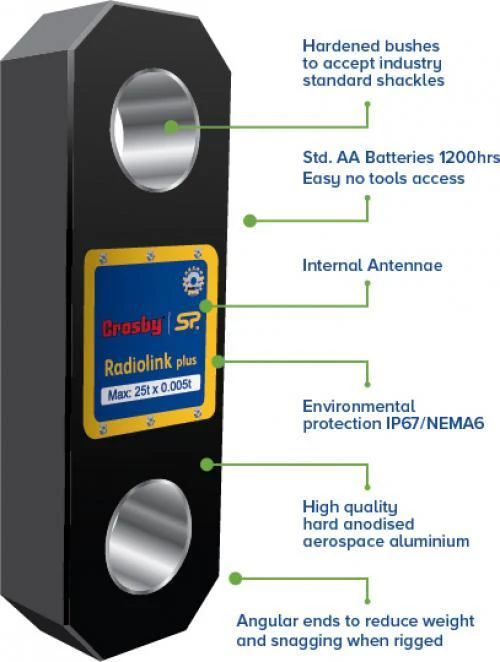

Manufactured from aircraft-grade aluminum boasting an unrivaled weight-to-performance ratio, the internal structure of the load links electrical components has a very high IP67 protection rating - even when the battery cover isn't available - meaning that this dynamometer is truly suited to even the harshest of operating environments.

At the pinnacle of the industry, the Radiolink Plus wireless technology perfectly combines long-range abilities with high-speed data transfer rates of up to 200Hz.

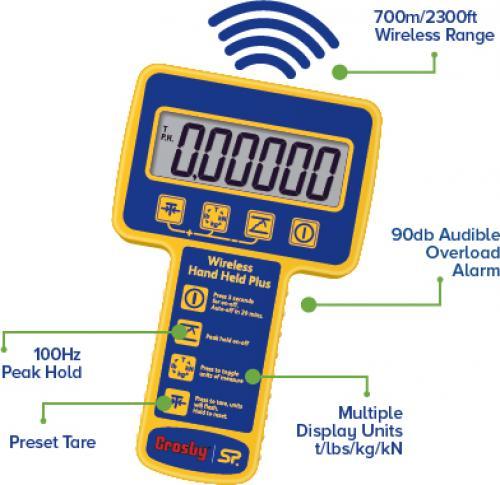

Courtesy of the 2.4GHz technology, the transmission of static and dynamic loads are performed safely and error-free to a battery-powered wireless hand control, as well as a computer/tablet/smartphone, equipped with load monitoring software.

*Powered by AA Alkaline Batteries. Includes handheld display

For more information, please don't hesitate to contact our Sales Team and download the Straightpoint Radiolink Plus Data Sheet from the downloads tab.

• 2.4 GHz Wireless
• Industry-leading wireless range
• Error-free data transmission
• Unrivaled Resolution
• Environmentally sealed
• Audible Overload Alarm
• Unmatched battery life
• Internal antennae
• Compact size
• Remote On/Off
• Lightweight
• Peak Hold
• Tare
• Design validated by F.E.A
• Includes handheld display

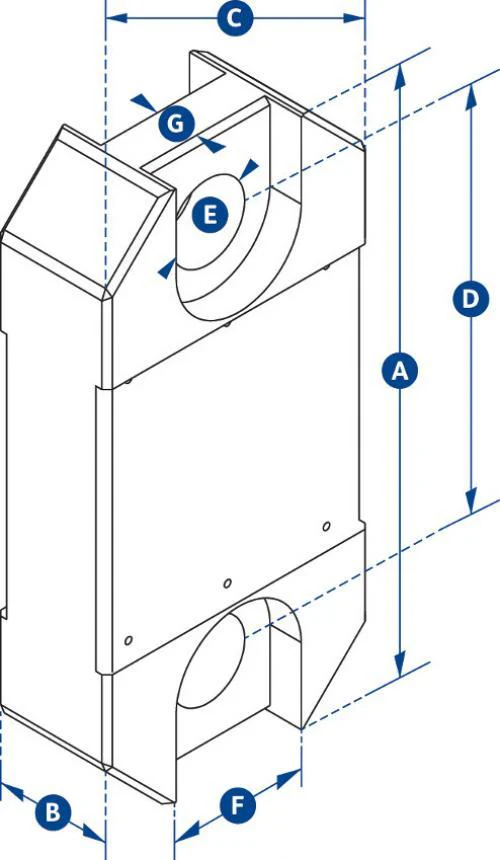

Model	Capacity	Saftey Factor	Weight (kg)	Battery Type	Display Type	Operating Temp	Frequency	System Range	Data Range	Protection	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	Crosby Shackle	Loading Pin (mm)
RLP1T	1000kg	12:1	1.4kg	Handheld 2 x AA Loadcell 4 x AA	6 Digit 25mm LCD	-10˚C to +50˚C	2.4 GHz	700 Meters	3Hz Up to 200Hz	IP67	204	43	101	146	24.5	48	19	G2130	19
RLP2T5	2500kg	5:1	1.4kg	Handheld 2 x AA Loadcell 4 x AA	6 Digit 25mm LCD	-10˚C to +50˚C	2.4 GHz	700 Meters	3Hz Up to 200Hz	IP67	204	43	101	146	24.5	48	19	G2130	19
RLP5T	5000kg	5:1	2.0kg	Handheld 2 x AA Loadcell 4 x AA	6 Digit 25mm LCD	-10˚C to +50˚C	2.4 GHz	700 Meters	3Hz Up to 200Hz	IP67	249	43	101	165	38	66	32	G2130	25
RLP12T	12,000kg	5:1	3.2kg	Handheld 2 x AA Loadcell 4 x AA	6 Digit 25mm LCD	-10˚C to +50˚C	2.4 GHz	700 Meters	3Hz Up to 200Hz	IP67	305	47	101	193	47.5			G2130	35
RLP25T	25,000kg	5:1	5kg	Handheld 2 x AA Loadcell 4 x AA	6 Digit 25mm LCD	-10˚C to +50˚C	2.4 GHz	700 Meters	3Hz Up to 200Hz	IP67	340	60	115	215	55			G2130	51
RLP35T	35,000kg	5:1	8.6kg	Handheld 2 x AA Loadcell 4 x AA	6 Digit 25mm LCD	-10˚C to +50˚C	2.4 GHz	700 Meters	3Hz Up to 200Hz	IP67	393	75	126	225	76			G2130	57
RLP50T	50,000kg	5:1	11.5kg	Handheld 2 x AA Loadcell 4 x AA	6 Digit 25mm LCD	-10˚C to +50˚C	2.4 GHz	700 Meters	3Hz Up to 200Hz	IP67	424	75	163	230	76			G2140	57
RLP75T	75,000kg	5:1	16kg	Handheld 2 x AA Loadcell 4 x AA	6 Digit 25mm LCD	-10˚C to +50˚C	2.4 GHz	700 Meters	3Hz Up to 200Hz	IP67	470	75	202	260	76			G2140	70
RLP100T	100,000kg	5:1	34kg	Handheld 2 x AA Loadcell 4 x AA	6 Digit 25mm LCD	-10˚C to +50˚C	2.4 GHz	700 Meters	3Hz Up to 200Hz	IP67	608	99	255	320	109			G2140	83
RLP150T	150,000kg	4:1	46kg	Handheld 2 x AA Loadcell 4 x AA	6 Digit 25mm LCD	-10˚C to +50˚C	2.4 GHz	700 Meters	3Hz Up to 200Hz	IP67	670	99	303	360	109			G2140	95
RLP200T	200,000kg	5:1	72kg	Handheld 2 x AA Loadcell 4 x AA	6 Digit 25mm LCD	-10˚C to +50˚C	2.4 GHz	700 Meters	3Hz Up to 200Hz	IP67	700	144	320	350	132			G2140	121
RLP250T	250,000kg	4:1	72kg	Handheld 2 x AA Loadcell 4 x AA	6 Digit 25mm LCD	-10˚C to +50˚C	2.4 GHz	700 Meters	3Hz Up to 200Hz	IP67	700	144	320	350	132			G2140	127
RLP300T	300,000kg	5:1	118kg	Handheld 2 x AA Loadcell 4 x AA	6 Digit 25mm LCD	-10˚C to +50˚C	2.4 GHz	700 Meters	3Hz Up to 200Hz	IP67	806	150	426	350	160			G2140	152
