Straightpoint S Beam Load Cell

Available in 500kg, 1 Tonne, 2 Tonne and 5 Tonne capacities, Straightpoint's S Beam Load Cell are specifically designed for smaller silo, vessel and tank weighing applications, as well as building into OEM projects such as machine testing.

Hardwired as standard, the S Beam Load Cell is supplied with a 10m cable, and can be directly connected to other Straightpoint applications such as the Handheld Plus.

Boasting high accuracy and endurance characteristics, the compact design and be utilized in the highest spaces, while the fully sealed design is IP67 rated, further adding to its durability and robustness.

Compatible in both compression and tension, the S Beam Load Cells have a thread hole at either end making them a very flexible solution. Fixing options include thread bar, rod end bearings and eye bolts.

• Fully sealed up to IP67
• High accuracy
• High endurance
• Built-in overload protection
• Compact design for use in a tight environment
• In both tension and compression
• Single point construction

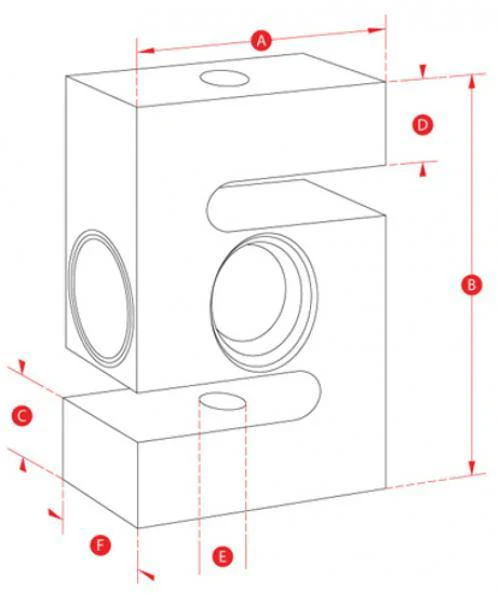

Model	Capacity (kg)	Weight (kg)	Saftey Factor	Operating Temperture	Protection	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)
SB500K	500	0.9	5:1	-30˚C Up to 80˚C	IP67	70	90	19	19	M12x1.75	32
SB1T	1000	0.9	5:1	-30˚C Up to 80˚C	IP67	70	90	19	19	M16x2	32
SB2T	2000	0.9	5:1	-30˚C Up to 80˚C	IP67	70	90	19	19	M16x2	32
SB5T	5000	1.9	5:1	-30˚C Up to 80˚C	IP67	100	120	26	26	M24x2	45
