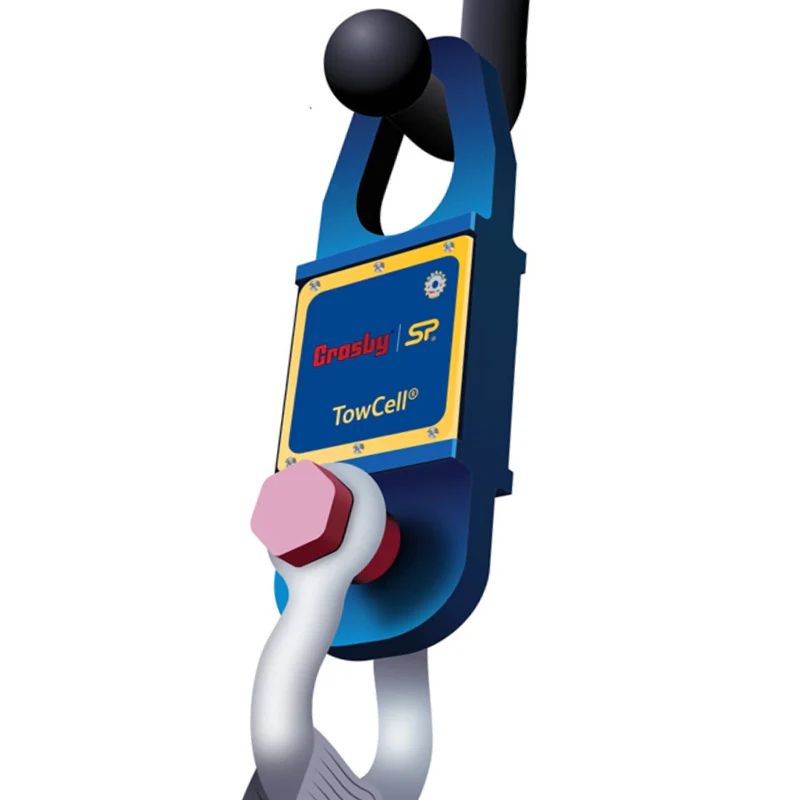

Straightpoint Towcell Towbar Load Cell

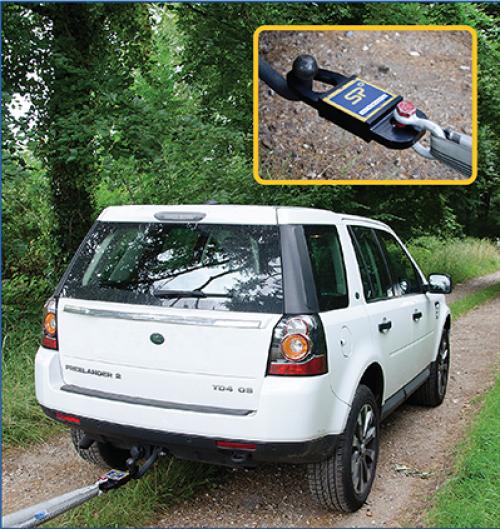

Designed and manufactured for precise vehicle load monitoring, as well as emergency services and rescue & salvage operations, Straightpoint's 25kN wireless tension Towbar Load Cell - TOWCELL - has been engineered to provide increased safety through the avoidance of costly overloads by delivering real-time monitoring of tensile towing forces during recovery, clearance, and salvage situations.

Modeled on Straightpoint's popular 'RadioLink Plus, ' Towcell boasts a compact and lightweight profile, but remains a truly rugged piece of equipment courtesy of its aircraft-grade aluminum structure that offers an excellent strength-to-weight ratio. The separate internal structure means that all internal electronic components are IP67 and NEMA6 protected, adding to its robustness, providing peace of mind that you won't short circuit.

Operated via 2 conventional AA alkaline batteries, Towcell can be installed in a matter of seconds and offers an exceptional 500 hours service life (Battery Life).

• 500hr battery life
• Bluetooth connection range 100m (328ft)
• IP67 and NEMA6 certified
• Fits any standard 2” tow-hitch
• 2 year warranty
• F.E.A. validated design
• RFID tagged

TOWCELL SPECIFICATIONS
Part Number:	Towcell-Bluetooth
Capacity	25kN
Resolution	0.01kN
Weight	1.4kg
	3lbs
Safety Factor	5:1
Battery Type	4 x AA alkaline batteries
Battery Life	500Hrs continuous
Operating Temp	-10°c to +50°c / 14˚ to 122˚F
Accuracy	+/- 0.1% FS
Range	100 metres / 328 feet
Data Rate	50Hz
Protection	IP67 / NEMA6

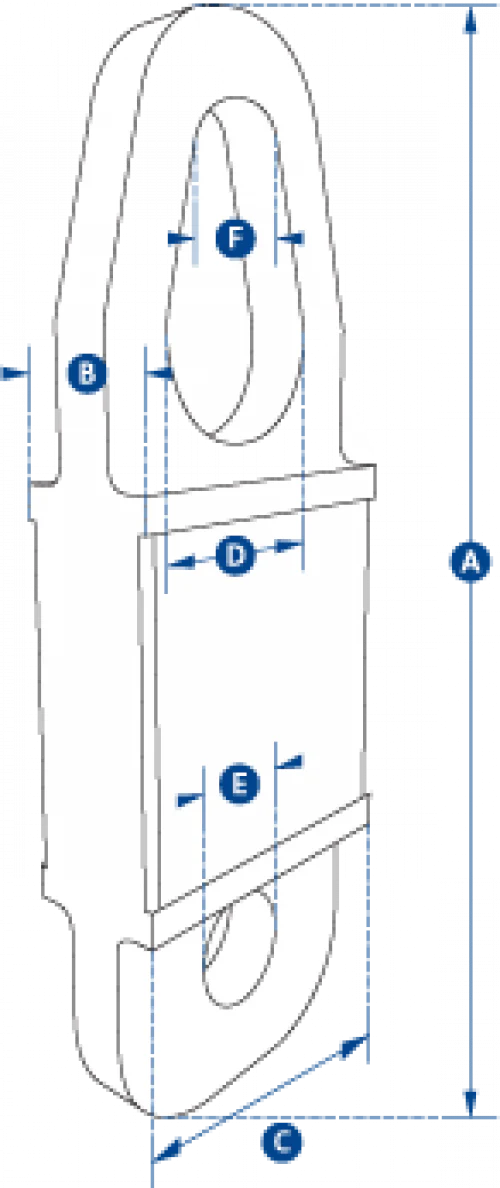

Dimension A	300mm
	11.81"
Dimension B	43mm
	1.70"
Dimension C	104mm
	4.09"
Dimension ØD	51mm
	2.00"
Dimension ØE	27mm
	1.06"
Dimension ØF	31mm
	1.22"
