Vestil Structural Rack Guards

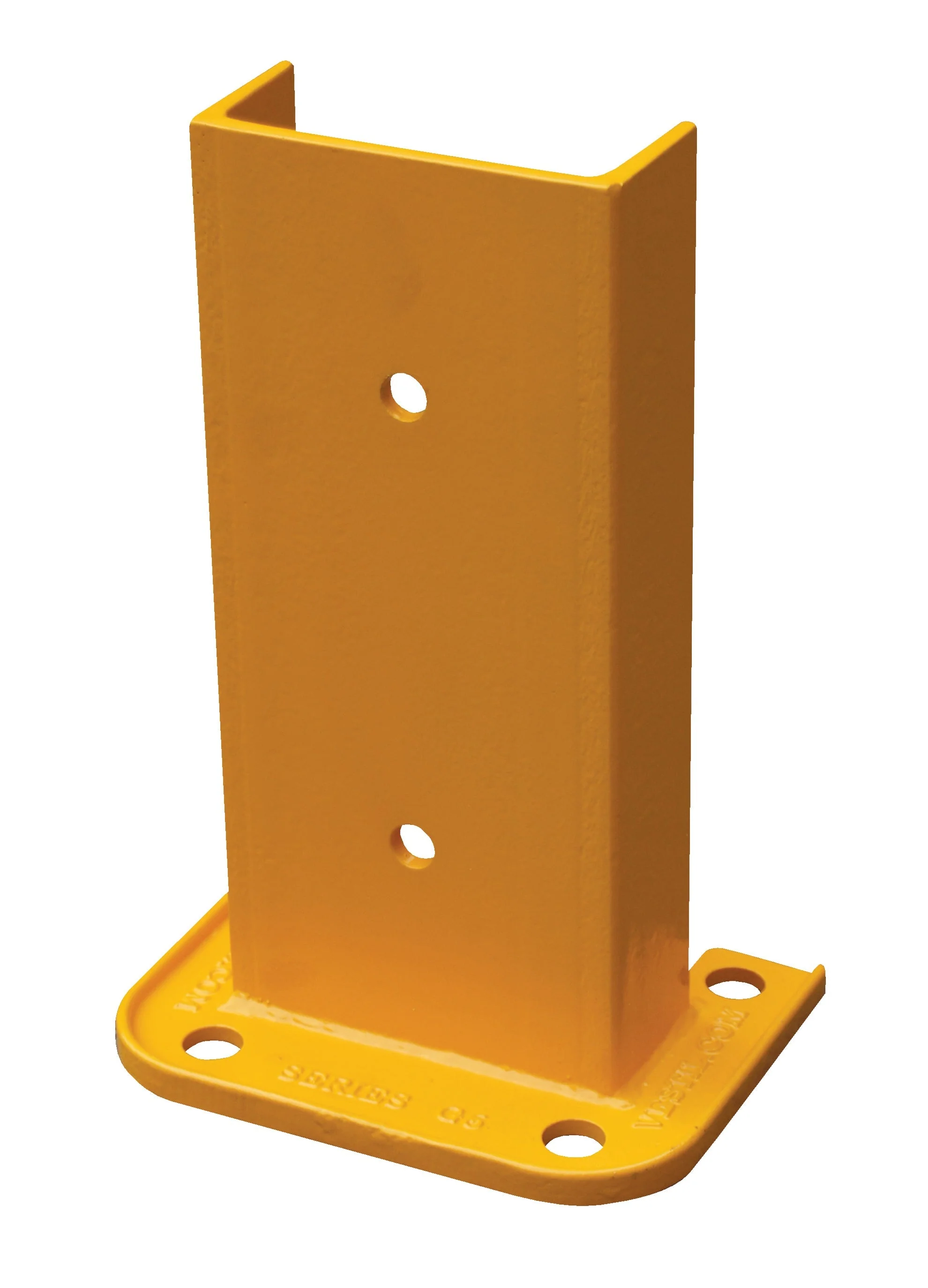

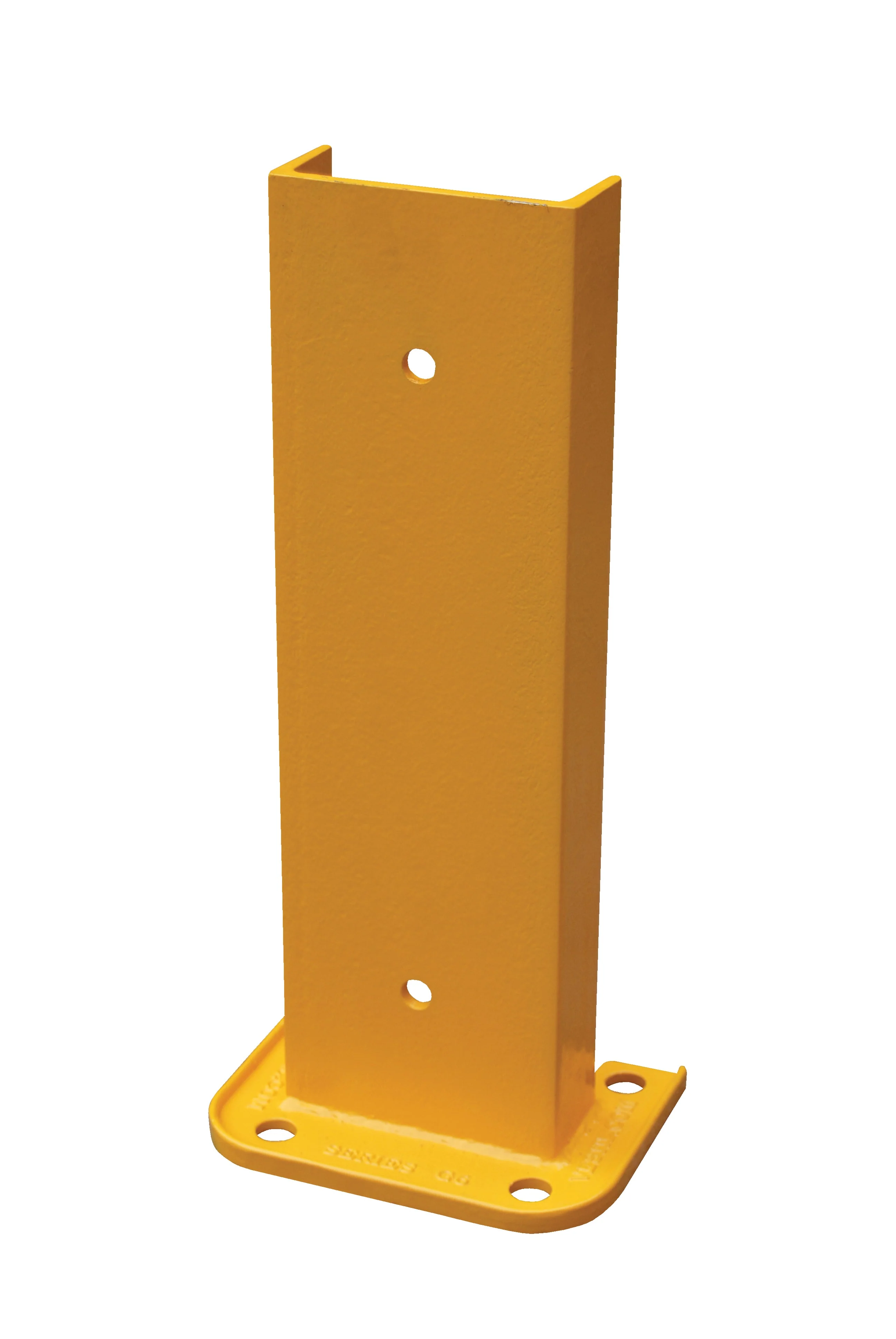

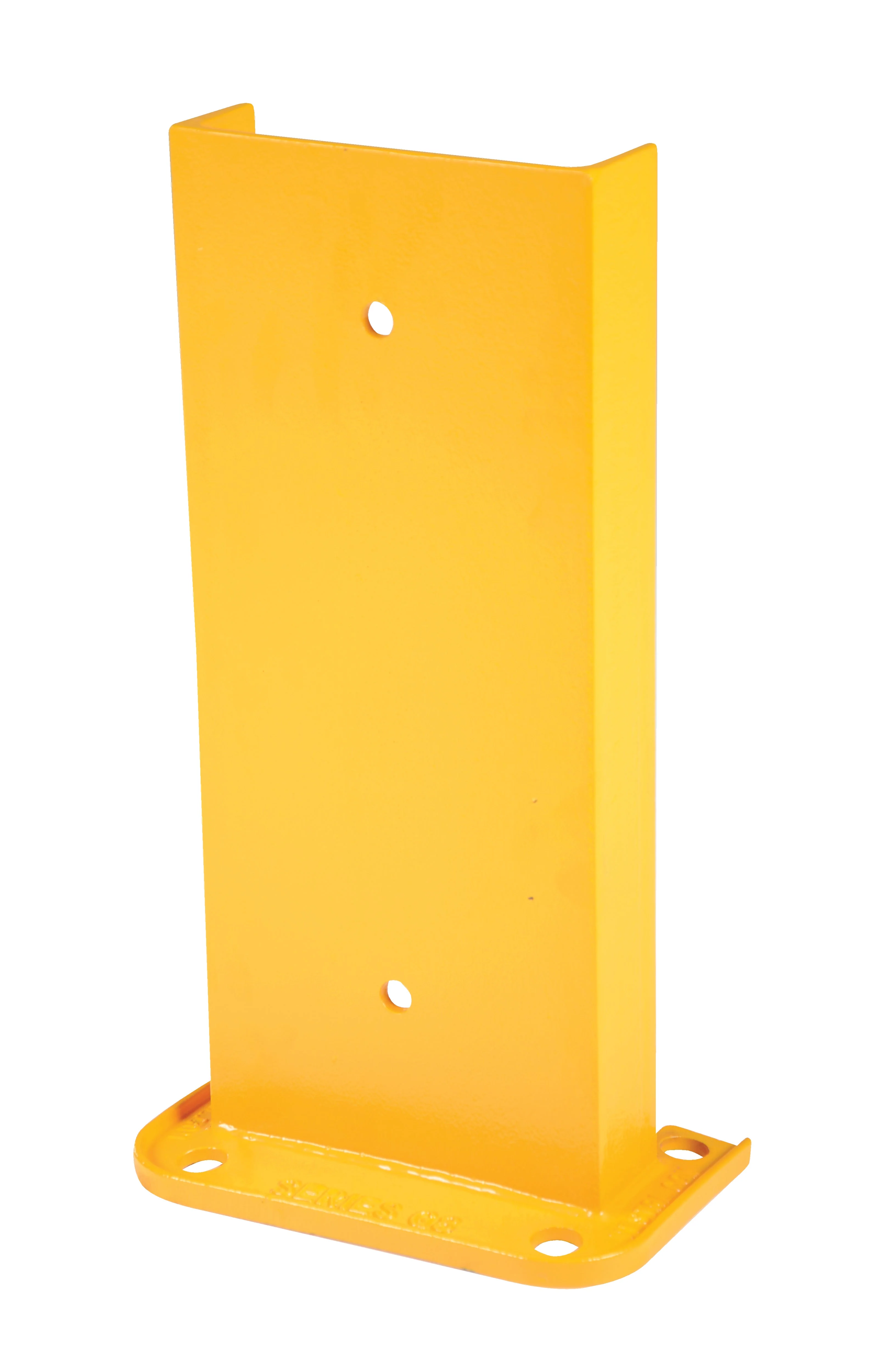

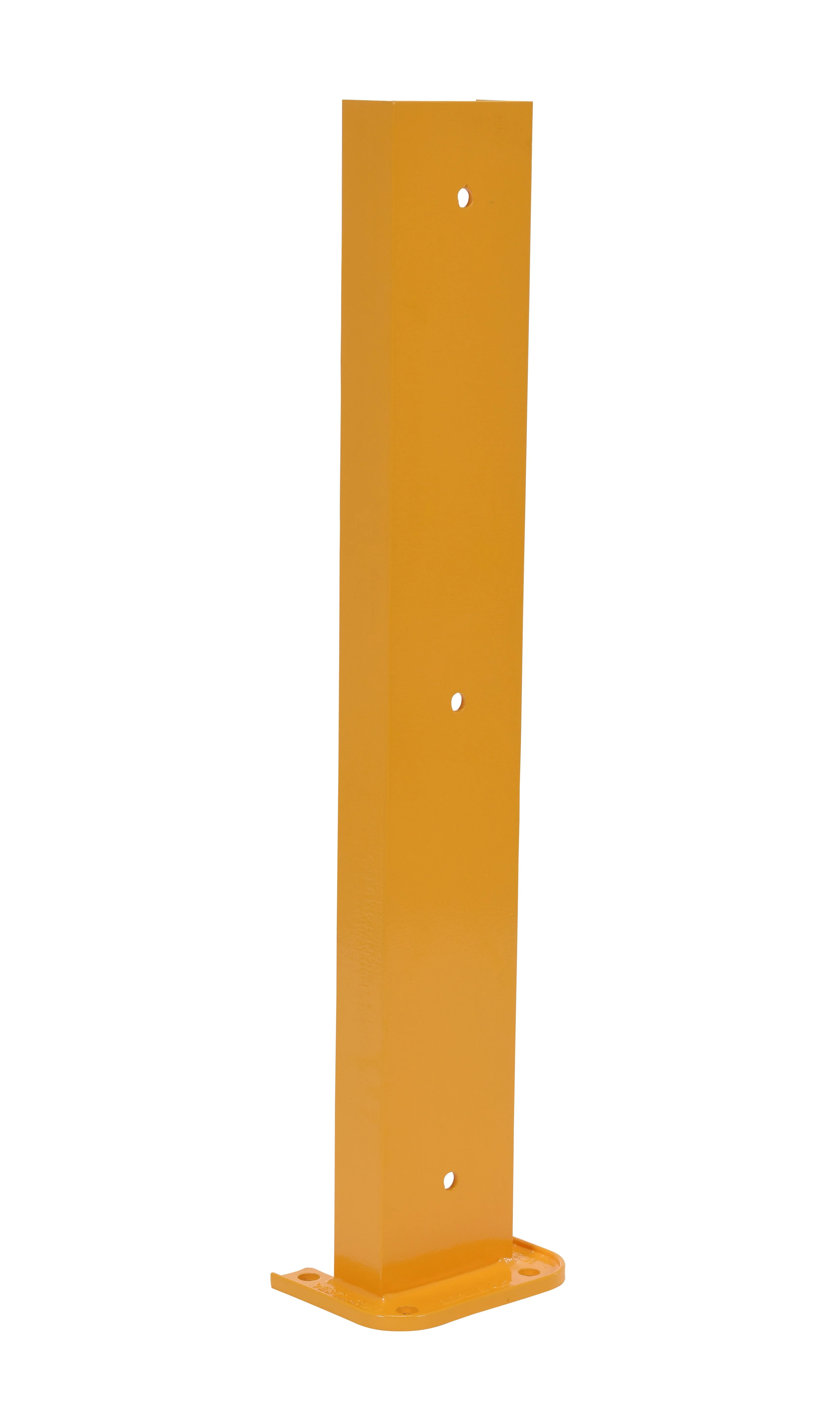

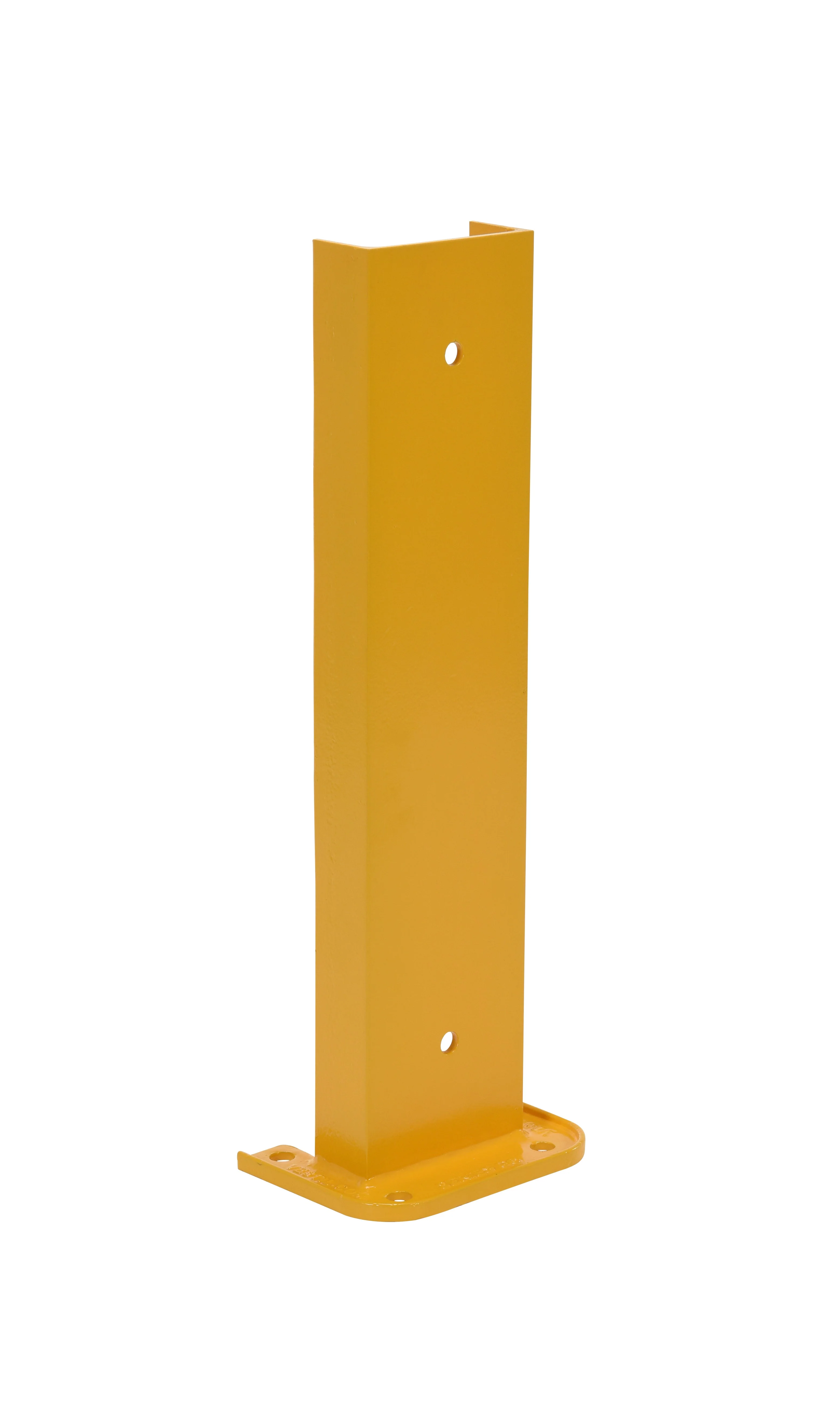

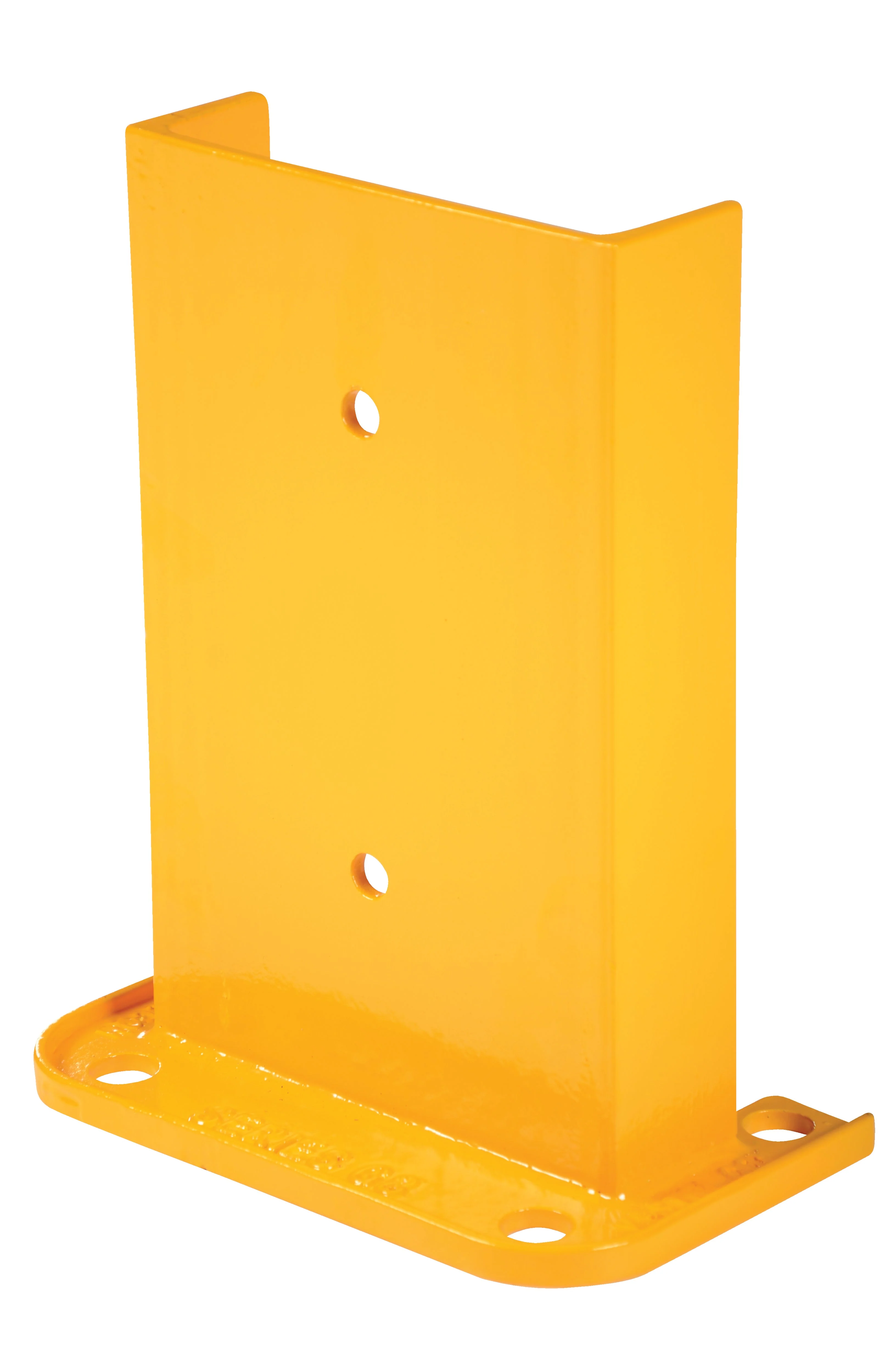

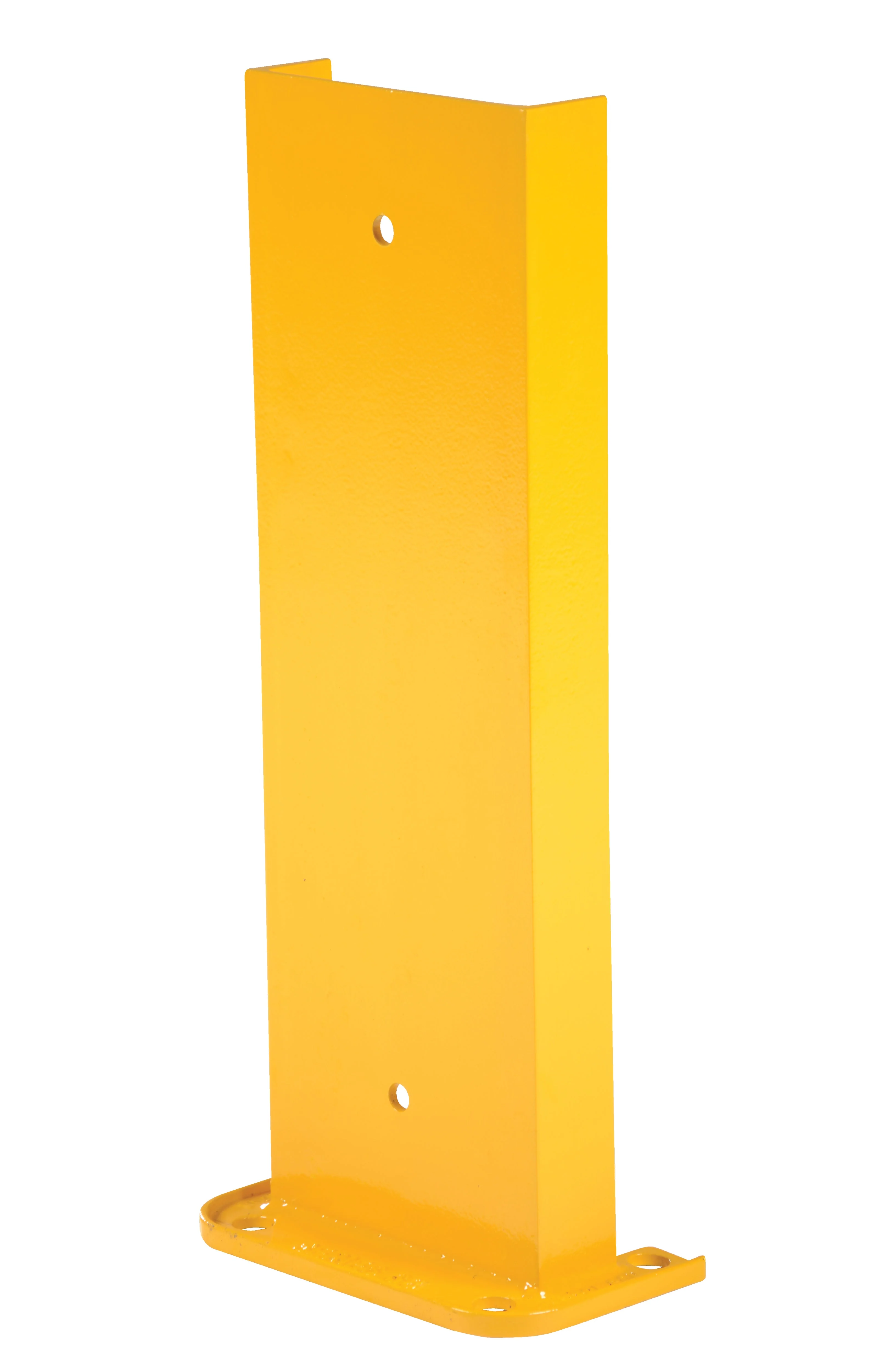

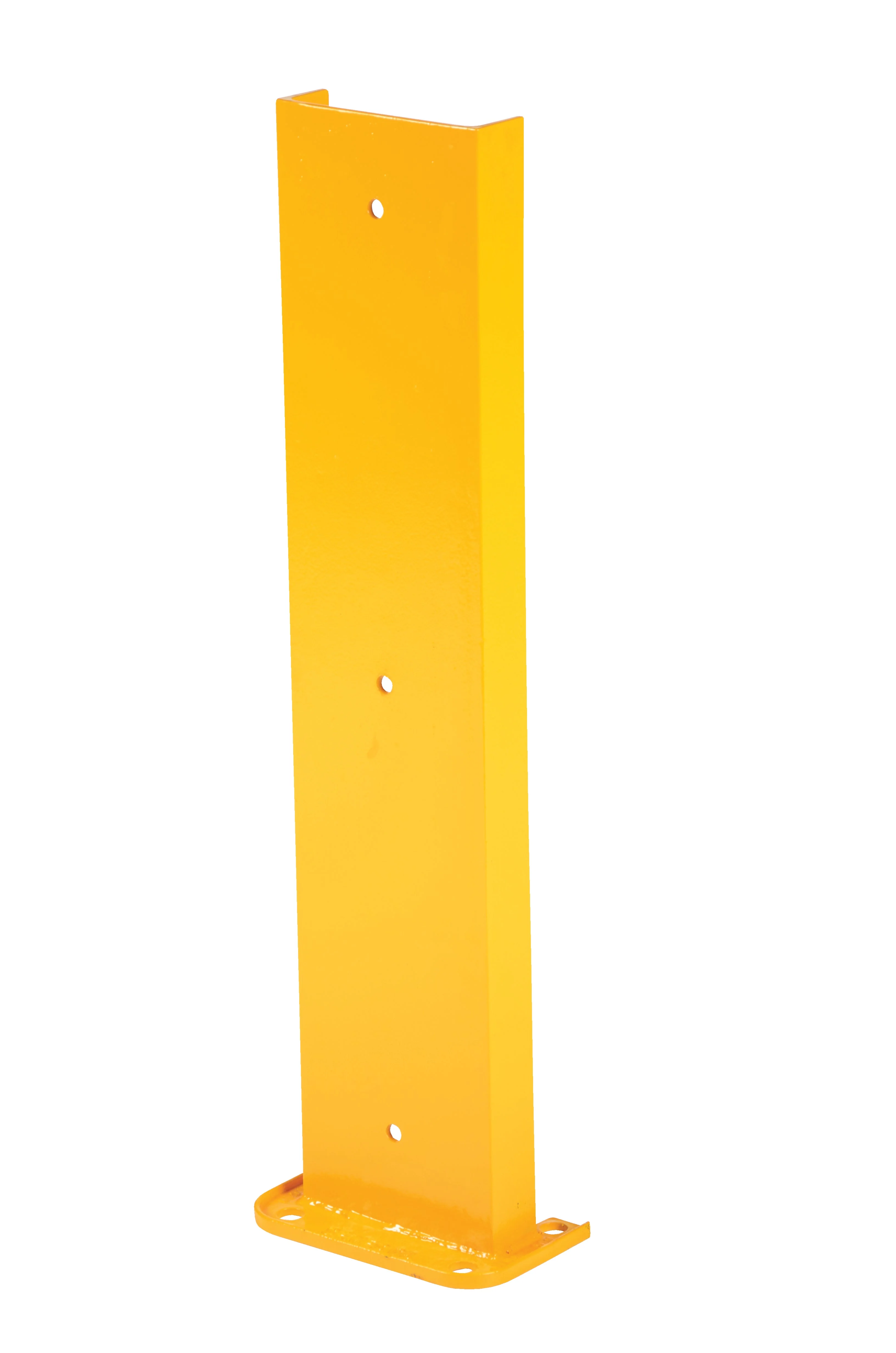

Economical way to protect against damage to pallet racking and wall corners. Constructed of 6" or 8" steel "C" channel for durability. Available with or without a rubber bumper. Easy to install to concrete surface. Four mounting holes for maximum stability. Safety yellow Baked-in powder-coated toughness. Models G6 require 1/2" anchor bolts. Models G8 require 3/4" anchor bolts. Installation hardware sold separately.
| Structural Rack Guards | ||||
| Model | Overall Height |
Usable Opening (WxD) |
Overall Base (WxD) |
Wt. (lbs) |
| G6-12 | 12-1/4" | 4-9/16" x 3-11/16" | 8-1/16"x6" | 12 |
| G6-18 | 18-1/4" | 4-9/16" x 3-11/16" | 8-1/16"x6" | 16 |
| G6-24 | 24-1/4" | 4-9/16" x 3-11/16" | 8-1/16"x6" | 22 |
| G6-36 | 36-1/4" | 4-9/16" x 3-11/16" | 8-1/16"x6" | 31 |
| G8-12 | 12-1/4" | 6-9/16" x 3-11/16" | 10-1/16"x6" | 13 |
| G8-18 | 18-1/4" | 6-9/16" x 3-11/16" | 10-1/16"x6" | 21 |
| G8-24 | 24-1/4" | 6-9/16" x 3-11/16" | 10-/16"x6" | 28 |
| G8-36 | 36-1/4" | 6-9/16" x 3-11/16" | 10-1/16"x6" | 37 |

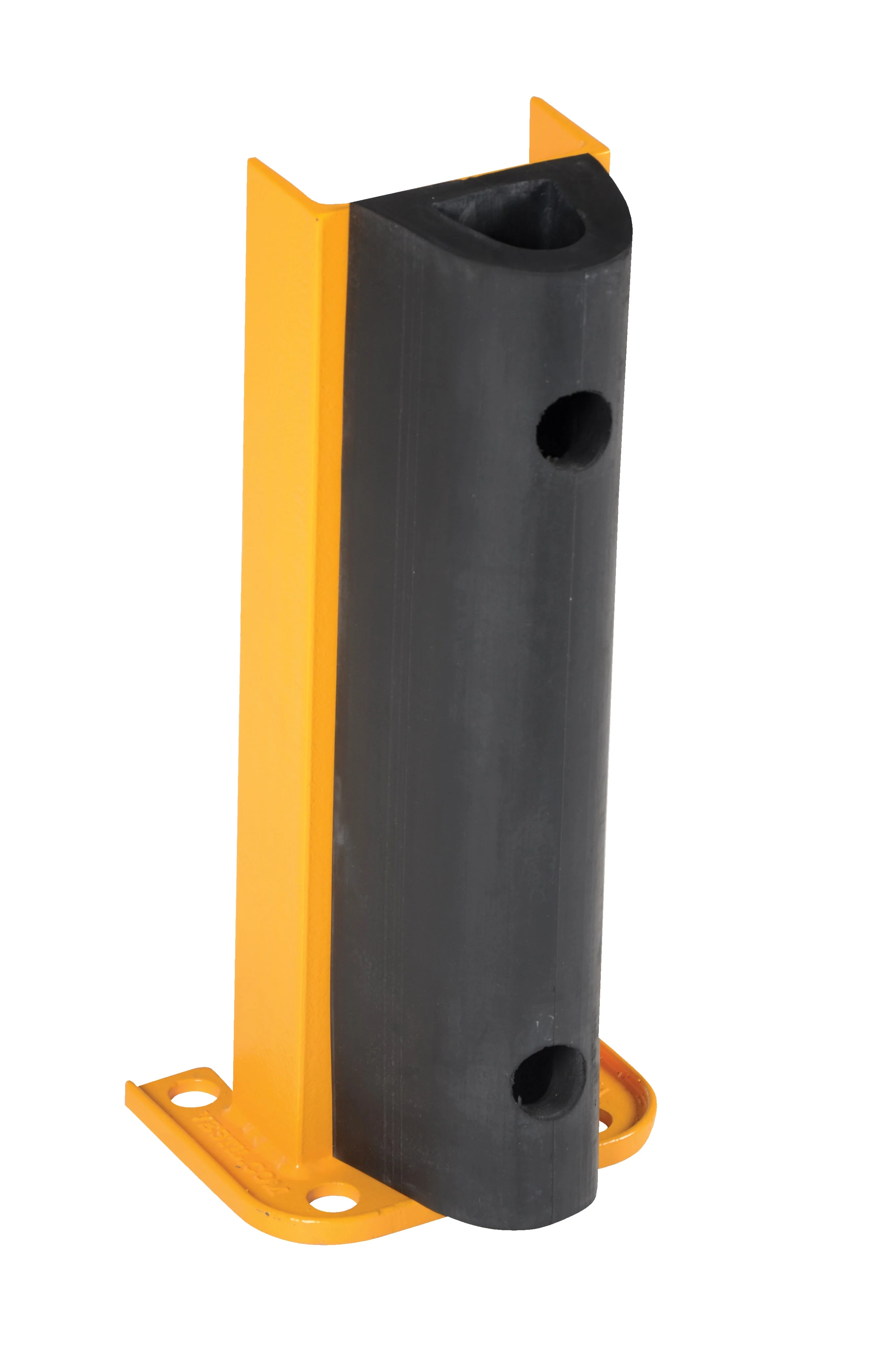

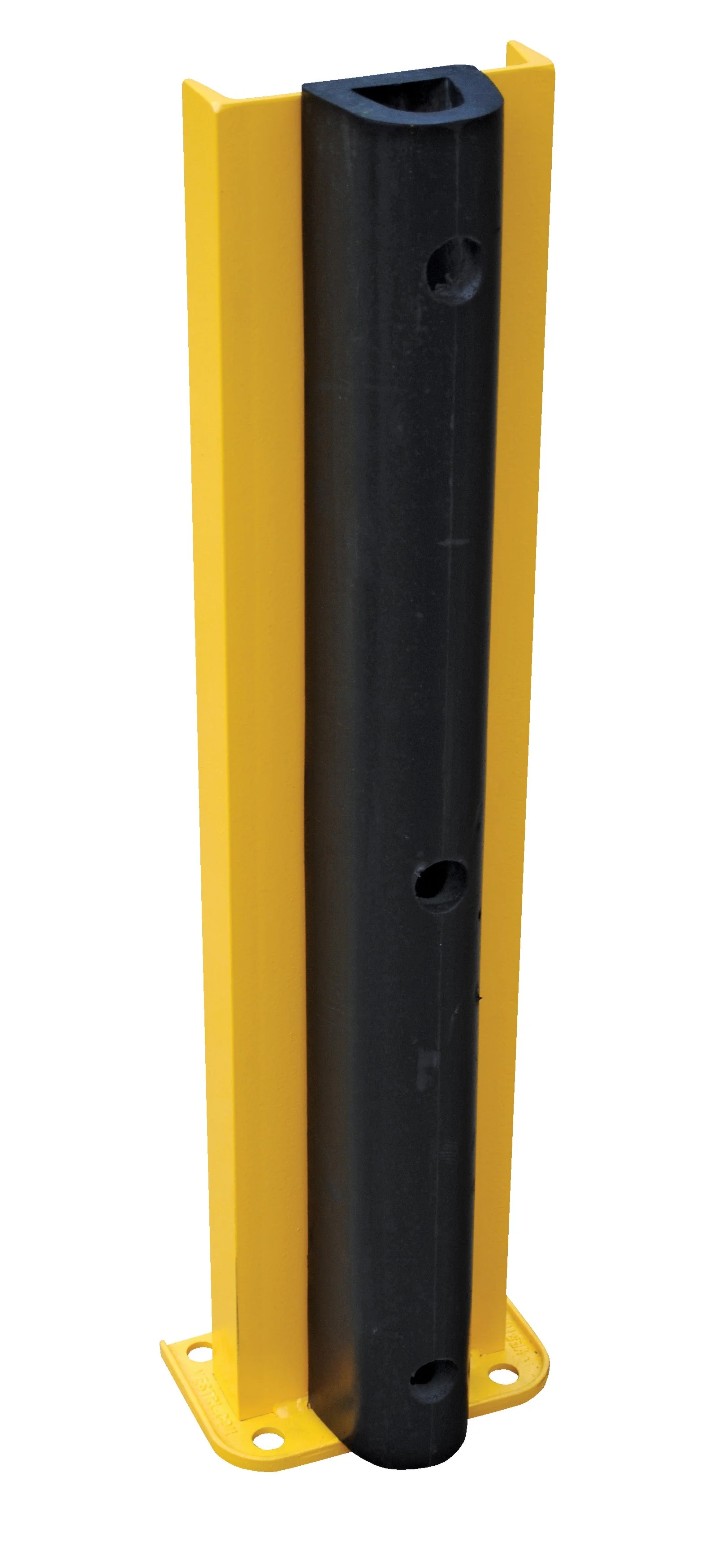

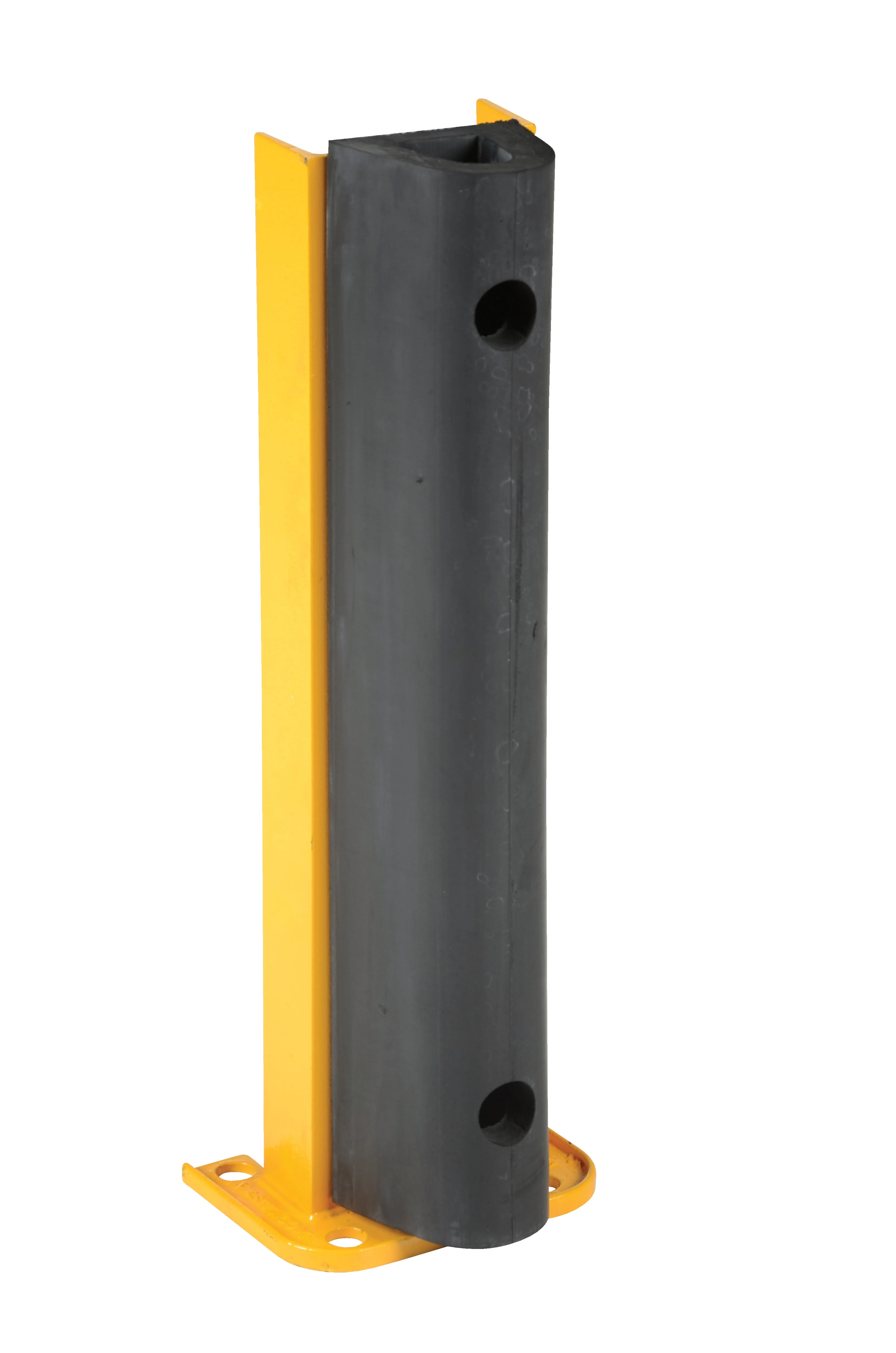

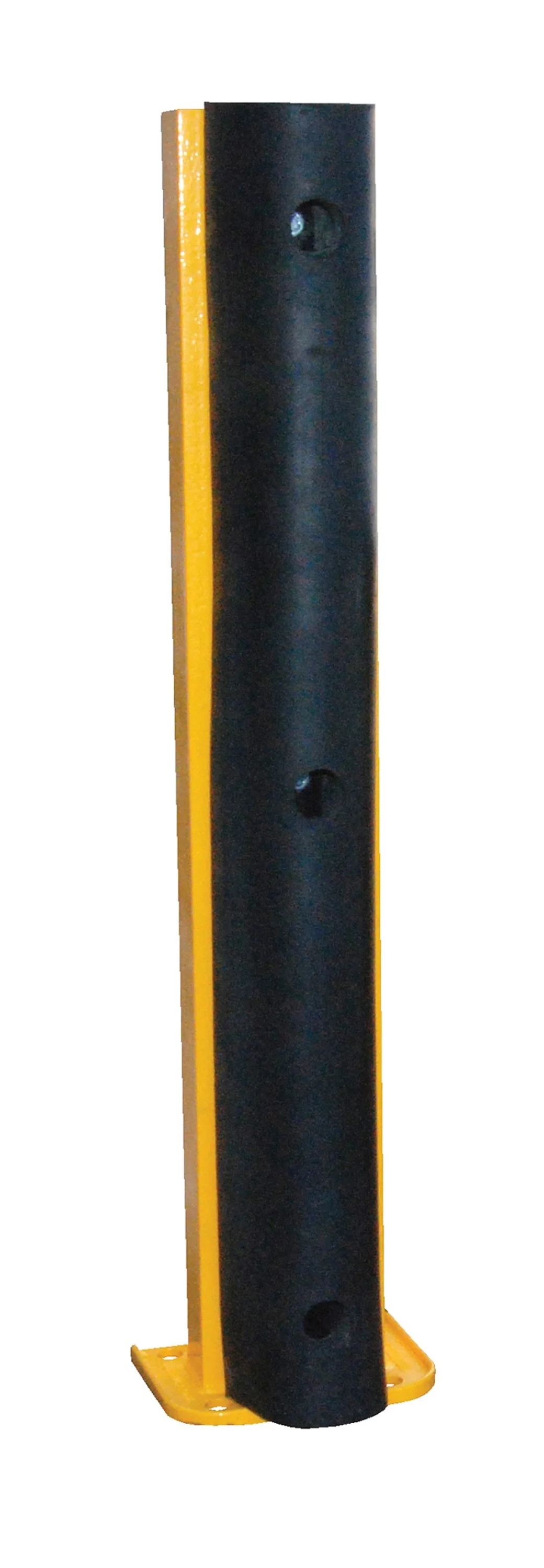

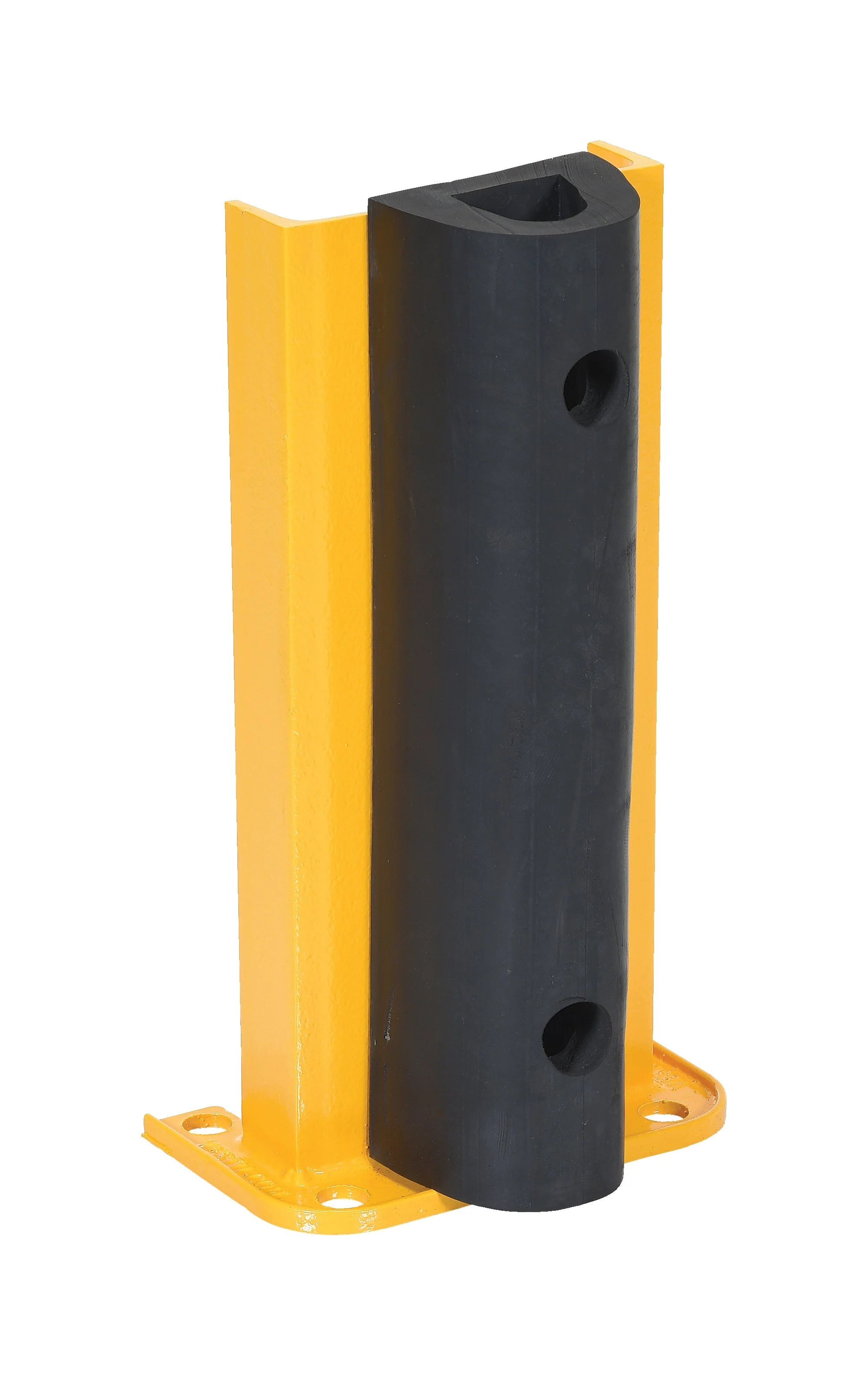

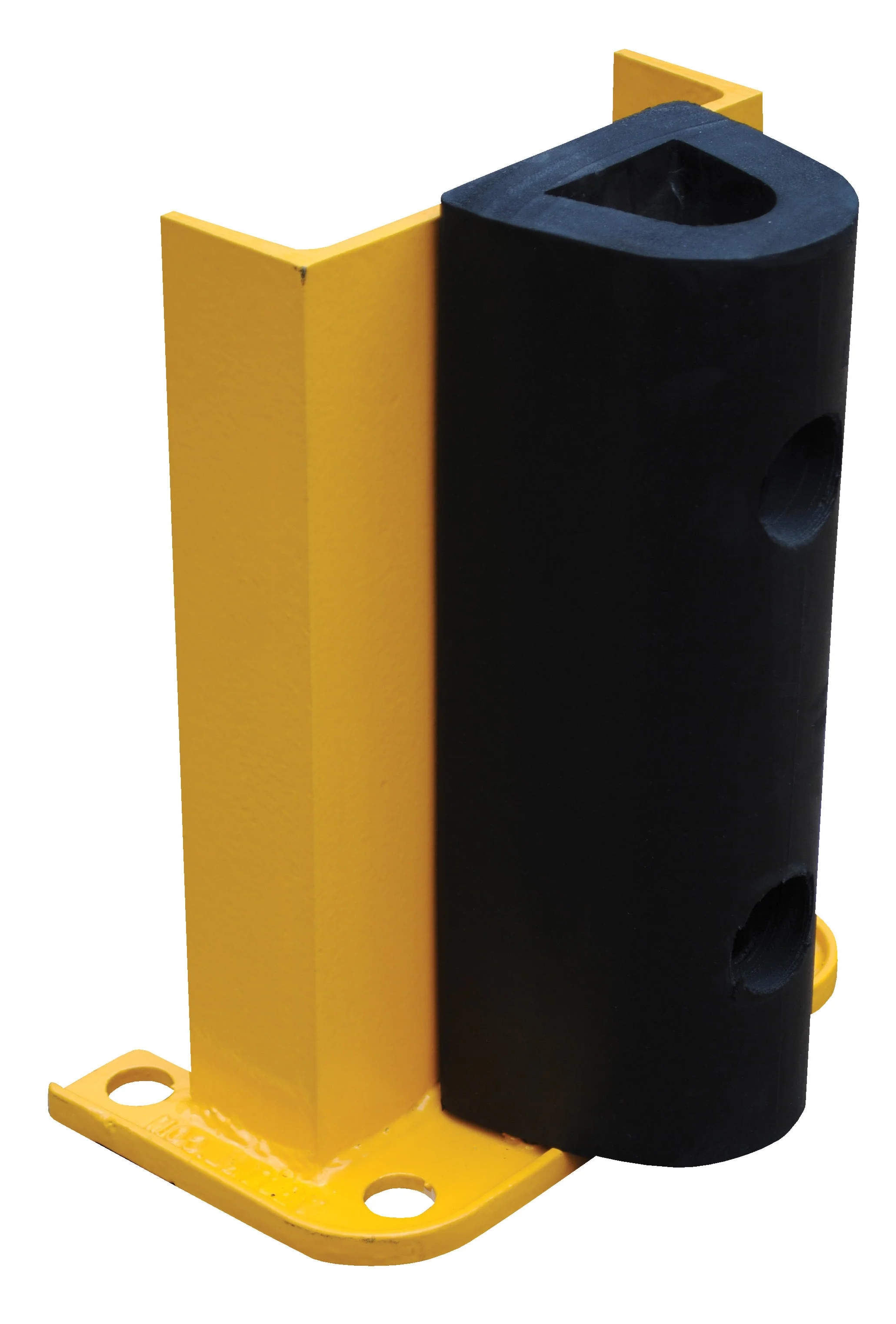

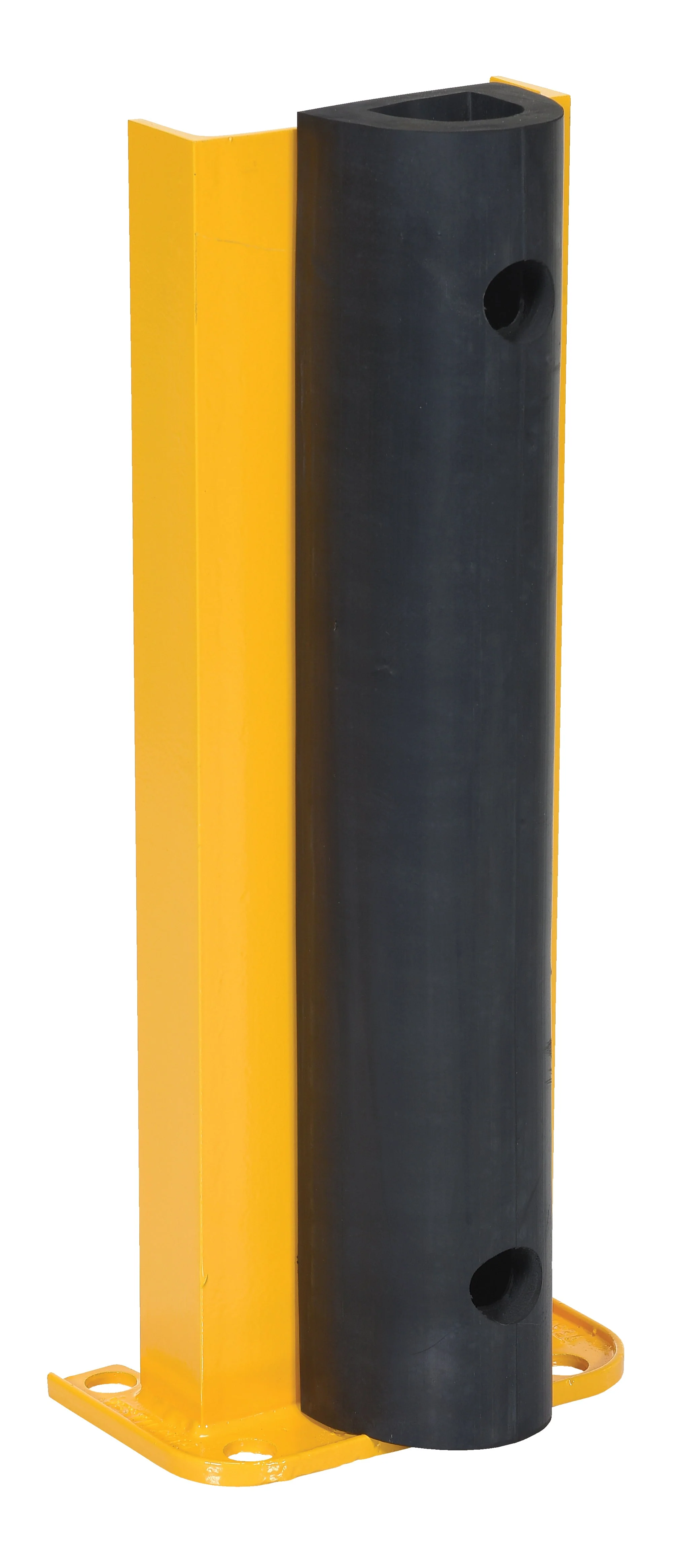

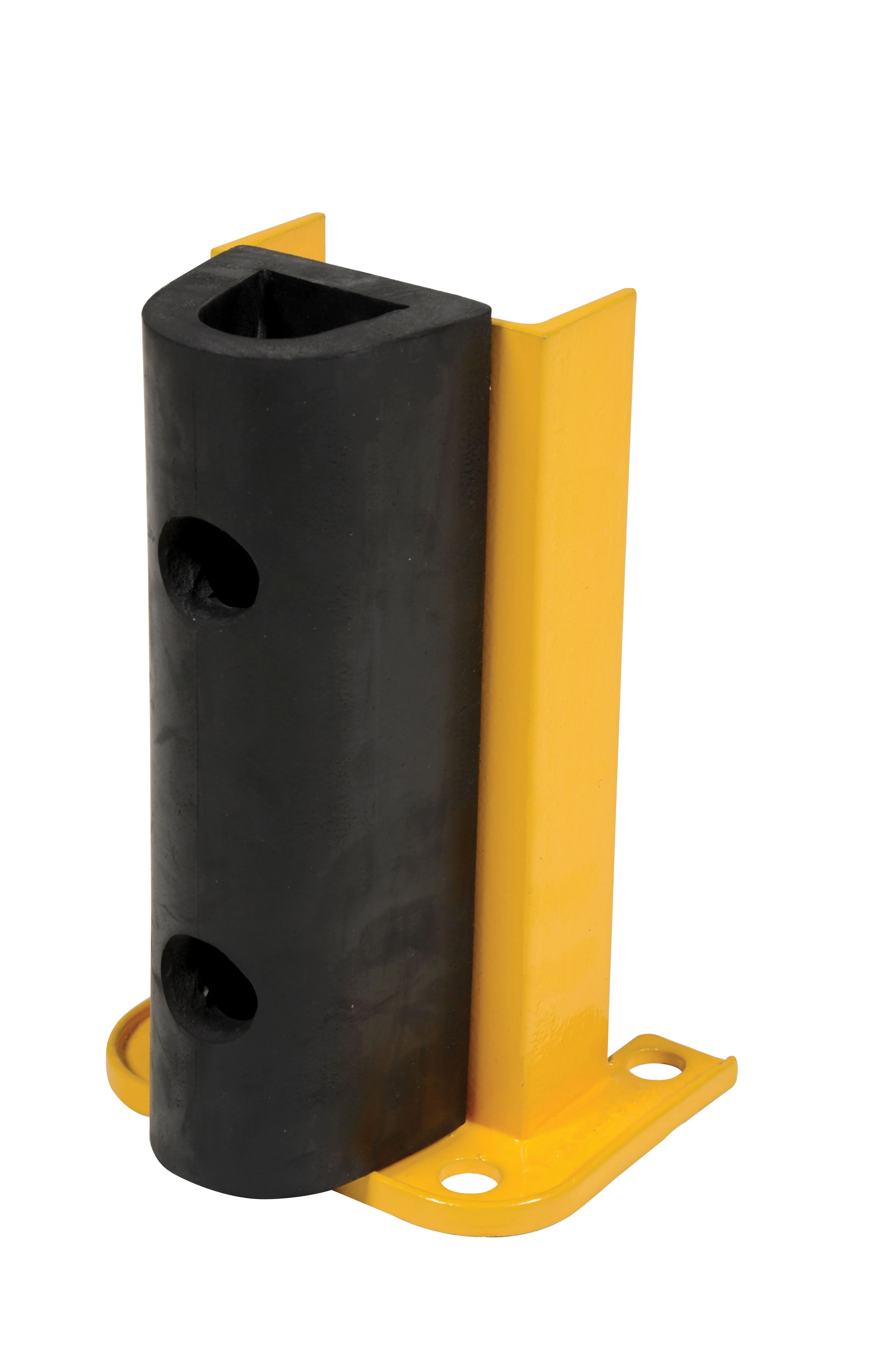

| Structural Rack Guards with Rubber Bumpers | ||||
| Model | Overall Height |
Usable Opening (WxD) |
Overall Base (WxD) |
Wt. (lbs) |
| G6-12-B | 12-1/4" | 4-9/16" x 3" | 8-1/16"x7-3/4" | 19 |
| G6-18-B | 18-1/4" | 4-9/16" x 3" | 8-1/16"x7-3/4" | 25 |
| G6-24-B | 24-1/4" | 4-9/16" x 3" | 8-1/16"x7-3/4" | 42 |
| G6-36-B | 36-1/4" | 4-9/16" x 3" | 8-1/16"x7-3/4" | 44 |
| G8-12-B | 12-1/2" | 6-9/16"x 2-3/4" | 10-1/16"x7-13/16" | 23 |
| G8-18-B | 18-1/2" | 6-9/16" x 2-3/4" | 10-1/16"x7-13/16" | 38 |
| G8-24-B | 24-1/2" | 6-9/16" x 2-3/4" | 10-1/16"x7-13/16" | 51 |
| G8-36-B | 36-1/2" | 6-9/16" x 2-3/4" | 10-1/16"x6" | 53 |
