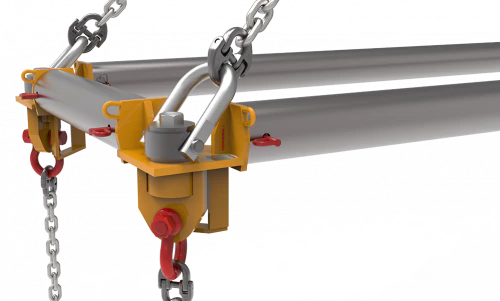

Tandemloc 4 Inch Corner Caps
Often there isn’t a one-size-fits-all product available, so why not create your own lifting frame with Tandemloc’s 4” corner caps.
Purchase your pipe lengths from your local supplier, and simply drill a hole in each end of the pipe for the retaining pin, allowing you to create the exact frame size that you need.
Tandemloc’s 4” corner caps are very efficient, economical and portable, allowing you to make excellent savings in the cost of freight.
Each corner cap is designed and manufactured to meet ASME B30.20 and BTH-1 requirements.
- ASME 30.20 and BTH-1 compliant
- WLL: 7072lbs
- Proof tested to 125% of WLL
| Maximum WLL @ 45° per Set of 4 | 28,288 LBS |
| Spreader Pipe Size | 4 Inches |
Original: $3,840.12
-65%$3,840.12
$1,344.04
Description
Often there isn’t a one-size-fits-all product available, so why not create your own lifting frame with Tandemloc’s 4” corner caps.
Purchase your pipe lengths from your local supplier, and simply drill a hole in each end of the pipe for the retaining pin, allowing you to create the exact frame size that you need.
Tandemloc’s 4” corner caps are very efficient, economical and portable, allowing you to make excellent savings in the cost of freight.
Each corner cap is designed and manufactured to meet ASME B30.20 and BTH-1 requirements.
- ASME 30.20 and BTH-1 compliant
- WLL: 7072lbs
- Proof tested to 125% of WLL
| Maximum WLL @ 45° per Set of 4 | 28,288 LBS |
| Spreader Pipe Size | 4 Inches |
